ZZE110L-DEHRKK (1997)
Toyota Corolla Nap/Sed
Production
Aug 1997
-
Aug 1999
Engine
1ZZFE
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )3FC

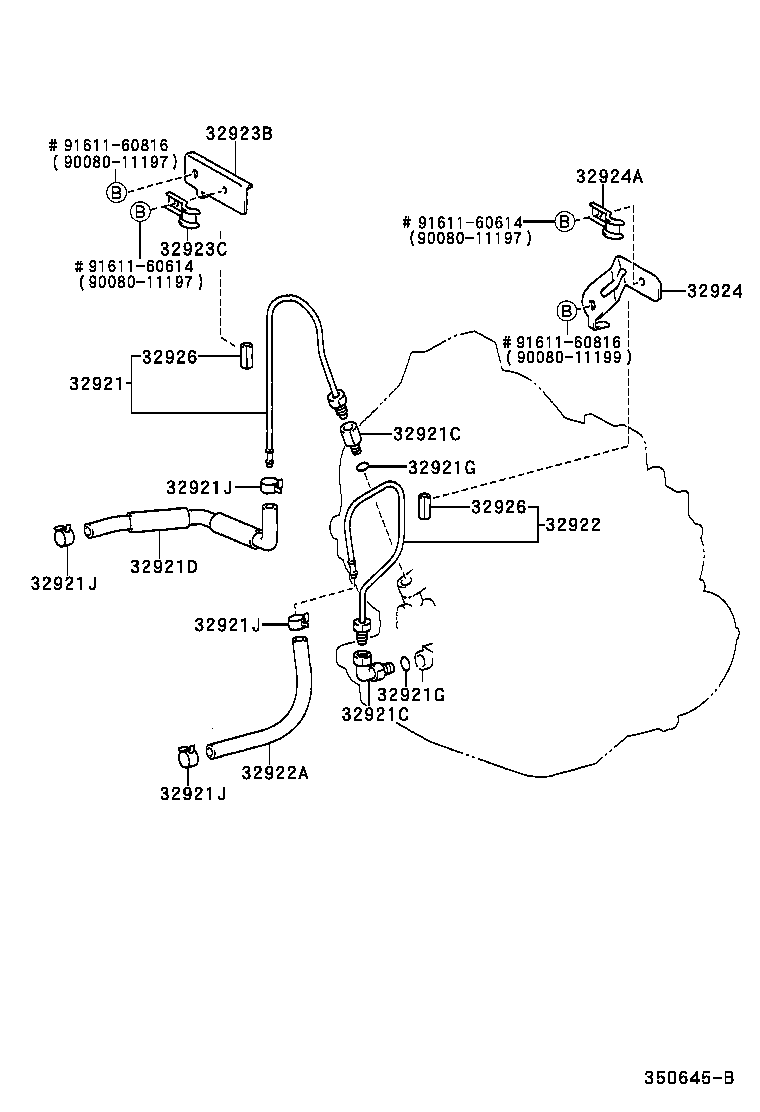

Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-02120 |
ZZE110..3FC *101 |
1 | ||
| 32921-02110 |
ZZE110..3FC *100 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
ZZE110..3FC OUTLET |
1 | ||
| 32901-12030 |
ZZE110..3FC INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-14003 |
ZZE110..3FC OUTLET |
1 | ||
| 32901-12030 |
ZZE110..3FC INLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-02070 |
ZZE110..3FC *101 |
1 | ||
| 32941-12300 |
ZZE110..3FC *100 |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZZE110..3FC |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
ZZE110..3FC |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90080-46071 |
ZZE110..ATM *101 |
2 | ||
| 90467-13039 |
ZZE110..ATM *100 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90080-46071 |
ZZE110..ATM *101 |
2 | ||
| 90467-13039 |
ZZE110..ATM *100 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90080-46071 |
ZZE110..ATM *101 |
2 | ||
| 90467-13039 |
ZZE110..ATM *100 |
4 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90080-46071 |
ZZE110..ATM *101 |
2 | ||
| 90467-13039 |
ZZE110..ATM *100 |
4 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-01031 |
ZZE110..3FC *101 |
1 | ||
| 32922-02090 |
ZZE110..3FC *100 |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-15073 |
ZZE110..3FC *100 |
1 | ||
| 90080-44101 |
ZZE110..3FC *101 |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-02060 |
ZZE110..3FC |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-10082 |
ZZE110..3FC |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-02020 |
ZZE110..3FC |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-10082 |
ZZE110..3FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
ZZE110..ATM L=30,ID=8,*100 |
2 | ||
| 32926-02010 |
ZZE110..ATM L=30,ID=8,*101 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-10010 |
ZZE110..ATM L=30,ID=8,*100 |
2 | ||
| 32926-02010 |
ZZE110..ATM L=30,ID=8,*101 |
2 | ||
| Common parts | ||||
| 90080-11197 | ||||
| 90080-11199 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
