AE102L-DEMNKK (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

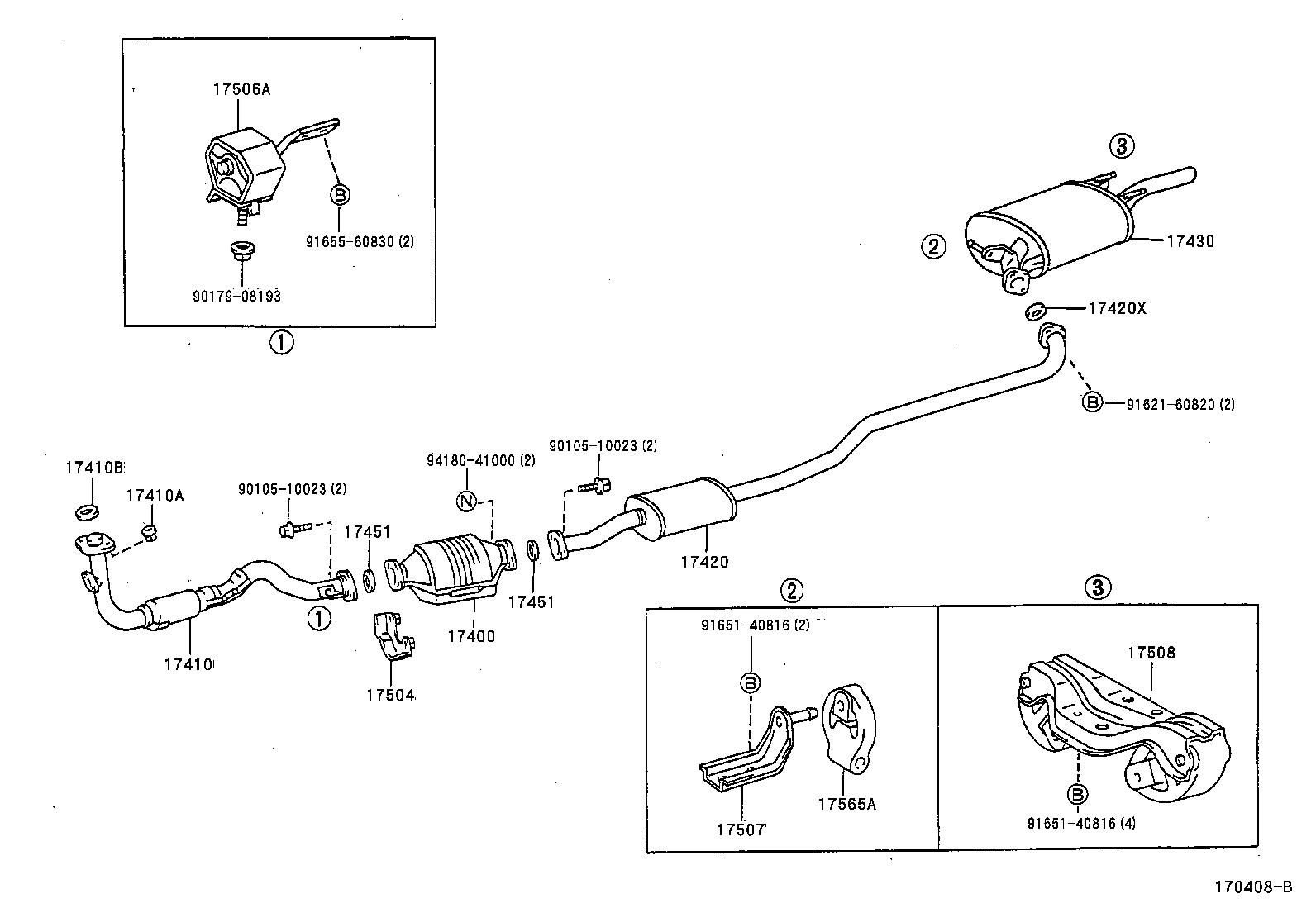

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17420 17420X 17430 17451 17451 17504 17506A 17507 17508 17565A 9010510023 9010510023 9017908193 9162160820 9165140816 9165140816 9165560830 9418041000
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-01070

4AFE,7AFE..AE10#..NAP

 1
18450-16520

4AFE,7AFE..AE10#..NAP

(J)

 1
18450-01060

4AFE,7AFE..AE10#..NAP

(L)

 1
18450-01080

7AFE..AE102..NAP

(L)

 1
18450-01080

4AFE,7AFE..AE10#..NAP

(L)

 1
18450-16670

7AFE..AE102..NAP

(J)

 1
18450-01090

4AFE,7AFE..AE10#..NAP

 1
18450-01090

7AFE..AE102..NAP

 1
18450-16670

4AFE,7AFE..AE10#..NAP

(J)

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-02110

7AFE..AE102..NAP

 1
17410-02240

7AFE..AE102..NAP

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

4AFE,7AFE..AE10#..NAP

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

4AFE,7AFE..AE10#..NAP

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-01110

7AFE..AE102..NAP

 1
17420-01100

4AFE,7AFE..AE10#..NAP

 1
17420-01110

4AFE,7AFE..AE10#..NAP

 1
17420-02080

4AFE,7AFE..AE10#..NAP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06074

4AFE,7AFE..AE10#..NAP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-02080

4AFE,7AFE..AE10#..NAP

 1
17430-01070

4AFE,7AFE..AE10#..NAP

 1
17451 - GASKET, EXHAUST PIPE
90917-06045

4AFE,7AFE..AE10#..NAP

 2
17451 - GASKET, EXHAUST PIPE
90917-06045

4AFE,7AFE..AE10#..NAP

 2
17504 - BRACKET SUB-ASSY, CATALYTIC CONVERTER
17504-01010

4AFE,7AFE..AE10#..NAP

 1
17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17506-02030

4AFE,7AFE..AE10#..NAP

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-02020

4AFE,7AFE..AE10#..NAP

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-02040

4AFE,7AFE..AE10#..NAP

 1
17508-01030

4AFE,7AFE..AE10#..NAP

(L)

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-02090

4AFE,7AFE..AE10#..NAP

 1
Common parts
90105-10023
90179-08193
91621-60820
91651-40816
91655-60830
94180-41000
