AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

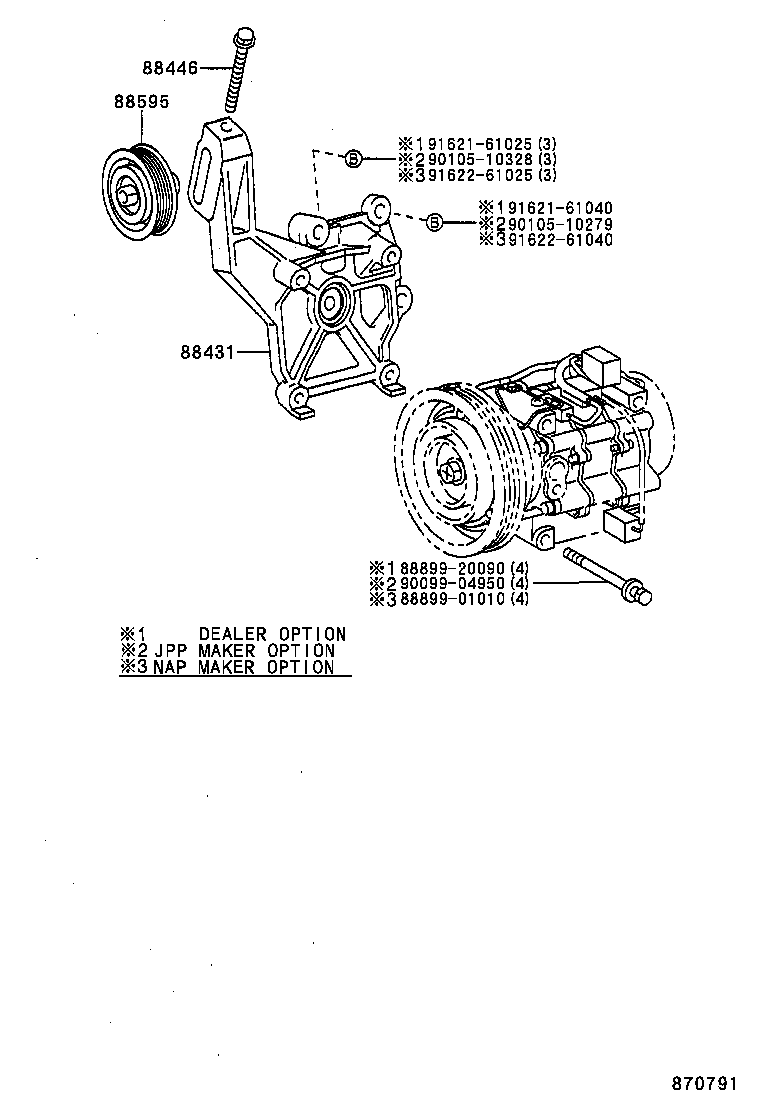

ILLUST NO. 1 OF 3(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-02020 |
AE10#..NAP |
1 | ||
| 88431-02030 |
AE10#..NAP |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-01020 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND MAKER OPTION |
1 | ||
| 88446-01020 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 88446-01020 |
AE10#..NAP |
1 | ||
| 88446-12030 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND DEALER OPTION |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-01020 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 88899-01010 | ||||
| 88899-20090 | ||||
| 90099-04950 | ||||
| 90105-10279 | ||||
| 90105-10328 | ||||
| 91621-61025 | ||||
| 91621-61040 | ||||
| 91622-61025 | ||||
| 91622-61040 | ||||

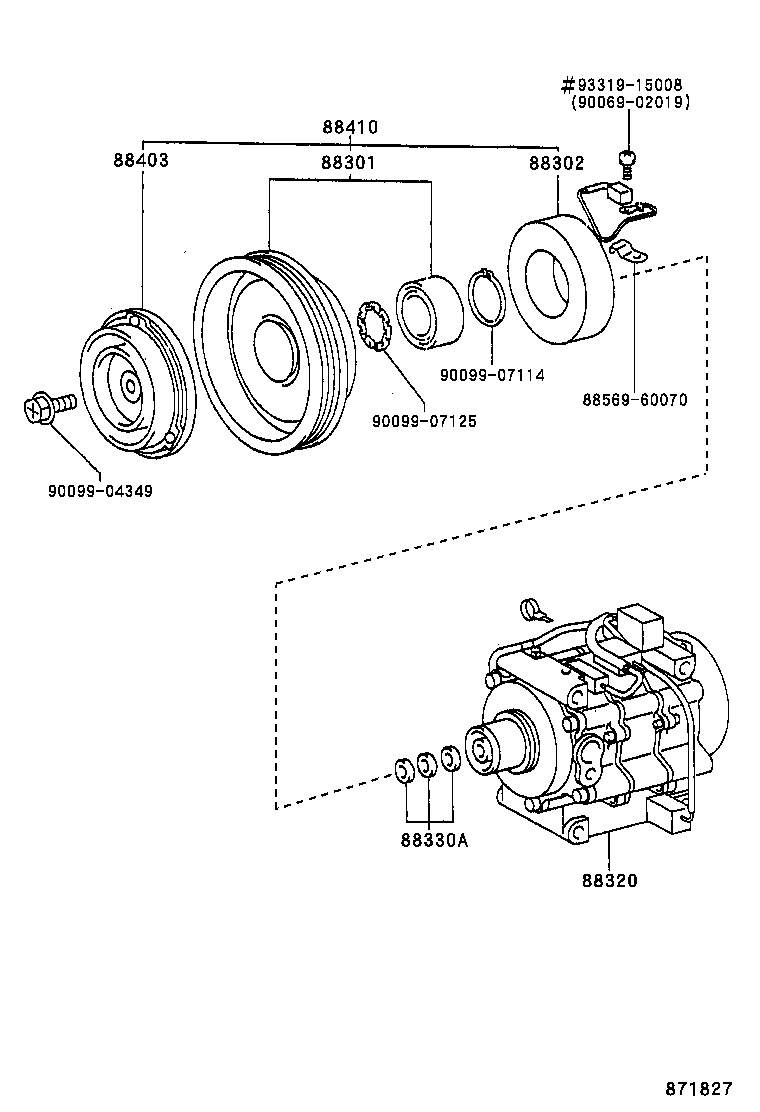

ILLUST NO. 2 OF 3(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-1A060 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-1A020 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-02030 |
AE10#..NAP |
1 | ||
| 88320-1A420 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND DEALER OPTION |
1 | ||
| 88320-02040 |
AE10#..NAP MAKER OPTION |
1 | ||
| 88320-02040 |
AE10#..NAP |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-01021 |
AE10#..NAP |
1 | ||
| 88410-1A110 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND DEALER OPTION |
1 | ||
| 88410-02020 |
AE10#..NAP |
1 | ||
| 88410-02020 |
AE10#..NAP MAKER OPTION |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90069-02019 | ||||
| 90099-04349 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 93319-15008 | ||||

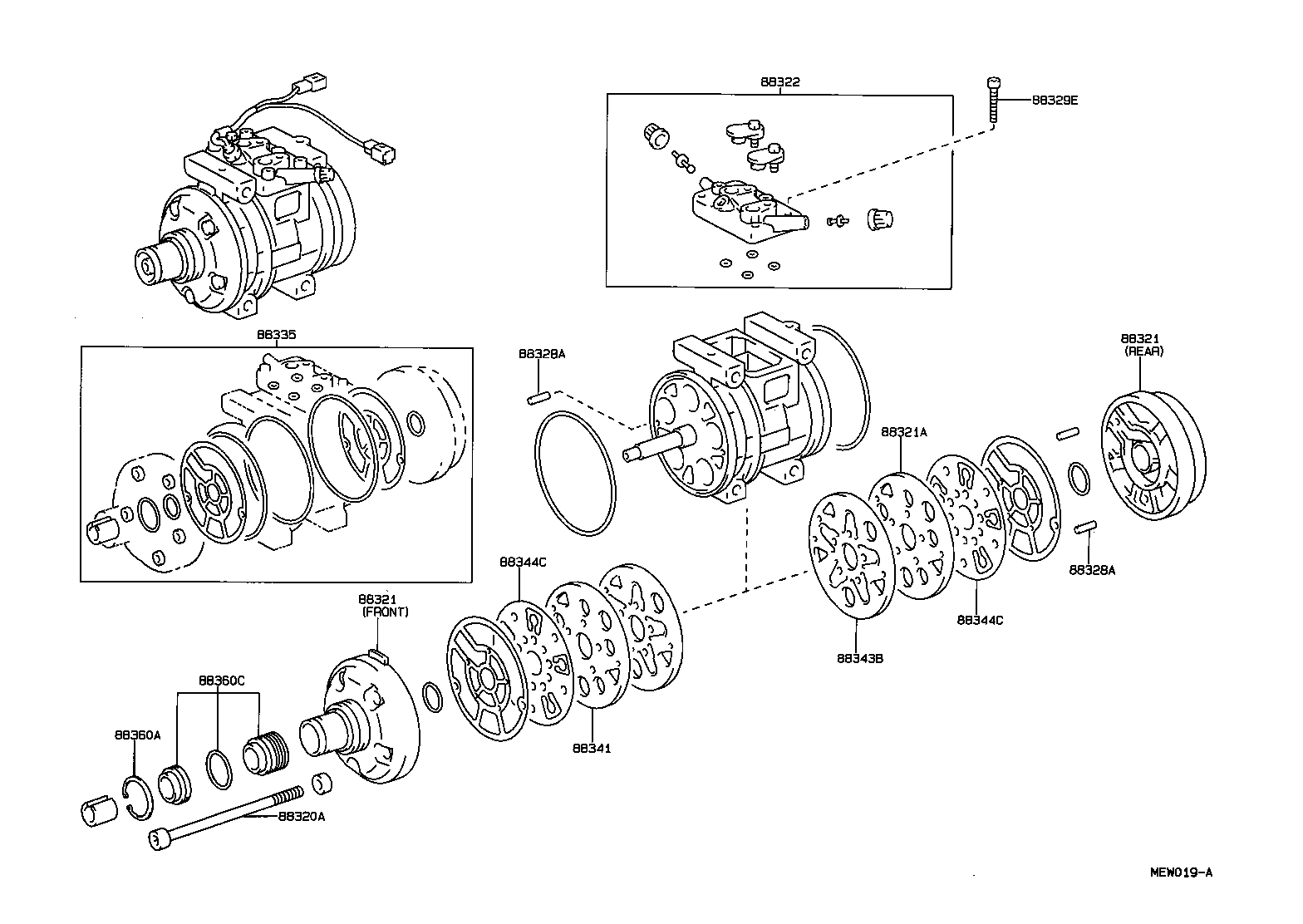

ILLUST NO. 3 OF 3(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320A - BOLT, THROUGH | ||||
| 90099-04370 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
5 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND FR |
1 | ||
| 88322-32040 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND FR |
1 | ||
| 88322-32040 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-22010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE | ||||
| 88371-1A010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04924 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
4 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88341 - PLATE, FRONT VALVE | ||||
| 88341-22010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
