AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

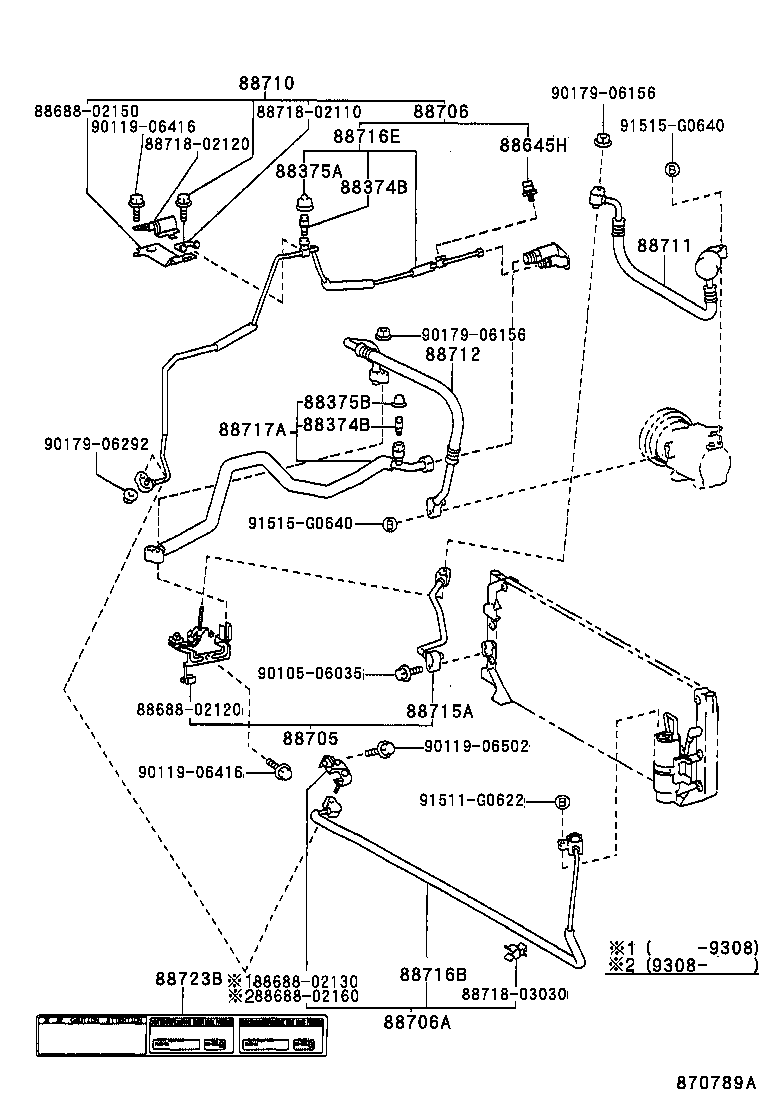

ILLUST NO. 2 OF 3(9209- )NAP

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 88374B 88375A 88375B 88645H 8868802120 8868802130 8868802150 8868802160 88705 88706 88706A 88710 88711 88712 88715A 88716B 88716E 88717A 8871802110 8871802120 8871803030 88723B 9010506035 9011906416 9011906416 9011906502 9017906156 9017906156 9017906292 91511G0622 91515G0640 91515G0640
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 1
88375-02010

AE10#..NAP

 1
88375-02060

AE10#..NAP

BLACK

 1
88375-02020

AE10#..NAP

GRAY

 1
88375-02020

AE10#..NAP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02050

AE10#..NAP

 1
88375-02050

AE10#..NAP

GRAY

 1
88375-02070

AE10#..NAP

BLACK

 1
88645H - SWITCH, PRESSURE NO.1
88645-06020

AE10#..NAP

 1
88645-02010

AE10#..NAP

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-02020

AE10#..NAP

 1
88705-02030

AE10#..NAP

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-02030

AE10#..NAP

 1
88706-02050

AE10#..NAP

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-02040

AE10#..NAP

 1
88706-02020

AE10#..NAP

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-02051

AE10#..NAP

 1
88710-02040

AE10#..NAP

 1
88710-02050

AE10#..NAP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-02020

AE10#..NAP..(D,N)

MAKER OPTION

 1
88711-02020

AE102..NAP..E

 1
88711-02040

AE10#..NAP

 1
88711-02030

AE10#..NAP..(D,N)

DEALER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02030

AE10#..NAP

 1
88712-02020

AE10#..NAP

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-02030

AE10#..NAP

 1
88715-02020

AE10#..NAP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02070

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-02060

AE10#..NAP

 1
88716-02050

AE10#..NAP

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02070

AE10#..NAP

 1
88717-02080

AE10#..NAP

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-02040

AE10#..NAP

 1
88723-02020

AE10#..NAP

 1
Common parts
88688-02120
88688-02130
88688-02150
88688-02160
88718-02110
88718-02120
88718-03030
90105-06035
90119-06416
90119-06502
90179-06156
90179-06292
91511-G0622
91515-G0640

ILLUST NO. 1 OF 3(9209- )NAP

Click highlighted areas on diagram

diagram 827112B640 88453A 88454A 88454A 88460 88467 88467 8846702040 8846702060 8846712130 8846712140 88467A 88467A 88470 88472 88550 88590 886881A050 88716A 88892P 8889712250 8889902010 8889912290 9009120609 9009120621 9009900192 9009904117 9009904119 9011906336 9011906502 9017906032
Part # Description Qty Price
88453A - FAN, COOLING
88453-02020

AE10#..NAP

 1
88453-02030

AE10#..NAP

 1
88454A - SHROUD, FAN
88454-02020

AE10#..NAP

 1
88454-02030

AE10#..NAP

 1
88454A - SHROUD, FAN
88454-02020

AE10#..NAP

 1
88454-02030

AE10#..NAP

 1
88460 - CONDENSER ASSY, COOLER
88460-02040

AE10#..NAP

 1
88460-02030

AE10#..NAP

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-02050

AE10#..NAP

MAKER OPTION

 2
88467-02050

AE10#..NAP

 2
88467-12100

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-02050

AE10#..NAP

MAKER OPTION

 2
88467-02050

AE10#..NAP

 2
88467-12100

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-02030

AE10#..NAP

 2
88467-12110

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 2
88467-02030

AE10#..NAP

MAKER OPTION

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-02030

AE10#..NAP

 2
88467-12110

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 2
88467-02030

AE10#..NAP

MAKER OPTION

 2
88470 - RECEIVER & DRYER ASSY, COOLER
88471-02020

AE10#..NAP

 1
88471-02010

AE10#..NAP

 1
88471-02020

AE10#..NAP

MAKER OPTION

 1
88471-60010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-02010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

MAKER OPTION

 1
88473-12080

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 1
88473-02010

AE10#..NAP

 1
88473-02010

AE102..NAP..E;AE101..NAP..N..USA

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 1
88550-02030

AE10#..NAP

MAKER OPTION

 1
88550-02020

AE10#..NAP

 1
88590 - BLOWER ASSY, W/SHROUD
88590-02040

AE10#..NAP

 1
88590-02030

AE10#..NAP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-02030

AE10#..NAP

 1
88726-02020

AE10#..NAP

 1
88892P - NET, FAN SHROUD
88892-02010

AE10#..NAP

 1
Common parts
82711-2B640
88467-02040
88467-02060
88467-12130
88467-12140
88688-1A050
88897-12250
88899-02010
88899-12290
90091-20609
90091-20621
90099-00192
90099-04117
90099-04119
90119-06336
90119-06502
90179-06032

ILLUST NO. 3 OF 3(9209- )NAP

Click highlighted areas on diagram

diagram 9009914044 9009914045 9009914046 9009914056 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14044
90099-14045
90099-14046
90099-14056
90099-14119
90099-14120
90099-14121
90099-14122

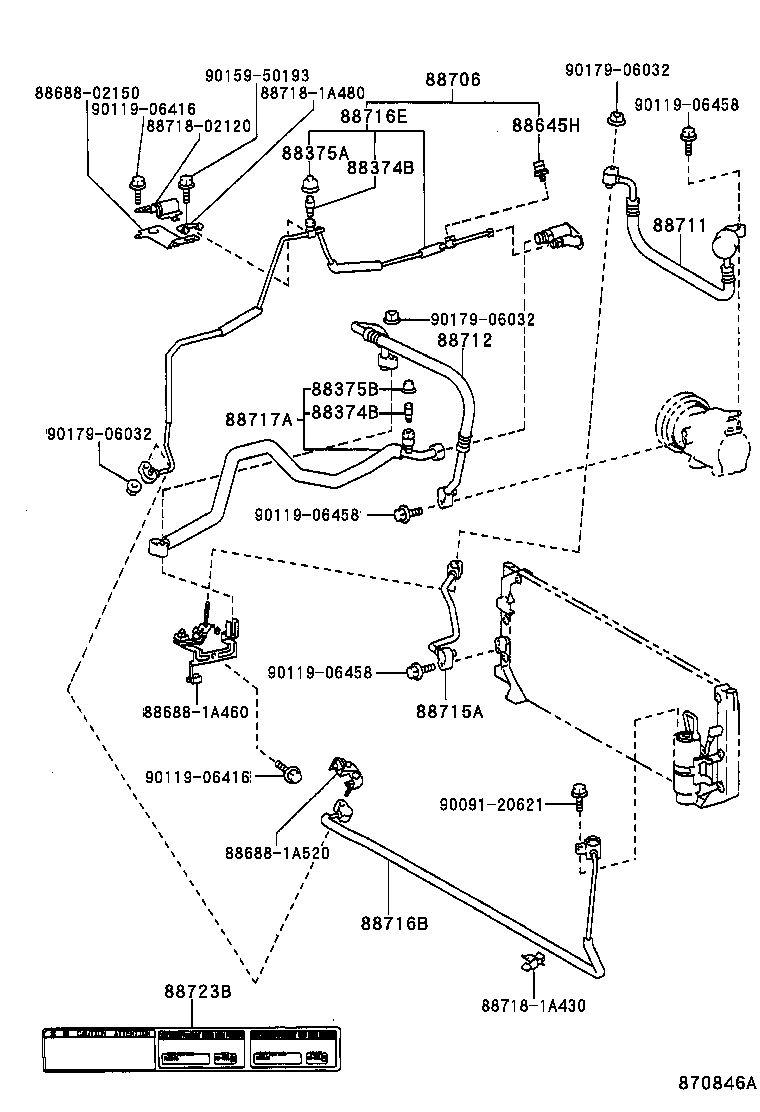

ILLUST NO. 2 OF 3(9209- )NAP

Click highlighted areas on diagram

DEALER OPTION

diagram 88374B 88374B 88375A 88375B 88645H 8868802150 886881A460 886881A520 88706 88711 88712 88715A 88716B 88716E 88717A 8871802120 887181A430 887181A480 88723B 9009120621 9011906416 9011906416 9011906458 9011906458 9011906458 9015950193 9017906032 9017906032 9017906032
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
88374B - VALVE, SERVICE, NO.1
88374-30010

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30290

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DEALER OPTION

 1
88375-02010

AE10#..NAP

 1
88375-02060

AE10#..NAP

BLACK

 1
88375-02020

AE10#..NAP

GRAY

 1
88375-02020

AE10#..NAP

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-02050

AE10#..NAP

 1
88375-02050

AE10#..NAP

GRAY

 1
88375-02070

AE10#..NAP

BLACK

 1
88645H - SWITCH, PRESSURE NO.1
88645-06020

AE10#..NAP

 1
88645-02010

AE10#..NAP

 1
88706 - PIPE SUB-ASSY, LIQUID
88706-02030

AE10#..NAP

 1
88706-02050

AE10#..NAP

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-02020

AE10#..NAP..(D,N)

MAKER OPTION

 1
88711-02020

AE102..NAP..E

 1
88711-02040

AE10#..NAP

 1
88711-02030

AE10#..NAP..(D,N)

DEALER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-02030

AE10#..NAP

 1
88712-02020

AE10#..NAP

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-02030

AE10#..NAP

 1
88715-02020

AE10#..NAP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-02070

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-02060

AE10#..NAP

 1
88716-02050

AE10#..NAP

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-02070

AE10#..NAP

 1
88717-02080

AE10#..NAP

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-02040

AE10#..NAP

 1
88723-02020

AE10#..NAP

 1
Common parts
88688-02150
88688-1A460
88688-1A520
88718-02120
88718-1A430
88718-1A480
90091-20621
90119-06416
90119-06458
90159-50193
90179-06032

ILLUST NO. 3 OF 3(9508- )NAP

Click highlighted areas on diagram

diagram 9006908007 9006908009 9006908011 9006908012
Part # Description Qty Price
Common parts
90069-08007
90069-08009
90069-08011
90069-08012
