AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

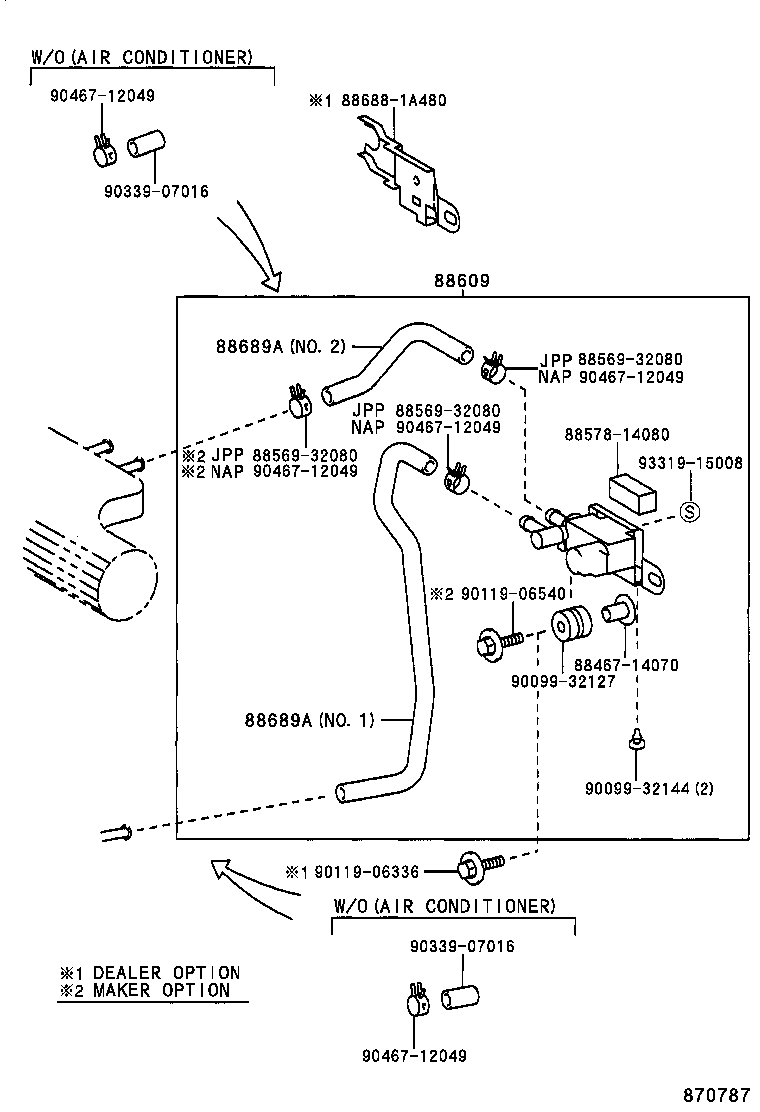

Click highlighted areas on diagram

diagram 8846714070 8856932080 8856932080 8856932080 8857814080 88609 886881A480 88689A 88689A 9009932127 9009932144 9011906336 9011906540 9033907016 9033907016 9046712049 9046712049 9046712049 9046712049 9046712049 9331915008
Part # Description Qty Price
88609 - DEVICE SUB-ASSY, IDLE UP
88690-02030

AE10#..NAP

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-02040

AE10#..NAP

NO.2

 1
88689-02030

AE10#..NAP

NO.1

 1
88689A - HOSE, COOLER VACUUM NO.1
88689-02040

AE10#..NAP

NO.2

 1
88689-02030

AE10#..NAP

NO.1

 1
Common parts
88467-14070
88569-32080
88578-14080
88688-1A480
90099-32127
90099-32144
90119-06336
90119-06540
90339-07016
90467-12049
93319-15008
