AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

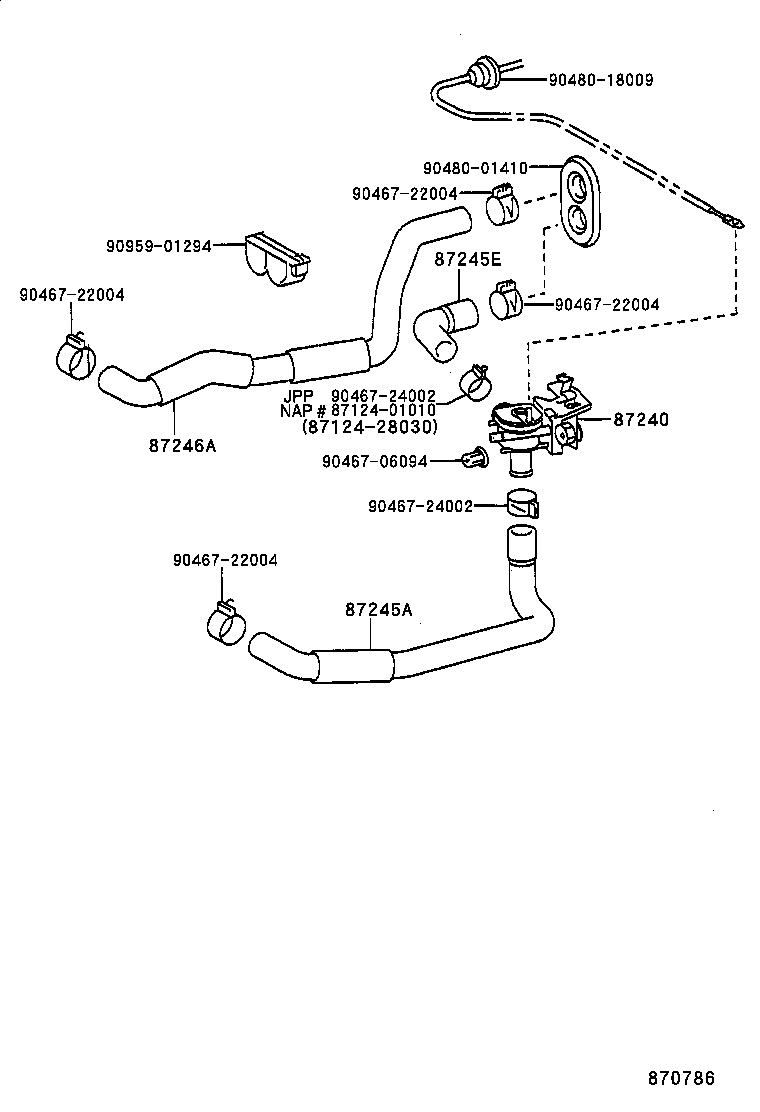

Click highlighted areas on diagram

diagram 8712401010 87240 87245A 87245E 87246A 9046706094 9046722004 9046722004 9046722004 9046722004 9046724002 9046724002 9048001410 9048018009 9095901294
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-02020

AE10#..NAP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-02050

AE10#..NAP

 1
87245E - HOSE, HEATER WATER, INLET E
87245-02040

AE10#..NAP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02060

AE10#..NAP

 1
Common parts
87124-01010
90467-06094
90467-22004
90467-24002
90480-01410
90480-18009
90959-01294
