AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

Click highlighted areas on diagram

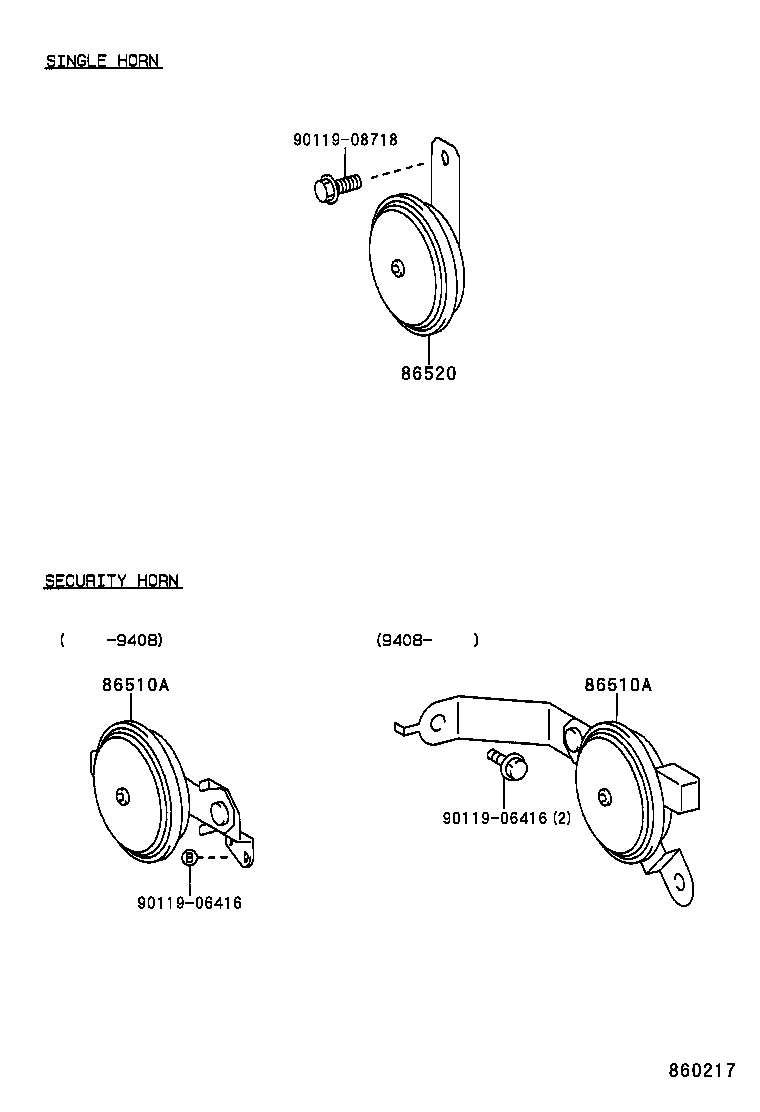

diagram 86510A 86510A 86520 9011906416 9011906416 9011908718
Part # Description Qty Price
86520 - HORN ASSY, LOW PITCHED
86520-01040

AE10#..NAP

 1
86520-AC010

AE10#..NAP

 1
Common parts
90119-06416
90119-08718
