Toyota Corolla nap/sed AE102 ANTENNA

AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997

Engine 7AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

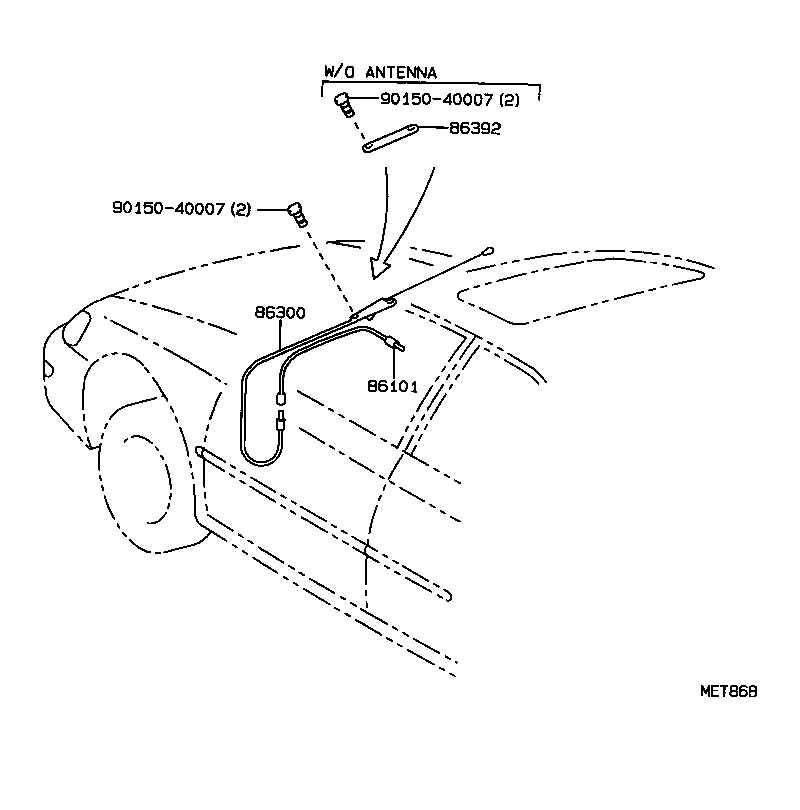

Click highlighted areas on diagram

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-02010	AE10#..NAP	09/1992 - 08/1995	1
86101-02010	AE10#..NAP..(D,N)	09/1995 - 12/2999	1
86101-02010	AE102..NAP..4FC;AE10#..NAP..(3FC,5F)..(D,N) PILLAR ANTENNA	08/1995 - 09/1995	1
86101-02020	AE102..NAP..E POWER ANTENNA	08/1995 - 12/2999	1
86300 - ANTENNA ASSY, W/HOLDER
86300-02020	AE10#..NAP	09/1993 - 01/1995	1
86300-02021	AE10#..NAP..(D,N)	08/1995 - 12/2999	1
86300-02020	AE10#..NAP	09/1992 - 01/1993	1
86300-02021	AE10#..NAP	01/1995 - 08/1995	1
86300-02030	AE102..NAP..E	08/1995 - 12/2999	1
86300-AB010	AE10#..NAP	01/1993 - 09/1993	1
86392 - ORNAMENT, ANTENNA
86392-02020	AE102..NAP..E	08/1995 - 12/2999	1
86392-12100	AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND	09/1995 - 12/2999	1
86392-12100	AE101..NAP..D;AE102..NAP..4FC;AE102..NAP..5F..N;AE101..NAP..N..CND W/O(ANTENNA)	09/1992 - 09/1995	1
Common parts
90150-40007

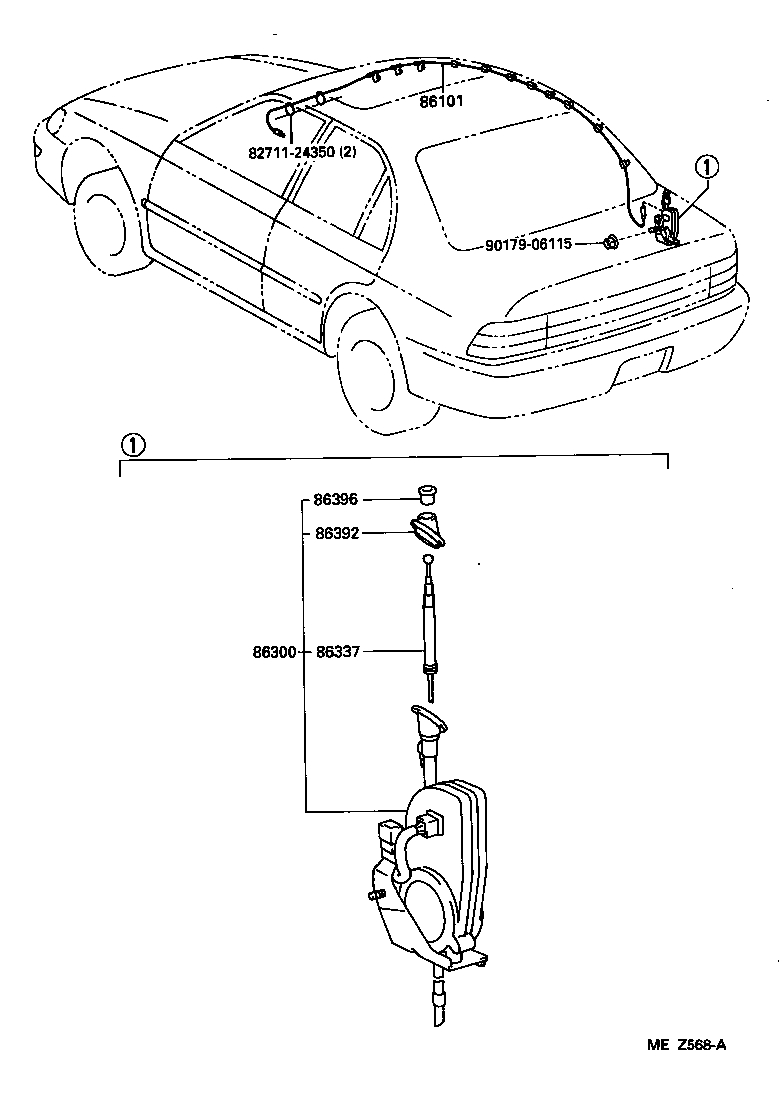

Click highlighted areas on diagram

Part #	Description	Period	Qty
86101 - CORD SUB-ASSY, ANTENNA
86101-02010	AE10#..NAP	09/1992 - 08/1995	1
86101-02010	AE10#..NAP..(D,N)	09/1995 - 12/2999	1
86101-02010	AE102..NAP..4FC;AE10#..NAP..(3FC,5F)..(D,N) PILLAR ANTENNA	08/1995 - 09/1995	1
86101-02020	AE102..NAP..E POWER ANTENNA	08/1995 - 12/2999	1
86300 - ANTENNA ASSY, W/HOLDER
86300-02020	AE10#..NAP	09/1993 - 01/1995	1
86300-02021	AE10#..NAP..(D,N)	08/1995 - 12/2999	1
86300-02020	AE10#..NAP	09/1992 - 01/1993	1
86300-02021	AE10#..NAP	01/1995 - 08/1995	1
86300-02030	AE102..NAP..E	08/1995 - 12/2999	1
86300-AB010	AE10#..NAP	01/1993 - 09/1993	1
86337 - ROD & PIPE, SEALED W/CABLE
86337-02010	AE102..NAP..E	08/1995 - 12/2999	1
86392 - ORNAMENT, ANTENNA
86392-02020	AE102..NAP..E	08/1995 - 12/2999	1
86392-12100	AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND	09/1995 - 12/2999	1
86392-12100	AE101..NAP..D;AE102..NAP..4FC;AE102..NAP..5F..N;AE101..NAP..N..CND W/O(ANTENNA)	09/1992 - 09/1995	1
86396 - NUT, ANTENNA
86396-06010	AE102..NAP..E	08/1995 - 12/2999	1
Common parts
82711-24350
90179-06115
