AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
Production
Sep 1992
-
Aug 1997
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209- )NAP

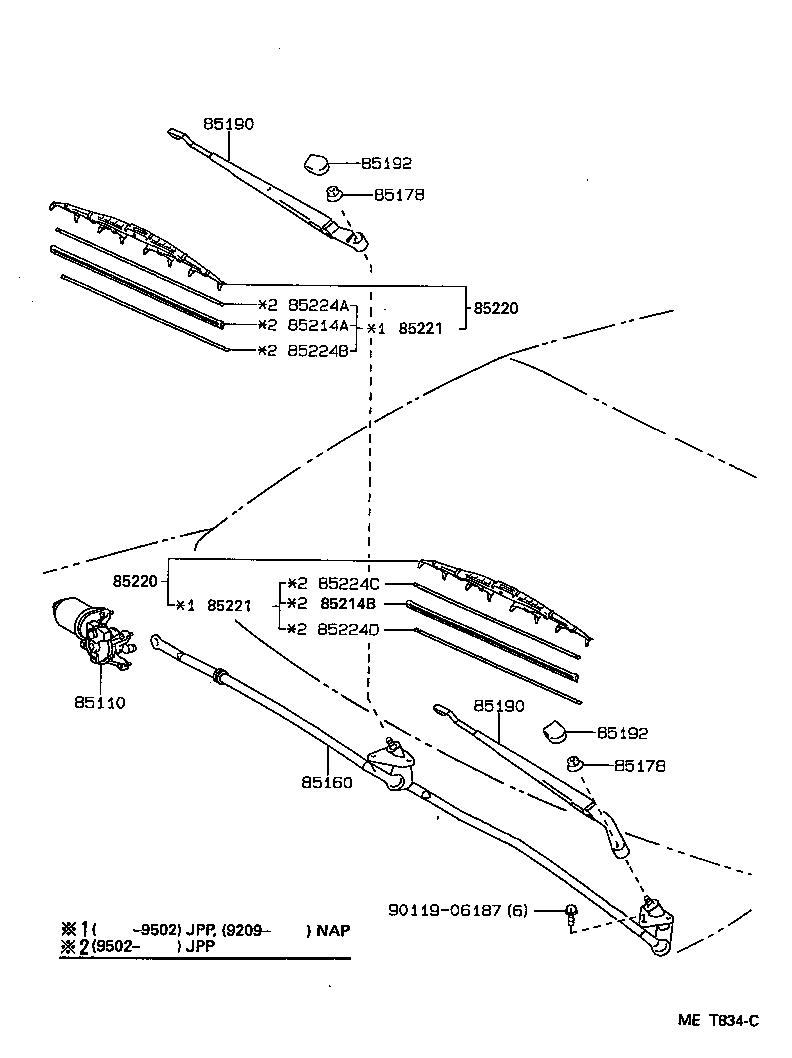

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12830 |
AE10#..NAP (J) |
1 | ||
| 85110-02020 |
AE10#..NAP (L) |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85150-02010 |
AE10#..NAP |
1 | ||
| 85150-02011 |
AE10#..NAP |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AE10#..NAP |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90179-08113 |
AE10#..NAP |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85221-02020 |
AE10#..NAP LH |
1 | ||
| 85211-02010 |
AE10#..NAP RH |
1 | ||
| 85211-02020 |
AE10#..NAP RH |
1 | ||
| 85221-02030 |
AE10#..NAP LH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85221-02020 |
AE10#..NAP LH |
1 | ||
| 85211-02010 |
AE10#..NAP RH |
1 | ||
| 85211-02020 |
AE10#..NAP RH |
1 | ||
| 85221-02030 |
AE10#..NAP LH |
1 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-01020 |
AE10#..NAP |
2 | ||
| 85192 - COVER, WINDSHIELD WIPER ARM | ||||
| 85292-01020 |
AE10#..NAP |
2 | ||
| 85214A - RUBBER, WIPER, RH | ||||
| 85214-02010 |
AE10#..NAP |
1 | ||
| 85214B - RUBBER, WIPER, LH | ||||
| 85214-02040 |
AE10#..NAP |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-02010 |
AE10#..NAP LH |
1 | ||
| 85212-02010 |
AE10#..NAP RH |
1 | ||
| 85212-02020 |
AE10#..NAP RH |
1 | ||
| 85222-02011 |
AE10#..NAP LH |
1 | ||
| 85212-02011 |
AE10#..NAP RH |
1 | ||
| 85222-02020 |
AE10#..NAP LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85222-02010 |
AE10#..NAP LH |
1 | ||
| 85212-02010 |
AE10#..NAP RH |
1 | ||
| 85212-02020 |
AE10#..NAP RH |
1 | ||
| 85222-02011 |
AE10#..NAP LH |
1 | ||
| 85212-02011 |
AE10#..NAP RH |
1 | ||
| 85222-02020 |
AE10#..NAP LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-02011 |
AE10#..NAP LH |
1 | ||
| 85213-02011 |
AE10#..NAP RH |
1 | ||
| 85223-02012 |
AE10#..NAP LH |
1 | ||
| 85213-02012 |
AE10#..NAP RH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85223-02011 |
AE10#..NAP LH |
1 | ||
| 85213-02011 |
AE10#..NAP RH |
1 | ||
| 85223-02012 |
AE10#..NAP LH |
1 | ||
| 85213-02012 |
AE10#..NAP RH |
1 | ||
| 85224A - PLATE, WIPER RUBBER BACKING, NO.1 | ||||
| 85224-02010 |
AE10#..NAP |
1 | ||
| 85224B - PLATE, WIPER RUBBER BACKING, NO.2 | ||||
| 85224-02010 |
AE10#..NAP |
1 | ||
| 85224C - PLATE, WIPER RUBBER BACKING, NO.3 | ||||
| 85224-02040 |
AE10#..NAP |
1 | ||
| 85224D - PLATE, WIPER RUBBER BACKING, NO.4 | ||||
| 85224-02040 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 90119-06187 | ||||
