AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
ILLUST NO. 1 OF 8(9209- )NAP
ENGINE & TRANSAXLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
AE10#..NAP YAZAKI |
1 | ||
| 83420-16050 |
AE10#..NAP NIPPONDENSO |
1 | ||
| 83420-16050 |
AE10#..NAP |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
AE10#..NAP |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE10#..NAP..5F |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-12160 |
AE10#..NAP |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12380 |
AE102..NAP FR |
1 | ||
| 89465-19545 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,FR |
1 | ||
| 89465-19555 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,RR |
1 | ||
| 89465-12380 |
AE10#..NAP FR |
1 | ||
| 89465-12390 |
AE102..NAP RR |
1 | ||
| 89465-12390 |
AE10#..NAP RR |
1 | ||
| 89465-19535 |
AE10#..NAP |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE10#..NAP |
1 | ||
| 89466-20020 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,FR |
1 | ||
| 89466-12020 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,RR |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12030 |
AE102..NAP TOYOTA |
1 | ||
| 89615-22030 |
AE102..NAP MATSUSHITA |
1 | ||
| Common parts | ||||
| 90116-08128 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||

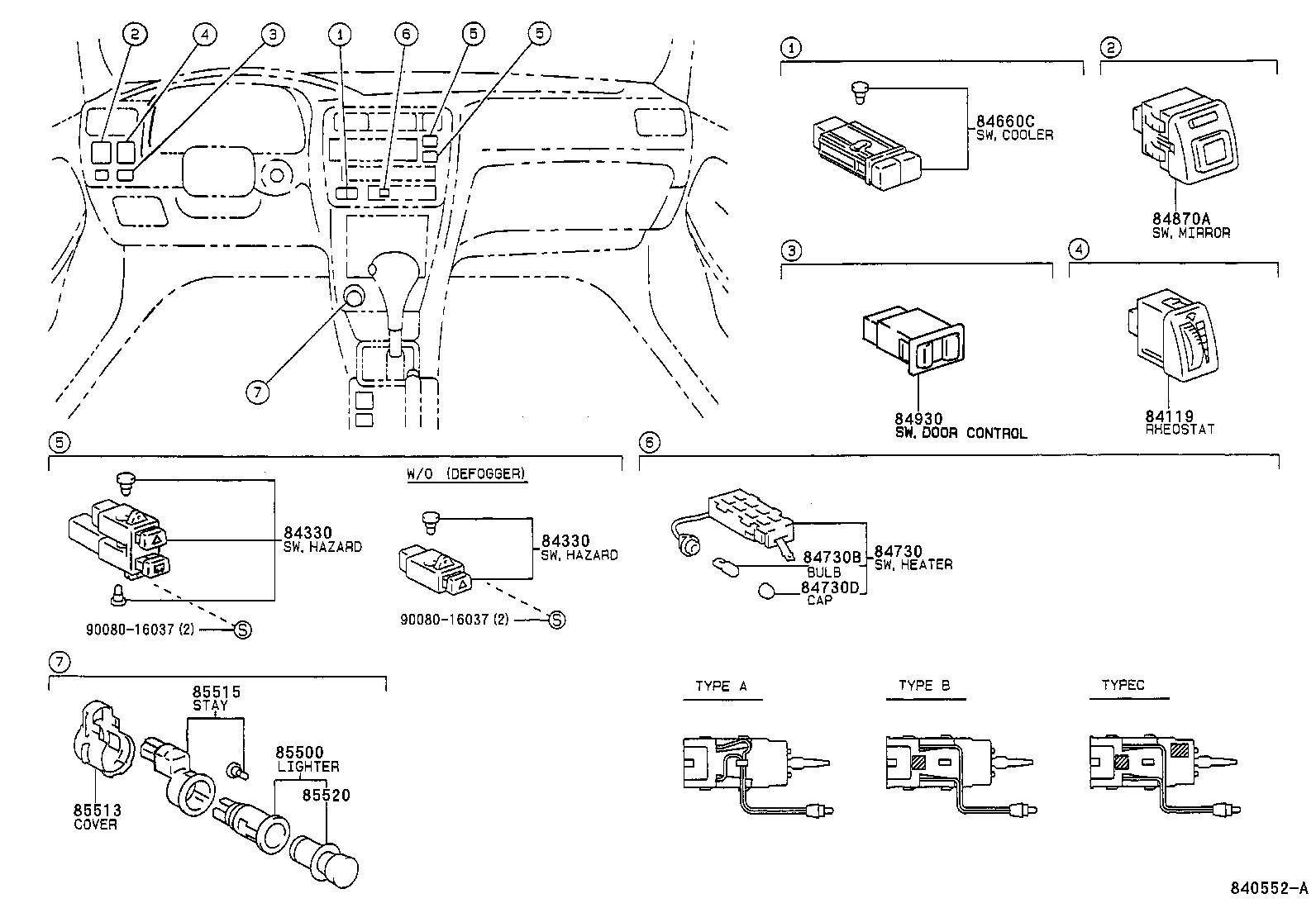

ILLUST NO. 3 OF 8(9209- )NAP
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-02010 |
AE10#..NAP |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02020 |
AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84332-02021 |
AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02020 |
AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84332-02021 |
AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-02020 |
AE10#..NAP |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12200 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84732-02011 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84732-02010 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84732-12320 |
AE10#..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11040 |
AE10#..NAP 12V 2W |
1 | ||
| 90069-98007 |
AE10#..NAP 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE10#..NAP BULB:12V 2W |
1 | ||
| 90069-09013 |
AE10#..NAP BULB:14V 1.4W |
1 | ||
| 84998-10100 |
AE10#..NAP |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-12100 |
AE102..NAP;AE101..NAP..N..USA |
1 | ||
| 84870-12100 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 84870-12100 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12130B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 84930-12110K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 84930-12110J1 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 84930-14090 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84930-12130J0 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 84930-12120 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND |
1 | ||
| 84930-12110B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 84930-12120 |
AE10#..NAP |
1 | ||
| 84930-14090 |
AE10#..NAP..(E,N) |
1 | ||
| 84930-12130K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-02010 |
AE10#..NAP |
1 | ||
| 85500-02011 |
AE10#..NAP |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-02010 |
AE10#..NAP |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-01010 |
AE10#..NAP |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-06020 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 90080-16037 | ||||
ILLUST NO. 7 OF 8(9209- )NAP
ROOF & FRONT DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02020 |
AE10#..NAP |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02020 |
AE10#..NAP |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060K0 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND TAUPE,TRIM9#,RR |
2 | ||
| 84810-12060B1 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12080 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND FR |
1 | ||
| 84810-12060J3 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060B1 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12080 |
AE10#..NAP |
1 | ||
| 84810-12060K0 |
AE10#..NAP TAUPE,TRIM9# |
2 | ||
| 84810-12060E3 |
AE102..NAP..N;AE101..NAP..USA;AE101..NAP..N..CND OAK,TRIM4# |
2 | ||
| 84810-12060E3 |
AE10#..NAP..N OAK,TRIM4# |
2 | ||
| 84810-12060J3 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND DARK BLUE,TRIM8# |
2 | ||
| 84810-12060J3 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84810-12080 |
AE10#..NAP..(E,N) |
1 | ||
| 84810-12080 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84810-12060J3 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 84810-12060B1 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12251 |
AE10#..NAP |
1 | ||
| 84820-33060 |
AE10#..NAP..(E,N) |
1 | ||
| 84820-12250 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND |
1 | ||
| 84820-12330 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84820-12251 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12130B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 84930-12110K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 84930-12110J1 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 84930-14090 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84930-12130J0 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 84930-12120 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND |
1 | ||
| 84930-12110B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 84930-12120 |
AE10#..NAP |
1 | ||
| 84930-14090 |
AE10#..NAP..(E,N) |
1 | ||
| 84930-12130K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12130B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 84930-12110K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 84930-12110J1 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 84930-14090 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84930-12130J0 |
AE102..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 84930-12120 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND |
1 | ||
| 84930-12110B0 |
AE102..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 84930-12120 |
AE10#..NAP |
1 | ||
| 84930-14090 |
AE10#..NAP..(E,N) |
1 | ||
| 84930-12130K0 |
AE102..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-12080 |
AE102..NAP;AE101..NAP..USA RH |
1 | ||
| 84931-12080 |
AE10#..NAP RH |
1 | ||
| 84931-20180 |
AE10#..NAP LH |
1 | ||
| 84931-20180 |
AE102..NAP;AE101..NAP..USA LH |
1 | ||
| 84931-20180 |
AE10#..NAP..(E,N) LH |
1 | ||
| 84931-12081 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND RH |
1 | ||
| 84931-20180 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND LH |
1 | ||
| 84931-12081 |
AE10#..NAP..(E,N) RH |
1 | ||
| 84931-12080 |
AE10#..NAP..(E,N) RH |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-12030 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 85921-12030 |
AE10#..NAP..(E,N) |
1 | ||
| Common parts | ||||
| 90119-06072 | ||||
| 90119-06582 | ||||
| 93540-54012 | ||||

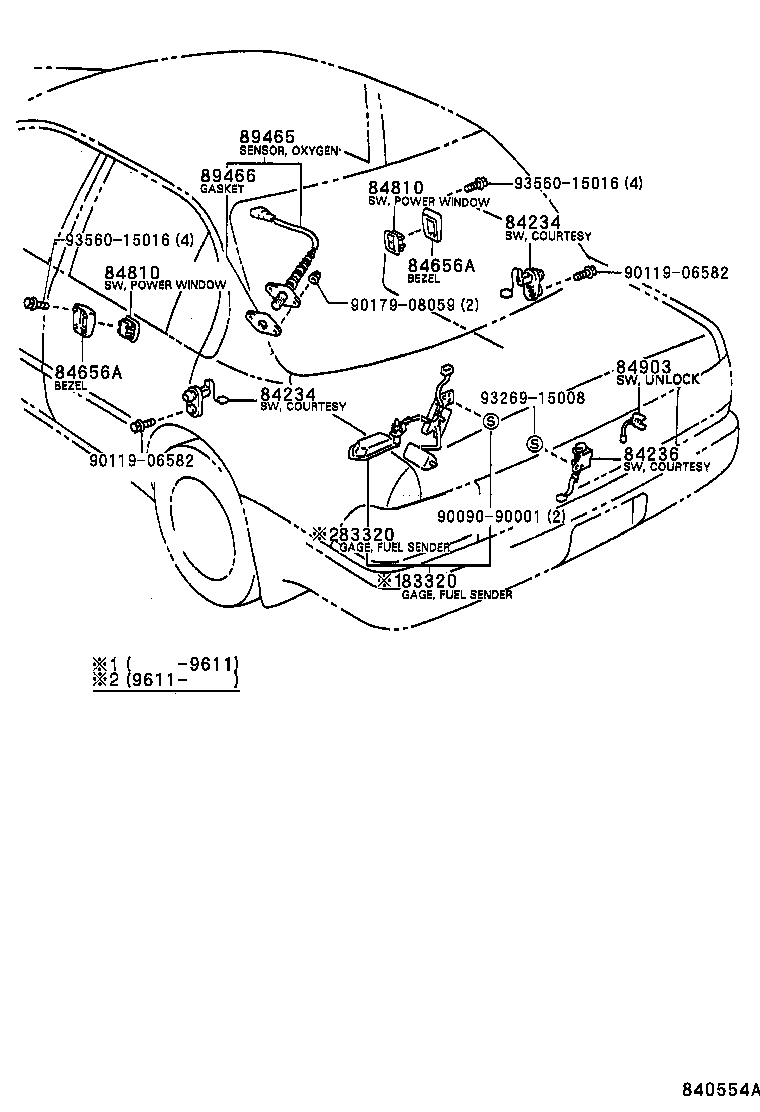

ILLUST NO. 8 OF 8(9209- )NAP
FLOOR,REAR DOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12511 |
AE10#..NAP |
1 | ||
| 83320-09050 |
AE10#..NAP |
1 | ||
| 83320-80195 |
AE10#..NAP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12511 |
AE10#..NAP |
1 | ||
| 83320-09050 |
AE10#..NAP |
1 | ||
| 83320-80195 |
AE10#..NAP |
1 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02020 |
AE10#..NAP |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02020 |
AE10#..NAP |
2 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-02030 |
AE10#..NAP |
1 | ||
| 84231-02030 |
AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010B1 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010K0 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010E3 |
AE10#..NAP..N OAK,TRIM4# |
2 | ||
| 84656-12010J3 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84656-12010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010B1 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010E3 |
AE102..NAP..N;AE101..NAP..USA;AE101..NAP..N..CND OAK,TRIM4# |
2 | ||
| 84656-12010B1 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010J3 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010B1 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010K0 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010E3 |
AE10#..NAP..N OAK,TRIM4# |
2 | ||
| 84656-12010J3 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84656-12010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
2 | ||
| 84656-12010J3 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010B1 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010E3 |
AE102..NAP..N;AE101..NAP..USA;AE101..NAP..N..CND OAK,TRIM4# |
2 | ||
| 84656-12010B1 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84656-12010J3 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060K0 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND TAUPE,TRIM9#,RR |
2 | ||
| 84810-12060B1 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12080 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND FR |
1 | ||
| 84810-12060J3 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060B1 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12080 |
AE10#..NAP |
1 | ||
| 84810-12060K0 |
AE10#..NAP TAUPE,TRIM9# |
2 | ||
| 84810-12060E3 |
AE102..NAP..N;AE101..NAP..USA;AE101..NAP..N..CND OAK,TRIM4# |
2 | ||
| 84810-12060E3 |
AE10#..NAP..N OAK,TRIM4# |
2 | ||
| 84810-12060J3 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND DARK BLUE,TRIM8# |
2 | ||
| 84810-12060J3 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84810-12080 |
AE10#..NAP..(E,N) |
1 | ||
| 84810-12080 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84810-12060J3 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 84810-12060B1 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060K0 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND TAUPE,TRIM9#,RR |
2 | ||
| 84810-12060B1 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810-12080 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND FR |
1 | ||
| 84810-12060J3 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12060B1 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
2 | ||
| 84810-12080 |
AE10#..NAP |
1 | ||
| 84810-12060K0 |
AE10#..NAP TAUPE,TRIM9# |
2 | ||
| 84810-12060E3 |
AE102..NAP..N;AE101..NAP..USA;AE101..NAP..N..CND OAK,TRIM4# |
2 | ||
| 84810-12060E3 |
AE10#..NAP..N OAK,TRIM4# |
2 | ||
| 84810-12060J3 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND DARK BLUE,TRIM8# |
2 | ||
| 84810-12060J3 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
2 | ||
| 84810-12080 |
AE10#..NAP..(E,N) |
1 | ||
| 84810-12080 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 84810-12060J3 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 84810-12060B1 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-12380 |
AE102..NAP FR |
1 | ||
| 89465-19545 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,FR |
1 | ||
| 89465-19555 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,RR |
1 | ||
| 89465-12380 |
AE10#..NAP FR |
1 | ||
| 89465-12390 |
AE102..NAP RR |
1 | ||
| 89465-12390 |
AE10#..NAP RR |
1 | ||
| 89465-19535 |
AE10#..NAP |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
AE10#..NAP |
1 | ||
| 89466-20020 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,FR |
1 | ||
| 89466-12020 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC,RR |
1 | ||
| Common parts | ||||
| 90090-90001 | ||||
| 90119-06582 | ||||
| 90179-08059 | ||||
| 93269-15008 | ||||
| 93560-15016 | ||||
ILLUST NO. 2 OF 8(9209- )NAP
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
AE10#..NAP |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#..NAP LWR |
1 | ||
| 82661-12200 |
AE10#..NAP UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12220 |
AE10#..NAP LWR |
1 | ||
| 82661-12200 |
AE10#..NAP UPR |
1 | ||
| 82670C - BLOCK ASSY, JUNCTION, NO.3 | ||||
| 82670-12390 |
AE10#..NAP..USA |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-12170 |
AE10#..NAP..USA |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12220 |
AE10#..NAP |
1 | ||
| 82623-12010 |
AE10#..NAP |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12250 |
AE10#..NAP..USA UPPER |
1 | ||
| 82672-02020 |
AE10#..NAP..USA PART NUMBER LABEL=82672-02020,UPPER |
1 | ||
| 82672-02040 |
AE10#..NAP PART NUMBER LABEL=82672-02040,LOWER |
1 | ||
| 82672-12251 |
AE10#..NAP..USA UPPER |
1 | ||
| 82672-12230 |
AE10#..NAP LOWER |
1 | ||
| 82672C - COVER, JUNCTION BLOCK | ||||
| 82672-12250 |
AE10#..NAP..USA UPPER |
1 | ||
| 82672-02020 |
AE10#..NAP..USA PART NUMBER LABEL=82672-02020,UPPER |
1 | ||
| 82672-02040 |
AE10#..NAP PART NUMBER LABEL=82672-02040,LOWER |
1 | ||
| 82672-12251 |
AE10#..NAP..USA UPPER |
1 | ||
| 82672-12230 |
AE10#..NAP LOWER |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE10#..NAP |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
AE10#..NAP |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90084-98011 |
AE10#..NAP |
1 | ||
| 90084-98011 |
AE10#..NAP BOSCH |
1 | ||
| 90987-03003 |
AE10#..NAP |
1 | ||
| 90987-03003 |
AE10#..NAP NIPPONDENSO |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90084-98009 |
AE10#..NAP |
2 | ||
| 90987-02009 |
AE10#..NAP |
2 | ||
| 90084-98009 |
AE10#..NAP BOSCH |
2 | ||
| 90987-02009 |
AE10#..NAP MARUKO |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90084-98010 |
AE10#..NAP |
1 | ||
| 90987-04003 |
AE10#..NAP |
1 | ||
| 90084-98010 |
AE10#..NAP BOSCH |
1 | ||
| 90987-04003 |
AE10#..NAP NIPPONDENSO |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-26010 |
AE102..NAP |
1 | ||
| 89621-26010 |
AE10#..NAP |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-12070 |
AE10#..NAP |
1 | ||
| 89629-12070 |
AE102..NAP |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06473 | ||||
| 90167-20001 | ||||
| Linked diagrams | ||||
| 8202 | ||||

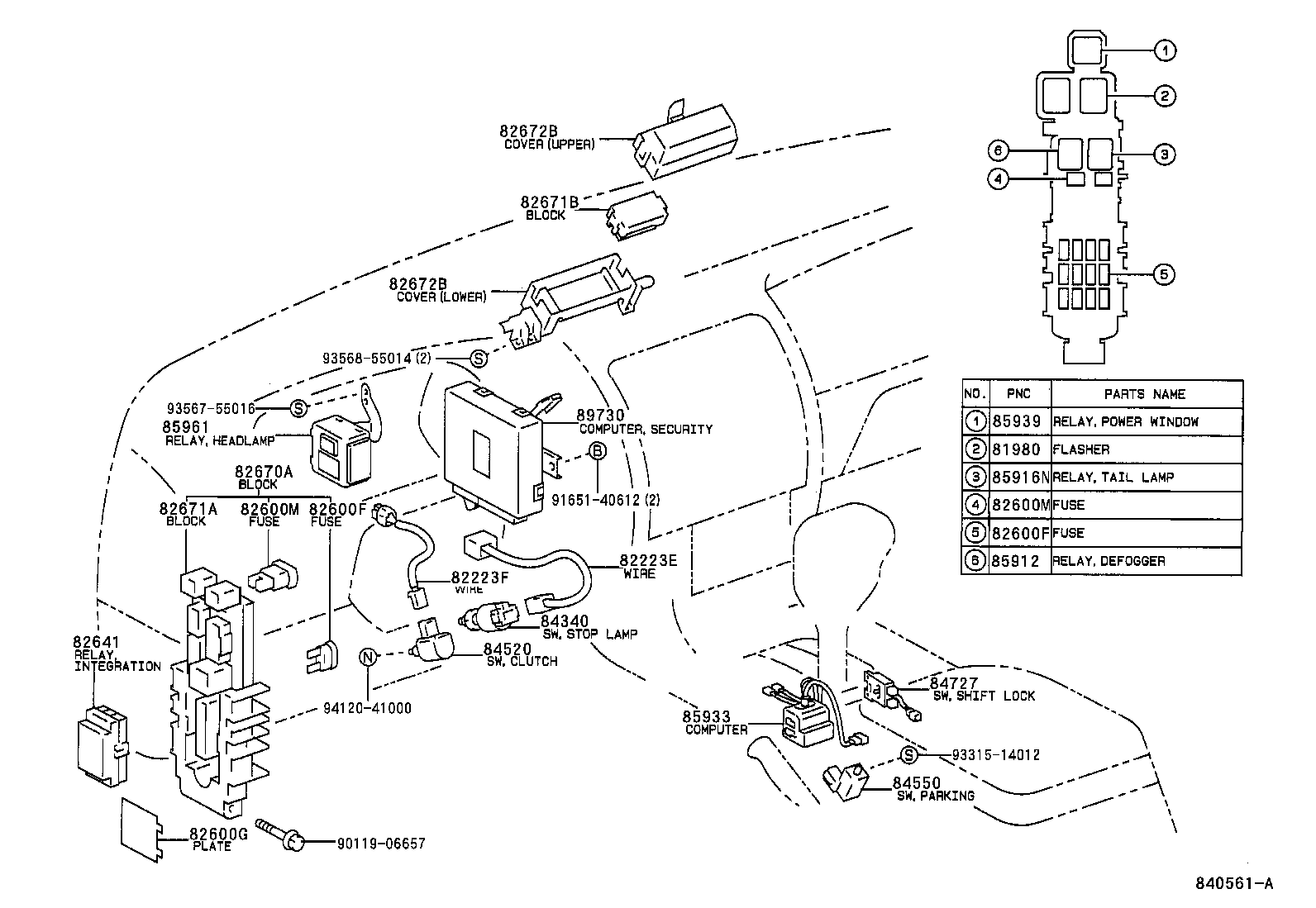

ILLUST NO. 4 OF 8(9209- )NAP
COWL LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-AC010 |
AE10#..NAP TRIDON |
1 | ||
| 81980-12070 |
AE10#..NAP NIPPONDENSO |
1 | ||
| 81980-02010 |
AE10#..NAP TRIDON |
1 | ||
| 81980-AC010 |
AE10#..NAP TRIDON |
1 | ||
| 81980-AC020 |
AE10#..NAP TRIDON |
1 | ||
| 82223E - WIRE, CLUTCH START SWITCH | ||||
| 82223-12530 |
AE10#..NAP |
1 | ||
| 82223F - WIRE, SWITCH | ||||
| 82223-12540 |
AE10#..NAP..5F |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-01031 |
AE10#..NAP |
1 | ||
| 82683-01030 |
AE10#..NAP |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..NAP 30A,PINK |
2 | ||
| 90982-10002 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 40A,GREEN |
2 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..NAP 30A,PINK |
2 | ||
| 90982-10002 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 40A,GREEN |
2 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-02010 |
AE10#..NAP |
1 | ||
| 82641-AB010 |
AE10#..NAP |
1 | ||
| 82641-12022 |
AE10#..NAP |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-12340 |
AE102..NAP;AE101..NAP..USA |
1 | ||
| 82670-12340 |
AE101..NAP..USA;AE102..NAP..CND;AE102..NAP..5F..E |
1 | ||
| 82670-12340 |
AE10#..NAP |
1 | ||
| 82670-12340 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE) |
2 | ||
| 82670-12340 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA |
2 | ||
| 82670-12340 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12210 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA |
2 | ||
| 82671-12210 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE) |
2 | ||
| 82671-12210 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E |
1 | ||
| 82671-12210 |
AE10#..NAP |
1 | ||
| 82671-12210 |
AE10#..NAP |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-12150 |
AE10#..NAP |
1 | ||
| 82671-12150 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA |
2 | ||
| 82671-12150 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E |
1 | ||
| 82671-12150 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE) |
2 | ||
| 82671-12150 |
AE10#..NAP |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE10#..NAP LWR |
1 | ||
| 82672-12300 |
AE10#..NAP UPR |
1 | ||
| 82672-12300 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E UPR |
1 | ||
| 82672-12290 |
AE10#..NAP LWR |
1 | ||
| 82672-12300 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA UPR |
2 | ||
| 82672-12300 |
AE10#..NAP UPR |
1 | ||
| 82672-12290 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA LWR |
2 | ||
| 82672-12300 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),UPR |
2 | ||
| 82672-12290 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E LWR |
1 | ||
| 82672-12290 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),LWR |
2 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12290 |
AE10#..NAP LWR |
1 | ||
| 82672-12300 |
AE10#..NAP UPR |
1 | ||
| 82672-12300 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E UPR |
1 | ||
| 82672-12290 |
AE10#..NAP LWR |
1 | ||
| 82672-12300 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA UPR |
2 | ||
| 82672-12300 |
AE10#..NAP UPR |
1 | ||
| 82672-12290 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA LWR |
2 | ||
| 82672-12300 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),UPR |
2 | ||
| 82672-12290 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E LWR |
1 | ||
| 82672-12290 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),LWR |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
AE102..NAP..E |
1 | ||
| 84340-32050 |
AE10#..NAP..(D,N) |
1 | ||
| 84340-32090 |
AE102..NAP..E W/O(CRUISE CONTROL) |
1 | ||
| 84340-32070 |
AE102..NAP..N;AE101..NAP..CND W(CRUISE CONTROL) |
1 | ||
| 84340-32090 |
AE10#..NAP..(D,N) |
1 | ||
| 84340-32110 |
AE102..NAP..N;AE101..NAP..CND W(CRUISE CONTROL) |
1 | ||
| 84340-32070 |
AE102..NAP..N;AE101..NAP..N..CND W(CRUISE CONTROL) |
1 | ||
| 84340-32050 |
AE102..NAP..E W/O(CRUISE CONTROL) |
1 | ||
| 84340-32050 |
AE10#..NAP |
1 | ||
| 84340-32070 |
AE102..NAP..E |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-24010 |
AE10#..NAP..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
AE10#..NAP MATSUSHITA |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02009 |
AE10#..NAP MARUKO |
1 | ||
| 90084-98009 |
AE10#..NAP BOSCH |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90084-98009 |
AE10#..NAP BOSCH |
1 | ||
| 90987-02009 |
AE10#..NAP MARUKO |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
AE102..NAP;AE101..NAP..USA |
1 | ||
| 90084-98009 |
AE10#..NAP BOSCH |
1 | ||
| 90987-02009 |
AE10#..NAP..(E,N) MARUKO |
1 | ||
| 90987-02009 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND MARUKO |
1 | ||
| 90084-98009 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND BOSCH |
1 | ||
| 90987-02009 |
AE10#..NAP MARUKO |
1 | ||
| 90084-98009 |
AE10#..NAP..(E,N) BOSCH |
1 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-12010 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 90119-06657 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
| 94120-41000 | ||||

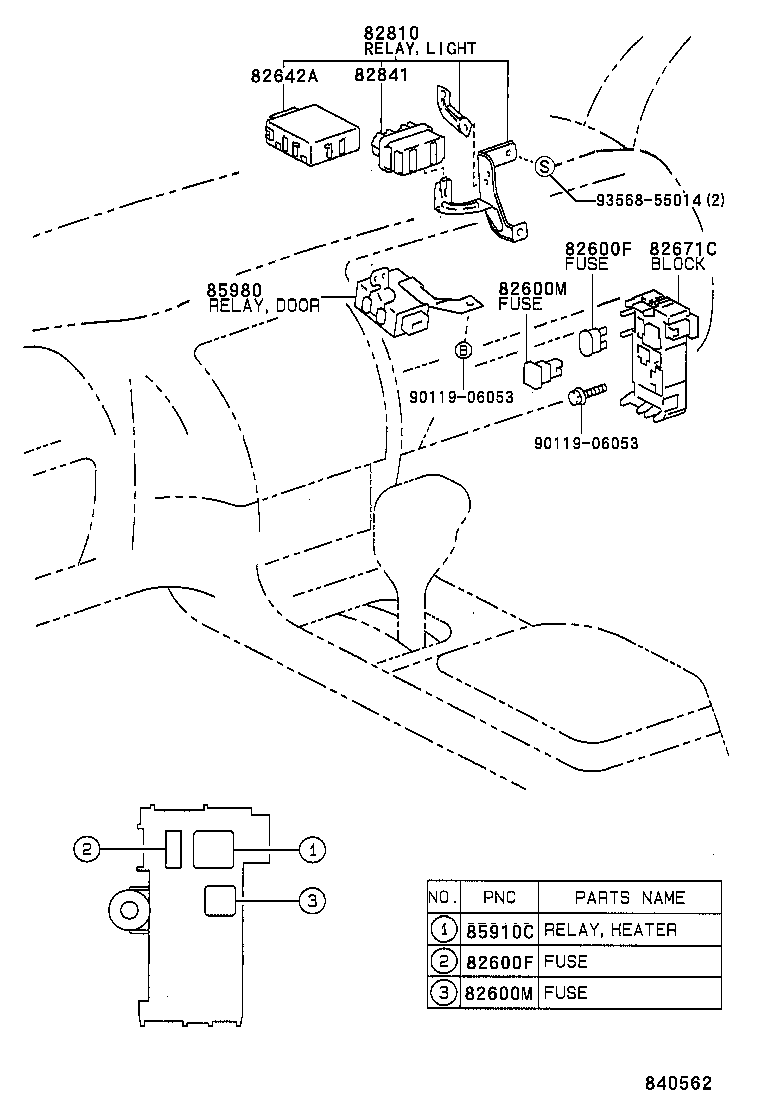

ILLUST NO. 5 OF 8(9209- )NAP
COWL RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82015 |
AE10#..NAP 7.5A,BROWN |
4 | ||
| 90080-82014 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 20A,YELLOW |
4 | ||
| 90080-82013 |
AE10#..NAP 15A,BLUE |
6 | ||
| 90080-82012 |
AE10#..NAP 10A,RED |
6 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..NAP 30A,PINK |
2 | ||
| 90982-10002 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 40A,GREEN |
2 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
AE10#..NAP 30A,PINK |
2 | ||
| 90982-10002 |
AE102..NAP;AE101..NAP..D;AE101..NAP..N..USA 40A,GREEN |
2 | ||
| 82671C - BLOCK, JUNCTION | ||||
| 82671-12200 |
AE101..NAP;AE102..NAP..CND;AE102..NAP..5F..E |
1 | ||
| 82671-12200 |
AE10#..NAP |
1 | ||
| 82671-12200 |
AE10#..NAP |
1 | ||
| 82671-12200 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE) |
2 | ||
| 82671-12200 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE10#..NAP |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12240 |
AE10#..NAP..(E,N) |
1 | ||
| 85980-12180 |
AE102..NAP;AE101..NAP..USA |
1 | ||
| 85980-12240 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND |
1 | ||
| 85980-12240 |
AE10#..NAP |
1 | ||
| 85980-12180 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 90119-06053 | ||||
| 93568-55014 | ||||

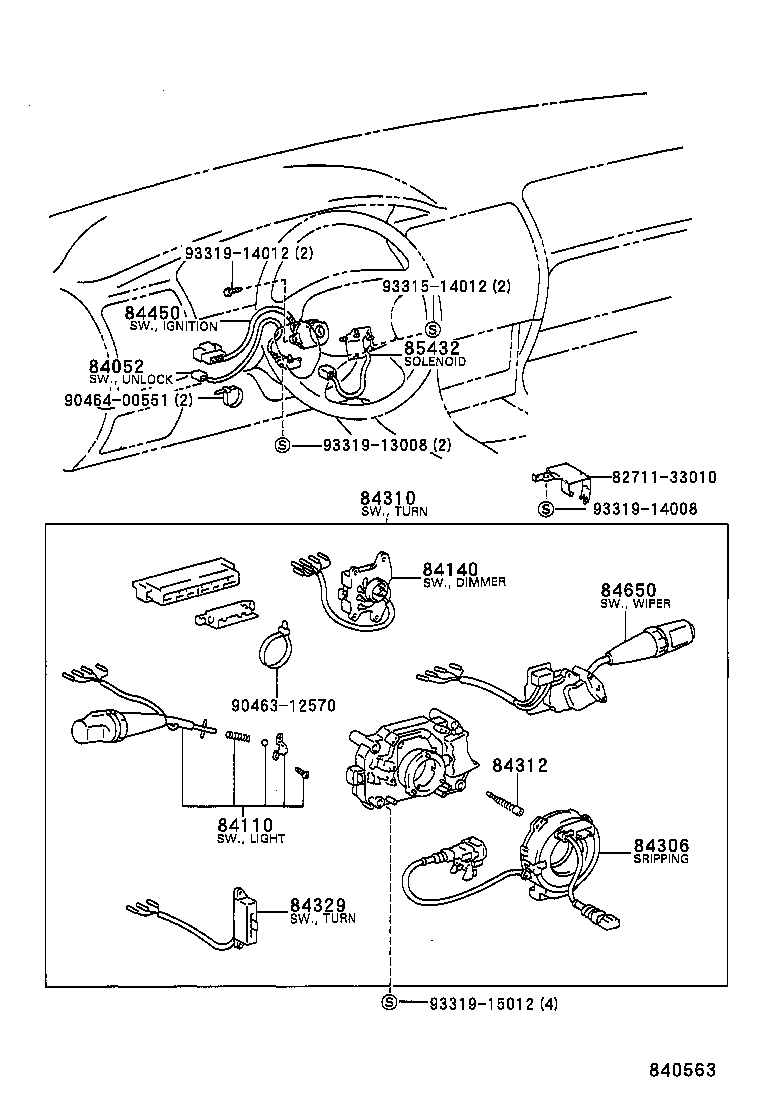

ILLUST NO. 6 OF 8(9209- )NAP
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-16020 |
AE10#..NAP |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-09070 |
AE10#..NAP |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-02010 |
AE10#..NAP |
1 | ||
| 84140-01030 |
AE102..NAP..E;AE101..NAP..USA W/O(*80) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-02020 |
AE10#..NAP..(D,N) |
1 | ||
| 84306-02010 |
AE102..NAP..E |
1 | ||
| 84306-02010 |
AE102..NAP..N..USA W(*IW) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-02060 |
AE102..NAP..E;AE101..NAP..USA W/O(*80) |
1 | ||
| 84310-02050 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84310-01070 |
AE102..NAP..N..USA W(*VIW) |
1 | ||
| 84310-01070 |
AE102..NAP..E |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-03010 |
AE102..NAP..E;AE101..NAP..USA |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-20260 |
AE10#..NAP |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-01070 |
AE102..NAP..N..USA W(*VIW) |
1 | ||
| 84652-02050 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 84652-02060 |
AE102..NAP..E;AE101..NAP..USA W/O(*80) |
1 | ||
| 84652-01070 |
AE102..NAP..E |
1 | ||
| Common parts | ||||
| 82711-33010 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-14008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
