AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

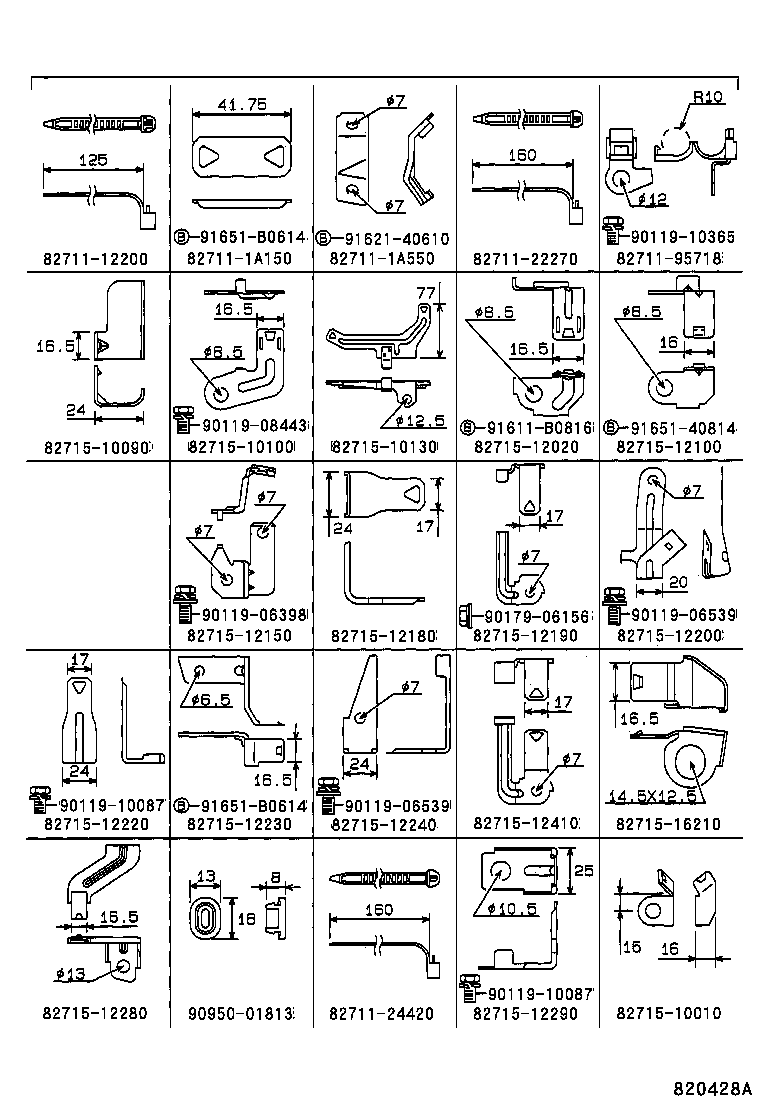

ILLUST NO. 3 OF 8(9209- )NAP
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-1A150 | ||||
| 82711-1A550 | ||||
| 82711-22270 | ||||
| 82711-24420 | ||||
| 82711-95718 | ||||
| 82715-10010 | ||||
| 82715-10090 | ||||
| 82715-10100 | ||||
| 82715-10130 | ||||
| 82715-12020 | ||||
| 82715-12100 | ||||
| 82715-12150 | ||||
| 82715-12180 | ||||
| 82715-12190 | ||||
| 82715-12200 | ||||
| 82715-12220 | ||||
| 82715-12230 | ||||
| 82715-12240 | ||||
| 82715-12280 | ||||
| 82715-12290 | ||||
| 82715-12410 | ||||
| 82715-16210 | ||||
| 90119-06398 | ||||
| 90119-06539 | ||||
| 90119-08443 | ||||
| 90119-10087 | ||||
| 90119-10365 | ||||
| 90179-06156 | ||||
| 90950-01813 | ||||
| 91611-B0816 | ||||
| 91621-40610 | ||||
| 91651-40814 | ||||
| 91651-B0614 | ||||

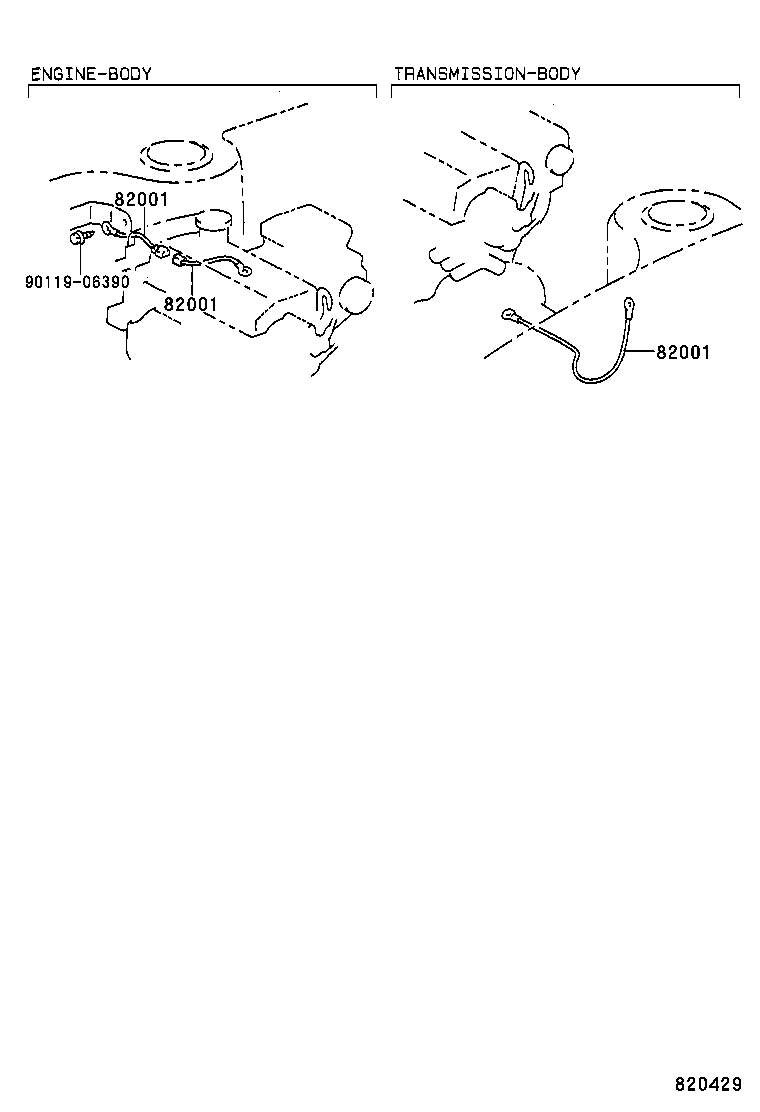

ILLUST NO. 7 OF 8(9209- )NAP
CABLE BOND,REPAIR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE10#..NAP LH FENDER |
1 | ||
| 90980-07299 |
AE10#..NAP MANIFOLD,L=180 |
1 | ||
| 90080-82003 |
AE10#..NAP MANIFOLD,L=170 |
1 | ||
| 90980-07351 |
AE10#..NAP LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE10#..NAP LH FENDER |
1 | ||
| 90980-07299 |
AE10#..NAP MANIFOLD,L=180 |
1 | ||
| 90080-82003 |
AE10#..NAP MANIFOLD,L=170 |
1 | ||
| 90980-07351 |
AE10#..NAP LH FENDER-T/M |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE10#..NAP LH FENDER |
1 | ||
| 90980-07299 |
AE10#..NAP MANIFOLD,L=180 |
1 | ||
| 90080-82003 |
AE10#..NAP MANIFOLD,L=170 |
1 | ||
| 90980-07351 |
AE10#..NAP LH FENDER-T/M |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||

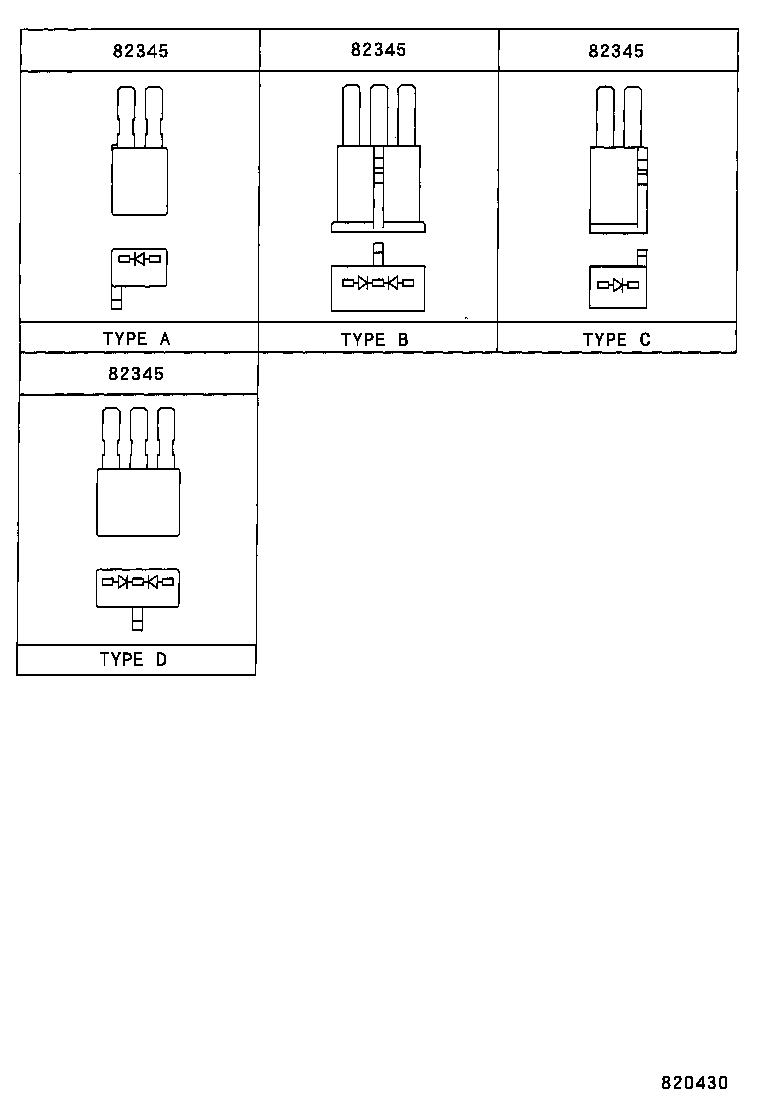

ILLUST NO. 8 OF 8(9209- )NAP
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||

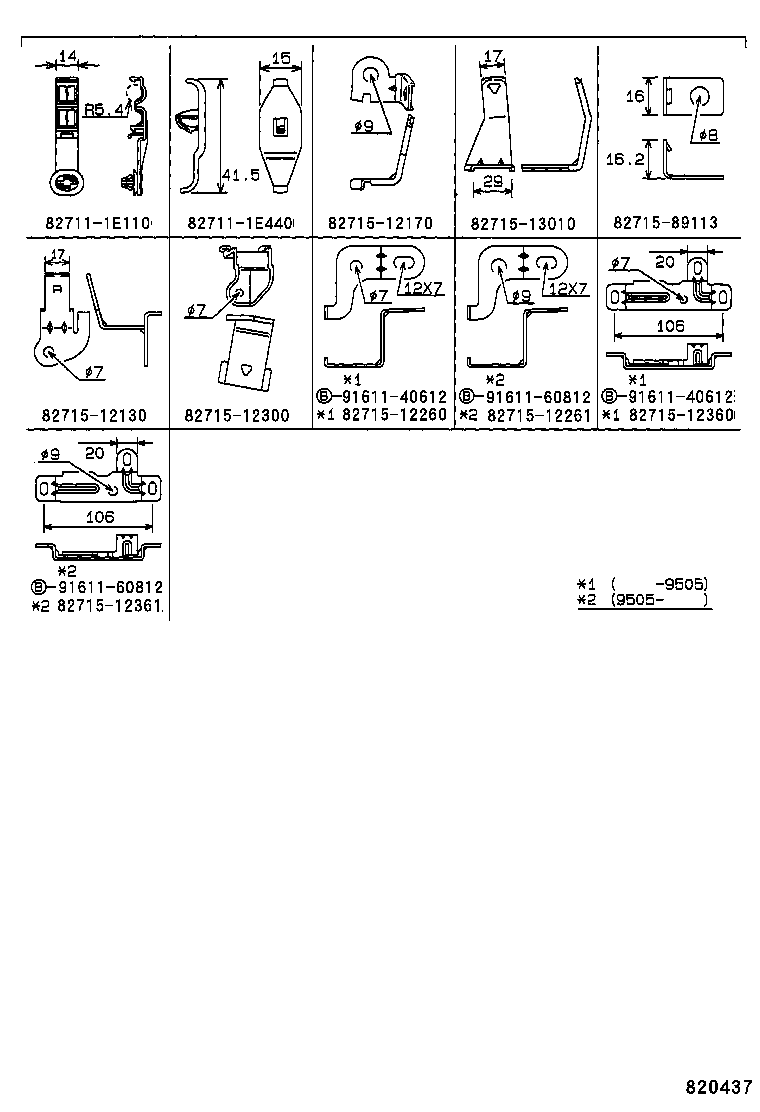

ILLUST NO. 3 OF 8(9209- )NAP
ENGINE WIRE CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E110 | ||||
| 82711-1E440 | ||||
| 82715-12130 | ||||
| 82715-12170 | ||||
| 82715-12260 | ||||
| 82715-12261 | ||||
| 82715-12300 | ||||
| 82715-12360 | ||||
| 82715-12361 | ||||
| 82715-13010 | ||||
| 82715-89113 | ||||
| 91611-40612 | ||||
| 91611-60812 | ||||

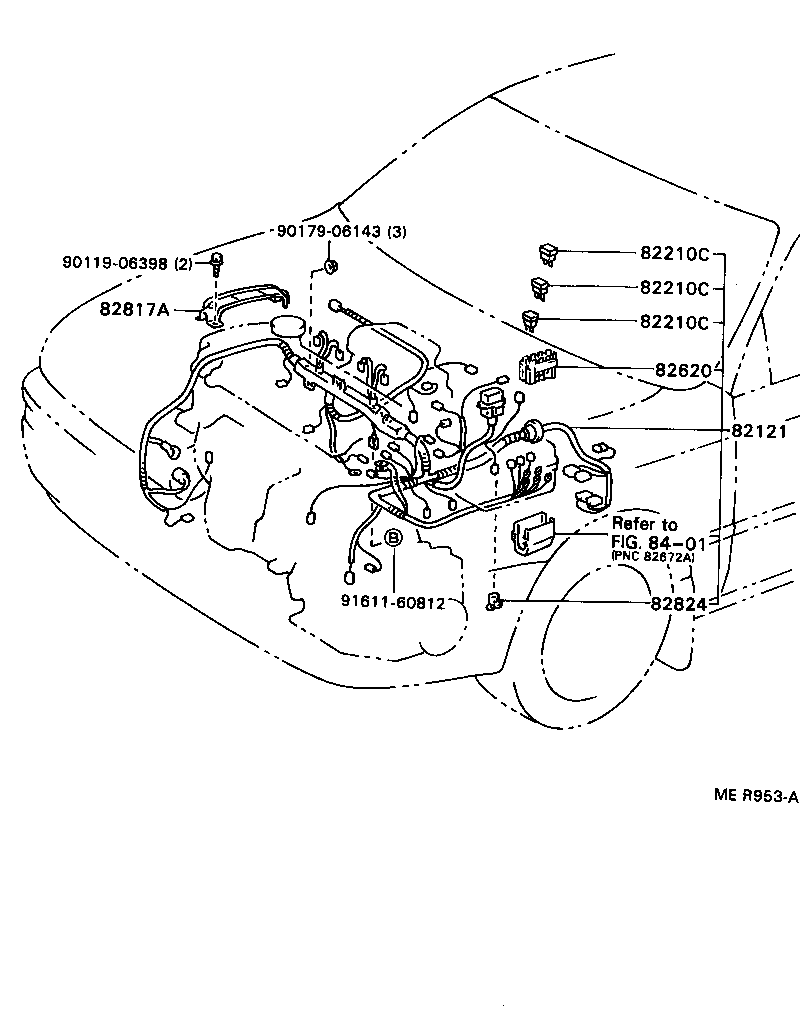

ILLUST NO. 2 OF 8(9209- )NAP
ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1H670 |
AE10#..NAP..5F |
1 | ||
| 82121-1L020 |
AE10#..NAP..5F |
1 | ||
| 82121-1H710 |
AE101..NAP..5F..D..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC |
1 | ||
| 82121-1L161 |
AE102..NAP..5F |
1 | ||
| 82121-02110 |
AE10#..NAP..5F (L) |
1 | ||
| 82121-1L160 |
AE102..NAP..5F |
1 | ||
| 82121-1L050 |
AE101..NAP..5F..D..USA;AE102..NAP..5F..N..USA CALIFORNIA SPEC |
1 | ||
| 82121-1K530 |
AE10#..NAP..5F (J) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..NAP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..NAP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08257 |
AE10#..NAP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..NAP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..NAP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..NAP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08257 |
AE10#..NAP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..NAP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..NAP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..NAP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08257 |
AE10#..NAP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..NAP 100A,TERM.:MALE,BLUE |
1 | ||
| 82620 - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12080 |
AE10#..NAP |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02040 |
AE10#..NAP (L) |
1 | ||
| 82817-1A070 |
AE10#..NAP (J) |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20050 |
AE10#..NAP |
1 | ||
| 82824-20050 |
AE10#..NAP..(D,N) |
1 | ||
| 82824-20050 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90179-06143 | ||||
| 91611-60812 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 8(9209- )NAP
DOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-02120 |
AE102..NAP..E *100 |
1 | ||
| 82151-02160 |
AE102..NAP..N..USA W(*EL),*101 |
1 | ||
| 82151-02100 |
AE102..NAP..E *101 |
1 | ||
| 82151-02130 |
AE102..NAP..N..USA W(*EL),*100 |
1 | ||
| 82151-02100 |
AE102..NAP..E PACKARD |
1 | ||
| 82151-02210 |
AE102..NAP..N..USA W(DOOR SPEAKER),*101 |
1 | ||
| 82151-02110 |
AE102..NAP..N..USA W(DOOR SPEAKER),*100 |
1 | ||
| 82151-02170 |
AE102..NAP..N;AE101..NAP..N..CND W(POWER WINDOW),*100 |
1 | ||
| 82151-02110 |
AE101..NAP..CND;AE102..NAP..N..USA W(DOOR SPEAKER),*100 |
1 | ||
| 82151-02170 |
AE101..NAP..CND;AE102..NAP..N..USA W(POWER WINDOW),*100 |
1 | ||
| 82151-02110 |
AE102..NAP..N;AE101..NAP..N..CND W(DOOR SPEAKER),*100 |
1 | ||
| 82151-02120 |
AE102..NAP..E A-YAZAKI |
1 | ||
| 82151-02100 |
AE102..NAP..E;AE101..NAP..N..USA PACKARD |
1 | ||
| 82151-02140 |
AE102..NAP..N W(ELECTRIC REMOTE CONTROL DOOR MIRROR),A-YAZAKI |
1 | ||
| 82151-02210 |
AE102..NAP..N;AE101..NAP..N..CND W(DOOR SPEAKER),*101 |
1 | ||
| 82151-02120 |
AE102..NAP..E;AE101..NAP..N..USA A-YAZAKI |
1 | ||
| 82151-02120 |
AE102..NAP..N W(*PW & *RCM),A-YAZAKI |
1 | ||
| 82151-02100 |
AE102..NAP..N W(*PW & *RCM),PACKARD |
1 | ||
| 82151-02210 |
AE101..NAP..CND;AE102..NAP..N..USA W(DOOR SPEAKER),*101 |
1 | ||
| 82151-02170 |
AE102..NAP..N;AE101..NAP..D..USA;AE101..NAP..N..CND W(POWER WINDOW),*100 |
1 | ||
| 82151-02220 |
AE102..NAP..N W(ELECTRIC REMOTE CONTROL DOOR MIRROR),PACKARD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-02110 |
AE102..NAP..N..USA W(DOOR SPEAKER),*100 |
1 | ||
| 82151-02210 |
AE102..NAP..N..USA W(DOOR SPEAKER),*101 |
1 | ||
| 82151-02130 |
AE102..NAP..N..USA W(*EL),*100 |
1 | ||
| 82152-02110 |
AE101..NAP..CND;AE102..NAP..N..USA W(POWER WINDOW),PACKARD |
1 | ||
| 82152-02100 |
AE102..NAP..E *100,A-YAZAKI |
1 | ||
| 82151-02160 |
AE102..NAP..N..USA W(*EL),*101 |
1 | ||
| 82152-02090 |
AE102..NAP..E *101,PACKARD |
1 | ||
| 82151-02110 |
AE101..NAP..CND;AE102..NAP..N..USA W(DOOR SPEAKER),*100 |
1 | ||
| 82152-02111 |
AE101..NAP..CND;AE102..NAP..N..USA W(POWER WINDOW),PACKARD |
1 | ||
| 82152-02120 |
AE101..NAP..CND;AE102..NAP..N..USA W(POWER WINDOW),A-YAZAKI |
1 | ||
| 82152-02121 |
AE101..NAP..CND;AE102..NAP..N..USA W(POWER WINDOW),A-YAZAKI |
1 | ||
| 82152-02101 |
AE102..NAP..E;AE101..NAP..N..USA A-YAZAKI |
1 | ||
| 82152-02121 |
AE102..NAP..N;AE101..NAP..N..CND W(POWER WINDOW),A-YAZAKI |
1 | ||
| 82152-02091 |
AE102..NAP..E PACKARD |
1 | ||
| 82151-02210 |
AE101..NAP..CND;AE102..NAP..N..USA W(DOOR SPEAKER),*101 |
1 | ||
| 82152-02101 |
AE102..NAP..E A-YAZAKI |
1 | ||
| 82152-02101 |
AE102..NAP..N W(*PW & *RCM),A-YAZAKI |
1 | ||
| 82152-02091 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 82152-02111 |
AE102..NAP..N;AE101..NAP..N..CND W(POWER WINDOW) |
1 | ||
| 82151-02110 |
AE102..NAP..N;AE101..NAP..N..CND W(DOOR SPEAKER),*100 |
1 | ||
| 82152-02092 |
AE102..NAP..N W(*PW & *RCM) |
1 | ||
| 82152-02092 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 82152-02091 |
AE102..NAP..N W(*PW & *RCM) |
1 | ||
| 82151-02210 |
AE102..NAP..N;AE101..NAP..N..CND W(DOOR SPEAKER),*101 |
1 | ||
| 82151-02140 |
AE102..NAP..N W(ELECTRIC REMOTE CONTROL DOOR MIRROR),A-YAZAKI |
1 | ||
| 82152-02112 |
AE102..NAP..N;AE101..NAP..D..USA;AE101..NAP..N..CND W(POWER WINDOW) |
1 | ||
| 82151-02220 |
AE102..NAP..N W(ELECTRIC REMOTE CONTROL DOOR MIRROR),PACKARD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02030 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND *101 |
1 | ||
| 82153-02060 |
AE102..NAP..N..USA *100 |
1 | ||
| 82153-02040 |
AE10#..NAP..(E,N) *100 |
1 | ||
| 82153-02050 |
AE102..NAP..N..USA *101 |
1 | ||
| 82153-02040 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND *100 |
1 | ||
| 82153-02040 |
AE10#..NAP *100 |
1 | ||
| 82153-02030 |
AE10#..NAP *101 |
1 | ||
| 82153-02030 |
AE10#..NAP..(E,N) *101 |
1 | ||
| 82153-02031 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND *101 |
1 | ||
| 82153-02041 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND *100 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02040 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND *100 |
1 | ||
| 82154-02040 |
AE10#..NAP *100 |
1 | ||
| 82154-02031 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND *101 |
1 | ||
| 82154-02030 |
AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND *101 |
1 | ||
| 82154-02030 |
AE10#..NAP..(E,N) *101 |
1 | ||
| 82154-02041 |
AE102..NAP;AE101..NAP..USA;AE101..NAP..N..CND *100 |
1 | ||
| 82154-02050 |
AE102..NAP..N..USA *101 |
1 | ||
| 82154-02040 |
AE10#..NAP..(E,N) *100 |
1 | ||
| 82154-02060 |
AE102..NAP..N..USA *100 |
1 | ||
| 82154-02030 |
AE10#..NAP *101 |
1 | ||

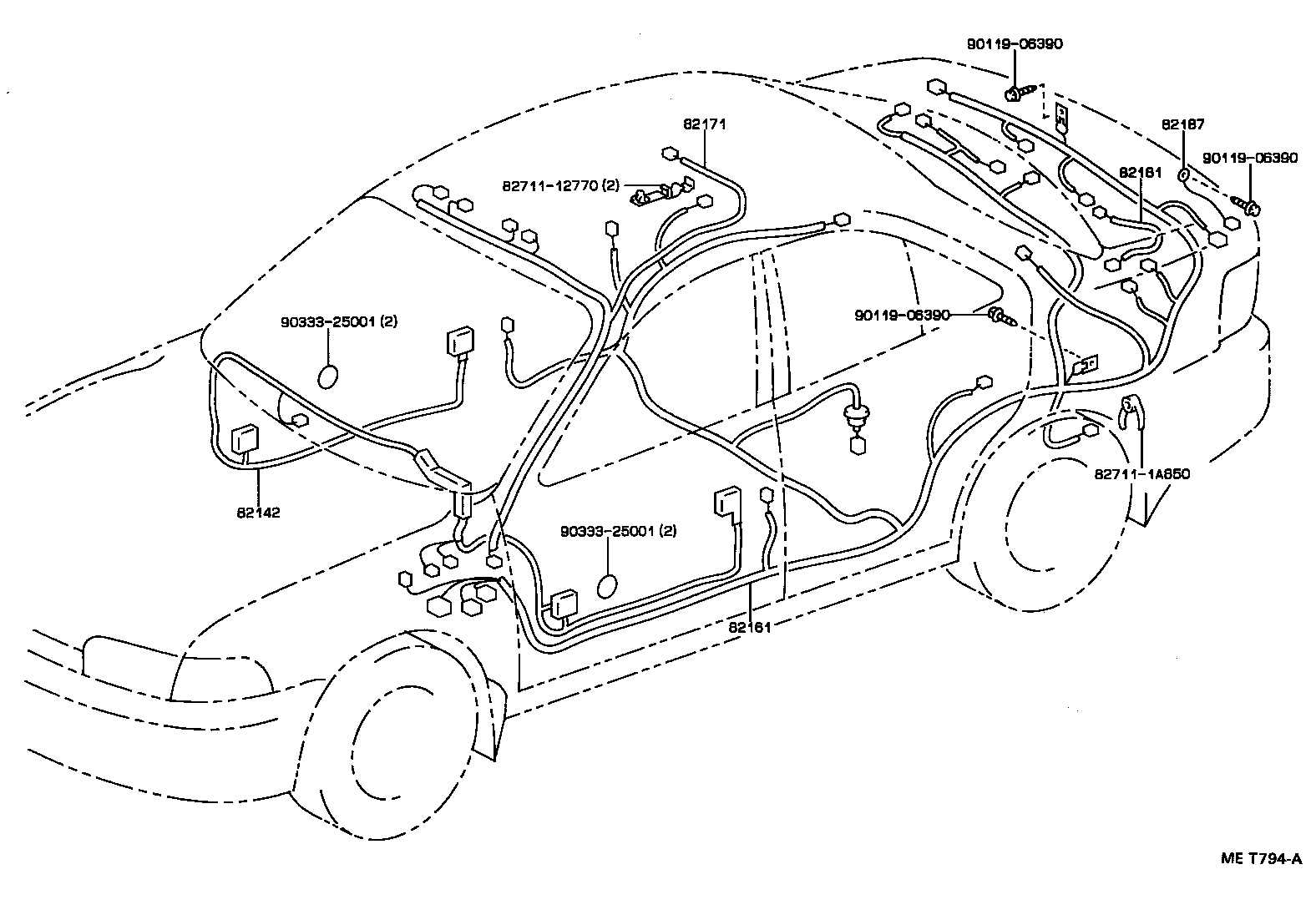

ILLUST NO. 6 OF 8(9209- )NAP
FLOOR & ROOF WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02010 |
AE102..NAP..N W(*EL),*101 |
1 | ||
| 82142-02010 |
AE102..NAP..E;AE101..NAP..USA *101 |
1 | ||
| 82142-02050 |
AE102..NAP..N W(*PW),PACKARD |
1 | ||
| 82142-02051 |
AE102..NAP..N W(*PW),PACKARD |
1 | ||
| 82142-02050 |
AE101..NAP;AE102..NAP..E PACKARD |
1 | ||
| 82142-02061 |
AE101..NAP;AE102..NAP..E A-YAZAKI |
1 | ||
| 82142-02060 |
AE102..NAP..N W(*PW),A-YAZAKI |
1 | ||
| 82142-02061 |
AE102..NAP..N W(*PW),A-YAZAKI |
1 | ||
| 82142-02020 |
AE102..NAP..E;AE101..NAP..USA *100 |
1 | ||
| 82142-02051 |
AE101..NAP;AE102..NAP..E PACKARD |
1 | ||
| 82142-02060 |
AE101..NAP;AE102..NAP..E A-YAZAKI |
1 | ||
| 82142-02052 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 82142-02020 |
AE102..NAP..N W(*EL),*100 |
1 | ||
| 82142-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(SUN ROOF),*100 |
1 | ||
| 82142-02051 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 82142-02052 |
AE102..NAP..N;AE101..NAP..D..USA;AE101..NAP..N..CND W(*PW) |
1 | ||
| 82142-02051 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-02170 |
AE101..NAP..CND;AE10#..NAP..(E,N) W(ABS),*100 |
1 | ||
| 82161-02150 |
AE101..NAP..CND;AE10#..NAP..(E,N) W(ABS),*101 |
1 | ||
| 82161-02220 |
AE101..NAP..CND;AE10#..NAP..(E,N) *100 |
1 | ||
| 82161-02210 |
AE101..NAP..CND;AE10#..NAP..(E,N) *101 |
1 | ||
| 82161-02260 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA W(ABS) |
1 | ||
| 82161-02300 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA W(ABS),*100 |
1 | ||
| 82161-02290 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA *100 |
1 | ||
| 82161-02320 |
AE102..NAP..E W(ABS) |
1 | ||
| 82161-02310 |
AE102..NAP..E |
1 | ||
| 82161-02261 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA W(ABS) |
1 | ||
| 82161-02250 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 82161-02321 |
AE102..NAP..E W(ABS) |
1 | ||
| 82161-02251 |
AE102..NAP..N;AE101..NAP..CND;AE101..NAP..N..USA |
1 | ||
| 82161-02311 |
AE102..NAP..E |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-02080 |
AE10#..NAP..(E,N) W(SUNROOF),*101 |
1 | ||
| 82171-02110 |
AE10#..NAP..(E,N) W(SUNROOF),*100 |
1 | ||
| 82171-02070 |
AE10#..NAP *101 |
1 | ||
| 82171-02081 |
AE102..NAP..N;AE101..NAP..N..CND W(SUNROOF) |
1 | ||
| 82171-02110 |
AE102..NAP..N;AE101..NAP..N..CND W(SUNROOF),*100 |
1 | ||
| 82171-02080 |
AE102..NAP..N;AE101..NAP..N..CND W(SUNROOF),*101 |
1 | ||
| 82171-02071 |
AE10#..NAP |
1 | ||
| 82171-02090 |
AE10#..NAP *100 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02050 |
AE10#..NAP *100 |
1 | ||
| 82187-02040 |
AE10#..NAP *101 |
1 | ||
| Common parts | ||||
| 82711-12770 | ||||
| 82711-1A850 | ||||
| 90119-06390 | ||||
| 90333-25001 | ||||

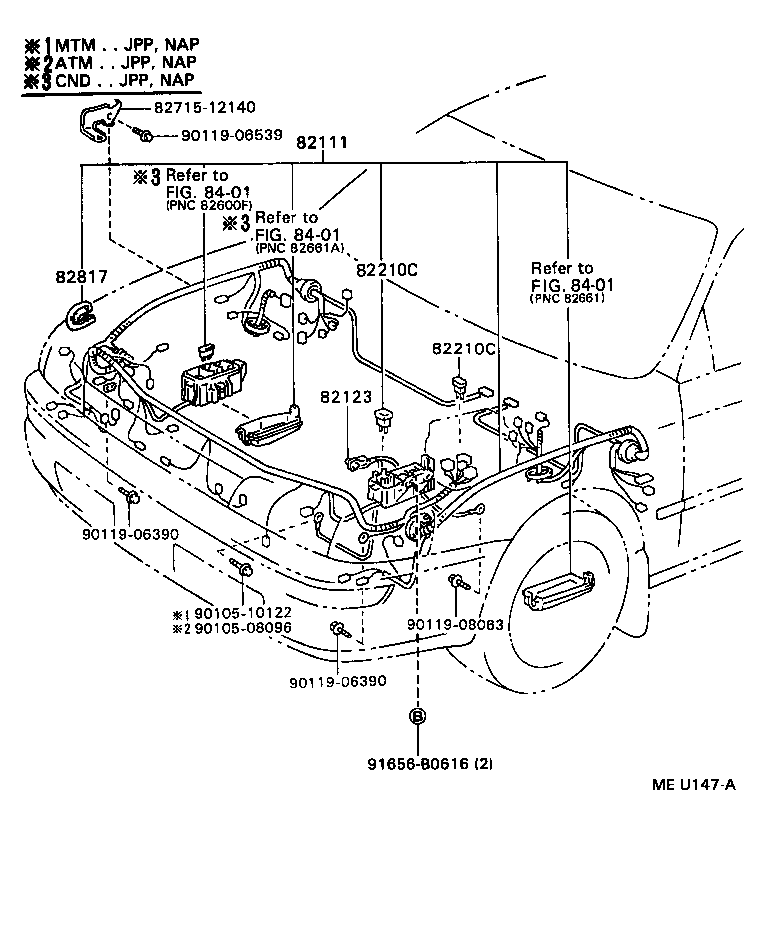

ILLUST NO. 1 OF 8(9209- )NAP
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-02140 |
AE10#..NAP..(D,N)..USA *100 |
1 | ||
| 82111-02220 |
AE101..NAP..N;AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82111-02210 |
AE101..NAP..N;AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82111-02190 |
AE102..NAP..E *101 |
1 | ||
| 82111-02150 |
AE10#..NAP..USA W(ABS),*100 |
1 | ||
| 82111-02200 |
AE102..NAP..E *100 |
1 | ||
| 82111-02200 |
AE102..NAP..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82111-02240 |
AE10#..NAP..USA W(ABS),*101 |
1 | ||
| 82111-02250 |
AE101..NAP..N;AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82111-02180 |
AE10#..NAP..(D,N)..USA *101 |
1 | ||
| 82111-02190 |
AE102..NAP..N..USA W(CRUISE CONTROL),*101 |
1 | ||
| 82111-02260 |
AE10#..NAP..USA W(ABS),*100 |
1 | ||
| 82111-02130 |
AE10#..NAP..USA W(ABS),*101 |
1 | ||
| 82111-02191 |
AE102..NAP..E PACKARD |
1 | ||
| 82111-02191 |
AE102..NAP..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82111-02141 |
AE10#..NAP..(D,N)..USA A-YAZAKI |
1 | ||
| 82111-02181 |
AE10#..NAP..(D,N)..USA PACKARD |
1 | ||
| 82111-02261 |
AE10#..NAP..USA W(ABS),PACKARD |
1 | ||
| 82111-02251 |
AE101..NAP..N;AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82111-02211 |
AE101..NAP..N;AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82111-02201 |
AE102..NAP..N..USA W(CRUISE CONTROL),A-YAZAKI |
1 | ||
| 82111-02182 |
AE10#..NAP..(D,N)..USA PACKARD |
1 | ||
| 82111-02241 |
AE10#..NAP..USA W(ABS),A-YAZAKI |
1 | ||
| 82111-02192 |
AE102..NAP..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82111-02242 |
AE10#..NAP..USA W(ABS),A-YAZAKI |
1 | ||
| 82111-02142 |
AE10#..NAP..(D,N)..USA A-YAZAKI |
1 | ||
| 82111-02202 |
AE102..NAP..E A-YAZAKI |
1 | ||
| 82111-02202 |
AE102..NAP..N..USA W(CRUISE CONTROL),A-YAZAKI |
1 | ||
| 82111-02192 |
AE102..NAP..E PACKARD |
1 | ||
| 82111-02201 |
AE102..NAP..E A-YAZAKI |
1 | ||
| 82111-02252 |
AE101..NAP..N;AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82111-02193 |
AE102..NAP..E PACKARD |
1 | ||
| 82111-02183 |
AE10#..NAP..(D,N)..USA PACKARD |
1 | ||
| 82111-02203 |
AE102..NAP..N..USA W(CRUISE CONTROL),A-YAZAKI |
1 | ||
| 82111-02143 |
AE10#..NAP..(D,N)..USA A-YAZAKI |
1 | ||
| 82111-02262 |
AE10#..NAP..USA W(ABS),PACKARD |
1 | ||
| 82111-02213 |
AE101..NAP..N;AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82111-02193 |
AE102..NAP..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82111-02212 |
AE101..NAP..N;AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82111-02203 |
AE102..NAP..E A-YAZAKI |
1 | ||
| 82111-02340 |
AE102..NAP..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82111-02330 |
AE10#..NAP..USA *100 |
1 | ||
| 82111-02300 |
AE10#..NAP..USA *101 |
1 | ||
| 82111-02350 |
AE10#..NAP..USA W(ABS),*100 |
1 | ||
| 82111-02243 |
AE10#..NAP..USA W(ABS),PACKARD |
1 | ||
| 82111-02320 |
AE10#..NAP..USA W(ABS),*101 |
1 | ||
| 82111-02253 |
AE101..NAP..N;AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82111-02310 |
AE102..NAP..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82111-02263 |
AE10#..NAP..USA W(ABS),A-YAZAKI |
1 | ||
| 82111-02300 |
AE10#..NAP..USA *100 |
1 | ||
| 82111-02310 |
AE102..NAP..N..USA W(CRUISE CONTROL),*101 |
1 | ||
| 82111-02320 |
AE10#..NAP..USA W(ABS),*100 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02060 |
AE10#..NAP..(4FC,5F) A-YAZAKI |
1 | ||
| 82123-02110 |
AE10#..NAP..(4FC,5F) A-YAZAKI |
1 | ||
| 82123-02100 |
AE10#..NAP..(4FC,5F) PACKARD |
1 | ||
| 82123-02040 |
AE10#..NAP..(4FC,5F) A-YAZAKI |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..NAP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..NAP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08257 |
AE10#..NAP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..NAP 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08228 |
AE10#..NAP 50A,TERM.:MALE,RED |
1 | ||
| 90982-08188 |
AE10#..NAP 30A,TERM.:FEMALE,PNK |
2 | ||
| 90982-08257 |
AE10#..NAP 40A,TERM.:MALE,GRN |
1 | ||
| 90982-08246 |
AE10#..NAP 100A,TERM.:MALE,BLUE |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A090 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 82715-12140 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06390 | ||||
| 90119-06539 | ||||
| 90119-08063 | ||||
| 91656-B0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

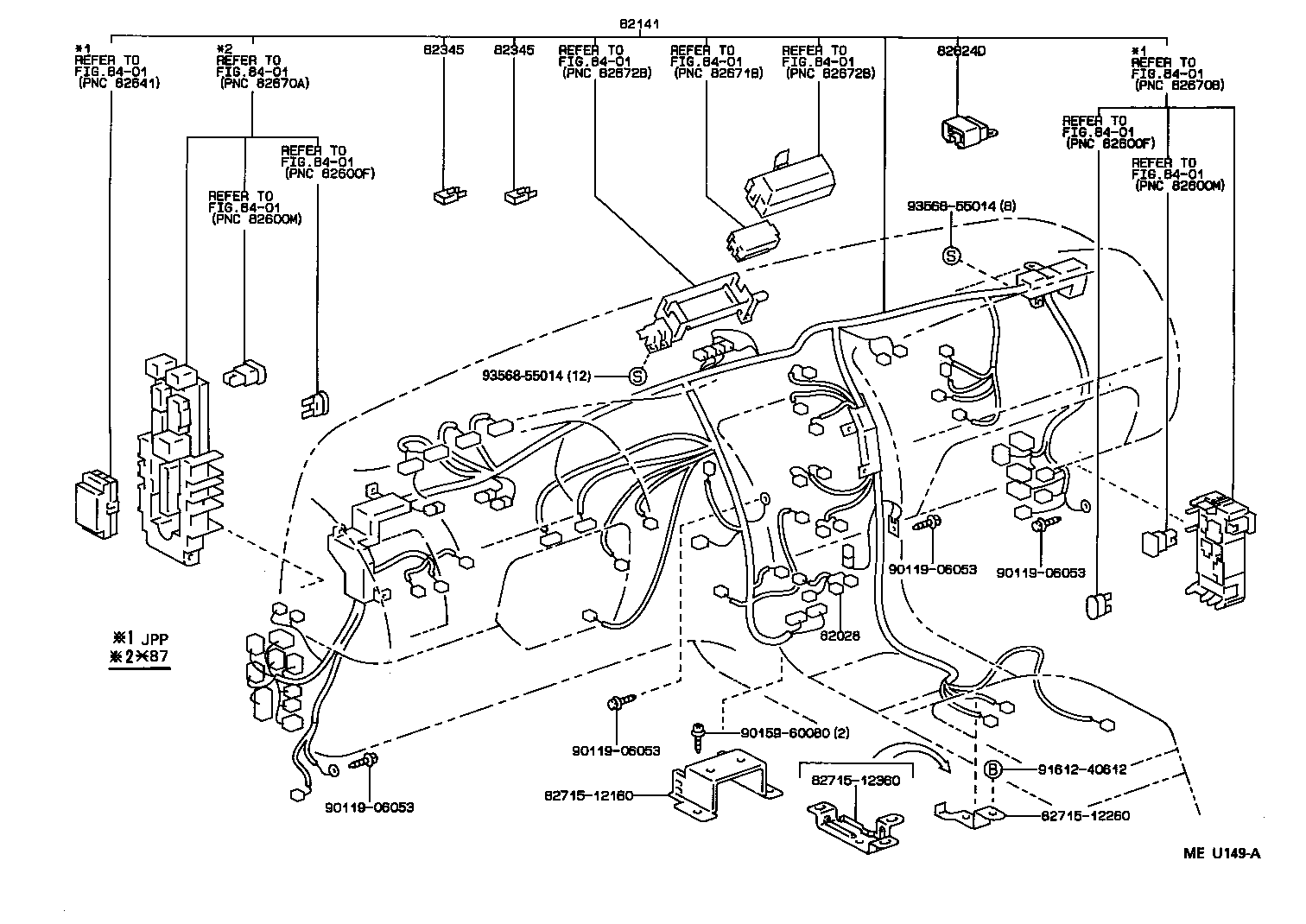

ILLUST NO. 4 OF 8(9209- )NAP
INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82028 - WIRING SUB-ASSY, COWL | ||||
| 82028-02010 |
AE101..NAP..USA;AE102..NAP..5F..E *100 |
1 | ||
| 82028-02020 |
AE102..NAP..5F..N..USA W(ABS) OR W(*CRC),*101 |
1 | ||
| 82028-02020 |
AE101..NAP..N;AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82028-02010 |
AE102..NAP..5F..N..USA W(ABS) OR W(*CRC),*100 |
1 | ||
| 82028-02010 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA A-YAZAKI |
1 | ||
| 82028-02020 |
AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA PACKARD |
1 | ||
| 82028-02020 |
AE101..NAP..USA;AE102..NAP..5F..E *101 |
1 | ||
| 82028-02020 |
AE101..NAP..N;AE102..NAP..5F..E |
1 | ||
| 82028-02010 |
AE10#..NAP |
1 | ||
| 82028-02020 |
AE102..NAP..5F..E W(*80;DRIVER SIDE & PASSENGER SIDE),PACKARD |
1 | ||
| 82028-02030 |
AE102..NAP..E;AE101..NAP..N..USA |
1 | ||
| 82028-02030 |
AE102..NAP..E W(*80;DRIVER SIDE & PASSENGER SIDE),NO.2,*101 |
1 | ||
| 82028-02010 |
AE102..NAP..E W(*80;DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82028-02010 |
AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND |
1 | ||
| 82028-02010 |
AE102..NAP..5F..E W(*80;DRIVER SIDE & PASSENGER SIDE),A-YAZAKI |
1 | ||
| 82028-02040 |
AE102..NAP..E W(*80;DRIVER SIDE & PASSENGER SIDE),NO.2,*100 |
1 | ||
| 82028-02040 |
AE101..NAP..D..USA;AE102..NAP..N..USA NO.2,*100 |
1 | ||
| 82028-02030 |
AE101..NAP..D..USA;AE102..NAP..N..USA NO.2,*101 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-02250 |
AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82141-02120 |
AE102..NAP..5F..N..USA *101 |
1 | ||
| 82141-02160 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),*101 |
1 | ||
| 82141-02170 |
AE102..NAP..5F..E *100 |
1 | ||
| 82141-02170 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82141-02210 |
AE102..NAP..5F..USA W(ABS),*100 |
1 | ||
| 82141-02130 |
AE102..NAP..5F..N..USA *100 |
1 | ||
| 82141-02160 |
AE102..NAP..5F..E *101 |
1 | ||
| 82141-02200 |
AE102..NAP..5F..USA W(ABS),*101 |
1 | ||
| 82141-02230 |
AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82141-02251 |
AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82141-02420 |
AE102..NAP..5F..E W(ABS) |
1 | ||
| 82141-02400 |
AE102..NAP..5F..E |
1 | ||
| 82141-02570 |
AE102..NAP..5F..N..USA PACKARD |
1 | ||
| 82141-02690 |
AE102..NAP..5F..N..USA A-YAZAKI |
1 | ||
| 82141-02630 |
AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82141-02730 |
AE102..NAP..5F..N..USA W(ABS),A-YAZAKI |
1 | ||
| 82141-02710 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),A-YAZAKI |
1 | ||
| 82141-02590 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82141-02610 |
AE102..NAP..5F..N..USA W(ABS),PACKARD |
1 | ||
| 82141-02650 |
AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82141-02610 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82141-02590 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82141-02710 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),A-YAZAKI |
1 | ||
| 82141-02730 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),A-YAZAKI |
1 | ||
| 82141-02401 |
AE102..NAP..5F..E |
1 | ||
| 82141-02421 |
AE102..NAP..5F..E W(ABS) |
1 | ||
| 82141-02571 |
AE102..NAP..5F..N..USA PACKARD |
1 | ||
| 82141-02611 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82141-02591 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82141-02691 |
AE102..NAP..5F..N..USA A-YAZAKI |
1 | ||
| 82141-02711 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),A-YAZAKI |
1 | ||
| 82141-02731 |
AE102..NAP..5F..N..USA W(ABS),A-YAZAKI |
1 | ||
| 82141-02651 |
AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82141-02611 |
AE102..NAP..5F..N..USA W(ABS),PACKARD |
1 | ||
| 82141-02591 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82141-02631 |
AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82141-02731 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),A-YAZAKI |
1 | ||
| 82141-02711 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),A-YAZAKI |
1 | ||
| 82145-02011 |
AE102..NAP..5F..N..USA W(ABS),PACKARD |
1 | ||
| 82141-02861 |
AE102..NAP..5F..N..USA *101 |
1 | ||
| 82141-02881 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82145-02031 |
AE102..NAP..5F..E W/O(*80) |
1 | ||
| 82145-02011 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),PACKARD |
1 | ||
| 82141-02881 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),PACKARD |
1 | ||
| 82145-02130 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),YAZAKI |
1 | ||
| 82145-02091 |
AE102..NAP..5F..E W(ABS) |
1 | ||
| 82145-02071 |
AE102..NAP..5F..E |
1 | ||
| 82145-02150 |
AE102..NAP..5F..N..USA W(ABS),YAZAKI |
1 | ||
| 82145-02110 |
AE102..NAP..5F..N..USA *100 |
1 | ||
| 82145-02051 |
AE102..NAP..5F..E W(ABS) & W/O(*80) |
1 | ||
| 82145-02130 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),YAZAKI |
1 | ||
| 82145-02390 |
AE102..NAP..5F..N..USA W(*PW) OR W(SUN ROOF) |
1 | ||
| 82145-02470 |
AE102..NAP..5F..N..USA W(ABS & *PW) OR W(ABS & SUN ROOF) |
1 | ||
| 82145-02550 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),*100 |
1 | ||
| 82145-02150 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),YAZAKI |
1 | ||
| 82145-02590 |
AE102..NAP..5F..N..USA W(ABS),*100 |
1 | ||
| 82145-02570 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82145-02550 |
AE102..NAP..5F..N..USA *100 |
1 | ||
| 82145-02590 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),*100 |
1 | ||
| 82145-02390 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82145-02370 |
AE102..NAP..5F..N..USA *101 |
1 | ||
| 82145-02490 |
AE102..NAP..5F..E |
1 | ||
| 82145-02510 |
AE102..NAP..5F..E W(ABS) |
1 | ||
| 82145-02470 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE) |
1 | ||
| 82145-02450 |
AE102..NAP..5F..N..USA W(ABS & CRUISE CONTROL) OR W(ABS) |
1 | ||
| 82145-02430 |
AE102..NAP..5F..N..USA W(*PW & *CRC) OR W(SUN ROOF & *CRC) |
1 | ||
| 82145-02410 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL) |
1 | ||
| 82145-02390 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL & POWER WINDOW);W(CRUISE CONTROL & SUN ROOF) |
1 | ||
| 82145-02470 |
AE102..NAP..5F..N..USA W(ABS & SUN ROOF) OR W(ABS & POWER WINDOW) |
1 | ||
| 82145-02371 |
AE102..NAP..5F..N..USA *101 |
1 | ||
| 82145-02411 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),*101 |
1 | ||
| 82145-02391 |
AE102..NAP..5F..N..USA W(*PW) OR W(SUN ROOF),*101 |
1 | ||
| 82145-02451 |
AE102..NAP..5F..N..USA W(ABS),*101 |
1 | ||
| 82145-02431 |
AE102..NAP..5F..N..USA W(*PW & *CRC) OR W(SUN ROOF & *CRC),*101 |
1 | ||
| 82145-02391 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),*101 |
1 | ||
| 82145-02491 |
AE102..NAP..5F..E |
1 | ||
| 82145-02471 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),*101 |
1 | ||
| 82145-02511 |
AE102..NAP..5F..E W(ABS) |
1 | ||
| 82145-02471 |
AE102..NAP..5F..N..USA W(ABS & *PW) OR W(ABS & SUN ROOF),*101 |
1 | ||
| 82145-02551 |
AE102..NAP..5F..E W(*80;DRIVER SIDE,PASSENGER SIDE),*100 |
1 | ||
| 82145-02591 |
AE102..NAP..5F..N..USA W(ABS),*100 |
1 | ||
| 82145-02571 |
AE102..NAP..5F..N..USA W(CRUISE CONTROL),*100 |
1 | ||
| 82145-02551 |
AE102..NAP..5F..N..USA *100 |
1 | ||
| 82145-02591 |
AE102..NAP..5F..E W(ABS & *80;DRIVER SIDE,PASSENGER SIDE),*100 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
AE102..NAP..USA TYPE C:REFER TO ILLUSTRATION |
2 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 82345-32010 |
AE102..NAP..USA TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 82345-32020 |
AE10#..NAP TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 82345-20040 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 82345-12050 |
AE102..NAP TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12200 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 82715-12160 | ||||
| 82715-12260 | ||||
| 82715-12360 | ||||
| 90119-06053 | ||||
| 90159-60080 | ||||
| 91612-40612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
