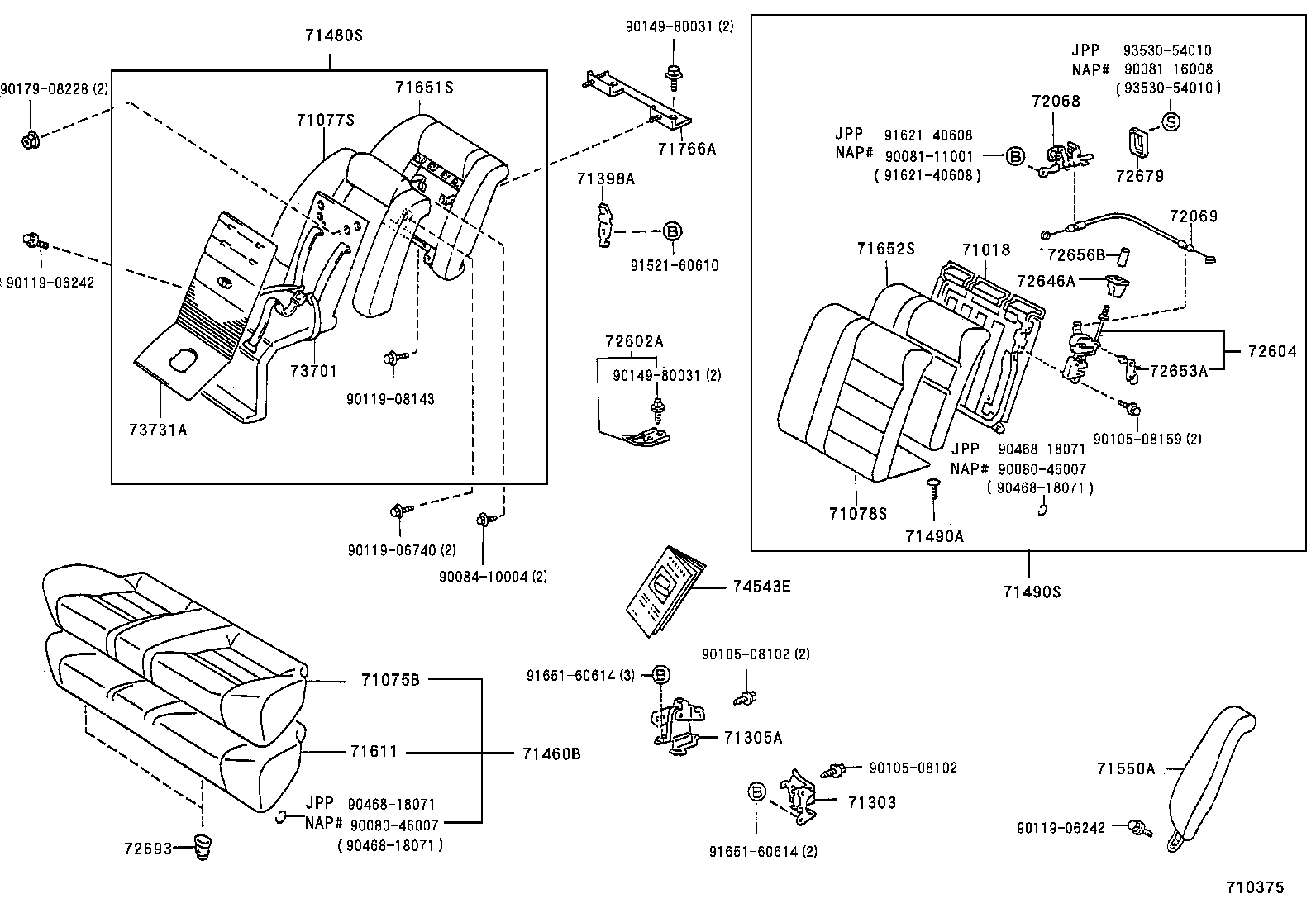

AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
(9209-9608)NAP..D..USA ; (9308-9608)NAP
STANDARD PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||

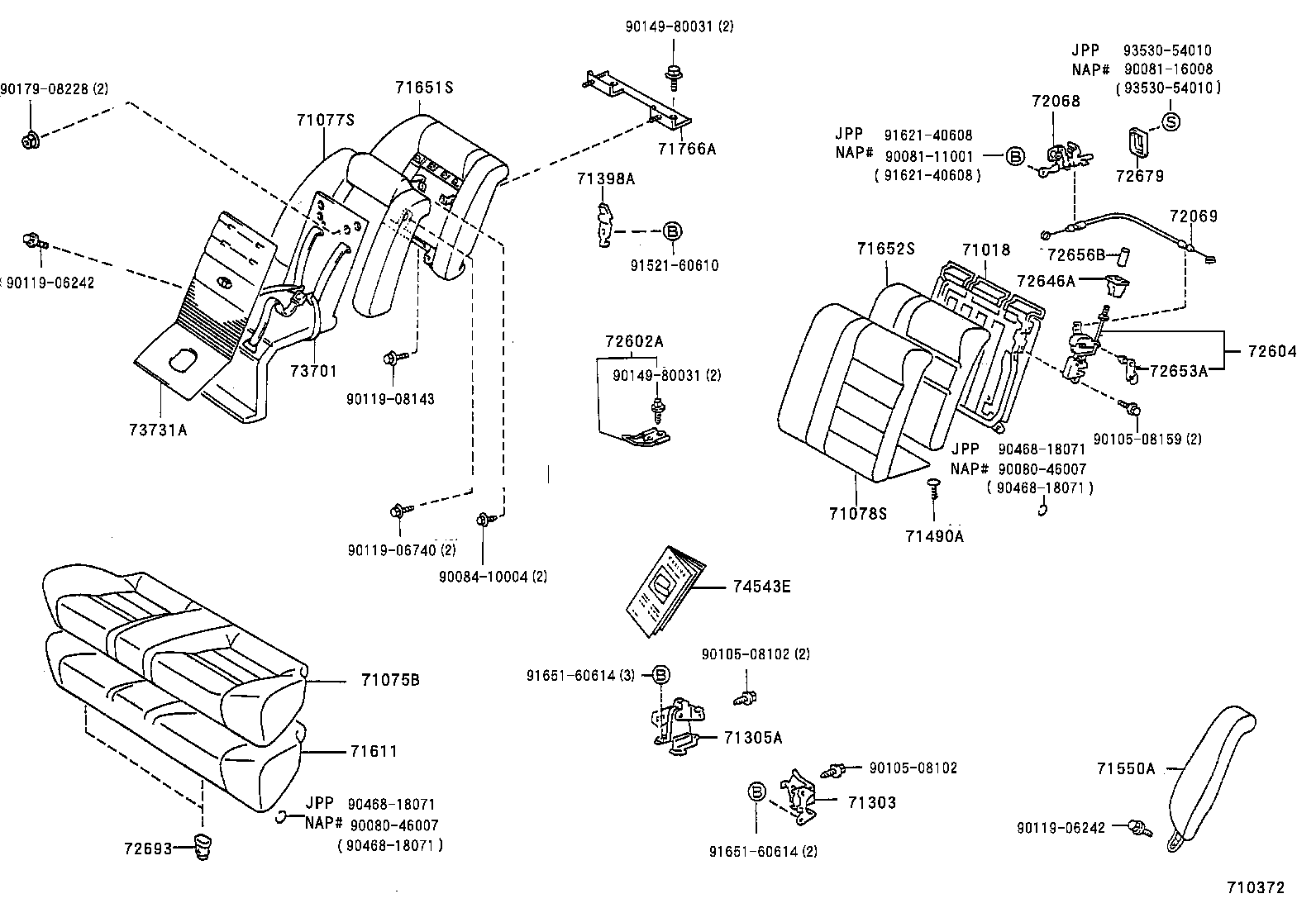

(9209-9608)AE102..NAP ; (9209-9608)AE101..NAP..CND ; (9209-9608)AE101..NAP..N..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71017-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71018-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02110B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02110J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71077-02120B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02111B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02121J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM1# |
1 | ||
| 71077-02112E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71077-02112J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71077-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02130J0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),DARK BLUE,TRIM8# |
1 | ||
| 71077-02130B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02130E1 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 71077-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71078-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71078-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71078-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71305-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 71305-12140 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71540-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71540-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71540-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71540-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71540-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71550-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71507-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71651-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72067-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72067-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72067-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-12030 |
AE10#..NAP..(E,N) |
1 | ||
| 72603-12030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-12050 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604-12050 |
AE10#..NAP..(E,N) |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
AE102..NAP..E;AE101..NAP..D..CND BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679-06010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8#,(L) |
2 | ||
| 72679-03010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
AE102..NAP..E;AE101..NAP..D..CND BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679-06010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8#,(L) |
2 | ||
| 72679-03010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-11001 | ||||
| 90081-16008 | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06242 | ||||
| 90149-80031 | ||||
| 90468-18071 | ||||
| 91521-60610 | ||||
| 91621-40608 | ||||
| 93530-54010 | ||||
(9508-9608)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71018-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02110B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02110J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71077-02120B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02111B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02121J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM1# |
1 | ||
| 71077-02112E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71077-02112J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71077-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02130J0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),DARK BLUE,TRIM8# |
1 | ||
| 71077-02130B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02130E1 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 71077-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71078-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71078-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71078-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71305-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 71305-12140 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71550-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71507-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71651-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71766A - BRACKET, SIDE SEAT, REAR | ||||
| 71766-02010 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-12050 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604-12050 |
AE10#..NAP..(E,N) |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
AE102..NAP..E;AE101..NAP..D..CND BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679-06010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8#,(L) |
2 | ||
| 72679-03010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| 73701 - SEAT SUB-ASSY, CHILD RESTRAINT | ||||
| 73701-02010E1 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 73701-02010B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 73701-02011E1 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 73701-02011B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 73701-02011J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 73701-02010J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 73731A - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-02010 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 74543E - LABEL, CHILD RESTRAINT SEAT INFORMATION | ||||
| 74543-02021 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 74543-02020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-11001 | ||||
| 90081-16008 | ||||
| 90084-10004 | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06242 | ||||
| 90119-06740 | ||||
| 90119-08143 | ||||
| 90149-80031 | ||||
| 90179-08228 | ||||
| 90468-18071 | ||||
| 91521-60610 | ||||
| 91621-40608 | ||||
| 91651-60614 | ||||
| 93530-54010 | ||||
(9608- )NAP
STANDARD PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71460-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71460-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90119-06242 | ||||
| 90468-18071 | ||||
(9608- )AE102..NAP ; (9608- )AE101..NAP..CND ; (9608- )AE101..NAP..N..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71017-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71018-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02110B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02110J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71077-02120B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02111B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02121J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM1# |
1 | ||
| 71077-02112E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71077-02112J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71077-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02130J0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),DARK BLUE,TRIM8# |
1 | ||
| 71077-02130B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02130E1 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 71077-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71078-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71078-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71078-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71305-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 71305-12140 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71460-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71460-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71480E - CLIP, REAR SEAT BACK, RH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-02140J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 71480-02140B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71480-02112E1 |
AE10#..NAP..N OAK,TRIM4#,(L) |
1 | ||
| 71480-02141E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 71480-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71480-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71480-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71480-02140E0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4#,(L) |
1 | ||
| 71480-02141B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71480-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,(L) |
1 | ||
| 71480-02141J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71490-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71490-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71490-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71490-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71540-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71540-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71540-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71540-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71540-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71540-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71540-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71540-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71540-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71550-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71507-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71651-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72067-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72067-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72067-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-12030 |
AE10#..NAP..(E,N) |
1 | ||
| 72603-12030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-12050 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604-12050 |
AE10#..NAP..(E,N) |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
AE102..NAP..E;AE101..NAP..D..CND BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679-06010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8#,(L) |
2 | ||
| 72679-03010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-11001 | ||||
| 90081-16008 | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06242 | ||||
| 90149-80031 | ||||
| 90468-18071 | ||||
| 91521-60610 | ||||
| 91621-40608 | ||||
| 93530-54010 | ||||
(9608- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71018-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71075-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02101J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02101B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02101K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02102B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02111B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02111J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71075-02111K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71075-02102J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71075-02111B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71075-02102K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71075-02111J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71075-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71075-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71075-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-02110B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02110J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71077-02120B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02121B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02111B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02120J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71077-02121B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02111K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02121J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM1# |
1 | ||
| 71077-02112E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71077-02112J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71077-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71077-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71077-02121K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71077-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02112K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71077-02130J0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),DARK BLUE,TRIM8# |
1 | ||
| 71077-02130B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1# |
1 | ||
| 71077-02130E1 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4# |
1 | ||
| 71077-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71078-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71078-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71078-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71078-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71078-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71078-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71078-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71078-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12110 |
AE10#..NAP..(E,N) |
2 | ||
| 71303-12110 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71303-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71305-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 71305-12140 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398A - HOLDER, REAR SEAT BACK | ||||
| 71398-02020 |
AE10#..NAP..(E,N) |
2 | ||
| 71398-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71398-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-02102B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71460-02112B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71460-02102E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71460-02112J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-02140J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 71480-02140B0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71480-02112E1 |
AE10#..NAP..N OAK,TRIM4#,(L) |
1 | ||
| 71480-02141E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 71480-02122J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71480-02112B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71480-02122B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71480-02140E0 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM),OAK,TRIM4#,(L) |
1 | ||
| 71480-02141B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71480-02112J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,(L) |
1 | ||
| 71480-02141J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90080-46070C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
2 | ||
| 90080-46070C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 90080-46070C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71490-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71490-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71490-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71490-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-02030B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02030K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02040B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02040J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02040K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02041J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71550-02041B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71550-02031J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71550-02030J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02032J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71550-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71550-02031B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71550-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02041B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71550-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71503-02030 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71503-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-02020 |
AE10#..NAP..(E,N) |
1 | ||
| 71507-02020 |
AE102..NAP..N;AE101..NAP..N..CND W(CHILD RESTRAINT SYSTEM) |
1 | ||
| 71651-02020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71652-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71766A - BRACKET, SIDE SEAT, REAR | ||||
| 71766-02010 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-16020 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-12010 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72068-16021 |
AE10#..NAP..(E,N) |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-20040 |
AE10#..NAP..(E,N) (J) |
2 | ||
| 72069-20040 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
2 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72601-12110 |
AE10#..NAP..(E,N) |
1 | ||
| 72601-12110 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-12050 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 72604-12050 |
AE10#..NAP..(E,N) |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-02030J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72646-02030B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72646-02030E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72646-02030B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72646-02030J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72653A - SNAP, REAR SEAT BACK LOCK ROD | ||||
| 69759-24020 |
AE101..NAP..CND;AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 69759-24020 |
AE10#..NAP..(E,N) LH |
1 | ||
| 69759-24010 |
AE10#..NAP..(E,N) RH |
1 | ||
| 69759-24010 |
AE101..NAP..CND;AE10#..NAP..(E,N) RH |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-02010B0 |
AE101..NAP..CND;AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72661-02010K0 |
AE101..NAP..CND;AE10#..NAP..(E,N) TAUPE,TRIM9# |
1 | ||
| 72661-02010J0 |
AE101..NAP..CND;AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 72661-02010J0 |
AE10#..NAP..(E,N) DARK BLUE,TRIM8# |
1 | ||
| 72661-02010B0 |
AE10#..NAP..(E,N) SHADOW GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
AE102..NAP..E;AE101..NAP..D..CND BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72679-06010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
2 | ||
| 72679-06010C0 |
AE10#..NAP..N BLACK,TRIM1#,4#,8#,(L) |
2 | ||
| 72679-03010C0 |
AE101..NAP..CND;AE10#..NAP..(E,N) BLACK,TRIM1#,8#,9# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32020 |
AE10#..NAP |
2 | ||
| 73701 - SEAT SUB-ASSY, CHILD RESTRAINT | ||||
| 73701-02010E1 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 73701-02010B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 73701-02011E1 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 73701-02011B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 73701-02011J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 73701-02010J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 73731A - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-02010 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 74543E - LABEL, CHILD RESTRAINT SEAT INFORMATION | ||||
| 74543-02021 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 74543-02020 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90081-11001 | ||||
| 90081-16008 | ||||
| 90084-10004 | ||||
| 90105-08102 | ||||
| 90105-08159 | ||||
| 90119-06242 | ||||
| 90119-06740 | ||||
| 90119-08143 | ||||
| 90149-80031 | ||||
| 90179-08228 | ||||
| 90468-18071 | ||||
| 91521-60610 | ||||
| 91621-40608 | ||||
| 91651-60614 | ||||
| 93530-54010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
