AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

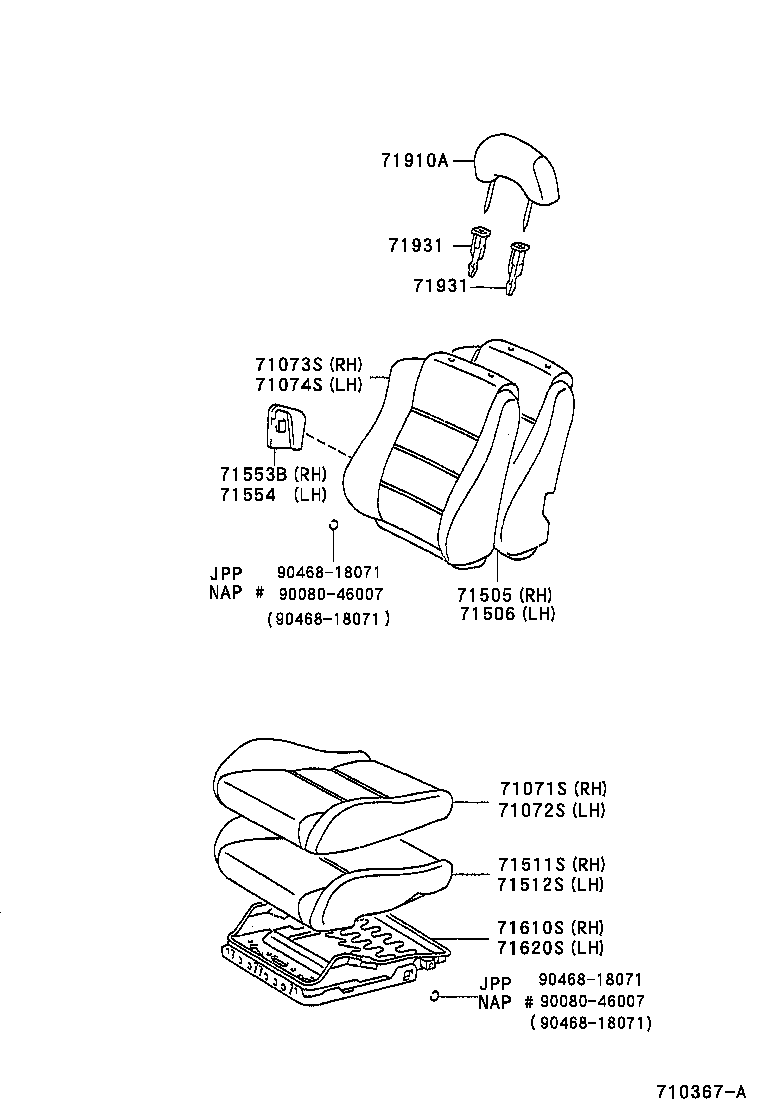

ILLUST NO. 1 OF 2(9209-9608)NAP..D,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02120B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02130B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02120K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02130J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02121K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02121J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02130K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02120J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71071-02122B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02131B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02121B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71071-02131K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71071-02132B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02132J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71072-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71072-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71072-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71073-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02110K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073-02101J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71073-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71074-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71074-02100J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074-02100K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02101B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71074-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71074-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#..NAP |
2 | ||
| 71553-02030 |
AE10#..NAP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#..NAP |
2 | ||
| 71554-02030 |
AE10#..NAP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02010 |
AE10#..NAP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71620-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71620-02020 |
AE102..NAP..E |
1 | ||
| 71620-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 71910-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
2 | ||
| 71910-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 71910-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 71910-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
2 | ||
| 71910-02110B0 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091E1 |
AE10#..NAP..N OAK,TRIM4#,RH |
1 | ||
| 71910-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 71910-02110J0 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101B1 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02110B0 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02110J0 |
AE10#..NAP..N DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02110E1 |
AE10#..NAP..N OAK,TRIM4#,LH |
1 | ||
| 71910-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||

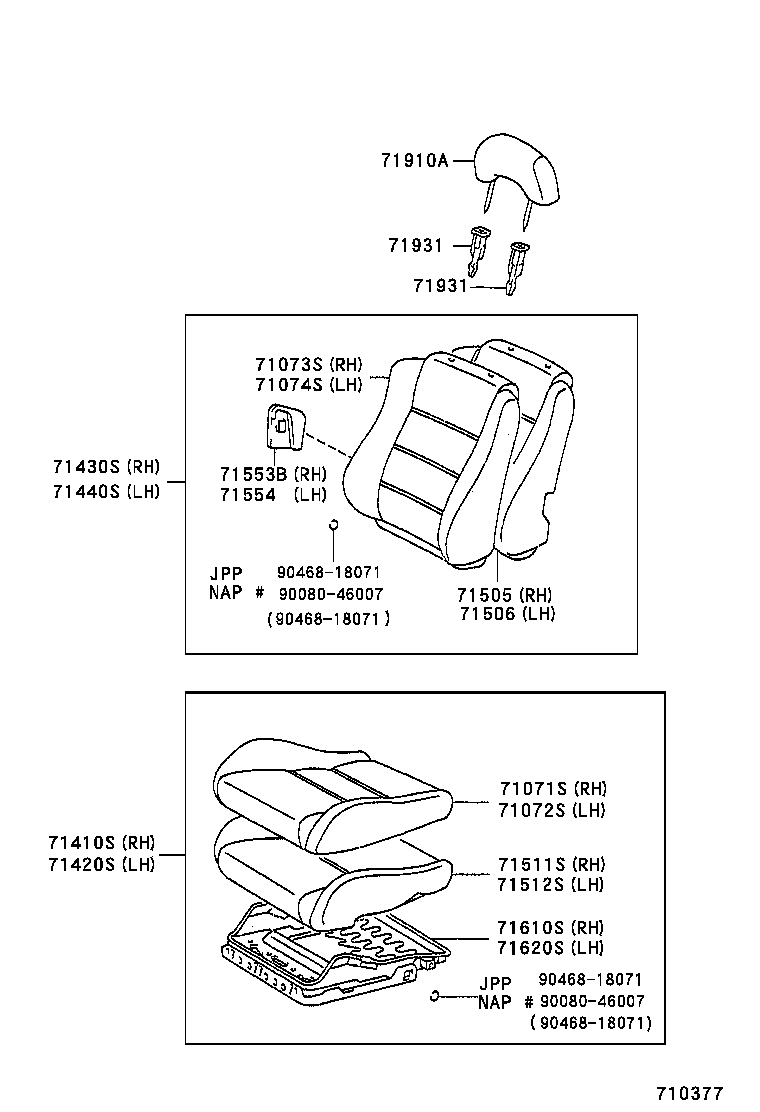

ILLUST NO. 1 OF 2(9209-9608)NAP..E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02120B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02130B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02120K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02130J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02121K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02121J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02130K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02120J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71071-02122B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02131B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02121B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71071-02131K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71071-02132B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02132J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71072-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71072-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71072-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71073-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02110K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073-02101J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71073-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71074-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71074-02100J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074-02100K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02101B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71074-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71074-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#..NAP |
2 | ||
| 71553-02030 |
AE10#..NAP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#..NAP |
2 | ||
| 71554-02030 |
AE10#..NAP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02010 |
AE10#..NAP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71620-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71620-02020 |
AE102..NAP..E |
1 | ||
| 71620-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 71910-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
2 | ||
| 71910-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 71910-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 71910-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
2 | ||
| 71910-02110B0 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091E1 |
AE10#..NAP..N OAK,TRIM4#,RH |
1 | ||
| 71910-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 71910-02110J0 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101B1 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02110B0 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02110J0 |
AE10#..NAP..N DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02110E1 |
AE10#..NAP..N OAK,TRIM4#,LH |
1 | ||
| 71910-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
2 | ||

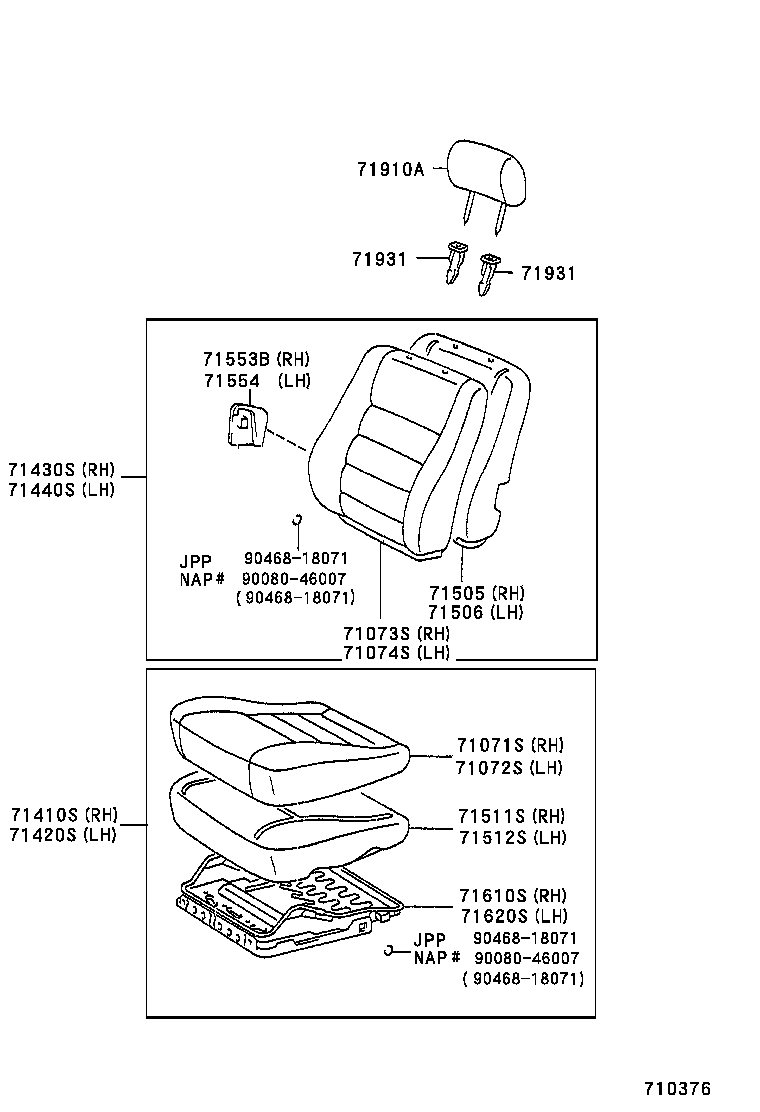

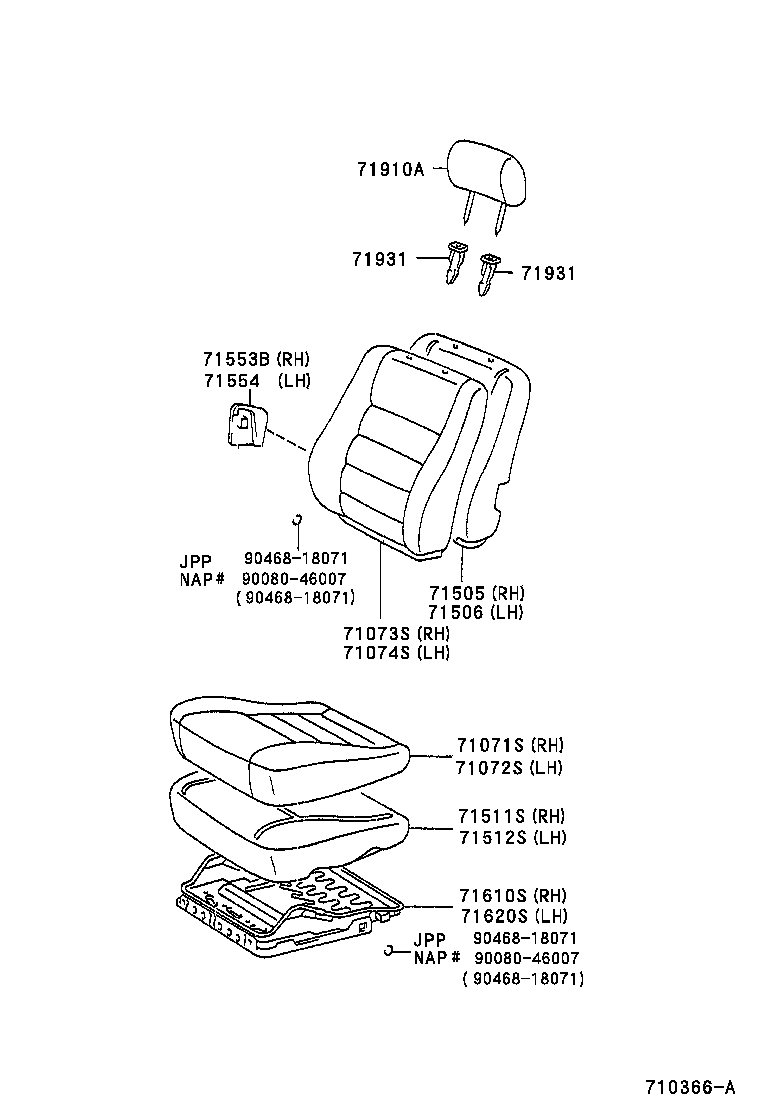

| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||

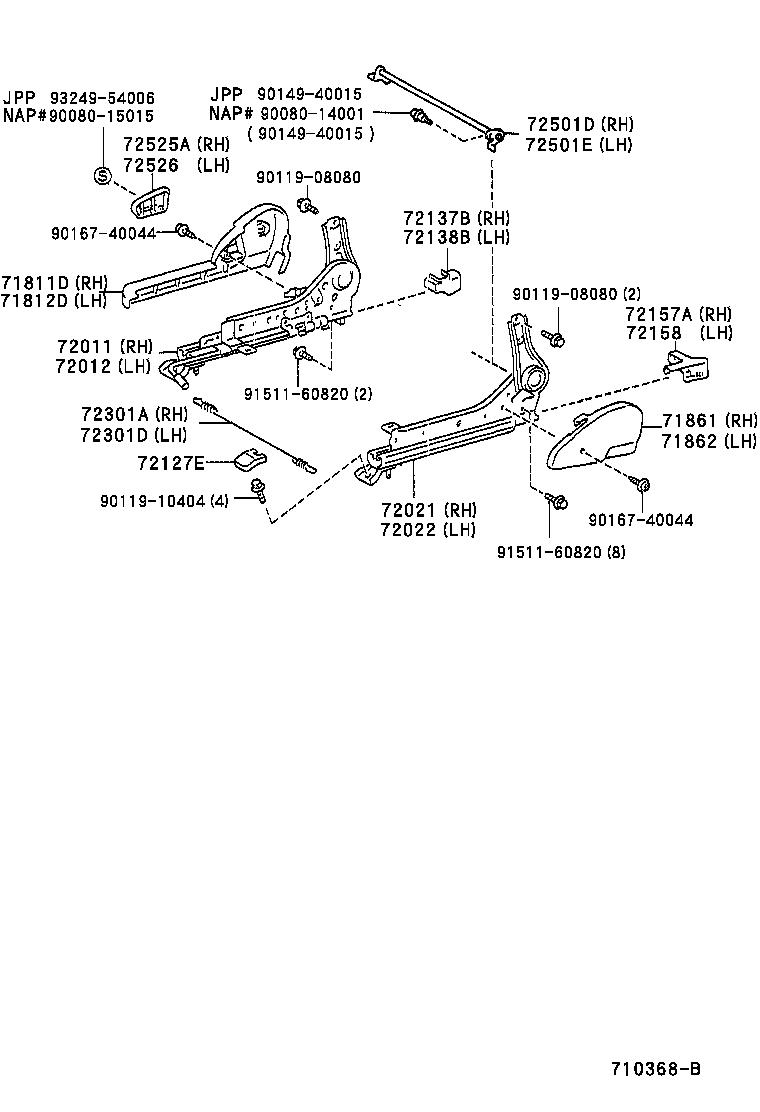

ILLUST NO. 2 OF 2(9209- )NAP..D ; (9209- )NAP..N..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

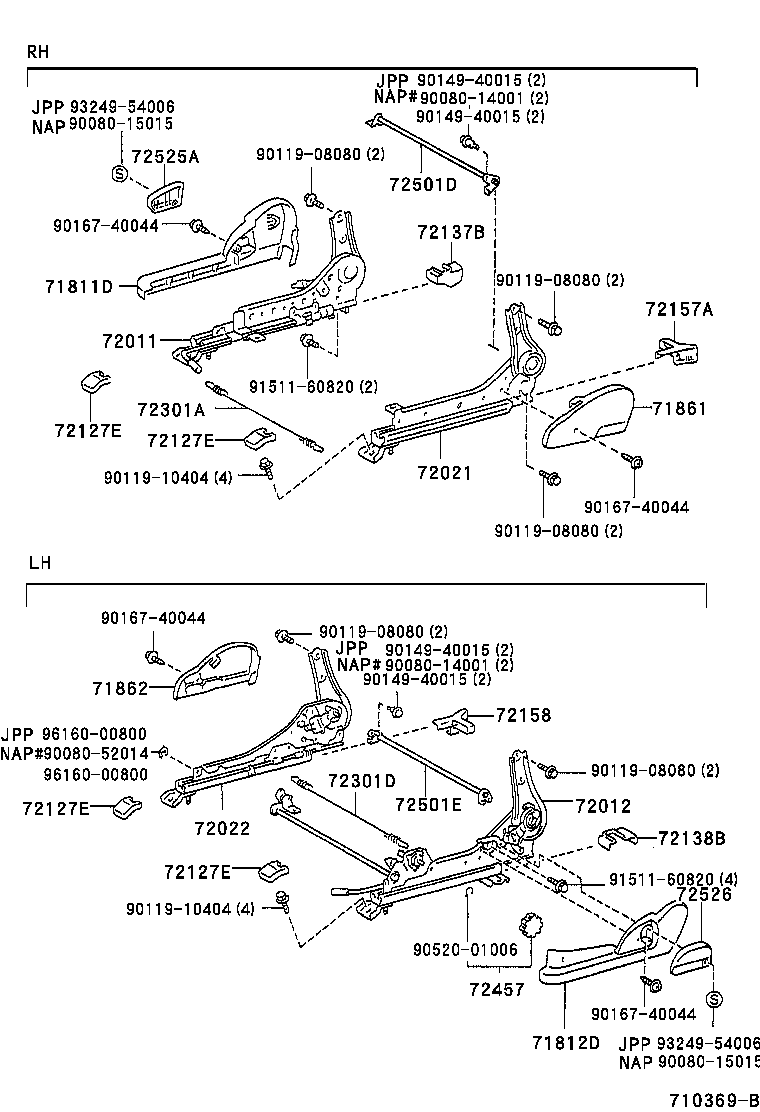

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(L) |
1 | ||
| 71811-12310K0 |
AE10#..NAP TAUPE,TRIM9#,(J) |
1 | ||
| 71811-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71811-12310E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(J) |
1 | ||
| 71811-02020J0 |
AE10#..NAP DARK BLUE,TRIM8#,(L) |
1 | ||
| 71811-12310B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71811-12310J0 |
AE10#..NAP DARK BLUE,TRIM8#,(J) |
1 | ||
| 71811-02020K0 |
AE10#..NAP TAUPE,TRIM9#,(L) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02010B0 |
AE101..NAP;AE102..NAP..N..USA SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-02020J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02010J0 |
AE101..NAP;AE102..NAP..N..USA DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02010K0 |
AE101..NAP;AE102..NAP..N..USA TAUPE,TRIM9#,(L) |
1 | ||
| 71812-12270B0 |
AE101..NAP;AE102..NAP..N..USA SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12290B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12270K0 |
AE101..NAP;AE102..NAP..N..USA TAUPE,TRIM9#,(J) |
1 | ||
| 71812-02020K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9#,(L) |
1 | ||
| 71812-02010E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(L) |
1 | ||
| 71812-02010J0 |
AE10#..NAP..(D,N) DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02020B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-12270J0 |
AE101..NAP;AE102..NAP..N..USA DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-02010B0 |
AE10#..NAP..(D,N) SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-02020J0 |
AE102..NAP..E DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-12290J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12270E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(J) |
1 | ||
| 71812-02020B0 |
AE102..NAP..E SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-12290K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9#,(J) |
1 | ||
| 71812-12270B0 |
AE10#..NAP..(D,N) SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12290J0 |
AE102..NAP..E DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12270J0 |
AE10#..NAP..(D,N) DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12290B0 |
AE102..NAP..E SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 71861-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 71861-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 71861-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 71862-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 71862-02010E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 71862-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-02020 |
AE10#..NAP (L) |
1 | ||
| 72011-12210 |
AE10#..NAP (J) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12300 |
AE101..NAP;AE102..NAP..N..USA (J) |
1 | ||
| 72012-02010 |
AE10#..NAP..(D,N) (L) |
1 | ||
| 72012-02020 |
AE102..NAP..E (L) |
1 | ||
| 72012-12310 |
AE102..NAP..E;AE102..NAP..CND (J) |
1 | ||
| 72012-02020 |
AE102..NAP..E;AE102..NAP..CND (L) |
1 | ||
| 72012-12300 |
AE10#..NAP..(D,N) (J) |
1 | ||
| 72012-02010 |
AE101..NAP;AE102..NAP..N..USA (L) |
1 | ||
| 72012-12310 |
AE102..NAP..E (J) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-02020 |
AE10#..NAP (L) |
1 | ||
| 72021-12250 |
AE10#..NAP (J) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-02010 |
AE101..NAP;AE102..NAP..N..USA (L) |
1 | ||
| 72022-12350 |
AE101..NAP;AE102..NAP..N..USA (J) |
1 | ||
| 72022-02010 |
AE10#..NAP..(D,N) (L) |
1 | ||
| 72022-12360 |
AE102..NAP..E;AE102..NAP..CND (J) |
1 | ||
| 72022-12350 |
AE10#..NAP..(D,N) (J) |
1 | ||
| 72022-02020 |
AE102..NAP..E (L) |
1 | ||
| 72022-02020 |
AE102..NAP..E;AE102..NAP..CND (L) |
1 | ||
| 72022-12360 |
AE102..NAP..E (J) |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
3 | ||
| 72127-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
3 | ||
| 72127-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
3 | ||
| 72127-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
4 | ||
| 72127-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
3 | ||
| 72127-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72137-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72137-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72137-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72137-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72137-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72138-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72138-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72138-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72138-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72138-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72157-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72157-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72157-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72157-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72157-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72158-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72158-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72158-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72158-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72158-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-02020 |
AE10#..NAP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-02010 |
AE102..NAP..E |
1 | ||
| 72301-02020 |
AE10#..NAP..(D,N) |
1 | ||
| 72301-02010 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 72301-02020 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-02010 |
AE10#..NAP |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-02020 |
AE10#..NAP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72525-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72525-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 72525-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 72526-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72526-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72526-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-14001 | ||||
| 90080-15015 | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
ILLUST NO. 2 OF 2(9209- )NAP..E ; (9209- )NAP..N..CND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(L) |
1 | ||
| 71811-12310K0 |
AE10#..NAP TAUPE,TRIM9#,(J) |
1 | ||
| 71811-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71811-12310E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(J) |
1 | ||
| 71811-02020J0 |
AE10#..NAP DARK BLUE,TRIM8#,(L) |
1 | ||
| 71811-12310B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71811-12310J0 |
AE10#..NAP DARK BLUE,TRIM8#,(J) |
1 | ||
| 71811-02020K0 |
AE10#..NAP TAUPE,TRIM9#,(L) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-02010B0 |
AE101..NAP;AE102..NAP..N..USA SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-02020J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02010J0 |
AE101..NAP;AE102..NAP..N..USA DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02010K0 |
AE101..NAP;AE102..NAP..N..USA TAUPE,TRIM9#,(L) |
1 | ||
| 71812-12270B0 |
AE101..NAP;AE102..NAP..N..USA SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12290B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12270K0 |
AE101..NAP;AE102..NAP..N..USA TAUPE,TRIM9#,(J) |
1 | ||
| 71812-02020K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9#,(L) |
1 | ||
| 71812-02010E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(L) |
1 | ||
| 71812-02010J0 |
AE10#..NAP..(D,N) DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-02020B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-12270J0 |
AE101..NAP;AE102..NAP..N..USA DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-02010B0 |
AE10#..NAP..(D,N) SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-02020J0 |
AE102..NAP..E DARK BLUE,TRIM8#,(L) |
1 | ||
| 71812-12290J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12270E1 |
AE10#..NAP..(D,N) OAK,TRIM4#,(J) |
1 | ||
| 71812-02020B0 |
AE102..NAP..E SHADOW GRAY,TRIM1#,(L) |
1 | ||
| 71812-12290K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9#,(J) |
1 | ||
| 71812-12270B0 |
AE10#..NAP..(D,N) SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71812-12290J0 |
AE102..NAP..E DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12270J0 |
AE10#..NAP..(D,N) DARK BLUE,TRIM8#,(J) |
1 | ||
| 71812-12290B0 |
AE102..NAP..E SHADOW GRAY,TRIM1#,(J) |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 71861-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 71861-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 71861-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 71862-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 71862-02010E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 71862-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-02020 |
AE10#..NAP (L) |
1 | ||
| 72011-12210 |
AE10#..NAP (J) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-12300 |
AE101..NAP;AE102..NAP..N..USA (J) |
1 | ||
| 72012-02010 |
AE10#..NAP..(D,N) (L) |
1 | ||
| 72012-02020 |
AE102..NAP..E (L) |
1 | ||
| 72012-12310 |
AE102..NAP..E;AE102..NAP..CND (J) |
1 | ||
| 72012-02020 |
AE102..NAP..E;AE102..NAP..CND (L) |
1 | ||
| 72012-12300 |
AE10#..NAP..(D,N) (J) |
1 | ||
| 72012-02010 |
AE101..NAP;AE102..NAP..N..USA (L) |
1 | ||
| 72012-12310 |
AE102..NAP..E (J) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-02020 |
AE10#..NAP (L) |
1 | ||
| 72021-12250 |
AE10#..NAP (J) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-02010 |
AE101..NAP;AE102..NAP..N..USA (L) |
1 | ||
| 72022-12350 |
AE101..NAP;AE102..NAP..N..USA (J) |
1 | ||
| 72022-02010 |
AE10#..NAP..(D,N) (L) |
1 | ||
| 72022-12360 |
AE102..NAP..E;AE102..NAP..CND (J) |
1 | ||
| 72022-12350 |
AE10#..NAP..(D,N) (J) |
1 | ||
| 72022-02020 |
AE102..NAP..E (L) |
1 | ||
| 72022-02020 |
AE102..NAP..E;AE102..NAP..CND (L) |
1 | ||
| 72022-12360 |
AE102..NAP..E (J) |
1 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
3 | ||
| 72127-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
3 | ||
| 72127-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
3 | ||
| 72127-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
4 | ||
| 72127-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
3 | ||
| 72127-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
3 | ||
| 72127-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
3 | ||
| 72127-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
3 | ||
| 72127-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
4 | ||
| 72127-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
3 | ||
| 72127-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
3 | ||
| 72127-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
3 | ||
| 72127-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
3 | ||
| 72127-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
4 | ||
| 72127-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
3 | ||
| 72127-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
4 | ||
| 72127E - COVER, SEAT TRACK BRACKET, INNER FRONT | ||||
| 72127-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
3 | ||
| 72127-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
3 | ||
| 72127-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
3 | ||
| 72127-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
4 | ||
| 72127-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
3 | ||
| 72127-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72137-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72137-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72137-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72137-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72137-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72138-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72138-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72138-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72138-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72138-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72157-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72157-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72157-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72157-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72157-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72158-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72158-02010C0 |
AE102..NAP..E BLACK,TRIM1#,8# |
1 | ||
| 72158-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72158-02010C0 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
1 | ||
| 72158-02010C0 |
AE10#..NAP..(D,N) BLACK,TRIM1#,4#,8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-02020 |
AE10#..NAP |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-02010 |
AE102..NAP..E |
1 | ||
| 72301-02020 |
AE10#..NAP..(D,N) |
1 | ||
| 72301-02010 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 72301-02020 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-06010J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 72457-06010K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 72457-06010B0 |
AE102..NAP..E MEDIUM GRAY,TRIM1# |
1 | ||
| 72457-06010J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 72457-06010B0 |
AE102..NAP..E;AE102..NAP..CND MEDIUM GRAY,TRIM1# |
1 | ||
| 72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH | ||||
| 72501-02010 |
AE10#..NAP |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-02020 |
AE10#..NAP |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72525-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72525-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 72525-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-02020E1 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 72526-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 72526-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 72526-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-14001 | ||||
| 90080-15015 | ||||
| 90080-52014 | ||||
| 90119-08080 | ||||
| 90119-10404 | ||||
| 90149-40015 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91511-60820 | ||||
| 93249-54006 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(9608- )NAP..D,N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02120B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02130B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02120K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02130J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02121K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02121J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02130K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02120J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71071-02122B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02131B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02121B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71071-02131K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71071-02132B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02132J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71072-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71072-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71072-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71073-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02110K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073-02101J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71073-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71074-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71074-02100J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074-02100K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02101B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71074-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71074-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-02162B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71410-02162J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71410-02172B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71410-02172J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71410-02162E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71420-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71420-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71420-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71420-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71430-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71430-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71430-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71430-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71440-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71440-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71440-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71440-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#..NAP |
2 | ||
| 71553-02030 |
AE10#..NAP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#..NAP |
2 | ||
| 71554-02030 |
AE10#..NAP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02010 |
AE10#..NAP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71620-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71620-02020 |
AE102..NAP..E |
1 | ||
| 71620-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 71910-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
2 | ||
| 71910-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 71910-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 71910-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
2 | ||
| 71910-02110B0 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091E1 |
AE10#..NAP..N OAK,TRIM4#,RH |
1 | ||
| 71910-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 71910-02110J0 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101B1 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02110B0 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02110J0 |
AE10#..NAP..N DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02110E1 |
AE10#..NAP..N OAK,TRIM4#,LH |
1 | ||
| 71910-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||
ILLUST NO. 1 OF 2(9608- )NAP..E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-02120B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02130B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02120K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02130J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02121K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02121J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02130K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02120J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71071-02122B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02131J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71071-02131B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71071-02131K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02121B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02122E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71071-02131K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71071-02122J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71071-02132B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71071-02132J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-02080K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02070B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02080J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02081J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02070J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71072-02071K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02071B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71072-02072B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02070K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02081K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02080B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02081K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71072-02072E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71072-02072B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71072-02072J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71072-02082B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71072-02072K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71072-02082J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-02100J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71073-02110K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02100B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71073-02110B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02110K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71073-02110J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71073-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71073-02101J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71073-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71073-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71073-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 71074-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71074-02100J0 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71074-02100K0 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
1 | ||
| 71074-02101B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 71074-02100B1 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71074-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71074-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
1 | ||
| 71074-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 71074-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-02162B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71410-02162J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71410-02172B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71410-02172J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71410-02162E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-02032E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71420-02032J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71420-02032B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71420-02042J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71420-02042B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71430-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71430-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71430-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71430-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-02101J2 |
AE10#..NAP..N DARK BLUE,TRIM8# |
1 | ||
| 71440-02111B2 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 71440-02101E1 |
AE10#..NAP..N OAK,TRIM4# |
1 | ||
| 71440-02101B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1# |
1 | ||
| 71440-02111J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH | ||||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH | ||||
| 71505-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71505-02020 |
AE102..NAP..E |
1 | ||
| 71505-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71505-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-02030 |
AE101..NAP..CND;AE10#..NAP..(E,N) |
1 | ||
| 71511-02030 |
AE10#..NAP..(E,N) |
1 | ||
| 71553B - PAD, FRONT SEAT BACK, B | ||||
| 71553-12290 |
AE10#..NAP |
2 | ||
| 71553-02030 |
AE10#..NAP |
2 | ||
| 71554 - PAD, FRONT SEAT BACK, C | ||||
| 71554-12130 |
AE10#..NAP |
2 | ||
| 71554-02030 |
AE10#..NAP |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-02010 |
AE10#..NAP |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-02010 |
AE101..NAP;AE102..NAP..N..USA |
1 | ||
| 71620-02020 |
AE102..NAP..E;AE102..NAP..CND |
1 | ||
| 71620-02020 |
AE102..NAP..E |
1 | ||
| 71620-02010 |
AE10#..NAP..(D,N) |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-02100B0 |
AE102..NAP..E;AE102..NAP..CND SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02100J1 |
AE102..NAP..E;AE102..NAP..CND DARK BLUE,TRIM8# |
2 | ||
| 71910-02090J1 |
AE101..NAP..CND;AE10#..NAP..N..USA DK. BLUE,TRIM8# |
2 | ||
| 71910-02090B1 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02091B2 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02091K1 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,RH |
1 | ||
| 71910-02100K1 |
AE102..NAP..E;AE102..NAP..CND TAUPE,TRIM9# |
2 | ||
| 71910-02090K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9# |
2 | ||
| 71910-02110B0 |
AE101..NAP..CND;AE10#..NAP..N..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091E1 |
AE10#..NAP..N OAK,TRIM4#,RH |
1 | ||
| 71910-02110K0 |
AE101..NAP..CND;AE10#..NAP..N..USA TAUPE,TRIM9#,LH |
1 | ||
| 71910-02110J0 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02091J2 |
AE101..NAP..CND;AE10#..NAP..N..USA DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101B1 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
2 | ||
| 71910-02110B0 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,LH |
1 | ||
| 71910-02091B2 |
AE10#..NAP..N SHADOW GRAY,TRIM1#,RH |
1 | ||
| 71910-02110J0 |
AE10#..NAP..N DARK BLUE,TRIM8#,LH |
1 | ||
| 71910-02110E1 |
AE10#..NAP..N OAK,TRIM4#,LH |
1 | ||
| 71910-02091J2 |
AE10#..NAP..N DARK BLUE,TRIM8#,RH |
1 | ||
| 71910-02101J2 |
AE102..NAP..E DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010K0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010J0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010J0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02020K0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE101..NAP;AE102..NAP..N..USA W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02020B0 |
AE102..NAP..E;AE102..NAP..CND W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010J0 |
AE10#..NAP..(D,N) W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71930-02010E4 |
AE10#..NAP..(D,N) W(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02020K0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71930-02020J0 |
AE102..NAP..E W(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02010K0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),TAUPE,TRIM9# |
2 | ||
| 71931-02010B0 |
AE101..NAP;AE102..NAP..N..USA W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010B0 |
AE10#..NAP..(D,N) W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-02010B0 |
AE10#..NAP..(D,N) W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02010E4 |
AE10#..NAP..(D,N) W/O(LOCK),OAK,TRIM4# |
2 | ||
| 71931-02010J0 |
AE10#..NAP..(D,N) W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020B0 |
AE102..NAP..E W/O(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E;AE102..NAP..CND W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| 71931-02020J0 |
AE102..NAP..E W/O(LOCK),DARK BLUE,TRIM8# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
