AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

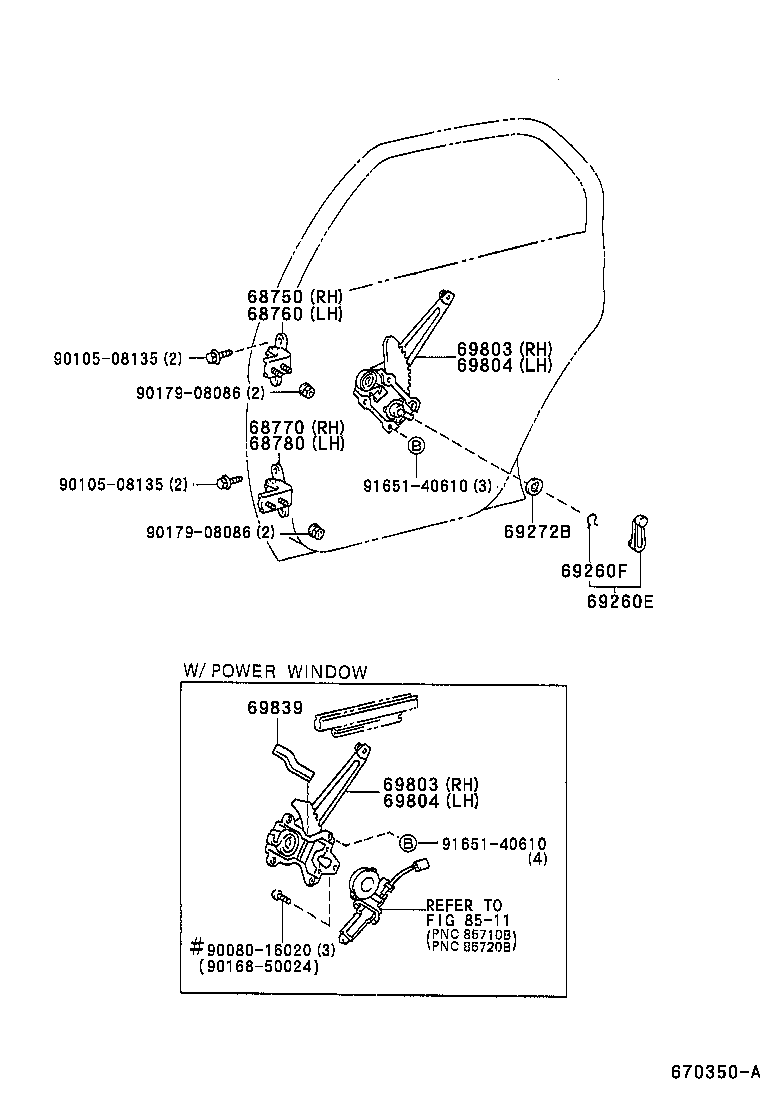

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69803 69804 69804 69839 8511 9008016020 9010508135 9010508135 9016850024 9017908086 9017908086 9165140610 9165140610
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-02010

AE10#..NAP

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-02010

AE10#..NAP

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-02010

AE10#..NAP

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-02010

AE10#..NAP

 1
69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-01020K0

AE101..NAP..D;AE102..NAP..N

TAUPE,TRIM9#

 2
69260-01020E4

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

OAK,TRIM4#

 2
69260-01020B0

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

SHADOW GRAY,TRIM1#

 2
69260-01020J1

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

DARK BLUE,TRIM8#

 2
69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90080-52001

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69268-01020

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-02020

AE102..NAP..E;AE101..NAP..N..USA

 1
69830-02030

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-02020

AE102..NAP..E;AE101..NAP..N..USA

 1
69830-02030

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-02030

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
69804-02020

AE102..NAP..E;AE101..NAP..N..USA

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69840-02030

AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND

 1
69804-02020

AE102..NAP..E;AE101..NAP..N..USA

 1
69839 - PAD, REAR DOOR WINDOW REGULATOR
69839-01010

AE101..NAP..N;AE102..NAP..E;AE102..NAP..CND

 4
69839-01010

AE102..NAP..E;AE101..NAP..USA;AE102..NAP..CND

 4
Common parts
90080-16020
90105-08135
90168-50024
90179-08086
91651-40610
Linked diagrams
8511
