AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

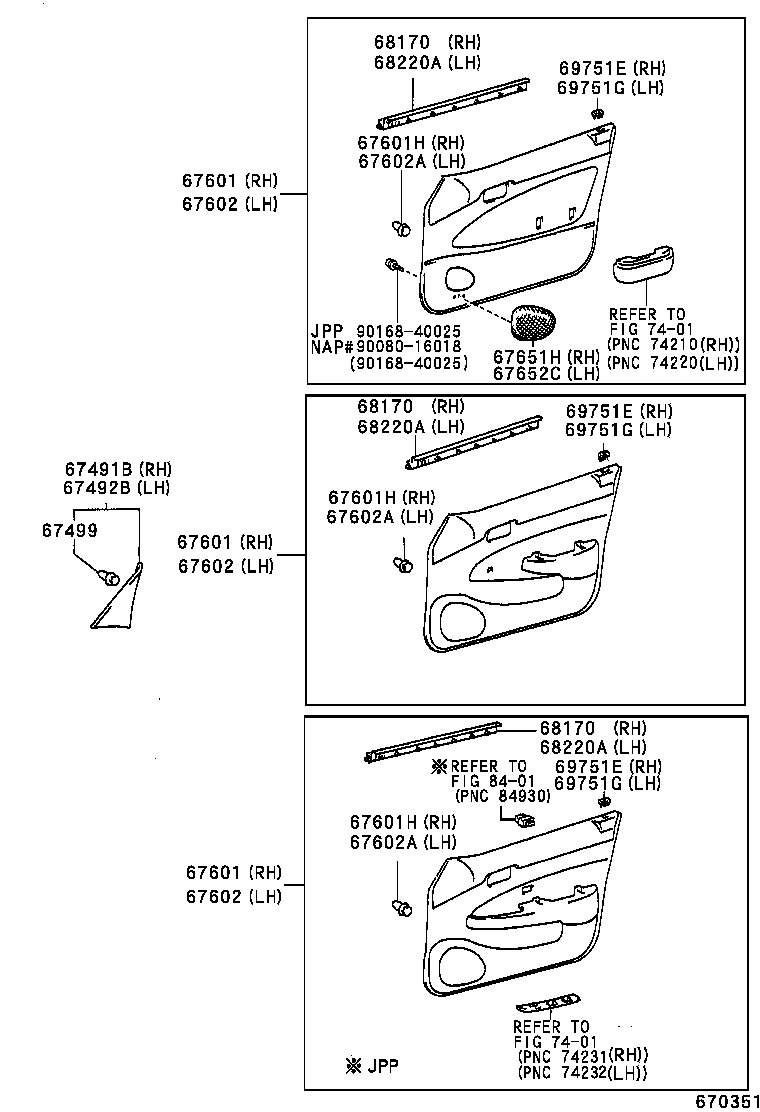

ILLUST NO. 1 OF 2(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH | ||||
| 67491-02060 |
AE101..NAP..CND;AE10#..NAP..N..USA |
1 | ||
| 67491-02050 |
AE10#..NAP..(D,E);AE101..NAP..N..USA |
1 | ||
| 67491-02060 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 67491-02050 |
AE102..NAP..CND;AE10#..NAP..(D,E)..USA |
1 | ||
| 67491-02050 |
AE102..NAP..N W(DOOR MIRROR) |
1 | ||
| 67492B - GARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH | ||||
| 67492-02050 |
AE102..NAP..N W(DOOR MIRROR) |
1 | ||
| 67492-02050 |
AE102..NAP..CND;AE10#..NAP..(D,E)..USA |
1 | ||
| 67492-02050 |
AE10#..NAP..(D,E);AE101..NAP..N..USA |
1 | ||
| 67492-02060 |
AE102..NAP..N;AE101..NAP..N..CND |
1 | ||
| 67492-02060 |
AE101..NAP..CND;AE10#..NAP..N..USA |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-06030 |
AE10#..NAP |
4 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02270J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67610-02270B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02270K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-02280J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02240J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67610-02240B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02290K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02290J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02290B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02240K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02320J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02300B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02320B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02300J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67610-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02320J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02340J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02440E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02440J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02380J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02440B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02450J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02450B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02380B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02270J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67610-02270B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02270K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-02280J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02240J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67610-02240B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02290K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02290J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02290B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02240K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02320J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02300B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02320B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02300J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67610-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02320J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02340J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02440E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02440J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02380J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02440B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02450J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02450B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02380B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02270J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67610-02270B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02270K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-02280J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02240J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67610-02240B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02290K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02290J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02290B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02240K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02320J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02300B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02320B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02300J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67610-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02320J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02340J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02440E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02440J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02380J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02440B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02450J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02450B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02380B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02280B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02280J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02280K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02290B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02250K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02310J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02360K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02360J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02310E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02310B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02360B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02330B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02310J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02390B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02470B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02460B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02450E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02470E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02360J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02390J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02470J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02460J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02280B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02280J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02280K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02290B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02250K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02310J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02360K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02360J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02310E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02310B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02360B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02330B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02310J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02390B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02470B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02460B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02450E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02470E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02360J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02390J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02470J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02460J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02280B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02280J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02280K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02290B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02250K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02310J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02360K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02360J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02310E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02310B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02360B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02330B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02310J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02390B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02470B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02460B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02450E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02470E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02360J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02390J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02470J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02460J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..NAP (J) |
1 | ||
| 68171-02050 |
AE10#..NAP (L) |
1 | ||
| 68171-02030 |
AE10#..NAP (L) |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..NAP (J) |
1 | ||
| 68171-02050 |
AE10#..NAP (L) |
1 | ||
| 68171-02030 |
AE10#..NAP (L) |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..NAP (J) |
1 | ||
| 68171-02050 |
AE10#..NAP (L) |
1 | ||
| 68171-02030 |
AE10#..NAP (L) |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02020 |
AE10#..NAP (L) |
1 | ||
| 68172-12050 |
AE10#..NAP (J) |
1 | ||
| 68172-02040 |
AE10#..NAP (L) |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02020 |
AE10#..NAP (L) |
1 | ||
| 68172-12050 |
AE10#..NAP (J) |
1 | ||
| 68172-02040 |
AE10#..NAP (L) |
1 | ||
| 68220A - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH | ||||
| 68172-02020 |
AE10#..NAP (L) |
1 | ||
| 68172-12050 |
AE10#..NAP (J) |
1 | ||
| 68172-02040 |
AE10#..NAP (L) |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90080-16018 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 7401 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9608- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02270J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67610-02270B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02270K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67610-02280J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02280K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02240J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67610-02240B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67610-02290K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02290J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02290B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02240K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67610-02320J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67610-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67610-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02300B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02320B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67610-02300J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02320E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02340J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67610-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02340B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02300E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67610-02320J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67610-02340J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67610-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02440E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67610-02440J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67610-02380J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02440B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67610-02450J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67610-02450B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02380B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67610-02460J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD) | ||||
| 90950-01905B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 90950-01905E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
2 | ||
| 90950-01905J0 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02280B1 |
AE102..NAP..N..USA W(*EL),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02280J1 |
AE102..NAP..N..USA W(*EL),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290J1 |
AE102..NAP..N..USA W(*EL & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02290K0 |
AE102..NAP..N..USA W(*EL & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02280K0 |
AE102..NAP..N..USA W(*EL),TAUPE,TRIM9# |
1 | ||
| 67620-02180B0 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02160B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02180K0 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02160J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J0 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02160K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02290B1 |
AE102..NAP..N..USA W(*EL & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250B1 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170J1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DK. BLUE,TRIM8# |
1 | ||
| 67620-02250K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02170B1 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02170K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02300K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02300J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02300B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02250J1 |
AE101..NAP..CND;AE102..NAP..N..USA DK. BLUE,TRIM8# |
1 | ||
| 67620-02180J1 |
AE102..NAP..5F..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02180K1 |
AE102..NAP..5F..E TAUPE,TRIM9# |
1 | ||
| 67620-02180B1 |
AE102..NAP..5F..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02310J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02360K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),TAUPE,TRIM9# |
1 | ||
| 67620-02360J0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02310E0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02310B0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02310K0 |
AE101..NAP..CND;AE102..NAP..N..USA W(SPEAKER),TAUPE,TRIM9# |
1 | ||
| 67620-02350J0 |
AE101..NAP..CND;AE102..NAP..N..USA DARK BLUE,TRIM8# |
1 | ||
| 67620-02350B0 |
AE101..NAP..CND;AE102..NAP..N..USA SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02330E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),OAK,TRIM4# |
1 | ||
| 67620-02350K0 |
AE101..NAP..CND;AE102..NAP..N..USA TAUPE,TRIM9# |
1 | ||
| 67620-02360B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02330B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02330B0 |
AE101..NAP..CND;AE102..NAP..N..USA W(*PW & SPEAKER),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02350E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02310J0 |
AE102..NAP..N;AE101..NAP..N..CND W(SPEAKER),DARK BLUE,TRIM8# |
1 | ||
| 67620-02360E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02350B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02390B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450B0 |
AE102..NAP..N;AE101..NAP..N..CND SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02470B0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02460B0 |
AE102..NAP..E SHADOW GRAY,TRIM1# |
1 | ||
| 67620-02450J0 |
AE102..NAP..N;AE101..NAP..N..CND DARK BLUE,TRIM8# |
1 | ||
| 67620-02450E0 |
AE102..NAP..N;AE101..NAP..N..CND OAK,TRIM4# |
1 | ||
| 67620-02470E0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),OAK,TRIM4# |
1 | ||
| 67620-02360J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM1# |
1 | ||
| 67620-02390J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67620-02470J0 |
AE102..NAP..N;AE101..NAP..N..CND W(*PW),DARK BLUE,TRIM8# |
1 | ||
| 67620-02460J0 |
AE102..NAP..E DARK BLUE,TRIM8# |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-02030 |
AE10#..NAP |
10 | ||
| 67771-02030 |
AE10#..NAP |
8 | ||
| 67635A - REINFORCE, FRONT DOOR TRIM, RH | ||||
| 67635-12060 |
AE10#..NAP |
1 | ||
| 67636A - REINFORCE, FRONT DOOR TRIM, LH | ||||
| 67636-12050 |
AE10#..NAP |
1 | ||
| 67773C - CLIP, DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-12020 |
AE10#..NAP |
6 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12160 |
AE10#..NAP (J) |
1 | ||
| 68171-02050 |
AE10#..NAP (L) |
1 | ||
| 68171-02030 |
AE10#..NAP (L) |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751G - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-02010K0 |
AE10#..NAP CALKING TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-01011B0 |
AE10#..NAP HEAT STAKED TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP CALKING TYPE,SHADOW GRAY,TRIM1# |
1 | ||
| 69751-01011J2 |
AE10#..NAP HEAT STAKED TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-02010J1 |
AE10#..NAP CALKING TYPE,DARK BLUE,TRIM8# |
1 | ||
| 69751-01011K0 |
AE10#..NAP HEAT STAKED TYPE,TAUPE,TRIM9# |
1 | ||
| 69751-02010E2 |
AE10#..NAP..(D,N) CALKING TYPE,OAK,TRIM4# |
1 | ||
| 69751-02010B2 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 69751-02010J1 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 69751-01011E4 |
AE10#..NAP..(D,N) HEAT STAKED TYPE,OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 90159-40141 | ||||
| 90164-60014 | ||||
| 90189-04127 | ||||
| 90467-07066E0 | ||||
| 90467-07066P0 | ||||
| 90467-09141 | ||||
| 90901-89022 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
