AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-05050 |
AE10#..NAP |
2 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-05050 |
AE10#..NAP |
2 | ||
| 62111A - TRIM SUB-ASSY, COWL SIDE, RH | ||||
| 62101-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62101-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62101-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62101-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 67921-06010 |
AE10#..NAP |
6 | ||
| 62111E - RETAINER, COWL SIDE TRIM | ||||
| 67921-06010 |
AE10#..NAP |
6 | ||
| 62112A - TRIM SUB-ASSY, COWL SIDE, LH | ||||
| 62102-02020E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62102-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62102-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62102-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62102-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62102-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 62117-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62117-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62117-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62117-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62117-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62117-02020E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90080-46145 |
AE10#..NAP |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-02030E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62211-02030B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62211-02030J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62211-02030K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90468-05084 |
AE10#..NAP |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90468-05084 |
AE10#..NAP |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-02030K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62212-02030E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62212-02030J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62212-02030B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62225-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62225-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62225-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62226-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62226-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62226-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62411-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62411-02020E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62411-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-02020E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62412-02020K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62412-02020J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62412-02020B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62413-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62413-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62413-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62414-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62414-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62414-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62468 - GARNISH, CENTER PILLAR, REAR RH | ||||
| 62468-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62468-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62468-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62468-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62469 - GARNISH, CENTER PILLAR, REAR LH | ||||
| 62469-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62469-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 62469-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62469-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-02040J0 |
AE10#..NAP DARK BLUE,TRIM8#,*85 |
1 | ||
| 62471-02040B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62471-02050E0 |
AE10#..NAP..(D,N) OAK,TRIM4#,*84 |
1 | ||
| 62471-02040K0 |
AE10#..NAP TAUPE,TRIM9#,*85 |
1 | ||
| 62471-02040J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62471-02050K0 |
AE10#..NAP TAUPE,TRIM9#,*84 |
1 | ||
| 62471-02040E0 |
AE10#..NAP..(D,N) OAK,TRIM4#,*85 |
1 | ||
| 62471-02050B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,*84 |
1 | ||
| 62471-02040K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 62471-02050J0 |
AE10#..NAP DARK BLUE,TRIM8#,*84 |
1 | ||
| 62471-02040B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,*85 |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-06055K0 |
AE10#..NAP TAUPE,TRIM9# |
2 | ||
| 90467-06055B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06055E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
2 | ||
| 90467-06055J1 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-06055K0 |
AE10#..NAP TAUPE,TRIM9# |
2 | ||
| 90467-06055B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
2 | ||
| 90467-06055E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
2 | ||
| 90467-06055J1 |
AE10#..NAP DARK BLUE,TRIM8# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-02040J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 62472-02040K0 |
AE10#..NAP TAUPE,TRIM9#,*85 |
1 | ||
| 62472-02040B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,*85 |
1 | ||
| 62472-02050E0 |
AE10#..NAP..(D,N) OAK,TRIM4#,*84 |
1 | ||
| 62472-02040B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 62472-02050K0 |
AE10#..NAP TAUPE,TRIM9#,*84 |
1 | ||
| 62472-02040E0 |
AE10#..NAP..(D,N) OAK,TRIM4#,*85 |
1 | ||
| 62472-02050B0 |
AE10#..NAP SHADOW GRAY,TRIM1#,*84 |
1 | ||
| 62472-02050J0 |
AE10#..NAP DARK BLUE,TRIM8#,*84 |
1 | ||
| 62472-02040J0 |
AE10#..NAP DARK BLUE,TRIM8#,*85 |
1 | ||
| 62472-02040K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-0604922 |
AE102..NAP..CND;AE10#..NAP..(D,E) BLACK,TRIM1#,8#,9# |
8 | ||
| 90467-0604922 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
8 | ||
| 90467-0604922 |
AE10#..NAP..N..USA BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0604922 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0604922 |
AE10#..NAP..(D,E) BLACK,TRIM1#,8# |
8 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 90467-0604922 |
AE102..NAP..CND;AE10#..NAP..(D,E) BLACK,TRIM1#,8#,9# |
8 | ||
| 90467-0604922 |
AE10#..NAP BLACK,TRIM1#,8#,9# |
8 | ||
| 90467-0604922 |
AE10#..NAP..N..USA BLACK,TRIM1#,8#,9# |
4 | ||
| 90467-0604922 |
AE10#..NAP..N BLACK,TRIM1#,4#,8# |
4 | ||
| 90467-0604922 |
AE10#..NAP..(D,E) BLACK,TRIM1#,8# |
8 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 67917-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 67917-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 67917-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-02010K0 |
AE10#..NAP TAUPE,TRIM9# |
1 | ||
| 67918-02010B0 |
AE10#..NAP SHADOW GRAY,TRIM1# |
1 | ||
| 67918-02010J0 |
AE10#..NAP DARK BLUE,TRIM8# |
1 | ||
| 67918-02010E0 |
AE10#..NAP..(D,N) OAK,TRIM4# |
1 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67921-06010 |
AE10#..NAP |
4 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67921-06010 |
AE10#..NAP |
4 | ||
| Common parts | ||||
| 67771-32100 | ||||
| 90080-46144 | ||||
| 90467-05084 | ||||
| 90468-04155 | ||||
| 90468-05112 | ||||
| 93540-14510 | ||||

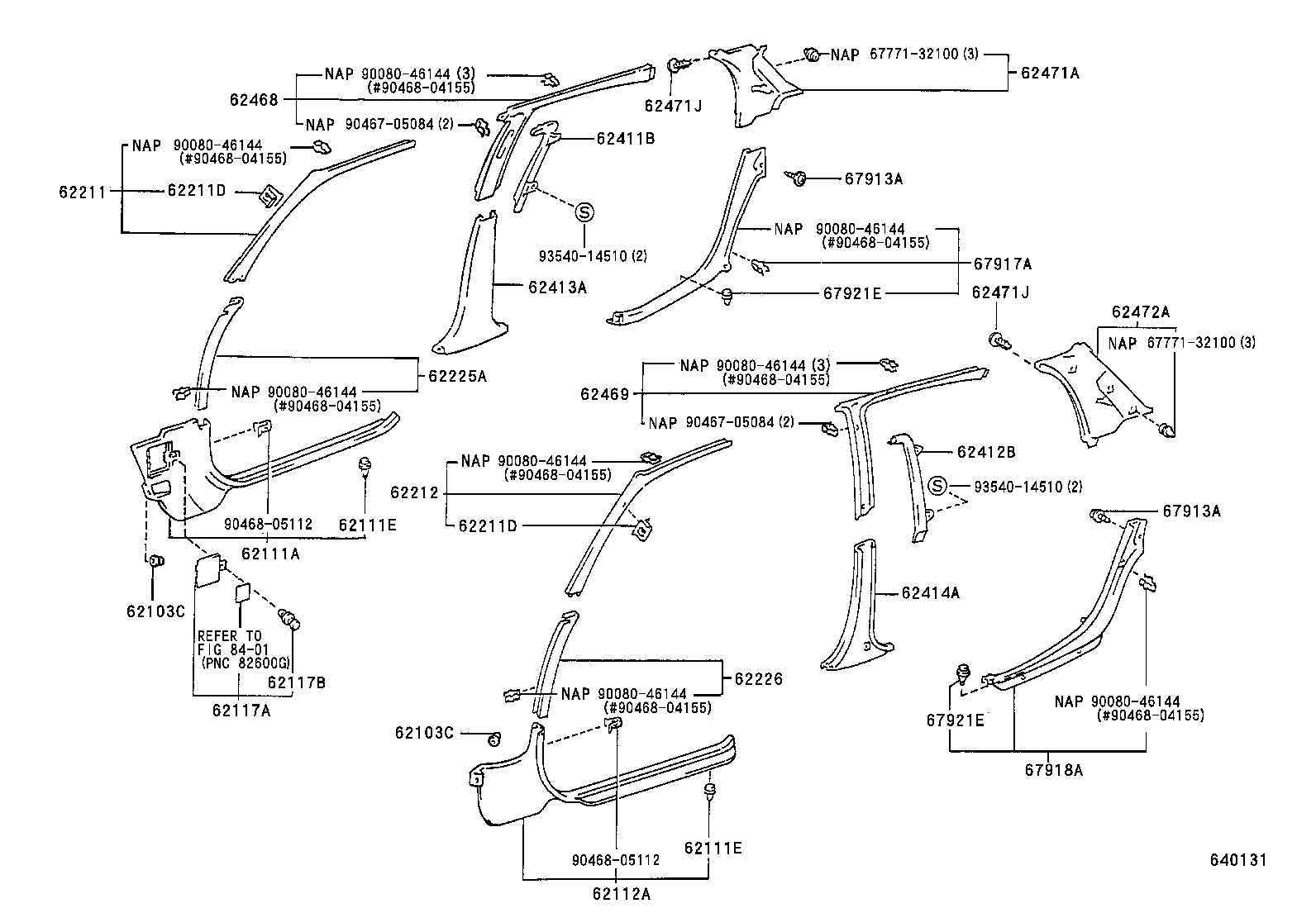

| Linked diagrams | ||||
| 8401 | ||||
