Toyota Corolla nap/sed AE102 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-06010K0	AE10#..NAP TAUPE,TRIM9#	09/1992 - 08/1995	1
55539-06010J0	AE10#..NAP DARK BLUE,TRIM8#	09/1992 - 12/2999	1
55539-06010B1	AE10#..NAP SHADOW GRAY,TRIM1#	09/1992 - 12/2999	1
55539-06010E0	AE10#..NAP..(D,N) OAK,TRIM4#	08/1995 - 12/2999	1
55539J - COVER, SPARE SWITCH HOLE
55539-01070B0	AE10#..NAP SHADOW GRAY,TRIM1#	09/1992 - 12/2999	1
55539-01070J1	AE10#..NAP DARK BLUE,TRIM8#	09/1992 - 12/2999	1
55539-01070K0	AE10#..NAP TAUPE,TRIM9#	09/1992 - 08/1995	1
55539-01070E4	AE10#..NAP..(D,N) OAK,TRIM4#	08/1995 - 12/2999	1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02020K0	AE10#..NAP..5F TAUPE,TRIM9#	09/1992 - 08/1995	1
58808-02020J0	AE10#..NAP..5F DARK BLUE,TRIM8#	09/1992 - 01/1997	1
58808-02020B0	AE10#..NAP..5F SHADOW GRAY,TRIM1#	09/1992 - 01/1997	1
58808-02020E1	AE10#..NAP..5F..(D,N) OAK,TRIM4#	08/1995 - 01/1997	1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-02020B0	AE10#..NAP SHADOW GRAY,TRIM1#	09/1992 - 12/2999	1
58901-02020J0	AE10#..NAP DARK BLUE,TRIM8#	09/1992 - 12/2999	1
58901-02020K0	AE10#..NAP TAUPE,TRIM9#	09/1992 - 08/1995	1
58901-02020E1	AE10#..NAP..(D,N) OAK,TRIM4#	08/1995 - 12/2999	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-01020K0	AE101..NAP..N;AE102..NAP..E TAUPE,TRIM9#	09/1992 - 08/1995	1
58905-01020J0	AE102..NAP..E;AE101..NAP..N..USA DARK BLUE,TRIM8#	09/1992 - 12/2999	1
58905-01020B0	AE102..NAP..E;AE101..NAP..N..USA SHADOW GRAY,TRIM1#	09/1992 - 12/2999	1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-01020	AE102..NAP..E;AE101..NAP..N..USA	09/1992 - 12/2999	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32020	AE102..NAP..E;AE101..NAP..N..USA	09/1992 - 12/2999	1
58916 - MAT, BOX BOTTOM
58916-02010B0	AE102..NAP..N;AE101..NAP..D;AE101..NAP..N..CND SHADOW GRAY,TRIM1#,4#,8#	08/1995 - 12/2999	1
58916-02010B0	AE101..NAP..D;AE102..NAP..4FC;AE102..NAP..5F..N SHADOW GRAY,TRIM1#,8#,9#	09/1992 - 08/1995	1
58916-01020	AE102..NAP..E;AE101..NAP..N..USA	09/1992 - 12/2999	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-01040	AE102..NAP..E;AE101..NAP..N..USA	09/1992 - 12/2999	1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-12080	AE10#..NAP..5F	09/1992 - 12/2999	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02030	AE10#..NAP	09/1992 - 12/2999	1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-02020	AE10#..NAP	09/1992 - 08/1995	1
58997-02010	AE10#..NAP	08/1995 - 12/2999	1
Common parts
90080-16032
90080-16033
90119-06578
90149-80023
90168-50057
90467-10130
91655-60616
93568-15012
93568-55014

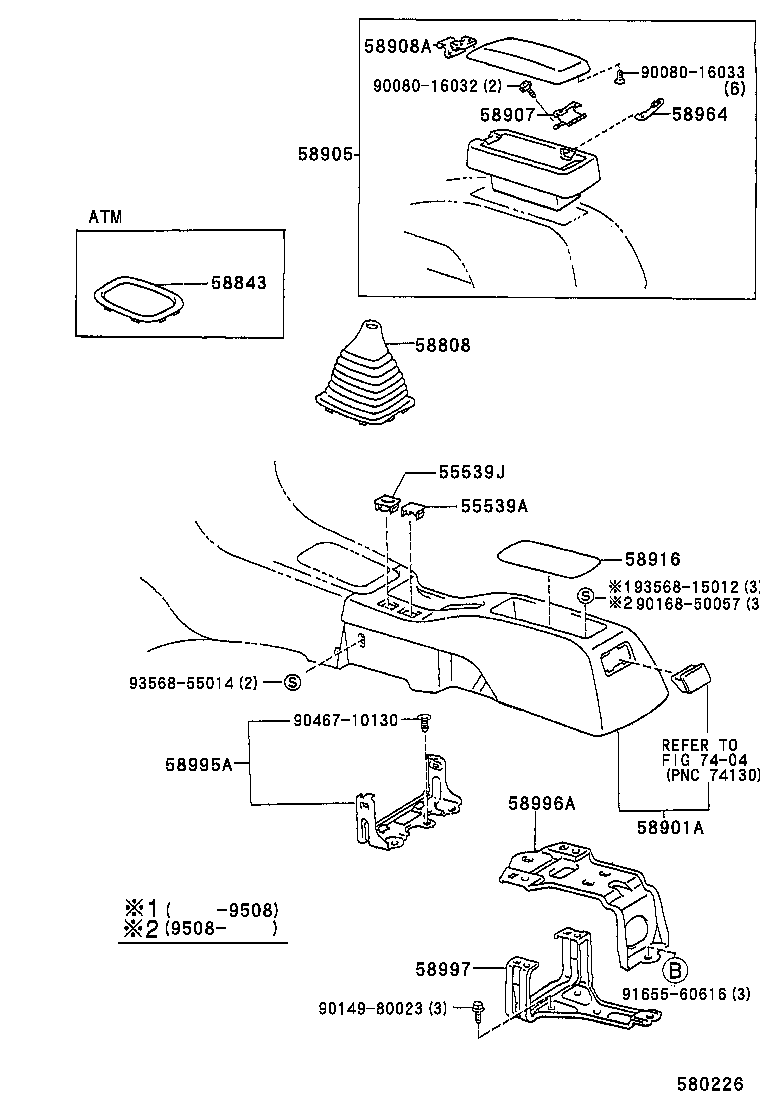

Linked diagrams
7404

AE102L-DEMNKA (1992)

(9209- )NAP
