AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 7AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

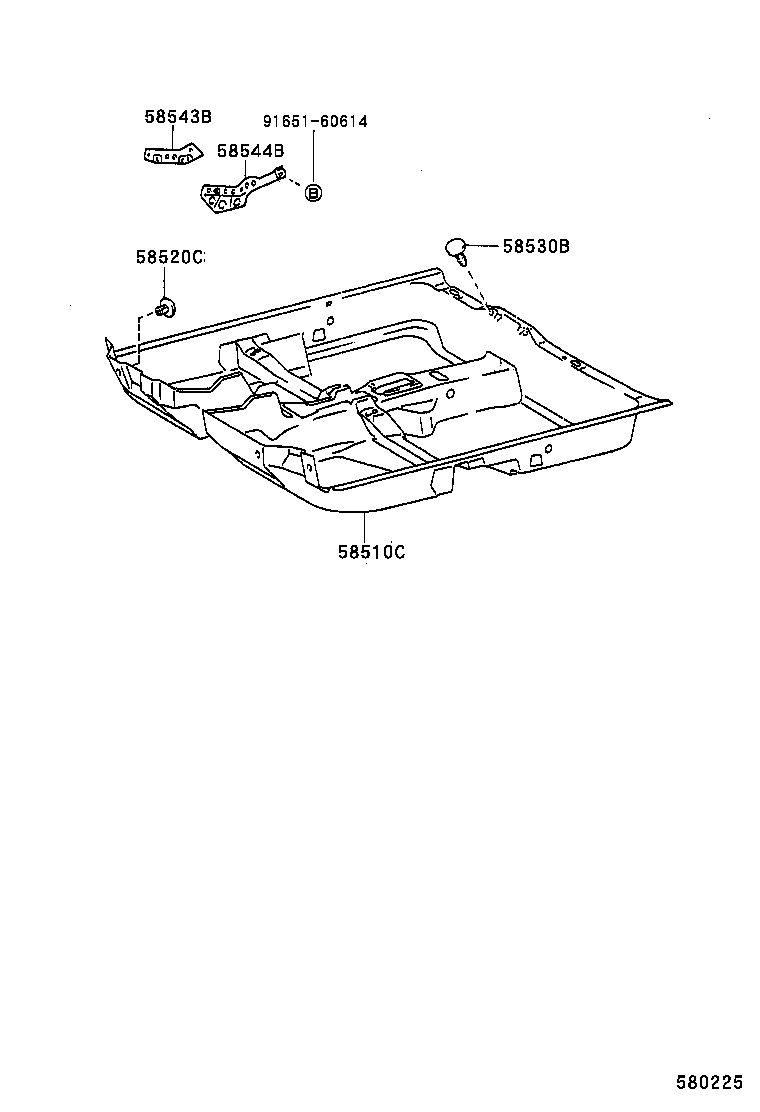

Click highlighted areas on diagram

diagram 58510C 58520C 58530B 58543B 58544B 9165160614
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-02150B2

AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA

COLD SPEC,SHADOW GRAY,TRIM1#

 1
58510-02140K0

AE10#..NAP..USA

TAUPE,TRIM9#

 1
58510-02141E0

AE10#..NAP..(D,N)..USA

OAK,TRIM4#

 1
58510-02150K1

AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA

COLD SPEC,TAUPE,TRIM9#

 1
58510-02140J0

AE10#..NAP..USA

DARK BLUE,TRIM8#

 1
58510-02140B2

AE10#..NAP..USA

SHADOW GRAY,TRIM1#

 1
58510-02151B2

AE101..NAP..D..USA;AE102..NAP..N..USA

COLD SPEC,SHADOW GRAY,TRIM1#

 1
58510-02141J0

AE10#..NAP..USA

DARK BLUE,TRIM8#

 1
58510-02141B2

AE10#..NAP..USA

SHADOW GRAY,TRIM1#

 1
58510-02151E0

AE101..NAP..D..USA;AE102..NAP..N..USA

COLD SPEC,OAK,TRIM4#

 1
58510-02150J0

AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA

COLD SPEC,DARK BLUE,TRIM8#

 1
58510-02151J0

AE101..NAP..D..USA;AE102..NAP..N..USA

COLD SPEC,DARK BLUE,TRIM8#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0906822

AE10#..NAP..(D,N)

BLACK,TRIM1#,4#,8#

 2
90467-0906822

AE10#..NAP

BLACK,TRIM1#,8#,9#

 2
90467-0906822

AE102..NAP..E

BLACK,TRIM1#,8#

 2
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-06016C0

AE10#..NAP

BLACK,TRIM1#,8#,9#

 2
90467-06016C0

AE10#..NAP..(D,N)

BLACK,TRIM1#,4#,8#

 2
90467-06016C0

AE102..NAP..E

BLACK,TRIM1#,8#

 2
58543B - BRACKET, FLOOR CARPET, RH
58543-12011

AE10#..NAP

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-02010

AE10#..NAP

(L)

 1
58544-02011

AE10#..NAP

(L)

 1
58544-12030

AE10#..NAP

(J)

 1
58544-12031

AE10#..NAP

(J)

 1
Common parts
91651-60614
