AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
Production
Sep 1992
-
Aug 1997
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209- )NAP

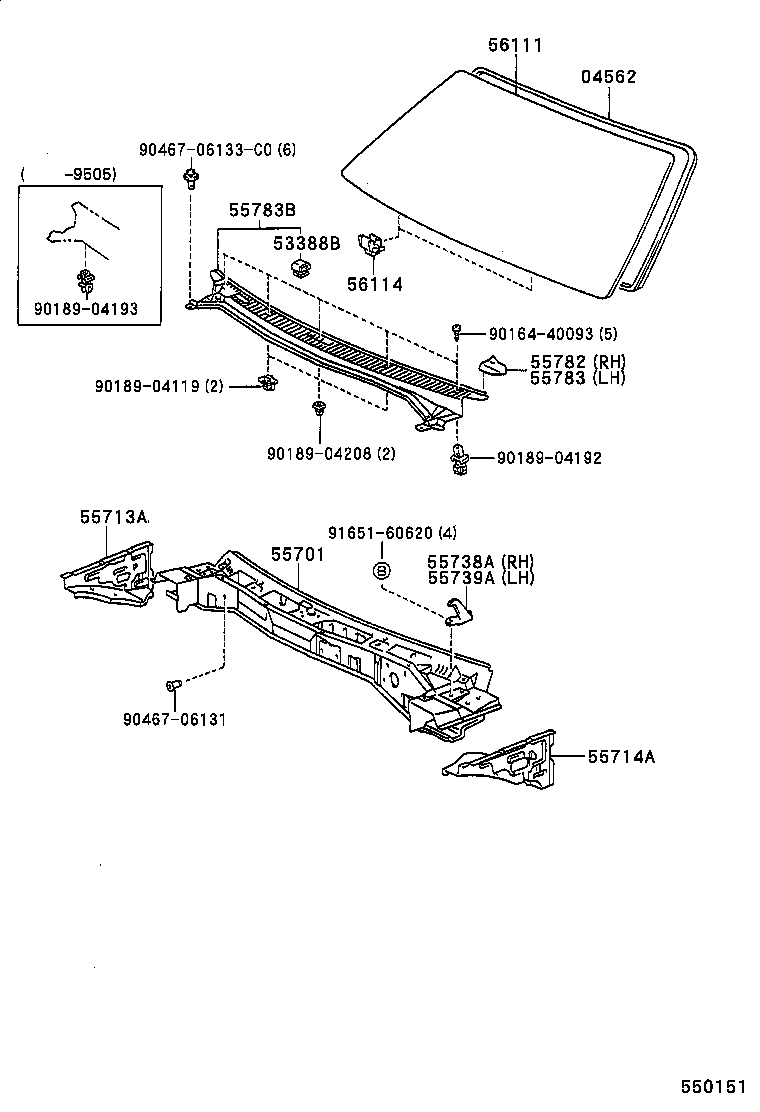

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04562 - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-12010 |
AE10#..NAP |
1 | ||
| 53388B - CUSHION, HOOD, REAR | ||||
| 53388-12040 |
AE10#..NAP (J) |
1 | ||
| 53388-02010 |
AE10#..NAP (L) |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-02030 |
AE10#..NAP |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-12081 |
AE10#..NAP |
1 | ||
| 55713-12080 |
AE10#..NAP |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-12080 |
AE10#..NAP |
1 | ||
| 55714-12081 |
AE10#..NAP |
1 | ||
| 55738A - STOPPER, HOOD, RH | ||||
| 55738-12090 |
AE10#..NAP |
1 | ||
| 55739A - STOPPER, HOOD, LH | ||||
| 55739-12050 |
AE10#..NAP |
1 | ||
| 55782 - PROTECTOR, COWL TOP VENTILATOR LOUVER, RH | ||||
| 55782-02010 |
AE10#..NAP |
1 | ||
| 55783 - PROTECTOR, COWL TOP VENTILATOR LOUVER, LH | ||||
| 55783-02010 |
AE10#..NAP |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55708-12130 |
AE10#..NAP..USA (J) |
1 | ||
| 55708-12140 |
AE101..NAP..D..USA;AE102..NAP..4FC..USA;AE102..NAP..5F..N..USA COLD AREA SPEC |
1 | ||
| 55708-02010 |
AE10#..NAP..USA (L) |
1 | ||
| 55708-12140 |
AE101..NAP..D..USA;AE102..NAP..N..USA COLD AREA SPEC,(J) |
1 | ||
| 55708-02020 |
AE101..NAP..D..USA;AE102..NAP..N..USA COLD AREA SPEC,(L) |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-02040 |
AE10#..NAP *TL,T=4.7 |
1 | ||
| 56114 - RETAINER, WINDSHIELD GLASS | ||||
| 56110-12010 |
AE10#..NAP |
2 | ||
| Common parts | ||||
| 90164-40093 | ||||
| 90189-04119 | ||||
| 90189-04192 | ||||
| 90189-04193 | ||||
| 90189-04208 | ||||
| 90467-06131 | ||||
| 90467-06133C0 | ||||
| 91651-60620 | ||||
