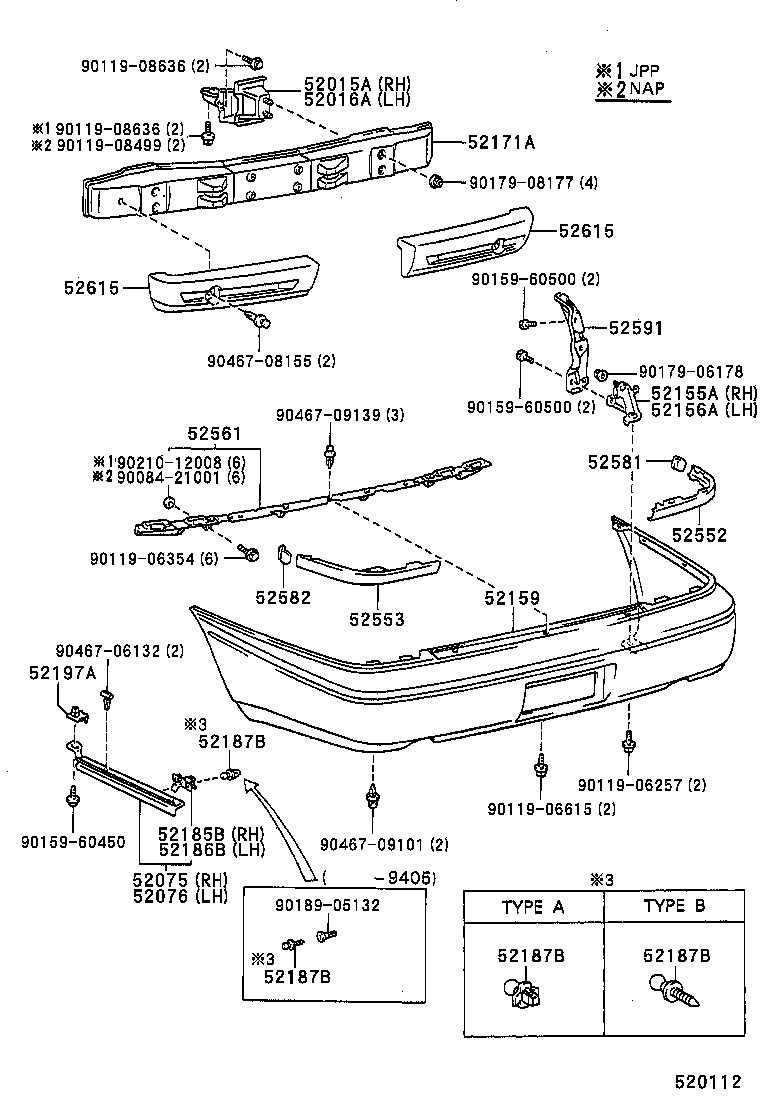

AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-02020 |
AE10#..NAP |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-02010 |
AE10#..NAP |
1 | ||
| 52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52075-02030 |
AE10#..NAP |
1 | ||
| 52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52076-02030 |
AE10#..NAP |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-AB010 |
AE10#..NAP |
1 | ||
| 52155-12210 |
AE10#..NAP (J) |
1 | ||
| 52155-02020 |
AE10#..NAP (L) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-02020 |
AE10#..NAP (L) |
1 | ||
| 52156-12200 |
AE10#..NAP (J) |
1 | ||
| 52156-AB010 |
AE10#..NAP |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-02902 |
AE10#..NAP |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-02010 |
AE10#..NAP |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-12130 |
AE10#..NAP |
1 | ||
| 52185-12200 |
AE10#..NAP |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52185-12130 |
AE10#..NAP |
1 | ||
| 52185-12200 |
AE10#..NAP |
1 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12160 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12160 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12160 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 52187B - GUIDE, REAR BUMPER LOCATION | ||||
| 52187-12160 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-02010 |
AE10#..NAP |
2 | ||
| 52552 - FILLER, REAR BUMPER, RH | ||||
| 52552-12030 |
AE10#..NAP |
1 | ||
| 52553 - FILLER, REAR BUMPER, LH | ||||
| 52553-12030 |
AE10#..NAP |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-02020 |
AE10#..NAP |
1 | ||
| 52581 - PROTECTOR, REAR BUMPER, RH | ||||
| 52581-12060 |
AE10#..NAP |
1 | ||
| 52582 - PROTECTOR, REAR BUMPER, LH | ||||
| 52581-12060 |
AE10#..NAP |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-02010 |
AE10#..NAP |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-02020 |
AE10#..NAP RH |
1 | ||
| 52616-02010 |
AE10#..NAP LH |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-02020 |
AE10#..NAP RH |
1 | ||
| 52616-02010 |
AE10#..NAP LH |
1 | ||
| Common parts | ||||
| 90084-21001 | ||||
| 90119-06257 | ||||
| 90119-06354 | ||||
| 90119-06615 | ||||
| 90119-08499 | ||||
| 90119-08636 | ||||
| 90159-60450 | ||||
| 90159-60500 | ||||
| 90179-06178 | ||||
| 90179-08177 | ||||
| 90189-05132 | ||||
| 90210-12008 | ||||
| 90467-06132 | ||||
| 90467-08155 | ||||
| 90467-09101 | ||||
| 90467-09139 | ||||
