AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed
Production
Sep 1992
-
Aug 1997
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209- )NAP

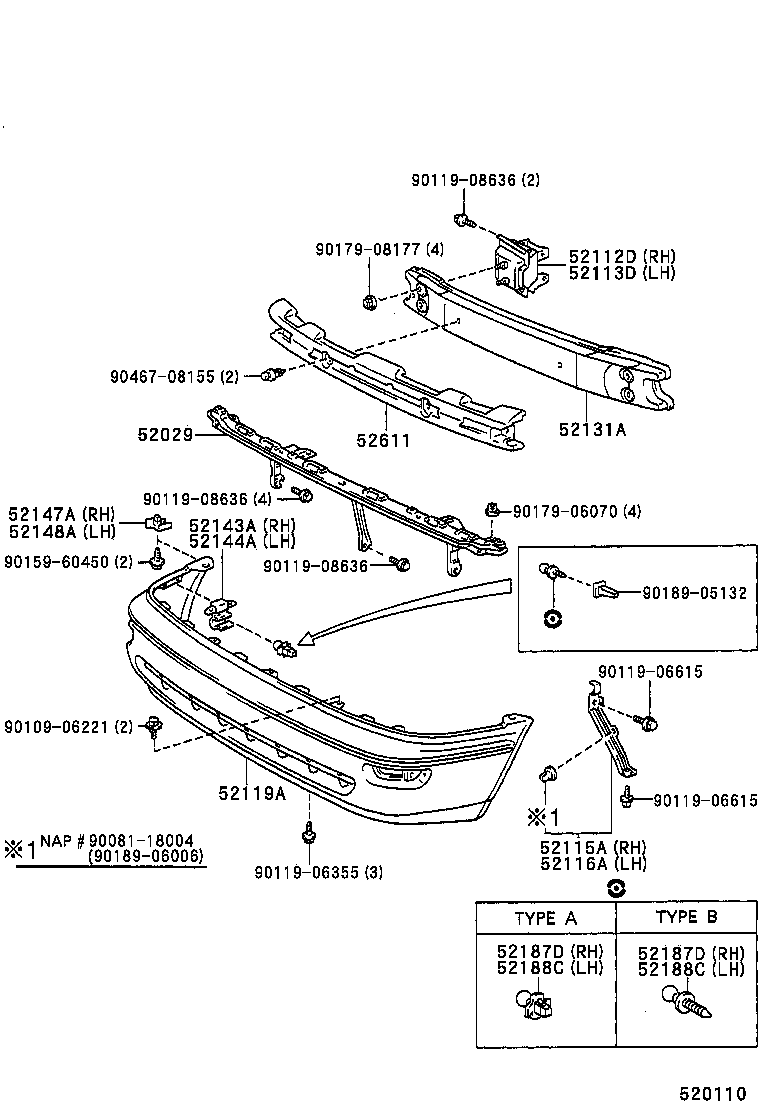

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER | ||||
| 52029-02010 |
AE10#..NAP |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-02010 |
AE10#..NAP |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-02010 |
AE10#..NAP |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-02030 |
AE10#..NAP |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-02030 |
AE10#..NAP |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-02902 |
AE10#..NAP |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-02010 |
AE10#..NAP |
1 | ||
| 52143A - ARM, FRONT BUMPER, INNER RH | ||||
| 52143-12330 |
AE10#..NAP |
1 | ||
| 52143-12300 |
AE10#..NAP |
1 | ||
| 52144A - ARM, FRONT BUMPER, INNER LH | ||||
| 52143-12330 |
AE10#..NAP |
1 | ||
| 52143-12300 |
AE10#..NAP |
1 | ||
| 52147A - BRACKET, FRONT BUMPER STAY, RH | ||||
| 52147-02020 |
AE10#..NAP |
1 | ||
| 52148A - BRACKET, FRONT BUMPER STAY, LH | ||||
| 52147-02020 |
AE10#..NAP |
1 | ||
| 52187D - GUIDE, FRONT BUMPER LOCATION, RH | ||||
| 52148-12130 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 52187D - GUIDE, FRONT BUMPER LOCATION, RH | ||||
| 52148-12130 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 52188C - GUIDE, FRONT BUMPER LOCATION, LH | ||||
| 52148-12130 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 52188C - GUIDE, FRONT BUMPER LOCATION, LH | ||||
| 52148-12130 |
AE10#..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 52187-12140 |
AE10#..NAP TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02030 |
AE10#..NAP |
1 | ||
| Common parts | ||||
| 90081-18004 | ||||
| 90109-06221 | ||||
| 90119-06355 | ||||
| 90119-06615 | ||||
| 90119-08636 | ||||
| 90159-60450 | ||||
| 90179-06070 | ||||
| 90179-08177 | ||||
| 90189-05132 | ||||
| 90189-06006 | ||||
| 90467-08155 | ||||
