AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

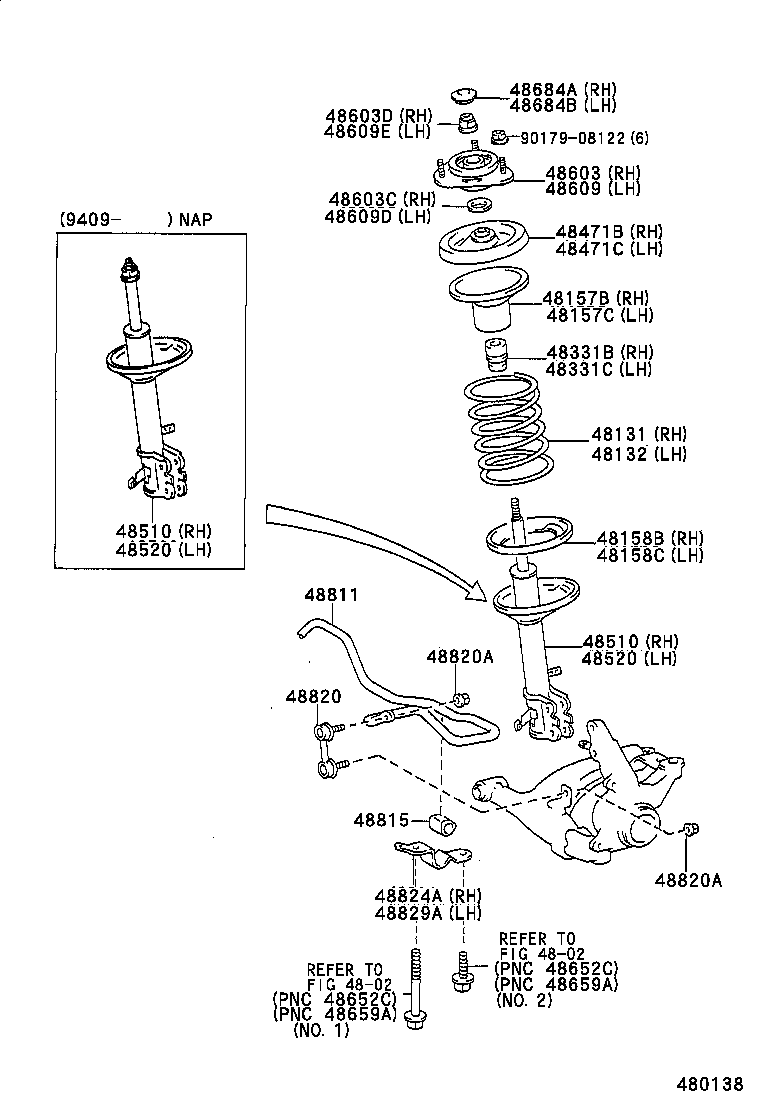

(9209-9508)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-02170 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02160 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-01240 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02160 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02170 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02340 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02330 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02350 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA *84 |
1 | ||
| 48131-02340 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..5F..N..USA;AE101..NAP..3FC..N..CND *84 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..3FC..N..CND W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02360 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02370 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02370 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-02160 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02180 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02180 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02190 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02170 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02190 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02390 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02370 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02390 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..5F..N..USA;AE101..NAP..3FC..N..CND *84 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA *84 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..3FC..N..CND W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02360 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02380 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-02010 |
AE10#..NAP |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-02010 |
AE10#..NAP |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-02011 |
AE10#..NAP |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-02011 |
AE10#..NAP |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-01030 |
AE10#..NAP |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-01030 |
AE10#..NAP |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-01020 |
AE10#..NAP |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-01020 |
AE10#..NAP |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-02030 |
AE10#..NAP |
1 | ||
| 48510-09140 |
AE10#..NAP |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-02030 |
AE10#..NAP |
1 | ||
| 48510-09140 |
AE10#..NAP |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09110 |
AE10#..NAP |
1 | ||
| 48520-02030 |
AE10#..NAP |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09110 |
AE10#..NAP |
1 | ||
| 48520-02030 |
AE10#..NAP |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-02040 |
AE10#..NAP |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AE10#..NAP |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AE10#..NAP |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-02040 |
AE10#..NAP |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AE10#..NAP |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AE10#..NAP |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-01010 |
AE10#..NAP |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-01010 |
AE10#..NAP |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02020 |
AE102..NAP *86 |
1 | ||
| 48811-12720 |
AE102..NAP *86 & *87 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-02020 |
AE102..NAP |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-33010 |
AE102..NAP |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE102..NAP |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE102..NAP |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-02020 |
AE102..NAP |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-02010 |
AE102..NAP |
1 | ||
| Common parts | ||||
| 90179-08122 | ||||
| Linked diagrams | ||||
| 4802 | ||||

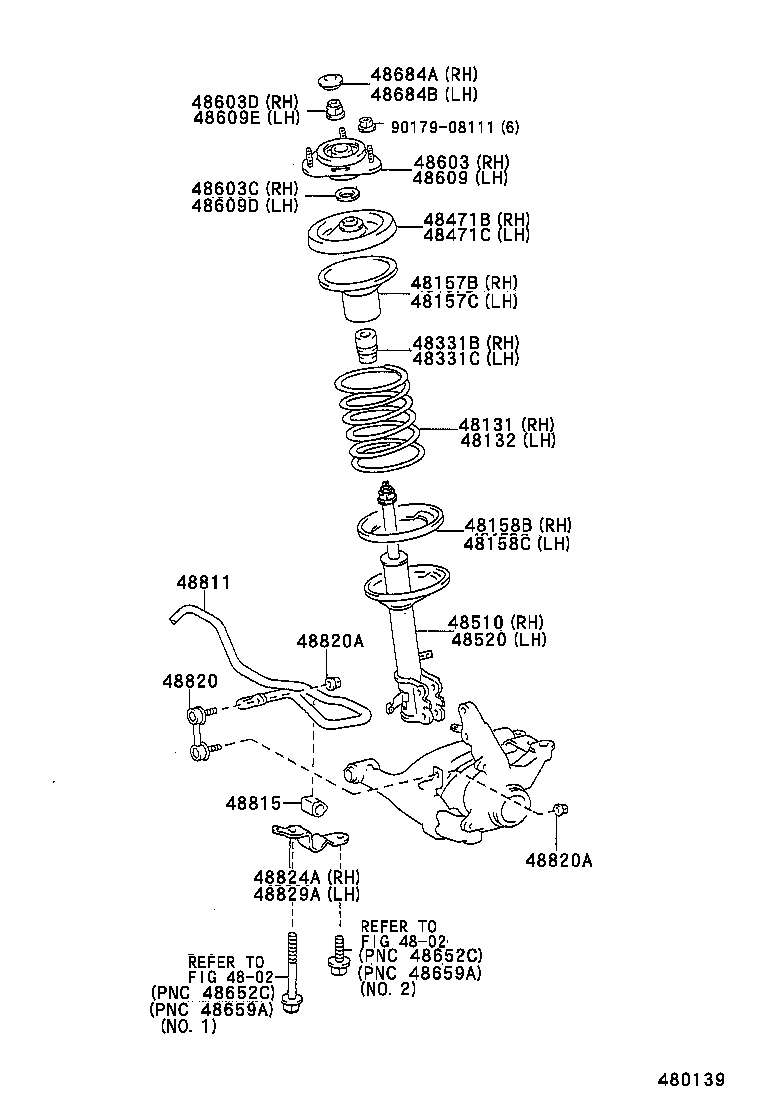

(9508- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-02170 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02160 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-01240 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02160 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02170 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02340 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02330 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02350 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA *84 |
1 | ||
| 48131-02340 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..5F..N..USA;AE101..NAP..3FC..N..CND *84 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..3FC..N..CND W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02360 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02370 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02370 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-02160 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02180 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02180 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02190 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02170 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02190 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *84 |
1 | ||
| 48131-02390 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*85 |
1 | ||
| 48131-02370 |
AE101..NAP..3FC;AE102..NAP..5F..N *85 |
1 | ||
| 48131-02390 |
AE102..NAP..5F..E;AE102..NAP..4FC..N *85 |
1 | ||
| 48131-02360 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..5F..N..USA;AE101..NAP..3FC..N..CND *84 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..E;AE102..NAP..4FC..N;AE101..NAP..3FC..N..USA *84 |
1 | ||
| 48131-02380 |
AE102..NAP..5F..N;AE101..NAP..3FC..D;AE101..NAP..3FC..N..CND W(AIR CONDITIONER),*84 |
1 | ||
| 48131-02360 |
AE101..NAP..3FC;AE102..NAP..5F..N *84 |
1 | ||
| 48131-02380 |
AE101..NAP..3FC;AE102..NAP..5F..N W(AIR CONDITIONER),*84 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-02010 |
AE10#..NAP |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-02010 |
AE10#..NAP |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-02011 |
AE10#..NAP |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-02011 |
AE10#..NAP |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-01030 |
AE10#..NAP |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-01030 |
AE10#..NAP |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48044-01020 |
AE10#..NAP |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48044-01020 |
AE10#..NAP |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-02030 |
AE10#..NAP |
1 | ||
| 48510-09140 |
AE10#..NAP |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-09110 |
AE10#..NAP |
1 | ||
| 48520-02030 |
AE10#..NAP |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-02040 |
AE10#..NAP |
1 | ||
| 48603C - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90303-22049 |
AE10#..NAP |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 94182-11400 |
AE10#..NAP |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-02040 |
AE10#..NAP |
1 | ||
| 48609D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90303-22049 |
AE10#..NAP |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 94182-11400 |
AE10#..NAP |
1 | ||
| 48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH | ||||
| 48684-01010 |
AE10#..NAP |
1 | ||
| 48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH | ||||
| 48684-01010 |
AE10#..NAP |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-02020 |
AE102..NAP *86 |
1 | ||
| 48811-12720 |
AE102..NAP *86 & *87 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-02020 |
AE102..NAP |
2 | ||
| 48820 - LINK ASSY, FRONT STABILIZER | ||||
| 48820-33010 |
AE102..NAP |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE102..NAP |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-10183 |
AE102..NAP |
4 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-02020 |
AE102..NAP |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48829-02010 |
AE102..NAP |
1 | ||
| Common parts | ||||
| 90179-08111 | ||||
| Linked diagrams | ||||
| 4802 | ||||
