AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

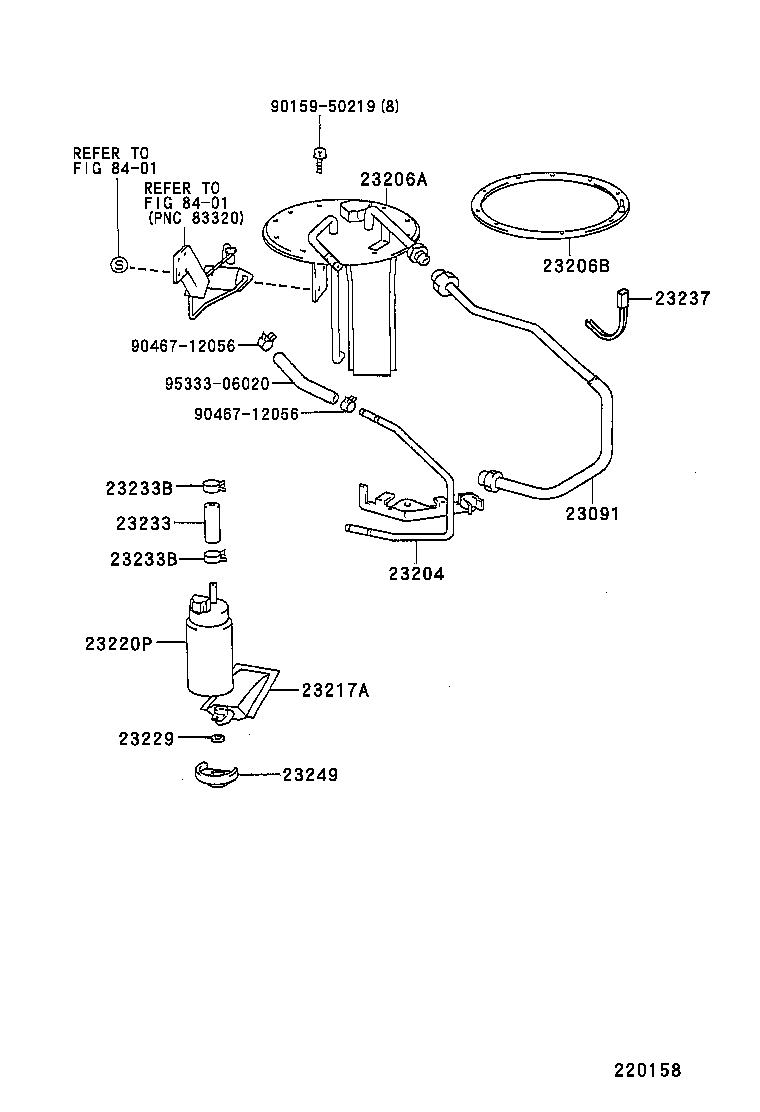

ILLUST NO. 2 OF 2(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-16060 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23091-16090 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 77209-12080 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 77209-12090 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23204 - TUBE SUB-ASSY, FUEL PUMP RETURN | ||||
| 23204-02010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 77204-12020 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 23204-16510 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-02020 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 77203-02010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 77203-12240 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23206-16560 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-02010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 77169-12030 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 77169-02010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 77169-12030 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74020 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23217-74021 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23217-03010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23217-03010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-16490 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23221-16490 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23221-03010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23221-03010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23219-03010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23219-03010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23229-16010 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23229-16010 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23233-02010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23239-11010 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23239-11010 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23239-63010 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23233-02010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
2 | ||
| 90467-13054 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
2 | ||
| 90467-13054 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 90467-13054 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
2 | ||
| 90467-12067 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
2 | ||
| 90467-13054 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
2 | ||
| 90467-13054 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 90467-13054 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
2 | ||
| 90467-12067 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
2 | ||
| 23237 - WIRE SUB-ASSY, LEAD | ||||
| 23237-02010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23237-02010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23218-02010 |
4AFE..AE101..NAP..D;7AFE..AE102..NAP..4FC;7AFE..AE102..NAP..5F..N |
1 | ||
| 23249-74610 |
4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E |
1 | ||
| 23249-74610 |
7AFE..AE102..NAP..E;4AFE..AE101..NAP..N..USA |
1 | ||
| 23218-02010 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90467-12056 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8401 | ||||
