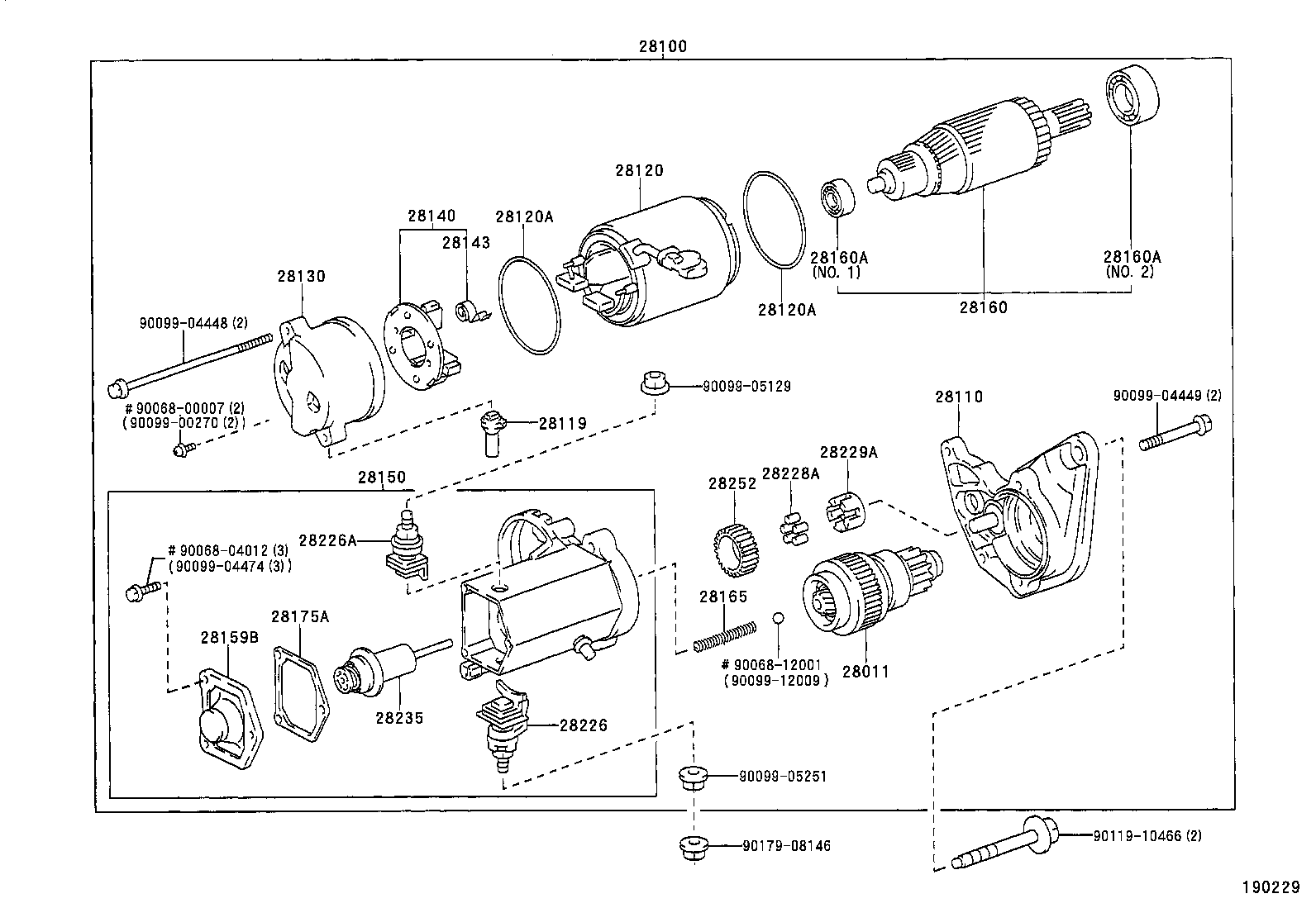

Toyota Corolla nap/sed AE102 STARTER

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28100 - STARTER ASSY
28100-02060	4AFE,7AFE..AE10#..NAP 12V 1.4KW	08/1993 - 12/2999	1
28100-02050	4AFE,7AFE..AE10#..NAP 12V 1.4KW	09/1992 - 08/1993	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-02040	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28119 - COVER, STARTER END FRAME
28199-01030	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1995	1
28199-74110	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
28120 - YOKE ASSY, STARTER
28120-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 02/1994	1
28120-01030	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28120A - RING, O(FOR STARTER YOKE)
90099-14064	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1995	2
90068-14001	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	2
28120A - RING, O(FOR STARTER YOKE)
90099-14064	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1995	2
90068-14001	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-02040	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28143 - SPRING, STARTER BRUSH
90099-17112	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1993	1
28150-01030	4AFE,7AFE..AE10#..NAP	08/1993 - 02/1994	1
28150-01040	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28159B - COVER, MAGNET SWITCH
28159-07010	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28160 - ARMATURE ASSY, STARTER
28160-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28160A - BEARING, STARTER ARMATURE
90068-10003	4AFE,7AFE..AE10#..NAP NO.2	08/1995 - 12/2999	1
90099-10197	4AFE,7AFE..AE10#..NAP NO.1	09/1992 - 08/1995	1
90068-10004	4AFE,7AFE..AE10#..NAP NO.1	08/1995 - 12/2999	1
90099-10196	4AFE,7AFE..AE10#..NAP NO.2	09/1992 - 08/1995	1
28160A - BEARING, STARTER ARMATURE
90068-10003	4AFE,7AFE..AE10#..NAP NO.2	08/1995 - 12/2999	1
90099-10197	4AFE,7AFE..AE10#..NAP NO.1	09/1992 - 08/1995	1
90068-10004	4AFE,7AFE..AE10#..NAP NO.1	08/1995 - 12/2999	1
90099-10196	4AFE,7AFE..AE10#..NAP NO.2	09/1992 - 08/1995	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28175A - GASKET, MAGNET SWITCH COVER
28175-55050	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28226 - STARTER KIT, BATTERY TERMINAL
28226-55050	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28226A - STARTER KIT, MOTOR TERMINAL
28226-74070	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28228A - ROLLER, STARTER CLUTCH
28228-26040	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	5
28228-01010	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1995	5
28229A - RETAINER, STARTER IDLE GEAR
28229-01020	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
28235 - PLUNGER, MAGNET SWITCH
28235-07010	4AFE,7AFE..AE10#..NAP	02/1994 - 12/2999	1
28252 - GEAR, STARTER IDLE
28254-03010	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
28254-74070	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1995	1
Common parts
90068-00007
90068-04012
90068-12001
90099-00270
90099-04448
90099-04449
90099-04474
90099-05129
90099-05251
90099-12009
90119-10466
90179-08146

AE102L-DEMNKA (1992)

(9209- )NAP
