Toyota Corolla nap/sed AE102 MANIFOLD

AE102L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997

Engine 7AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

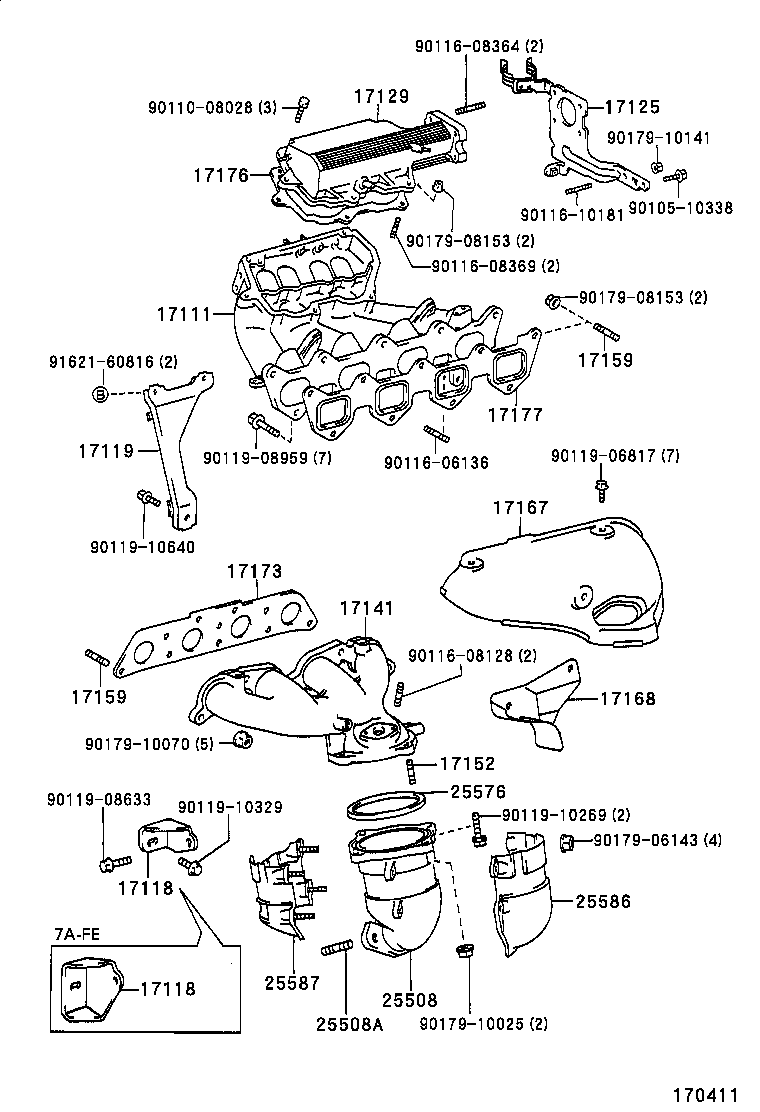

(9209-9508)NAP

Click highlighted areas on diagram

CALIFORNIA SPEC

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-16200	7AFE..AE102..NAP	09/1992 - 12/1993	1
17101-16190	4AFE,7AFE..AE10#..NAP	12/1993 - 08/1994	1
17101-16240	4AFE,7AFE..AE10#..NAP	08/1995 - 08/1997	1
17101-16240	7AFE..AE102..NAP	08/1994 - 08/1995	1
17118 - STAY, MANIFOLD
17118-16120	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17118-16130	7AFE..AE102..NAP	09/1992 - 12/2999	1
17118 - STAY, MANIFOLD
17118-16120	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17118-16130	7AFE..AE102..NAP	09/1992 - 12/2999	1
17119 - STAY, MANIFOLD, NO.2
17012-16020	7AFE..AE102..NAP	09/1992 - 08/1994	1
17139-16130	7AFE..AE102..NAP	08/1994 - 12/2999	1
17012-16040	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17125 - STAY, SURGE TANK, NO.1
17125-15020	4AFE,7AFE..AE10#..NAP	09/1992 - 04/1993	1
17125-16080	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 04/1993	1
17125-16080	4AFE,7AFE..AE10#..NAP	04/1993 - 08/1994	1
17129 - TANK, INTAKE AIR SURGE
17109-16020	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17109-15010	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1994	1
17109-16050	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
17109-16050	7AFE..AE102..NAP	08/1994 - 08/1995	1
17141 - MANIFOLD, EXHAUST
17141-16290	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17141-19015	4AFE,7AFE..AE10#..NAP	03/1993 - 03/1996	1
17141-19016	4AFE,7AFE..AE10#..NAP	03/1996 - 12/2999	1
17141-16250	4AFE,7AFE..AE10#..NAP	09/1992 - 03/1993	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028	4AFE,7AFE..AE10#..NAP EXHAUST MANIFOLD	09/1992 - 12/2999	5
92112-60825	4AFE,7AFE..AE10#..NAP INTAKE MANIFOLD	09/1992 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028	4AFE,7AFE..AE10#..NAP EXHAUST MANIFOLD	09/1992 - 12/2999	5
92112-60825	4AFE,7AFE..AE10#..NAP INTAKE MANIFOLD	09/1992 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-15080	4AFE,7AFE..AE10#..NAP	12/1992 - 12/2999	1
17167-16140	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17167-15060	4AFE,7AFE..AE10#..NAP	09/1992 - 12/1992	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16071	4AFE,7AFE..AE10#..NAP	01/1993 - 12/2999	1
17168-16070	4AFE,7AFE..AE10#..NAP	09/1992 - 01/1993	1
17168-16110	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-15010	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1994	1
17176-16020	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
17176-16020	7AFE..AE102..NAP	08/1994 - 08/1995	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25051-16010	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA	09/1992 - 08/1994	1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10146	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA	09/1992 - 08/1994	2
25576 - GASKET, MANIFOLD CONVERTER
25576-15020	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA	09/1992 - 08/1994	1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-16010	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA	09/1992 - 08/1994	1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-16010	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA	09/1992 - 08/1994	1
Common parts
90105-10338
90110-08028
90116-06136
90116-08128
90116-08364
90116-08369
90116-10181
90119-06817
90119-08633
90119-08959
90119-10269
90119-10329
90119-10640
90179-06143
90179-08153
90179-10025
90179-10070
90179-10141
91621-60816

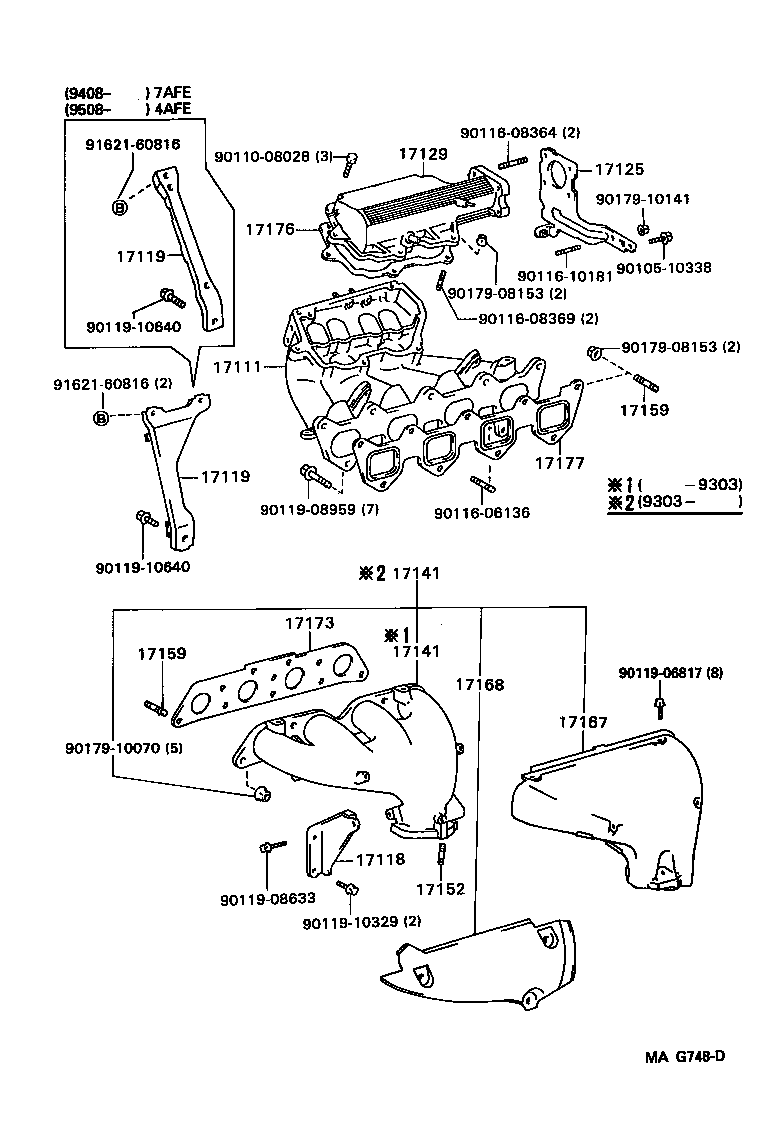

(9209- )NAP

Click highlighted areas on diagram

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-16200	7AFE..AE102..NAP	09/1992 - 12/1993	1
17101-16190	4AFE,7AFE..AE10#..NAP	12/1993 - 08/1994	1
17101-16240	4AFE,7AFE..AE10#..NAP	08/1995 - 08/1997	1
17101-16240	7AFE..AE102..NAP	08/1994 - 08/1995	1
17118 - STAY, MANIFOLD
17118-16120	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17118-16130	7AFE..AE102..NAP	09/1992 - 12/2999	1
17119 - STAY, MANIFOLD, NO.2
17012-16020	7AFE..AE102..NAP	09/1992 - 08/1994	1
17139-16130	7AFE..AE102..NAP	08/1994 - 12/2999	1
17012-16040	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17119 - STAY, MANIFOLD, NO.2
17012-16020	7AFE..AE102..NAP	09/1992 - 08/1994	1
17139-16130	7AFE..AE102..NAP	08/1994 - 12/2999	1
17012-16040	7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17125 - STAY, SURGE TANK, NO.1
17125-15020	4AFE,7AFE..AE10#..NAP	09/1992 - 04/1993	1
17125-16080	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 04/1993	1
17125-16080	4AFE,7AFE..AE10#..NAP	04/1993 - 08/1994	1
17129 - TANK, INTAKE AIR SURGE
17109-16020	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17109-15010	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1994	1
17109-16050	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
17109-16050	7AFE..AE102..NAP	08/1994 - 08/1995	1
17141 - MANIFOLD, EXHAUST
17141-16290	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17141-19015	4AFE,7AFE..AE10#..NAP	03/1993 - 03/1996	1
17141-19016	4AFE,7AFE..AE10#..NAP	03/1996 - 12/2999	1
17141-16250	4AFE,7AFE..AE10#..NAP	09/1992 - 03/1993	1
17141 - MANIFOLD, EXHAUST
17141-16290	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17141-19015	4AFE,7AFE..AE10#..NAP	03/1993 - 03/1996	1
17141-19016	4AFE,7AFE..AE10#..NAP	03/1996 - 12/2999	1
17141-16250	4AFE,7AFE..AE10#..NAP	09/1992 - 03/1993	1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028	4AFE,7AFE..AE10#..NAP EXHAUST MANIFOLD	09/1992 - 12/2999	5
92112-60825	4AFE,7AFE..AE10#..NAP INTAKE MANIFOLD	09/1992 - 12/2999	2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028	4AFE,7AFE..AE10#..NAP EXHAUST MANIFOLD	09/1992 - 12/2999	5
92112-60825	4AFE,7AFE..AE10#..NAP INTAKE MANIFOLD	09/1992 - 12/2999	2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-15080	4AFE,7AFE..AE10#..NAP	12/1992 - 12/2999	1
17167-16140	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17167-15060	4AFE,7AFE..AE10#..NAP	09/1992 - 12/1992	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-16071	4AFE,7AFE..AE10#..NAP	01/1993 - 12/2999	1
17168-16070	4AFE,7AFE..AE10#..NAP	09/1992 - 01/1993	1
17168-16110	4AFE..AE101..NAP..D..USA;7AFE..AE102..NAP..4FC..USA;7AFE..AE102..NAP..5F..N..USA CALIFORNIA SPEC	09/1992 - 08/1994	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-15040	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-15010	4AFE,7AFE..AE10#..NAP	09/1992 - 08/1994	1
17176-16020	4AFE,7AFE..AE10#..NAP	08/1995 - 12/2999	1
17176-16020	7AFE..AE102..NAP	08/1994 - 08/1995	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030	4AFE,7AFE..AE10#..NAP	09/1992 - 12/2999	1
Common parts
90105-10338
90110-08028
90116-06136
90116-08364
90116-08369
90116-10181
90119-06817
90119-08633
90119-08959
90119-10329
90119-10640
90179-08153
90179-10070
90179-10141
91621-60816

AE102L-DEMNKA (1992)

(9209-9508)NAP

(9209- )NAP
