AE102L-DEMNKA (1992)
Toyota Corolla Nap/Sed

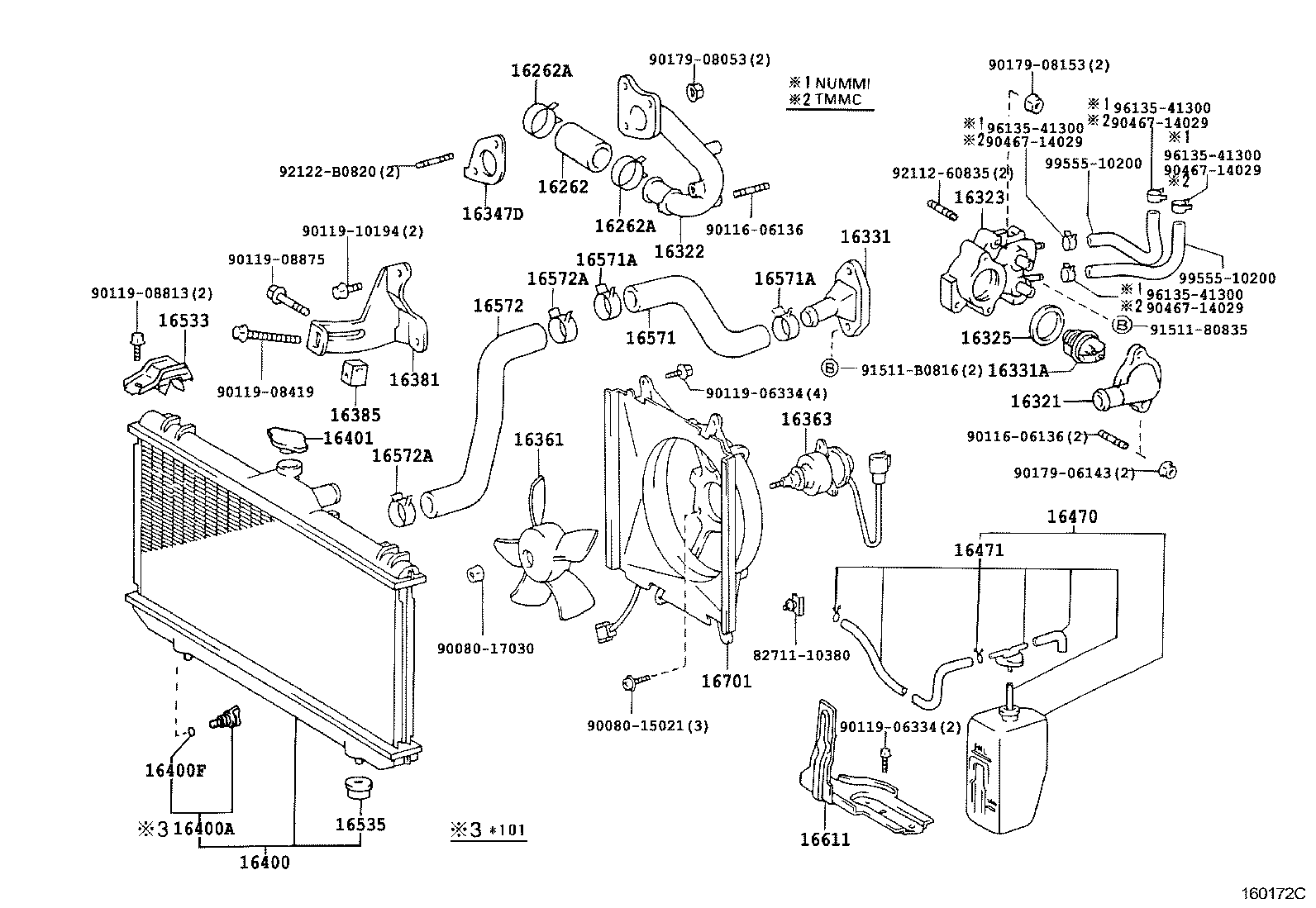

ILLUST NO. 1 OF 2(9209- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16262 - HOSE, WATER INLET | ||||
| 16262-15040 |
4AFE,7AFE..AE10#..NAP (J) |
1 | ||
| 16262-02050 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND (L) |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90467-37002 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-15040 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-16060 |
7AFE..AE102..NAP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-16420 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63010 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16325-63011 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15080 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03109 |
4AFE,7AFE..AE10#..NAP *WAX 82-95 |
1 | ||
| 90916-03046 |
4AFE,7AFE..AE10#..NAP *WAX 82-95 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-15010 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16361 - FAN | ||||
| 16361-02050 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-02040 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15080 |
4AFE,7AFE..AE10#..NAP (J) |
1 | ||
| 16381-02050 |
7AFE..AE102..NAP..N;4AFE..AE101..NAP..D;4AFE..AE101..NAP..N..CND (L) |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-15020 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-02100 |
4AFE,7AFE..AE10#..NAP..5F *101 |
1 | ||
| 16410-02130 |
4AFE,7AFE..AE10#..NAP..5F *100 |
1 | ||
| 16410-02100 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 90080-34011 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90080-30011 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 90069-08019 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-16020 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16401-72090 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-02020 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16470-02021 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16470-02021 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16470-02030 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16470-02031 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-02030 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16405-02021 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16405-02031 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16405-02020 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15130 |
4AFE,7AFE..AE10#..NAP W(*66),LH |
1 | ||
| 16533-02020 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16533-02020 |
4AFE,7AFE..AE10#..NAP W(*66),RH |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74010 |
4AFE,7AFE..AE10#..NAP..5F *100 |
2 | ||
| 16535-15050 |
4AFE,7AFE..AE10#..NAP..5F *100 |
2 | ||
| 16535-02020 |
4AFE,7AFE..AE10#..NAP *101 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-02050 |
7AFE..AE102..NAP *101 |
1 | ||
| 16571-16180 |
7AFE..AE102..NAP |
1 | ||
| 16571-02060 |
7AFE..AE102..NAP *100 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-02040 |
7AFE..AE102..NAP *101 |
1 | ||
| 16572-16150 |
7AFE..AE102..NAP |
1 | ||
| 16572-02050 |
7AFE..AE102..NAP *100 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-34003 |
4AFE,7AFE..AE10#..NAP |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-15020 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-02051 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16711-02050 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90080-15021 | ||||
| 90080-17030 | ||||
| 90116-06136 | ||||
| 90119-06334 | ||||
| 90119-08419 | ||||
| 90119-08813 | ||||
| 90119-08875 | ||||
| 90119-10194 | ||||
| 90179-06143 | ||||
| 90179-08053 | ||||
| 90179-08153 | ||||
| 90467-14029 | ||||
| 91511-80835 | ||||
| 91511-B0816 | ||||
| 92112-60835 | ||||
| 92122-B0820 | ||||
| 96135-41300 | ||||
| 99555-10200 | ||||

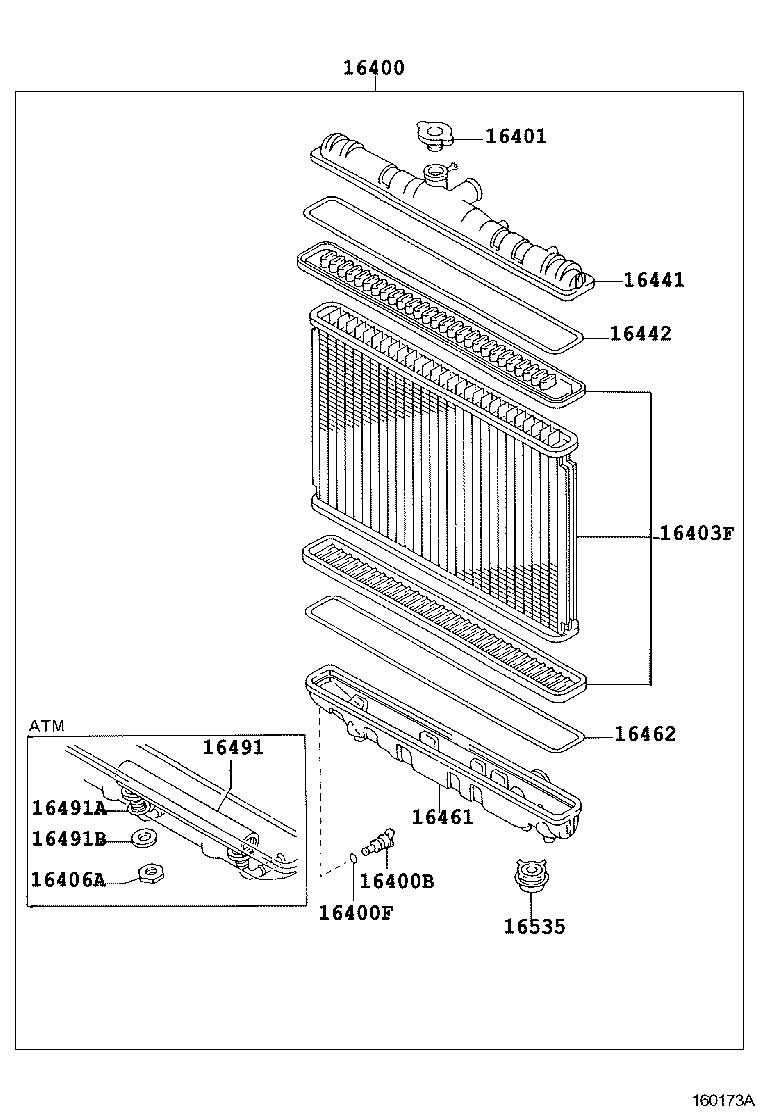

ILLUST NO. 2 OF 2(9209- )NAP
NIPPONDENSO(USA)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-02100 |
4AFE,7AFE..AE10#..NAP..5F *101 |
1 | ||
| 16410-02130 |
4AFE,7AFE..AE10#..NAP..5F *100 |
1 | ||
| 16410-02100 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90080-34002 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90080-30011 |
4AFE,7AFE..AE10#..NAP |
1 | ||
| 90069-08019 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-16020 |
4AFE,7AFE..AE10#..NAP *101 |
1 | ||
| 16401-72090 |
4AFE,7AFE..AE10#..NAP *100 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-02020 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-02020 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-02020 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-02040 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16462-02020 |
4AFE,7AFE..AE10#..NAP..5F |
1 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-74010 |
4AFE,7AFE..AE10#..NAP..5F *100 |
2 | ||
| 16535-15050 |
4AFE,7AFE..AE10#..NAP..5F *100 |
2 | ||
| 16535-02020 |
4AFE,7AFE..AE10#..NAP *101 |
2 | ||
