AE102L-DEMEKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997

Engine 7AFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

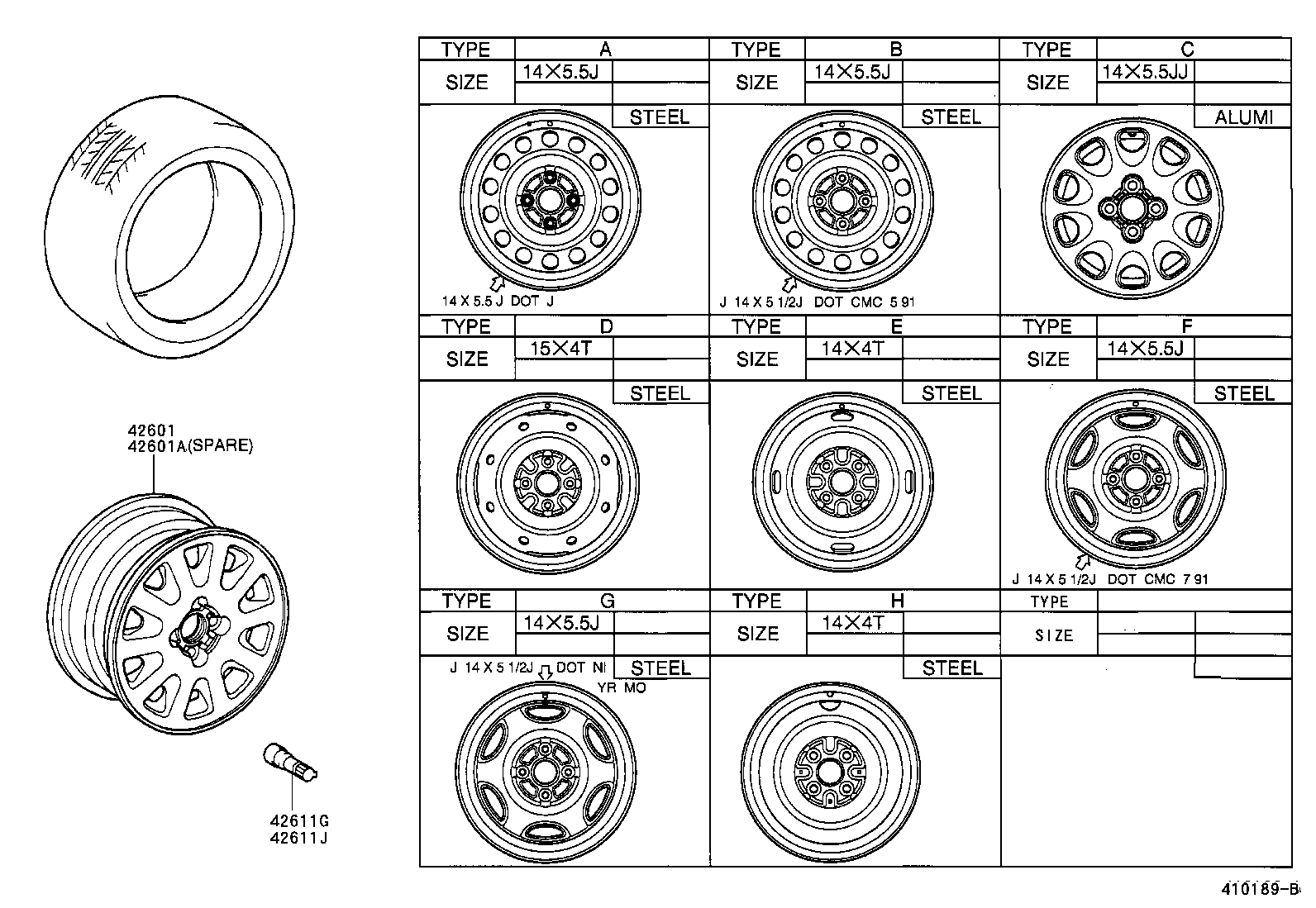

ILLUST NO. 1 OF 3(9209- )NAP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601 - WHEEL, DISC
42611-02110	AE102..NAP..E;AE102..NAP..CND 14X5.5JJ,TYPE C:REFER TO ILLUSTRATION	09/1992 - 08/1995	4
42611-02100	AE10#..NAP 14X5.5J,TYPE B:REFER TO ILLUSTRATION	09/1992 - 12/2999	4
42611-02090	AE10#..NAP 14X5.5J,TYPE A:REFER TO ILLUSTRATION	09/1992 - 12/2999	4
42611-02110	AE102..NAP 14X5.5JJ,TYPE C:REFER TO ILLUSTRATION	08/1995 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-02130	AE10#..NAP 15X4T,TYPE D:REFER TO ILLUSTRATION	09/1992 - 08/1995	1
42611-02130	AE102..NAP;AE101..NAP..N..USA 15X4T,TYPE D:REFER TO ILLUSTRATION,(L)	08/1995 - 08/1997	1
42611-1A020	AE102..NAP;AE101..NAP..N..USA 15X4T,TYPE D:REFER TO ILLUSTRATION,(J)	03/1997 - 08/1997	1
42611G - VALVE (FOR TUBELESS TIRE)
90080-45001	AE10#..NAP	09/1992 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90080-45001	AE10#..NAP	09/1992 - 12/2999	1

ILLUST NO. 2 OF 3(9209- )NAP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
42601C - NUT, HUB (FOR AXLE)
90942-01033	AE102..NAP..E;AE102..NAP..CND TYPE C:REFER TO ILLUSTRATION;W(ALUMINUM WHEEL)	09/1992 - 08/1995	16
90942-01033	AE102..NAP TYPE C:REFER TO ILLUSTRATION;W(ALUMINUM WHEEL)	08/1995 - 12/2999	16
90080-17035	AE10#..NAP TYPE A:REFER TO ILLUSTRATION	09/1992 - 12/2999	16
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-02060	AE102..NAP..E;AE102..NAP..CND TYPE A:REFER TO ILLUSTRATION	09/1992 - 08/1995	4
42603-02060	AE102..NAP TYPE A:REFER TO ILLUSTRATION	08/1995 - 12/2999	4
42621 - CAP, WHEEL
42602-02030	AE101..NAP;AE102..NAP..N..USA TYPE B:REFER TO ILLUSTRATION	09/1992 - 08/1995	4
42602-02050	AE102..NAP;AE101..NAP..N..CND TYPE C:REFER TO ILLUSTRATION	08/1995 - 12/2999	4
42602-02040	AE102..NAP..E;AE102..NAP..CND TYPE A:REFER TO ILLUSTRATION	09/1992 - 08/1995	4

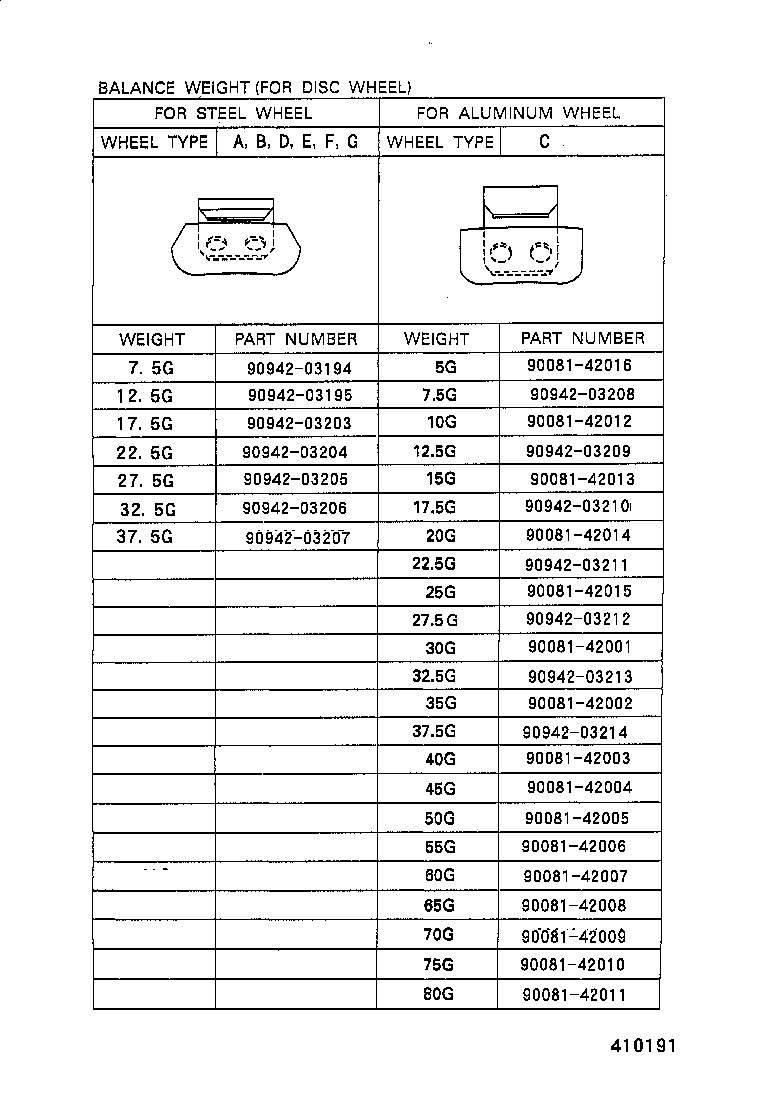

ILLUST NO. 3 OF 3(9209- )NAP

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
Common parts
90081-42001
90081-42002
90081-42003
90081-42004
90081-42005
90081-42006
90081-42007
90081-42008
90081-42009
90081-42010
90081-42011
90081-42012
90081-42013
90081-42014
90081-42015
90081-42016
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
