AE102L-DEMEKA (1992)
Toyota Corolla Nap/Sed
Production
Sep 1992
-
Aug 1997
Engine
7AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209- )NAP

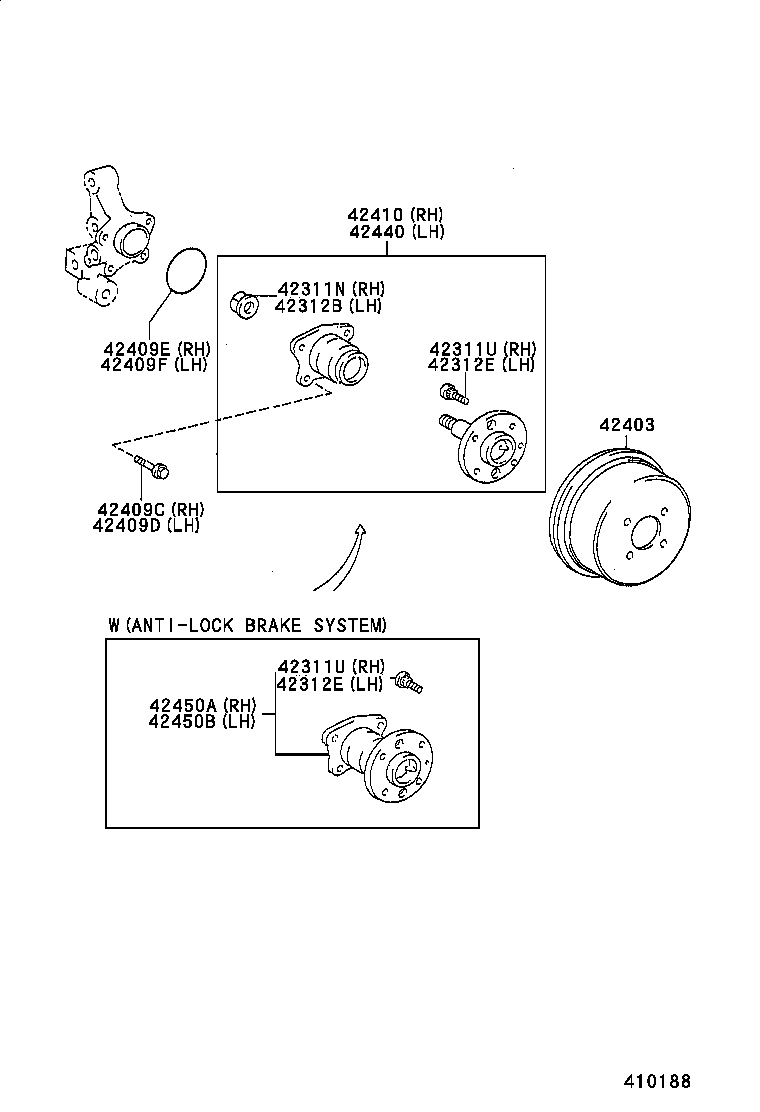

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90179-20017 |
AE10#..NAP |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AE10#..NAP |
4 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02047 |
AE10#..NAP |
4 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90179-20017 |
AE10#..NAP |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AE10#..NAP |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02047 |
AE10#..NAP |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-02020 |
AE10#..NAP |
2 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90105-10404 |
AE10#..NAP |
4 | ||
| 90105-10124 |
AE10#..NAP |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90105-10124 |
AE10#..NAP |
4 | ||
| 90105-10404 |
AE10#..NAP |
4 | ||
| 42409E - RING, O (FOR REAR AXLE BEARING RH) | ||||
| 90301-61002 |
AE10#..NAP |
1 | ||
| 42409F - RING, O (FOR REAR AXLE BEARING LH) | ||||
| 90301-61002 |
AE10#..NAP |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-02020 |
AE10#..NAP (L) |
1 | ||
| 42410-12090 |
AE10#..NAP (J) |
1 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-12090 |
AE10#..NAP (J) |
1 | ||
| 42410-02020 |
AE10#..NAP (L) |
1 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42450-02010 |
AE10#..NAP |
1 | ||
| 42450-02020 |
AE10#..NAP W(*66),(L) |
1 | ||
| 42450-12010 |
AE10#..NAP W(*66),(J) |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42450-12010 |
AE10#..NAP W(*66),(J) |
1 | ||
| 42450-02010 |
AE10#..NAP |
1 | ||
| 42450-02020 |
AE10#..NAP W(*66),(L) |
1 | ||
