AE101L-DEMNKA (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

Click highlighted areas on diagram

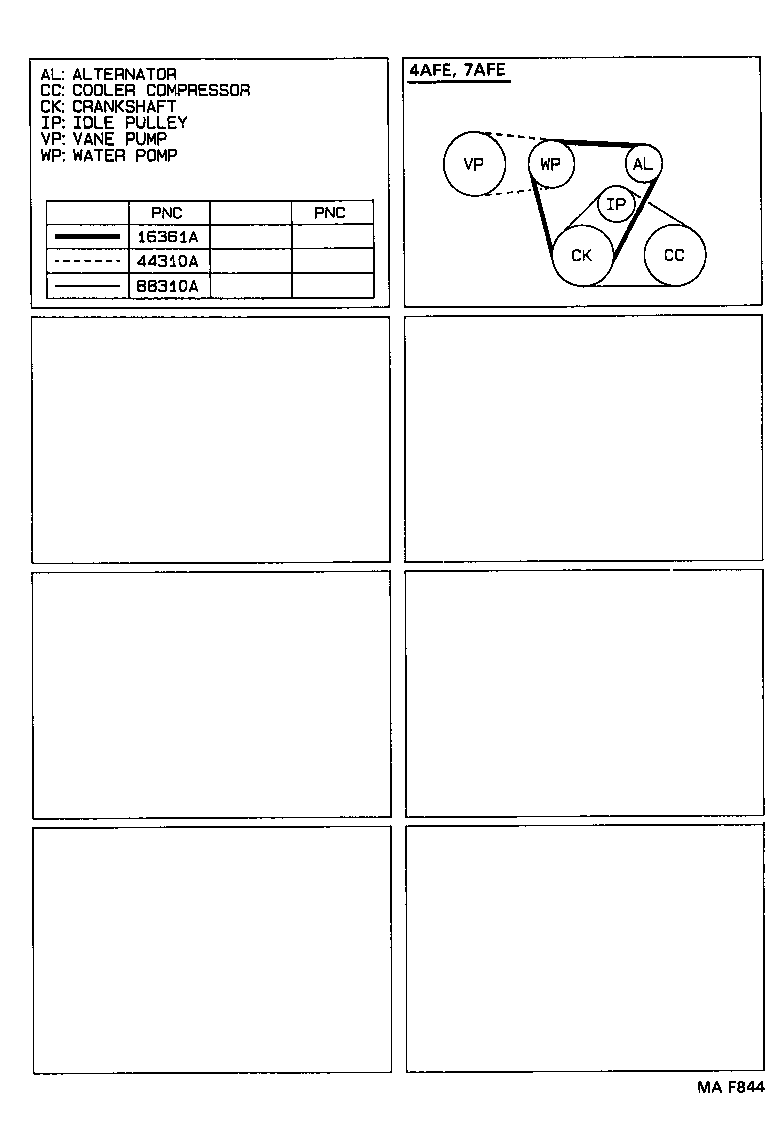

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90080-91055

4AFE,7AFE..AE10#..NAP

 1
44310A - BELT, V(FOR VANE PUMP)
90080-91051

AE101..NAP..D..USA

W(POWER STEERING)

 1
90080-91051

AE102..NAP;AE101..NAP..CND;AE101..NAP..N..USA

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90082-93002

AE10#..NAP

 1
90080-91047

AE10#..NAP

 1
