AE101L-DEMDKK (1992)

Toyota Corolla Nap/Sed

Production Sep 1992 - Aug 1997
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )4AFE,7AFE..NAP..CND

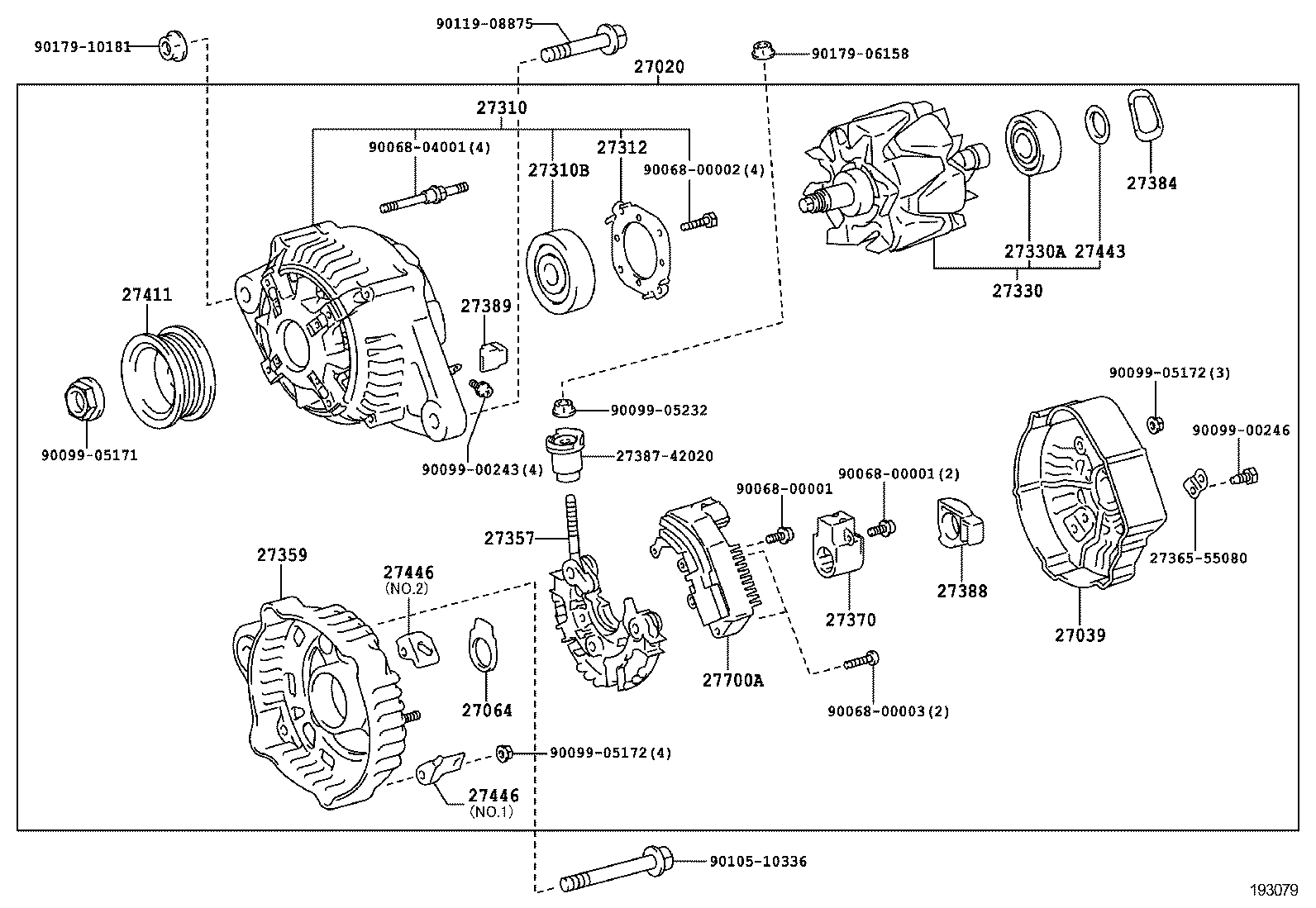

Click highlighted areas on diagram

12V 70A

diagram 27020 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 2736555080 27370 27384 2738742020 27388 27389 27411 27443 27446 27446 27700A 9006800001 9006800001 9006800002 9006800003 9006804001 9009900243 9009900246 9009905171 9009905172 9009905172 9009905232 9010510336 9011908875 9017906158 9017910181
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-02070

4AFE..AE101..NAP..N;7AFE..AE102..NAP..5F..E;7AFE..AE102..NAP..4FC..USA

12V 70A,DELCO

 1
27060-02040

4AFE,7AFE..AE10#..NAP..CND

12V 70A

 1
27039 - COVER, ALTERNATOR REAR END
27039-03050

4AFE,7AFE..AE10#..NAP..CND

 1
27064 - SEAL, ALTERNATOR PLATE
27064-0A020

4AFE,7AFE..AE10#..NAP..CND

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-02040

4AFE,7AFE..AE10#..NAP..CND

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10002

4AFE,7AFE..AE10#..NAP..CND

 1
27312 - PLATE, RETAINER
27312-0A020

4AFE,7AFE..AE10#..NAP..CND

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-03050

4AFE,7AFE..AE10#..NAP..CND

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90068-10001

4AFE,7AFE..AE10#..NAP..CND

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0A020

4AFE,7AFE..AE10#..NAP..CND

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-02040

4AFE,7AFE..AE10#..NAP..CND

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

4AFE,7AFE..AE10#..NAP..CND

 1
27384 - WASHER
27384-50030

4AFE,7AFE..AE10#..NAP..CND

 1
27388 - COVER, ALTERNATOR BRUSH
27388-0A020

4AFE,7AFE..AE10#..NAP..CND

 1
27389 - INSULATOR, TERMINAL
27389-0A020

4AFE,7AFE..AE10#..NAP..CND

 4
27411 - PULLEY, ALTERNATOR
27411-03050

4AFE,7AFE..AE10#..NAP..CND

 1
27443 - COVER, ALTERNATOR BEARING
27443-0A020

4AFE,7AFE..AE10#..NAP..CND

 1
27446 - CLIP, ALTERNATOR CORD
27466-15170

4AFE,7AFE..AE10#..NAP..CND

NO.1

 1
27446-15220

4AFE,7AFE..AE10#..NAP..CND

NO.2

 1
27446 - CLIP, ALTERNATOR CORD
27466-15170

4AFE,7AFE..AE10#..NAP..CND

NO.1

 1
27446-15220

4AFE,7AFE..AE10#..NAP..CND

NO.2

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74030

4AFE,7AFE..AE10#..NAP..CND

 1
Common parts
27365-55080
27387-42020
90068-00001
90068-00002
90068-00003
90068-04001
90099-00243
90099-00246
90099-05171
90099-05172
90099-05232
90105-10336
90119-08875
90179-06158
90179-10181
