ZRE142L-AEPNKA (2007)

Toyota Corolla Jpp

Production Dec 2007 - Dec 2010
Engine 2ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0712-0901)JPP..LE

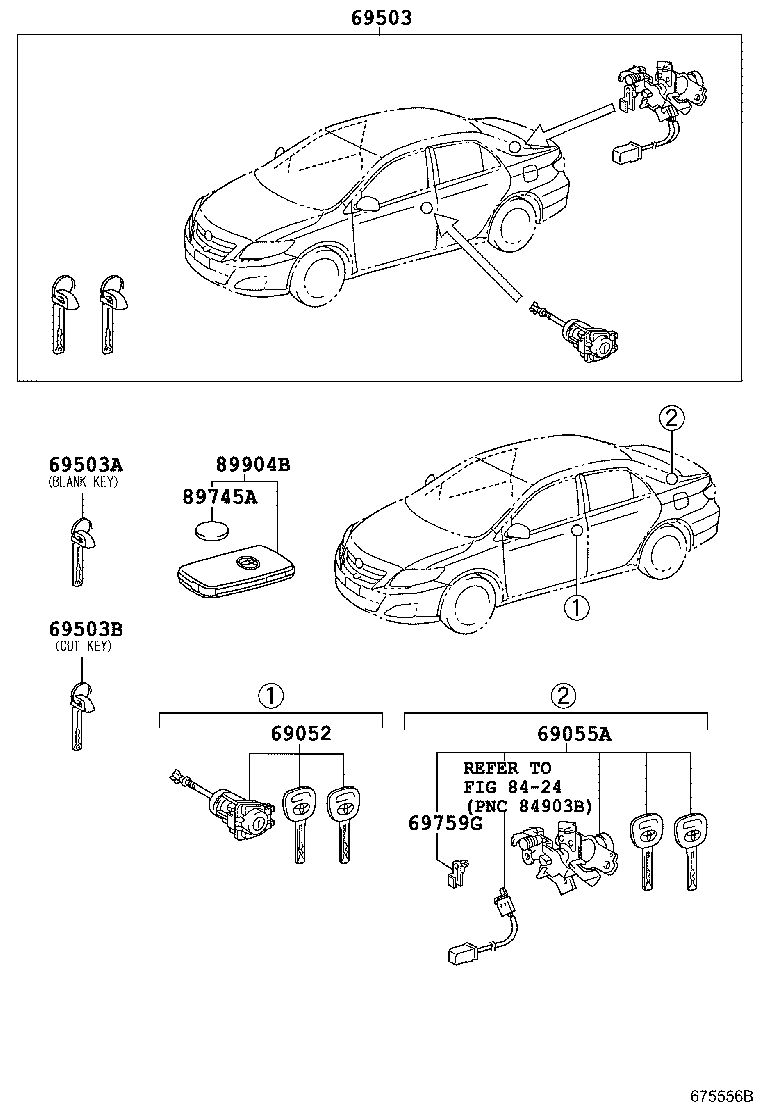

Click highlighted areas on diagram

STARTING SYSTEM-PUSH BUTTON

diagram 69052 69055A 69503 69503A 69503B 69759G 8424 89745A 89904B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33270

ZRE142..JPP..LE

 1
69052-12650

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12A40

ZRE142..JPP..LE

 1
69055-12A30

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69503 - CYLINDER SET, LOCK
69005-12D81

ZRE142..JPP..LE

 1
69005-12E80

ZRE142..JPP..LE

 1
69005-12E20

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69503A - KEY, BLANK
69515-52120

ZRE142..JPP..LE

MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON

 1
69503B - KEY, CUT
69515-52110

ZRE142..JPP..LE

MASTER KEY,W(*68),STARTING SYSTEM-PUSH BUTTON

 2
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ZRE142..JPP

 1
89745A - BATTERY, TRANSMITTER
89745-48030

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89745-48030

ZRE142..JPP..LE

 1
89745-52020

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89745-02040

ZRE142..JPP..LE

 1
89745-02040

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33181

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
Linked diagrams
8424

(0712- )JPP

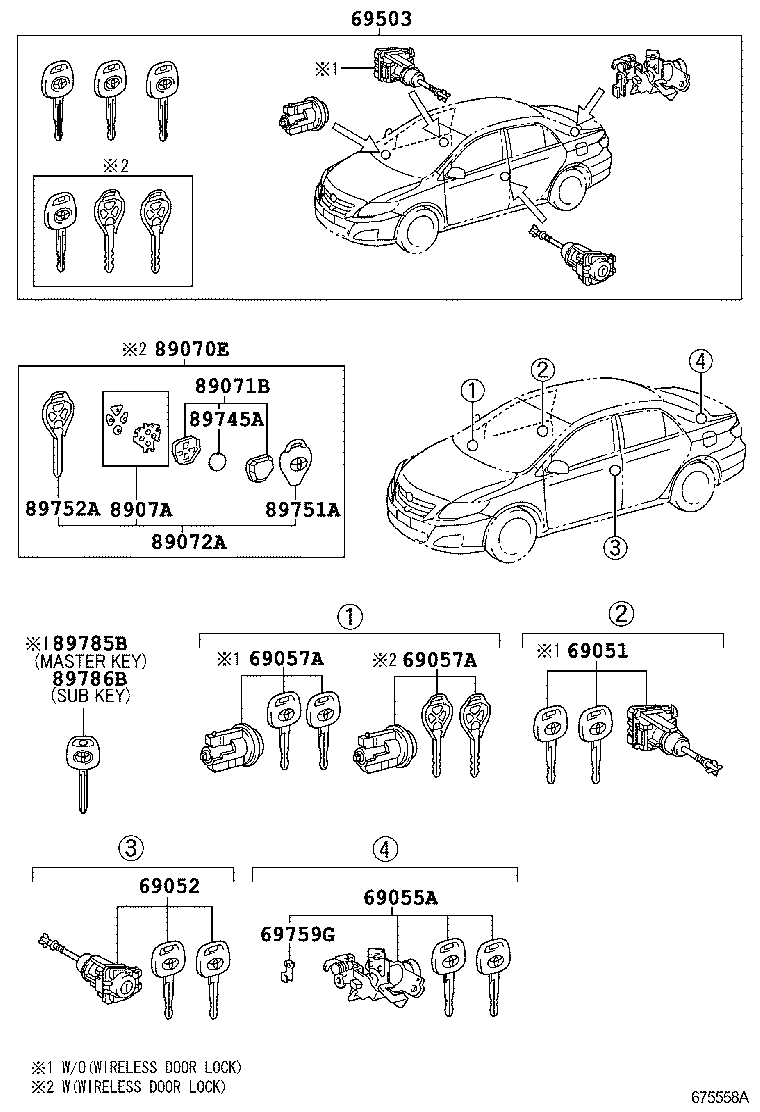

Click highlighted areas on diagram

diagram 69051 69052 69055A 69057A 69057A 69503 69759G 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89785B 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-33270

ZRE142..JPP..LE

 1
69052-12650

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69055A - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-12A40

ZRE142..JPP..LE

 1
69055-12A30

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-33341

ZRE142..JPP..LE

 1
69057-12840

ZRE142..JPP..LE

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-33341

ZRE142..JPP..LE

 1
69057-12840

ZRE142..JPP..LE

 1
69503 - CYLINDER SET, LOCK
69005-12D81

ZRE142..JPP..LE

 1
69005-12E80

ZRE142..JPP..LE

 1
69005-12E20

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER
69759-24080

ZRE142..JPP

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-33881

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89070-33881

ZRE142..JPP..LE

 1
89070-12540

ZRE142..JPP..LE

 1
89070-12820

ZRE142..JPP..LE

 1
89070-12820

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89070-12540

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-33330

ZRE142..JPP..LE

 2
89071-02070

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89071-02070

ZRE142..JPP..LE

 2
89071-33330

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-33740

ZRE142..JPP..LE

 1
89072-33471

ZRE142..JPP..LE

 1
89072-12290

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89072-33471

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89072-12290

ZRE142..JPP..LE

 1
89072-12340

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89072-12340

ZRE142..JPP..LE

 1
89072-33740

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
8907A - SWITCH SET, TRANSMITTER
8907A-33010

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
8907A-33010

ZRE142..JPP..LE

 2
89745A - BATTERY, TRANSMITTER
89745-48030

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89745-48030

ZRE142..JPP..LE

 1
89745-52020

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89745-02040

ZRE142..JPP..LE

 1
89745-02040

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89751A - COVER, TRANSMITTER HOUSING
89751-33070

ZRE142..JPP..LE

 2
89751-35060

ZRE142..JPP..LE

 2
89751-33070

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89751-52140

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89751-35060

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 2
89751-52140

ZRE142..JPP..LE

 2
89752A - CASE, TRANSMITTER HOUSING
89752-28071

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89752-12120

ZRE142..JPP..LE

 1
89752-12120

ZRE142..JPP..LE

STARTING SYSTEM-PUSH BUTTON

 1
89752-28071

ZRE142..JPP..LE

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

ZRE142..JPP..LE

BLANK KEY,STARTING SYSTEM-PUSH BUTTON

 1
89786-60220

ZRE142..JPP

BLANK KEY

 1
89786-60170

ZRE142..JPP

BLANK KEY

 1
89786-60220

ZRE142..JPP..LE

BLANK KEY,STARTING SYSTEM-PUSH BUTTON

 1
