AE95L-CWPDKA (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8802- )AE95..WG

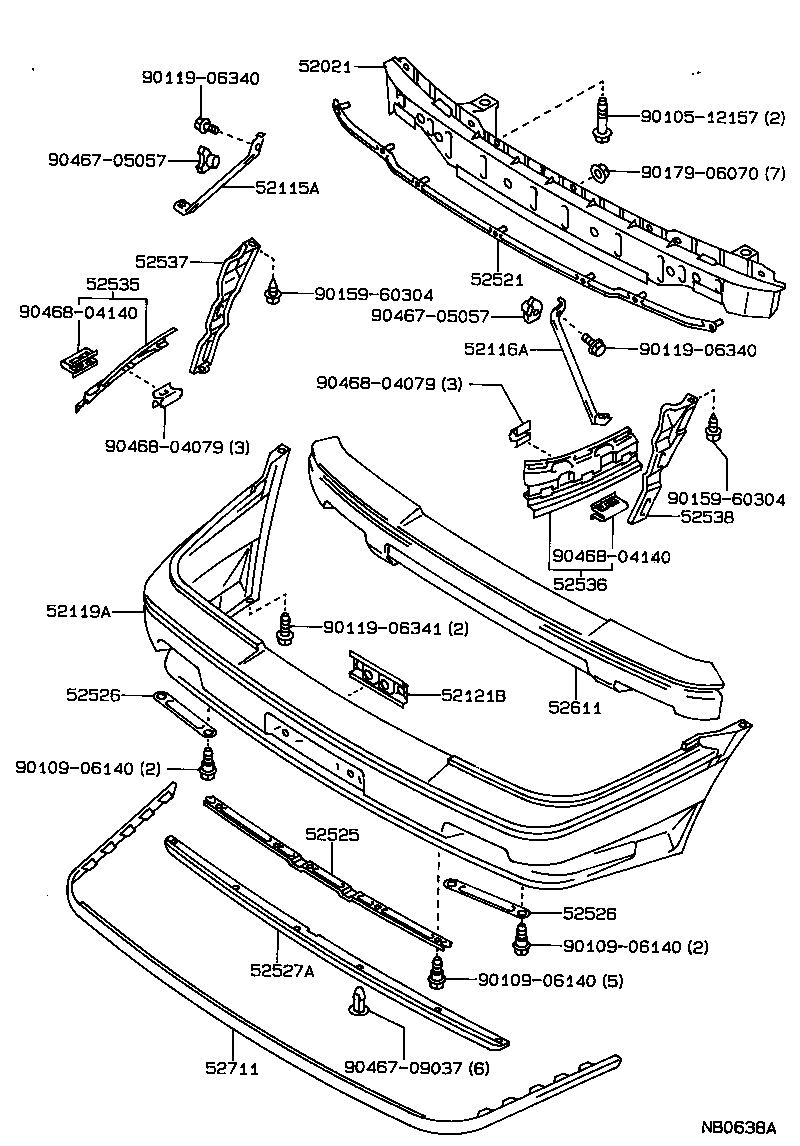

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-12170 |
AE95..WG |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12270 |
AE95..WG |
1 | ||
| 52115-12270 |
AE95..WG |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-12210 |
AE95..WG |
1 | ||
| 52116-12210 |
AE95..WG |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12350 |
AE95..WG |
1 | ||
| 52119-12917 |
AE95..WG TREATED FOR PAINTING |
1 | ||
| 52119-12917 |
AE95..WG TREATED FOR PAINTING |
1 | ||
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-12110 |
AE9# |
2 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-12091 |
AE95..WG |
1 | ||
| 52521-12090 |
AE95..WG |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52525-16050 |
AE9# |
1 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-12030 |
AE9# |
2 | ||
| 52526 - RETAINER, FRONT BUMPER, LOWER SIDE | ||||
| 52526-12030 |
AE9# |
2 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-12040 |
AE95..WG |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-12040 |
AE95..WG |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-12050 |
AE95..WG |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52537-12030 |
AE95..WG |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52538-12020 |
AE95..WG |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-12130 |
AE95..WG |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-1216003 |
AE95..WG..DX GRAY,3E5 ,3H4 ,4J5 ,8G1 |
1 | ||
| 52711-1216003 |
AE95..USA GRAY,22G ,3E5 ,3H4 |
1 | ||
| 52711-1216002 |
AE95..WG..DX RED,040 ,164 ,168 ,4E1 ,8G2 |
1 | ||
| 52711-1216002 |
AE95 RED,040 ,164 ,168 ,4H6 ,4H8 |
1 | ||
| 52711-1216003 |
AE95..WG..DX GRAY,3E5 ,3H4 ,8G1 |
1 | ||
| 52711-1216002 |
AE95..WG RED,040 ,164 ,168 ,4H6 ,4H8 ,8G2 |
1 | ||
| Common parts | ||||
| 90105-12157 | ||||
| 90109-06140 | ||||
| 90119-06340 | ||||
| 90119-06341 | ||||
| 90159-60304 | ||||
| 90179-06070 | ||||
| 90467-05057 | ||||
| 90467-09037 | ||||
| 90468-04079 | ||||
| 90468-04140 | ||||
