AE95L-CWMXKK (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8802- )AE95..WG

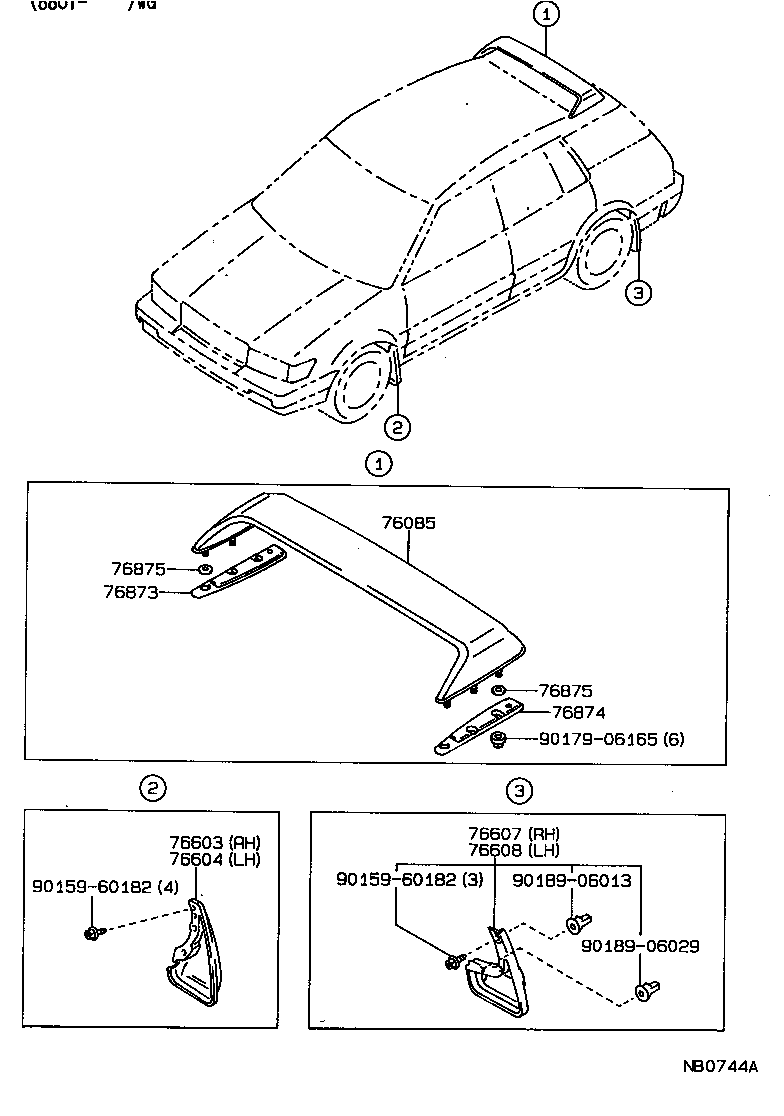

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76085 - SPOILER SUB-ASSY, REAR | ||||
| 76085-12904 |
AE95..WG TREATED FOR PAINTING |
1 | ||
| 76085-12160 |
AE95..WG |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-1206007 |
AE95..SR5..CND DARK GREEN M,21G |
1 | ||
| 76621-1206003 |
AE95..SR5 GRAY M,27M |
1 | ||
| 76621-12050 |
AE9# |
1 | ||
| 76621-1206017 |
AE95..SR5..CND GRAYISH GREEN M,26M |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-1206007 |
AE95..SR5..CND DARK GREEN M,21G |
1 | ||
| 76622-1206017 |
AE95..SR5..CND GRAYISH GREEN M,26M |
1 | ||
| 76622-1206003 |
AE95..SR5 GRAY M,27M |
1 | ||
| 76622-12050 |
AE9# |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-1929507 |
AE95..SR5..CND DARK GREEN M,21G |
1 | ||
| 76625-1929523 |
AE95..SR5 GRAY M,27M |
1 | ||
| 76625-1929517 |
AE95..SR5..CND GRAYISH GREEN M,26M |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-1930517 |
AE95..SR5..CND GRAYISH GREEN M,26M |
1 | ||
| 76626-1930507 |
AE95..SR5..CND DARK GREEN M2,21G |
1 | ||
| 76626-1930523 |
AE95..SR5 GRAY M,27M |
1 | ||
| 76873 - PROTECTOR, REAR SPOILER, NO.2 | ||||
| 76873-12080 |
AE95..WG |
1 | ||
| 76874 - PROTECTOR, REAR SPOILER, NO.3 | ||||
| 76874-12080 |
AE95..WG |
1 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-17010 |
AE95..WG |
6 | ||
| 76875 - PROTECTOR, REAR SPOILER, NO.4 | ||||
| 76875-17010 |
AE95..WG |
6 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90179-06165 | ||||
| 90189-06013 | ||||
| 90189-06029 | ||||
