AE95L-CWMXKK (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8802-9008)4AFE..AE95

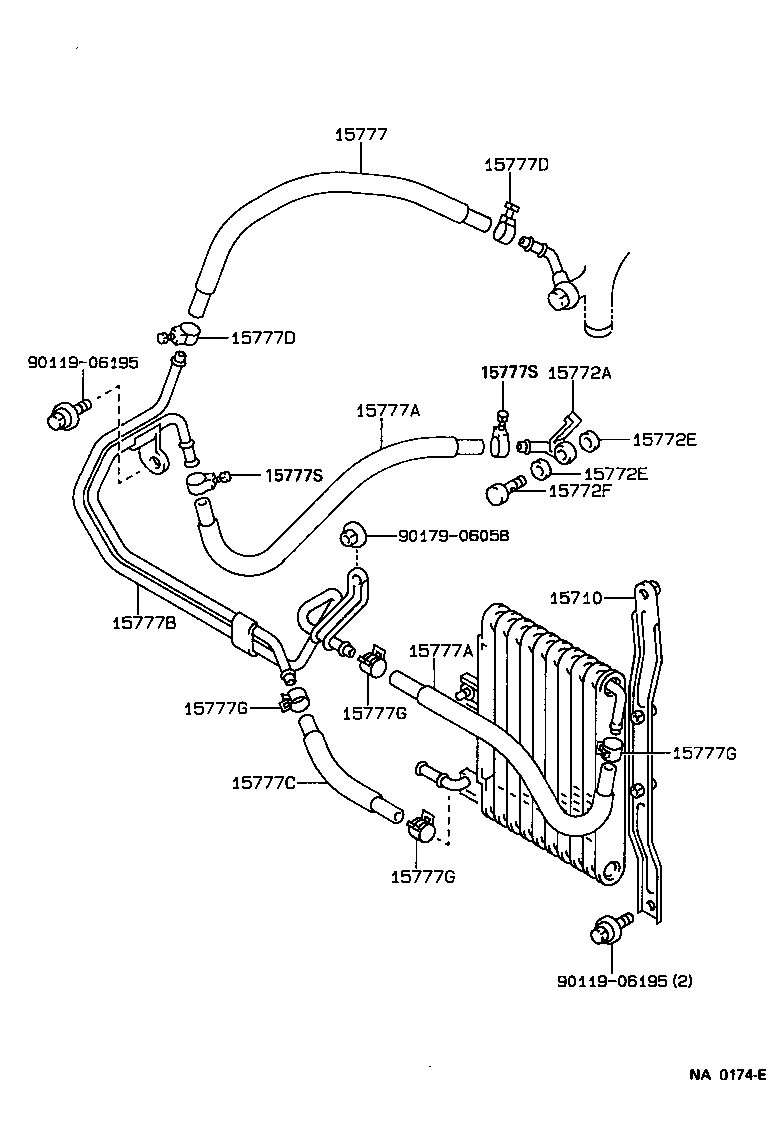

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15700-16040 |
4AFE..AE95 |
1 | ||
| 15772A - UNION(FOR OIL PIPE) | ||||
| 90405-10030 |
4AFE..AE95 |
1 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12027 |
4AFE..AE95 |
2 | ||
| 90430-12018 |
4AFE..AE95 |
2 | ||
| 15772E - GASKET(FOR OIL PIPE) | ||||
| 90430-12027 |
4AFE..AE95 |
2 | ||
| 90430-12018 |
4AFE..AE95 |
2 | ||
| 15772F - BOLT, UNION(FOR OIL PIPE) | ||||
| 90401-12009 |
4AFE..AE95 |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 15776-15010 |
4AFE..AE95 |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15778-16020 |
4AFE..AE95 COOLER SIDE |
1 | ||
| 15776-15020 |
4AFE..AE95 UNION SIDE |
1 | ||
| 15777A - HOSE, OIL COOLER | ||||
| 15778-16020 |
4AFE..AE95 COOLER SIDE |
1 | ||
| 15776-15020 |
4AFE..AE95 UNION SIDE |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-15020 |
4AFE..AE95 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15779-15011 |
4AFE..AE95 |
1 | ||
| 15779-15010 |
4AFE..AE95 |
1 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90460-01001 |
4AFE..AE95 |
3 | ||
| 15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE) | ||||
| 90460-01001 |
4AFE..AE95 |
3 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-15018 |
4AFE..AE95 PNC 15777C |
2 | ||
| 90467-16004 |
4AFE..AE95 |
4 | ||
| 90467-16004 |
4AFE..AE95 PNC 15777A |
2 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-15018 |
4AFE..AE95 PNC 15777C |
2 | ||
| 90467-16004 |
4AFE..AE95 |
4 | ||
| 90467-16004 |
4AFE..AE95 PNC 15777A |
2 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-15018 |
4AFE..AE95 PNC 15777C |
2 | ||
| 90467-16004 |
4AFE..AE95 |
4 | ||
| 90467-16004 |
4AFE..AE95 PNC 15777A |
2 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-15018 |
4AFE..AE95 PNC 15777C |
2 | ||
| 90467-16004 |
4AFE..AE95 |
4 | ||
| 90467-16004 |
4AFE..AE95 PNC 15777A |
2 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90460-01001 |
4AFE..AE95 |
1 | ||
| 90460-01001 |
4AFE..AE95 |
2 | ||
| 15777S - CLAMP OR CLIP, HOSE | ||||
| 90460-01001 |
4AFE..AE95 |
1 | ||
| 90460-01001 |
4AFE..AE95 |
2 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90179-06058 | ||||
