AE95L-CWMDKA (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

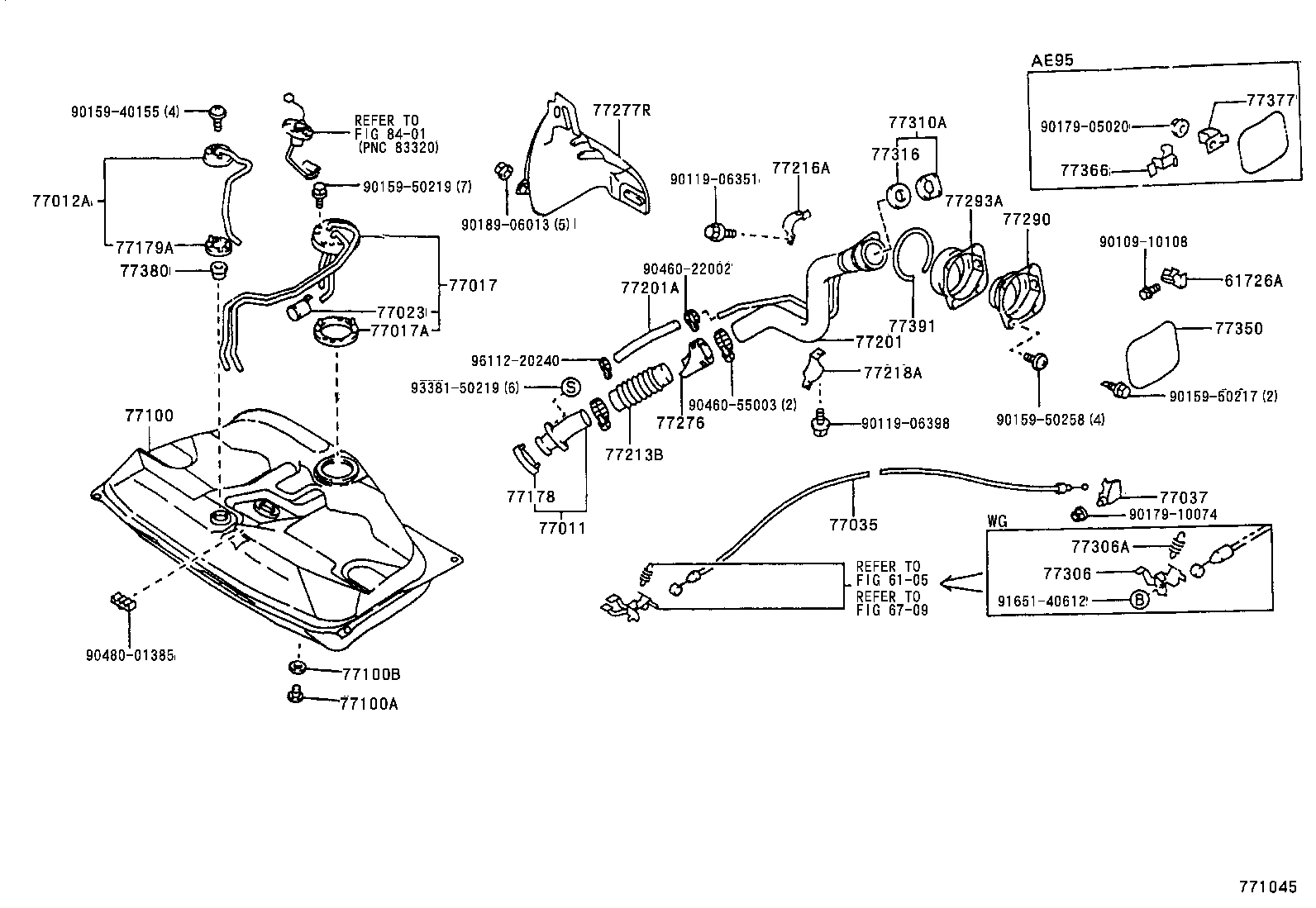

(8708-8908)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12060 |
AE95 |
1 | ||
| 77017A - GASKET, FUEL TANK VENT | ||||
| 77169-12020 |
AE95;AE92..CBR |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12260 |
AE95;AE92..WG..EFI;AE92..SED..(DX,LE) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE9#..DX,LE,SR5 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19565 |
AE95 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12370 |
AE95..WG |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12110 |
AE95..WG |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12070 |
AE95..WG |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12040 |
AE95..WG |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE9# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12240 |
AE95..WG |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9# |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90480-01385 | ||||
| 91651-40612 | ||||
| 93381-50219 | ||||
| 96112-20240 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||

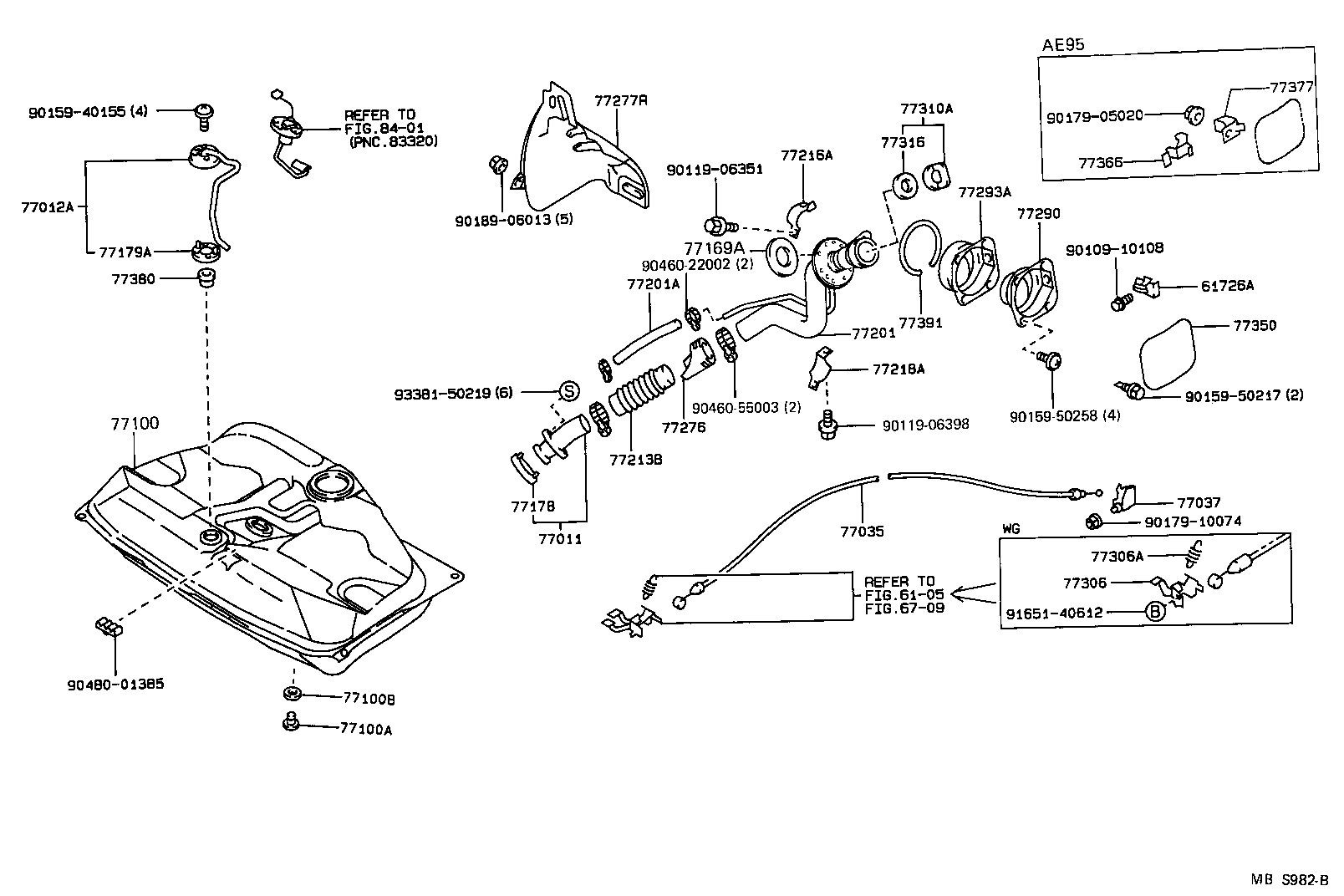

(8908- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-12060 |
AE95 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-12260 |
AE95;AE92..WG..EFI;AE92..SED..(DX,LE) |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-12050 |
AE9#..DX,LE,SR5 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19565 |
AE95 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-12020 |
AE95 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-16010 |
AE9# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-12370 |
AE95..WG |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-12110 |
AE95..WG |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-12070 |
AE95..WG |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-12040 |
AE95..WG |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
AE9# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-12240 |
AE95..WG |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-14020 |
AE9# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-14020 |
AE9# |
1 | ||
| Common parts | ||||
| 90109-10108 | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90159-40155 | ||||
| 90159-50217 | ||||
| 90159-50258 | ||||
| 90179-05020 | ||||
| 90179-10074 | ||||
| 90189-06013 | ||||
| 90460-22002 | ||||
| 90460-55003 | ||||
| 90480-01385 | ||||
| 91651-40612 | ||||
| 93381-50219 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 6709 | ||||
| 8401 | ||||

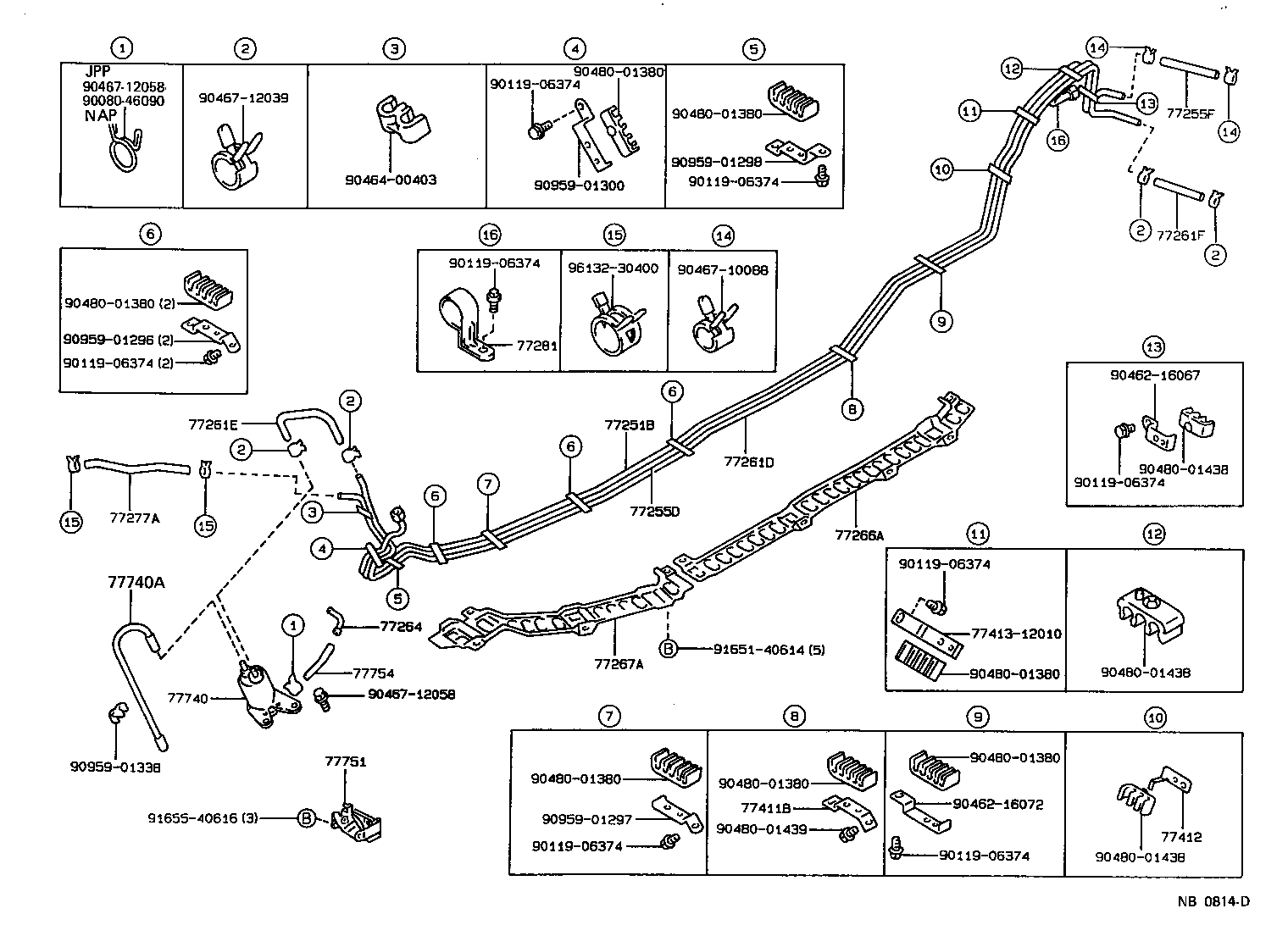

(8802- )AE95
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-12430 |
AE95 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-12380 |
AE95 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
AE95 *H,L=300 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-12280 |
AE95 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77249-12060 |
AE95 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-12050 |
AE95 |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-12060 |
AE9# |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12091 |
AE95 L=410 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-12020 |
AE95 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-12010 |
AE95 |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-12010 |
AE95 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-12570 |
AE95 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90447-04114 |
AE95 L=450 |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77750-12050 |
AE95 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-12130 |
AE95 |
1 | ||
| Common parts | ||||
| 77413-12010 | ||||
| 90080-46090 | ||||
| 90119-06374 | ||||
| 90462-16067 | ||||
| 90462-16072 | ||||
| 90464-00403 | ||||
| 90467-10088 | ||||
| 90467-12039 | ||||
| 90467-12058 | ||||
| 90480-01380 | ||||
| 90480-01438 | ||||
| 90480-01439 | ||||
| 90959-01296 | ||||
| 90959-01297 | ||||
| 90959-01298 | ||||
| 90959-01300 | ||||
| 90959-01338 | ||||
| 91651-40614 | ||||
| 91655-40616 | ||||
| 96132-30400 | ||||
