AE95L-CWMDKA (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8802- )AE95..WG

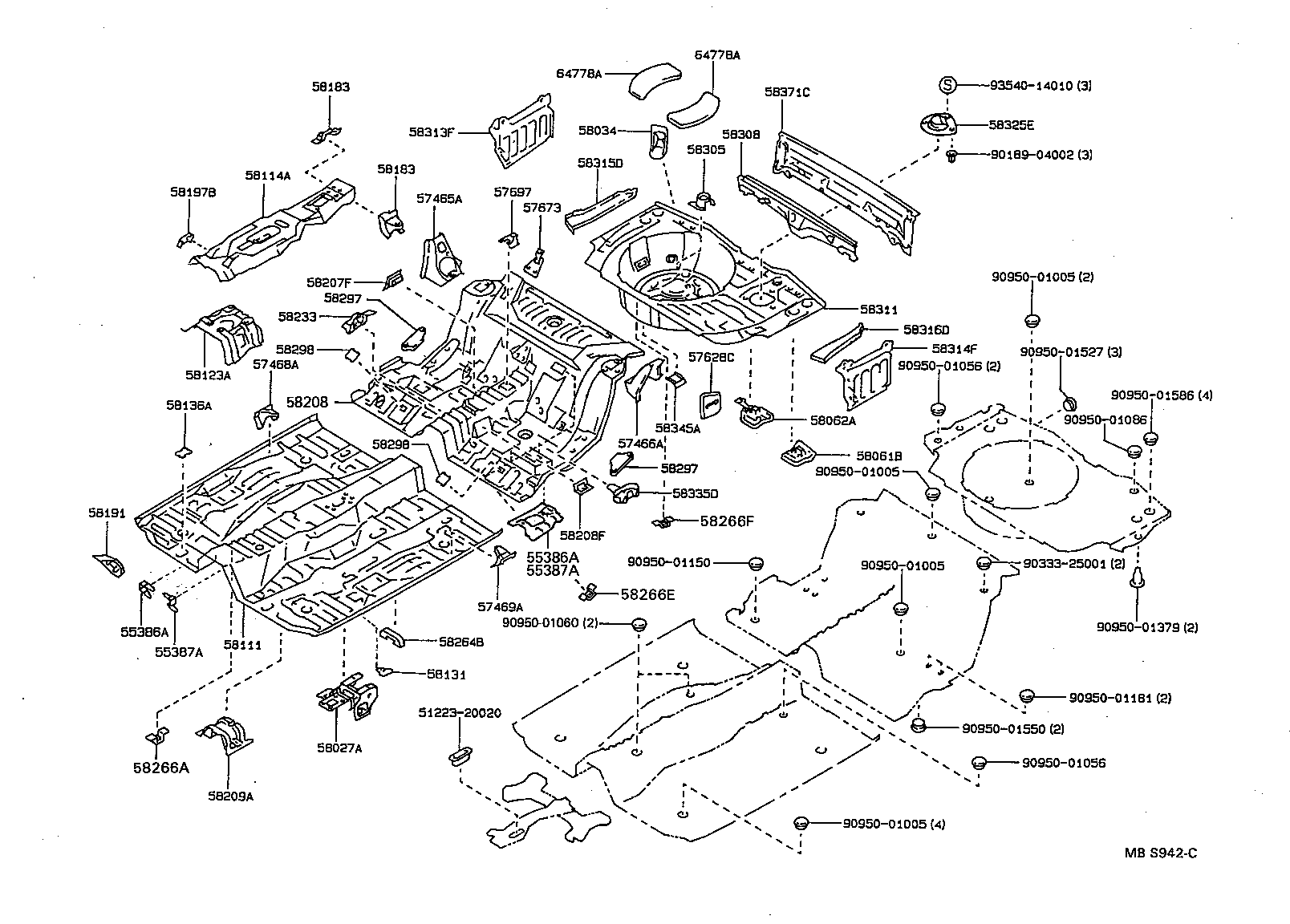

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-12050 |
AE95 |
1 | ||
| 55386A - BRACKET, COMPUTER MOUNTING, NO.1 | ||||
| 55386-12050 |
AE95 |
1 | ||
| 55387A - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-12050 |
AE95 |
1 | ||
| 55387A - BRACKET, COMPUTER MOUNTING, NO.2 | ||||
| 55387-12050 |
AE95 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-12030 |
AE95..WG |
1 | ||
| 57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-12010 |
AE95..WG |
1 | ||
| 57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH | ||||
| 57468-12040 |
AE95 |
1 | ||
| 57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH | ||||
| 57469-12040 |
AE95 |
1 | ||
| 57628C - COVER, REAR FLOOR SIDE MEMBER, LH | ||||
| 57628-12051 |
AE95 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57607-12030 |
AE95..WG |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-12020 |
AE92..CBR;AE9#..(DX,SR5,STD)..EFI |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12040 |
AE95 |
1 | ||
| 58034 - BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR | ||||
| 58034-12020 |
AE95 |
1 | ||
| 58061B - BRACKET SUB-ASSY, FUEL TANK MOUNTING, RH | ||||
| 58061-12020 |
AE95..WG |
1 | ||
| 58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR | ||||
| 58062-12030 |
AE95..WG |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-12211 |
AE95 |
1 | ||
| 58111-12210 |
AE95 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-12060 |
AE95 |
1 | ||
| 58114-12061 |
AE95 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-12050 |
AE95 |
1 | ||
| 58131 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 | ||||
| 58131-12050 |
AE95 |
1 | ||
| 58136A - COVER, FRONT FLOOR SERVICE HOLE | ||||
| 58136-12020 |
AE95 |
4 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-12110 |
AE95 RH |
1 | ||
| 58184-12120 |
AE95 LH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-12110 |
AE95 RH |
1 | ||
| 58184-12120 |
AE95 LH |
1 | ||
| 58197B - RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET | ||||
| 58197-12010 |
AE9# |
2 | ||
| 58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH | ||||
| 58207-12050 |
AE95 |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-12240 |
AE95 |
1 | ||
| 58211-12241 |
AE95 |
1 | ||
| 58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH | ||||
| 58208-12050 |
AE95 |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58209-12030 |
AE95 |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-12020 |
AE95 |
1 | ||
| 58264B - BRACKET, PARKING BRAKE CABLE GUIDE | ||||
| 58264-12060 |
AE95..USA |
1 | ||
| 58264-12030 |
AE95 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-22040 |
AE9# |
3 | ||
| 58266E - BRACKET, FUEL TUBE CLAMP, CENTER | ||||
| 58266-22040 |
AE95 |
3 | ||
| 58266F - BRACKET, FUEL TUBE CLAMP, REAR | ||||
| 58266-22040 |
AE95 |
1 | ||
| 58297 - RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR | ||||
| 58297-12030 |
AE95 |
2 | ||
| 58297 - RETAINER, SEAT BELT RETRACTOR TO CENTER FLOOR | ||||
| 58297-12030 |
AE95 |
2 | ||
| 58298 - COVER, CENTER FLOOR HOLE, NO.2 | ||||
| 58298-12020 |
AE95 |
2 | ||
| 58298 - COVER, CENTER FLOOR HOLE, NO.2 | ||||
| 58298-12020 |
AE95 |
2 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58351-12050 |
AE95 |
1 | ||
| 58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER | ||||
| 58308-12120 |
AE95..WG |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-12190 |
AE95..WG |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-12230 |
AE95..WG |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-12230 |
AE95..WG |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-12050 |
AE95..WG |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-12050 |
AE95..WG |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-12060 |
AE95 |
1 | ||
| 58335D - PACKING, REAR FLOOR SERVICE HOLE, RH | ||||
| 58335-12010 |
AE95..WG |
2 | ||
| 58345A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.1 | ||||
| 58345-12040 |
AE95 |
1 | ||
| 58371C - PANEL, BODY LOWER BACK, UPPER | ||||
| 58371-12710 |
AE95..WG |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12050 |
AE9# |
2 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64778-12050 |
AE9# |
2 | ||
| Common parts | ||||
| 51223-20020 | ||||
| 90189-04002 | ||||
| 90333-25001 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01086 | ||||
| 90950-01150 | ||||
| 90950-01181 | ||||
| 90950-01379 | ||||
| 90950-01527 | ||||
| 90950-01550 | ||||
| 90950-01586 | ||||
| 93540-14010 | ||||
