AE95L-CWMDKA (1988)
Toyota Corolla Jpp
Production
Feb 1988
-
Sep 1990
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8802- )AE95..WG

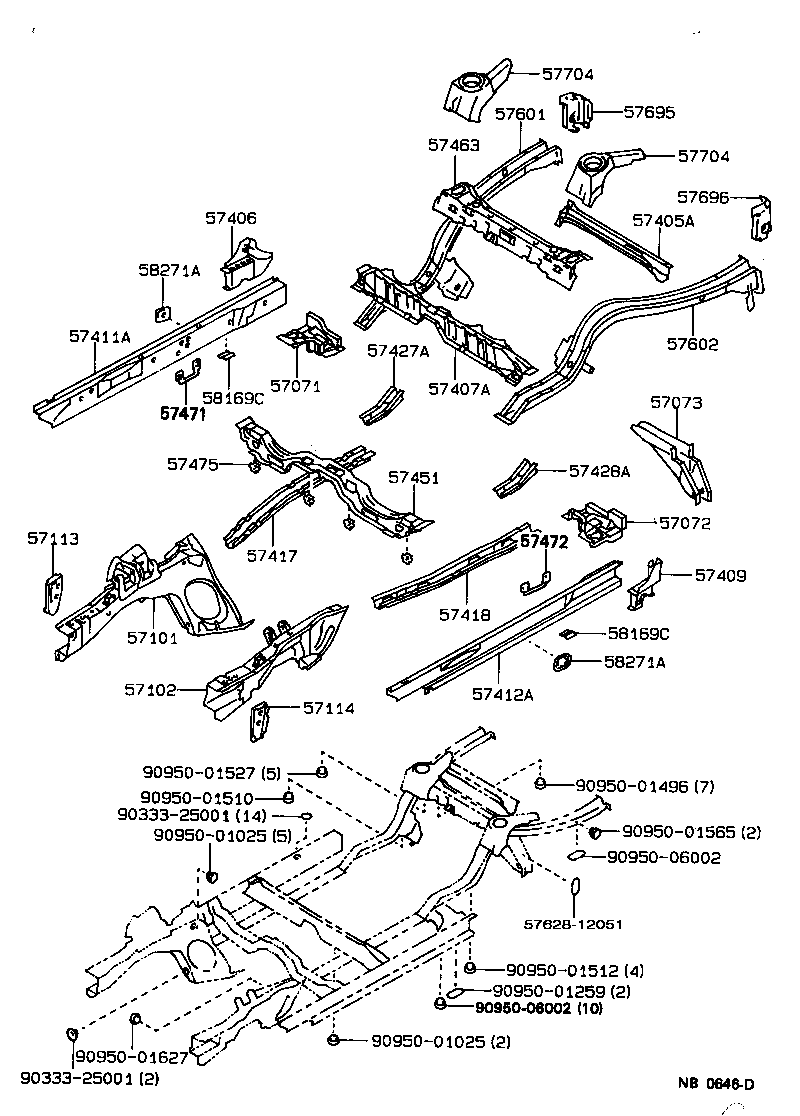

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57071 - BOX SUB-ASSY, TORQUE, REAR RH | ||||
| 57071-12030 |
AE95 |
2 | ||
| 57071-12030 |
AE95 |
1 | ||
| 57072 - BOX SUB-ASSY, TORQUE, REAR LH | ||||
| 57072-12030 |
AE95 |
1 | ||
| 57072-12030 |
AE95 |
2 | ||
| 57073 - BRACKET SUB-ASSY, LATERAL ROD | ||||
| 57073-12041 |
AE95 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-12360 |
AE9# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12390 |
AE9# |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12120 |
AE9# |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12120 |
AE9# |
1 | ||
| 57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2 | ||||
| 57405-12050 |
AE95 |
1 | ||
| 57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH | ||||
| 57406-12020 |
AE95 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-12030 |
AE95 |
1 | ||
| 57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH | ||||
| 57409-12020 |
AE95 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-12160 |
AE9# |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-12160 |
AE9# |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-12090 |
AE95 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-12050 |
AE95 |
1 | ||
| 57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH | ||||
| 57427-12010 |
AE95 |
1 | ||
| 57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH | ||||
| 57428-12030 |
AE95 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57451-12120 |
AE95 |
1 | ||
| 57451-12121 |
AE95 |
1 | ||
| 57463 - MEMBER, CENTER FLOOR CROSS, NO.3 | ||||
| 57463-12050 |
AE95 |
1 | ||
| 57471 - REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, RH | ||||
| 57471-12100 |
AE9#..USA |
1 | ||
| 57472 - REINFORCEMENT, SEAT BELT ANCHOR TO FLOOR MEMBER, LH | ||||
| 57472-12080 |
AE9#..USA |
1 | ||
| 57475 - PLATE, FRONT FLOOR CROSSMEMBER | ||||
| 57475-32010 |
AE95 |
4 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-12620 |
AE95..WG |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-12520 |
AE95..WG |
1 | ||
| 57695 - EXTENSION, REAR FLOOR CROSS REAR SIDE, RH | ||||
| 57695-12010 |
AE95..WG |
1 | ||
| 57696 - EXTENSION, REAR FLOOR CROSS REAR SIDE, LH | ||||
| 57696-12010 |
AE95..WG |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57704-12070 |
AE95 LH |
1 | ||
| 57701-12060 |
AE95 RH |
1 | ||
| 57704 - SUPPORT SUB-ASSY, REAR SUSPENSION SPRING | ||||
| 57704-12070 |
AE95 LH |
1 | ||
| 57701-12060 |
AE95 RH |
1 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95 |
2 | ||
| 58169C - PATCH, FRONT FLOOR REAR | ||||
| 58169-12010 |
AE95 |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9# |
2 | ||
| 58271A - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3 | ||||
| 58271-12050 |
AE9# |
2 | ||
| Common parts | ||||
| 57628-12051 | ||||
| 90333-25001 | ||||
| 90950-01025 | ||||
| 90950-01259 | ||||
| 90950-01496 | ||||
| 90950-01510 | ||||
| 90950-01512 | ||||
| 90950-01527 | ||||
| 90950-01565 | ||||
| 90950-01627 | ||||
| 90950-06002 | ||||
