AE95L-AEMDKA (1988)

Toyota Corolla Jpp

Production Aug 1988 - Aug 1990
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )AE92 ; (8808-9008)AE95..SED

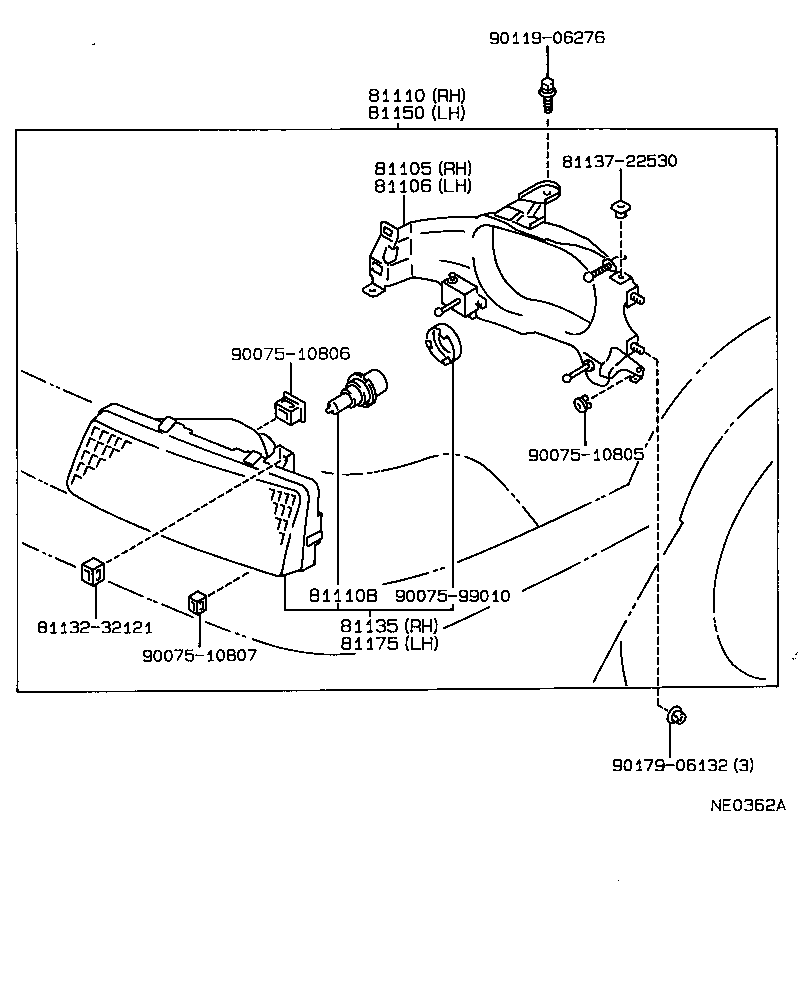

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 8113232121 81135 8113722530 81150 81175 9007510805 9007510806 9007510807 9007599010 9011906276 9017906132
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-1A660

AE92;AE95..SED

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-1A660

AE92;AE95..SED

 1
81110 - HEADLAMP ASSY, RH
81110-1A660

AE92;AE95..SED

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13032

AE9#

12V 65/45W,*HAL,*WH

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-1A660

AE92;AE95..SED

 1
81150 - HEADLAMP ASSY, LH
81150-1A660

AE92;AE95..SED

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-1A660

AE92;AE95..SED

 1
Common parts
81132-32121
81137-22530
90075-10805
90075-10806
90075-10807
90075-99010
90119-06276
90179-06132
