AE92L-AWHDUA (1987)

Toyota Corolla Jpp

Production Oct 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 73350 73360 73370 73371A 73380 73390 73709 9016450031 9018905023 9046809021 9354055012
Part # Description Qty Price
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1213005

AE92

DARK BEIGE,TRIM4#

 1
73350-1213004

AE92..CBR;AE92..WG..EFI

DARK BLUE,TRIM8#

 1
73350-1213003

AE92..CBR;AE92..WG..EFI

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-1311004

AE92..WG

DARK BLUE,TRIM8#

 1
73360-1311003

AE92..WG

SHADOW GRAY,TRIM1#

 1
73360-1311005

AE92..WG

DARK BEIGE,TRIM4#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-1306004

AE92..WG

DARK BLUE,TRIM8#

 1
73370-1306005

AE92..WG

DARK BEIGE,TRIM4#

 1
73370-1306003

AE92..WG

SHADOW GRAY,TRIM1#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-1301005

AE92..WG

DARK BEIGE,TRIM4#

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-1218005

AE92

DARK BEIGE,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-1218005

AE92

DARK BEIGE,TRIM4#

 1
Common parts
90164-50031
90189-05023
90468-09021
93540-55012

ILLUST NO. 1 OF 2(8708-8908)

Click highlighted areas on diagram

diagram 73178A 73210 73220 73230 73240 9163140614
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-16010J0

AE9#

DARK BLUE,TRIM8#

 2
73178-1601054

AE9#

DARK BLUE,TRIM8#

 2
73178-16010E0

AE9#

DARK BEIGE,TRIM4#

 2
73178-1601025

AE9#

DARK BEIGE,TRIM4#

 2
73178-1601013

AE9#

GRAY,TRIM1#

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-1267005

AE9#

DARK BEIGE,TRIM4#

 1
73210-1267004

AE9#

DARK BLUE,TRIM8#

 1
73210-1267003

AE9#

SHADOW GRAY,TRIM1#

 1
73210-12670E0

AE9#

DARK BEIGE,TRIM4#

 1
73210-12670J0

AE9#

DARK BLUE,TRIM8#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-12580E0

AE9#

DARK BEIGE,TRIM4#

 1
73220-1258004

AE9#

DARK BLUE,TRIM8#

 1
73220-1258005

AE9#

DARK BEIGE,TRIM4#

 1
73220-1258003

AE9#

SHADOW GRAY,TRIM1#

 1
73220-12580J0

AE92..LE;AE9#..WG;AE9#..SED..DX..USA

DARK BLUE,TRIM8#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-1619005

AE92

DARK BEIGE,TRIM4#

 1
73230-16190E0

AE92

DARK BEIGE,TRIM4#

 1
73230-1619014

AE92

DARK BLUE,TRIM8#

 1
73230-1619003

AE92..CBR;AE92..CND..EFI

SHADOW GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-1211005

AE92

DARK BEIGE,TRIM4#

 1
73240-1211004

AE92

DARK BLUE,TRIM8#

 1
73240-12110E0

AE92

DARK BEIGE,TRIM4#

 1
73240-1211003

AE92..CBR;AE92..CND..EFI

SHADOW GRAY,TRIM1#

 1
Common parts
91631-40614

ILLUST NO. 2 OF 2(8708-8808)AE92

Click highlighted areas on diagram

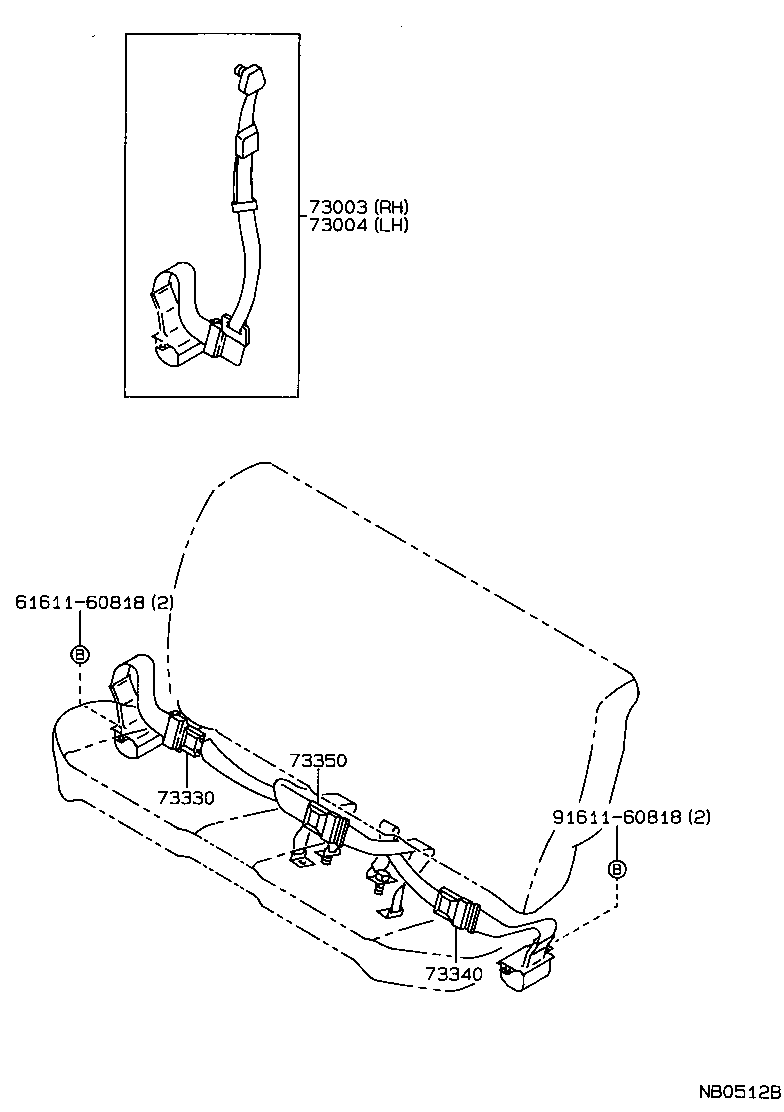

diagram 6161160818 73003 73004 73330 73340 73350 9161160818
Part # Description Qty Price
73003 - BELT SET, REAR SEAT 3 POINT TYPE, RH
73003-1302104

AE92..WG

DARK BLUE,TRIM8#

 1
73003-1302103

AE92..WG

SHADOW GRAY,TRIM1#

 1
73003-1302105

AE92..WG

DARK BEIGE,TRIM4#

 1
73004 - BELT SET, REAR SEAT 3 POINT TYPE, LH
73004-1301103

AE92..WG

SHADOW GRAY,TRIM1#

 1
73004-1301105

AE92..WG

DARK BEIGE,TRIM4#

 1
73004-1301104

AE92..WG

DARK BLUE,TRIM8#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-1311003

AE92..WG

SHADOW GRAY,TRIM1#

 1
73330-1311005

AE92..WG

DARK BEIGE,TRIM4#

 1
73330-1311004

AE92..WG

DARK BLUE,TRIM8#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73340-1304005

AE92..WG

DARK BEIGE,TRIM4#

 1
73340-1304004

AE92..WG

DARK BLUE,TRIM8#

 1
73340-1304003

AE92..WG

SHADOW GRAY,TRIM1#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-1213005

AE92

DARK BEIGE,TRIM4#

 1
73350-1213004

AE92..CBR;AE92..WG..EFI

DARK BLUE,TRIM8#

 1
73350-1213003

AE92..CBR;AE92..WG..EFI

SHADOW GRAY,TRIM1#

 1
Common parts
61611-60818
91611-60818
