AE92L-AEPNUK (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

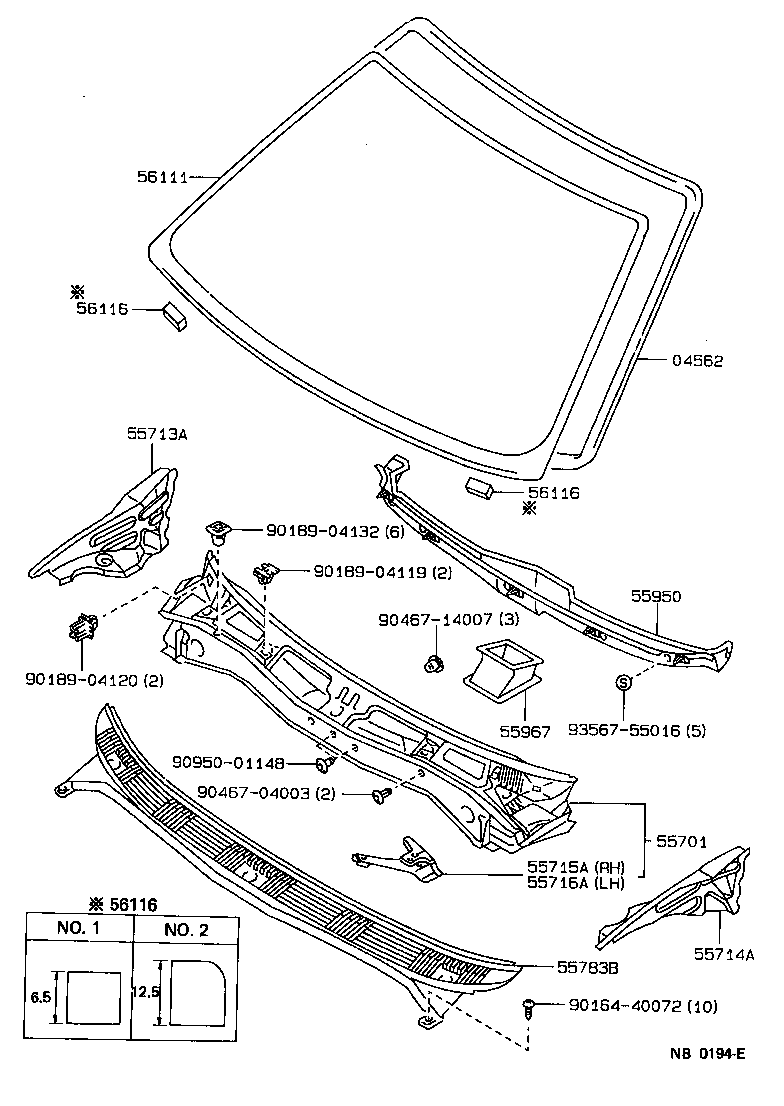

Click highlighted areas on diagram

diagram 04562 55701 55713A 55714A 55715A 55716A 55783B 55950 55967 56111 56116 56116 56116 9016440072 9018904119 9018904120 9018904132 9046704003 9046714007 9095001148 9356755016
Part # Description Qty Price
04562 - DAM KIT, WINDSHIELD GLASS
04562-12010

AE9#

 1
55701 - PANEL SUB-ASSY, COWL
55700-12540

AE92

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-12070

AE9#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-12070

AE9#

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-12090

AE9#

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-12090

AE9#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55708-12070

AE9#..CND

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-12110

AE9#

 1
55967 - NOZZLE, DEFROSTER, LOWER
55967-12020

AE9#

 1
56111 - GLASS, WINDSHIELD
56111-1A310

AE92..LE

*TL,T=4.7

 1
56116 - SPACER, WINDSHIELD GLASS
56116-24010

AE9#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-24010

AE9#

 2
56116 - SPACER, WINDSHIELD GLASS
56116-24010

AE9#

 2
Common parts
90164-40072
90189-04119
90189-04120
90189-04132
90467-04003
90467-14007
90950-01148
93567-55016
