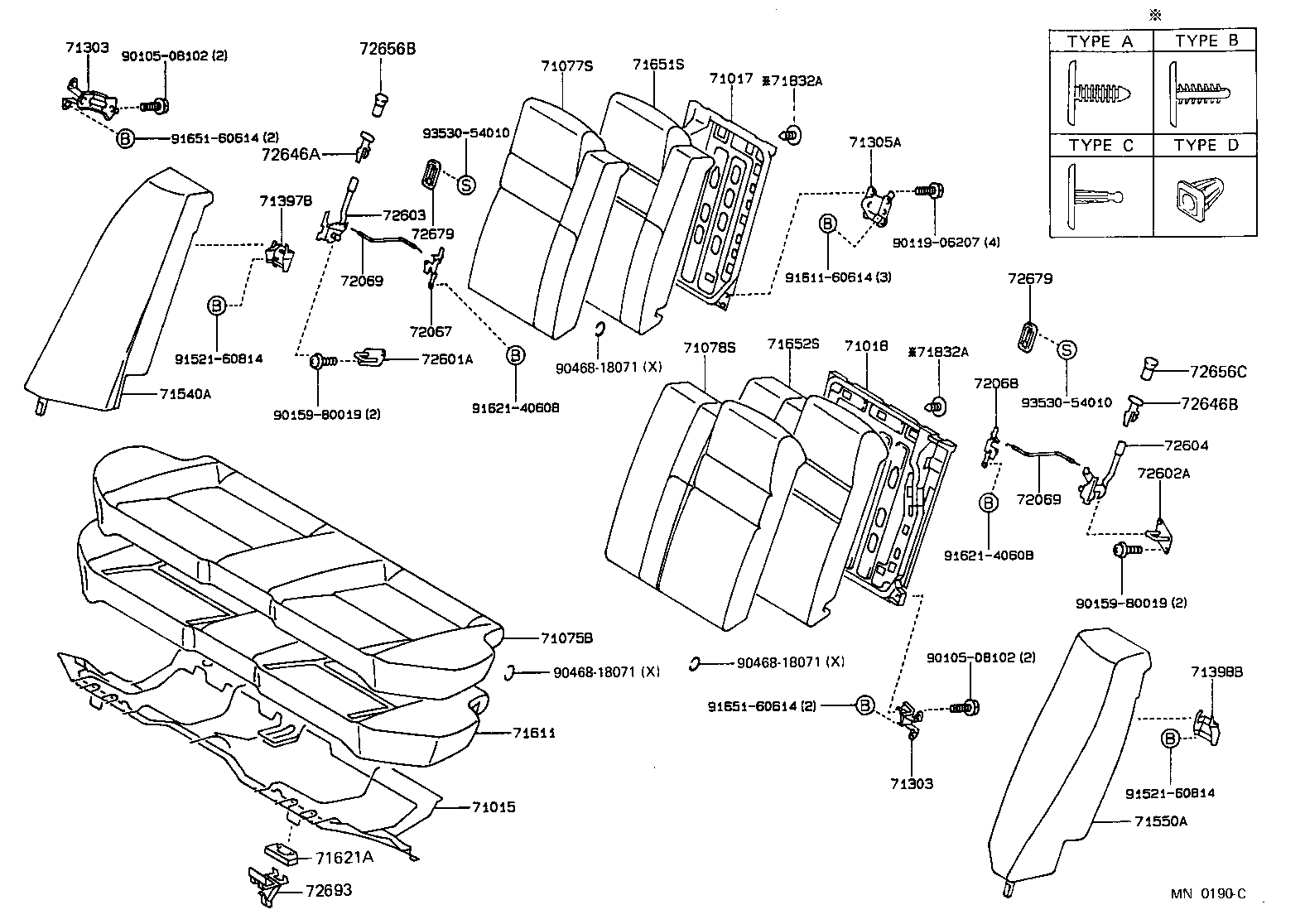

AE92L-AEPNUA (1987)
Toyota Corolla Jpp
(8708- )LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-12260 |
AE92..SED |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12260 |
AE92..LE |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12050 |
AE92..LE |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1E02002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 71075-1E02005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 71075-1E02003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71075-1E02004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1H58003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71077-1H58002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 71077-1H58005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 71077-1H58004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1A34002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 71078-1A34005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 71078-1A34003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71078-1A34004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE92..LE;AE92..WG |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-12060 |
AE92..LE;AE92..WG |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12060 |
AE92..LE;AE92..WG |
1 | ||
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71397-12020 |
AE92..LE |
1 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-12020 |
AE92..LE |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-1207005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 71540-1207003 |
AE92..LE SHADOW GREY,TRIM1# |
1 | ||
| 71540-1207002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 71540-1207004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-1207003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71550-1207002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 71550-1207004 |
AE92..LE BLUE,TRIM8# |
1 | ||
| 71550-1207005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-12530 |
AE92..LE |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12580 |
AE92..LE |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12410 |
AE92..LE |
1 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0603733 |
AE92..LE GRAY,TRIM1#,3#,4#,8#,TYPE A |
4 | ||
| 90467-10023 |
AE92..LE TYPE D |
4 | ||
| 90467-0704913 |
AE92..LE GRAY,TRIM1#,3#,4#,8#,TYPE B |
4 | ||
| 90467-07049B0 |
AE92..LE LIGHT GRAY,TRIM3#,4#,8#,TYPE B |
4 | ||
| 90467-0707913 |
AE92..LE GARY,TRIM1#,3#,4#,8#,TYPE C |
4 | ||
| 90467-0603725 |
AE92..LE DARK BEIGE,TRIM4#,TYPE A |
4 | ||
| 90467-0603713 |
AE92..LE..CBR GRAY,TRIM1#,TYPE A |
4 | ||
| 71832A - CLIP, REAR SEAT BACK CARPET OR MAT | ||||
| 90467-0603733 |
AE92..LE GRAY,TRIM1#,3#,4#,8#,TYPE A |
4 | ||
| 90467-10023 |
AE92..LE TYPE D |
4 | ||
| 90467-0704913 |
AE92..LE GRAY,TRIM1#,3#,4#,8#,TYPE B |
4 | ||
| 90467-07049B0 |
AE92..LE LIGHT GRAY,TRIM3#,4#,8#,TYPE B |
4 | ||
| 90467-0707913 |
AE92..LE GARY,TRIM1#,3#,4#,8#,TYPE C |
4 | ||
| 90467-0603725 |
AE92..LE DARK BEIGE,TRIM4#,TYPE A |
4 | ||
| 90467-0603713 |
AE92..LE..CBR GRAY,TRIM1#,TYPE A |
4 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-20010 |
AE92..LE |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-20010 |
AE92..LE |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-12010 |
AE92..LE |
2 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-12010 |
AE92..LE |
2 | ||
| 72601A - STRIKER SUB-ASSY, REAR SEAT BACK LOOK, RH | ||||
| 72601-12090 |
AE92..LE |
1 | ||
| 72602A - STRIKER SUB-ASSY, REAR SEAT BACK LOCK, LH | ||||
| 72602-12040 |
AE92..LE |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72603-12010 |
AE92..LE |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72604-12030 |
AE92..LE |
1 | ||
| 72646A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 72646-1204004 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 72646-1204002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 72646-1204003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72646B - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1204002 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 72646-1204003 |
AE92..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72646-1204005 |
AE92..LE DARK BEIGE,TRIM4# |
1 | ||
| 72646-1204004 |
AE92..LE DARK BLUE,TRIM8# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001032 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 72656-2001055 |
AE92..LE;AE92..WG DARK BEIGE,TRIM4# |
1 | ||
| 72656-2001059 |
AE92..LE;AE92..WG DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72656-2001023 |
AE92..LE;AE92..WG GRAY,TRIM1# |
1 | ||
| 72656C - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001059 |
AE92..LE;AE92..WG DARK BLUE,DARK BLUE,TRIM8# |
1 | ||
| 72656-2001023 |
AE92..LE;AE92..WG GRAY,TRIM1# |
1 | ||
| 72656-2001055 |
AE92..LE;AE92..WG DARK BEIGE,TRIM4# |
1 | ||
| 72656-2001032 |
AE92..LE MAROON,TRIM3# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601014 |
AE92..LE DARK BLUE,TRIM8# |
2 | ||
| 72679-1601003 |
AE92..LE GRAY,TRIM1# |
2 | ||
| 72679-1601015 |
AE92..LE DARK BEIGE,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-1601014 |
AE92..LE DARK BLUE,TRIM8# |
2 | ||
| 72679-1601003 |
AE92..LE GRAY,TRIM1# |
2 | ||
| 72679-1601015 |
AE92..LE DARK BEIGE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12020 |
AE92..SED |
2 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90159-80019 | ||||
| 90468-18071 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91621-40608 | ||||
| 91651-60614 | ||||
| 93530-54010 | ||||
