AE92L-AEPNUA (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )SED ; (8710- )AE92..WG

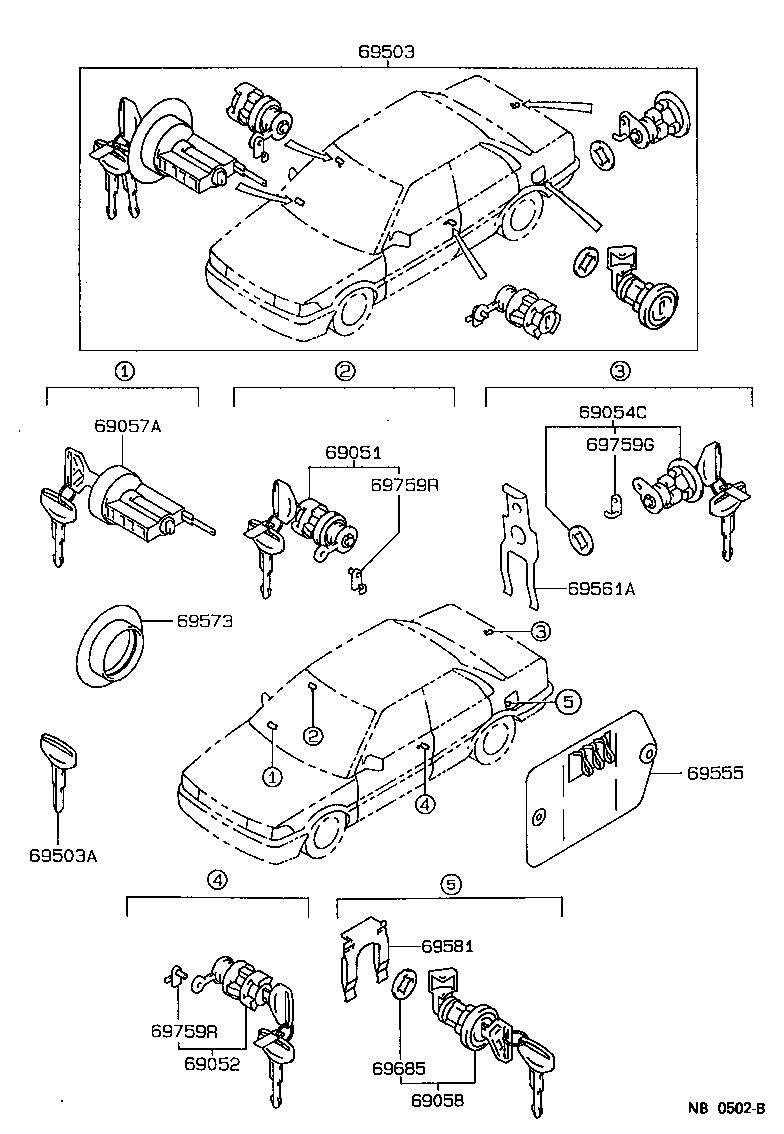

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-12210 |
AE95;AE92..SED |
1 | ||
| 69051-12270 |
AE92..SED..(DX,LE)..USA ANTI-THEFT DEVICE SYSTEM |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-12210 |
AE95;AE92..SED |
1 | ||
| 69052-12260 |
AE92..SED..(DX,LE)..USA ANTI-THEFT DEVICE SYSTEM |
1 | ||
| 69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK | ||||
| 69055-12420 |
AE9#..SED..(DX,LE) |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-12100 |
AE95;AE92..SED |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-12770 |
AE9#..SED..(DX,LE) |
1 | ||
| 69005-1A190 |
AE92..SED..(DX,LE)..USA ANTI-THEFT DEVICE SYSTEM |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00130 |
AE95;AE92..SED MASTER KEY |
1 | ||
| 90999-00133 |
AE95;AE92..SED MASTER KEY,W(*69) |
1 | ||
| 90999-00132 |
AE95;AE92..SED MASTER KEY,W(*68) |
1 | ||
| 90999-00138 |
AE9#..SED SUB KEY,W(*70) |
1 | ||
| 90999-00131 |
AE95;AE92..SED MASTER KEY,W(*70) |
1 | ||
| 90999-00137 |
AE9#..SED SUB KEY |
1 | ||
| 69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER | ||||
| 69561-12170 |
AE9#..SED |
1 | ||
| 69573 - PAD, IGNITION SWITCH LOCK CYLINDER | ||||
| 69573-12010 |
AE9# |
1 | ||
| 69759G - SNAP, LUGGAGE DOOR LOCK CYLINDER | ||||
| 69759-24090 |
AE9#..SED |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
AE95;AE92..SED RH |
1 | ||
| 69759-30050 |
AE95;AE92..SED LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-30040 |
AE95;AE92..SED RH |
1 | ||
| 69759-30050 |
AE95;AE92..SED LH |
1 | ||
