AE92L-AEPNUA (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

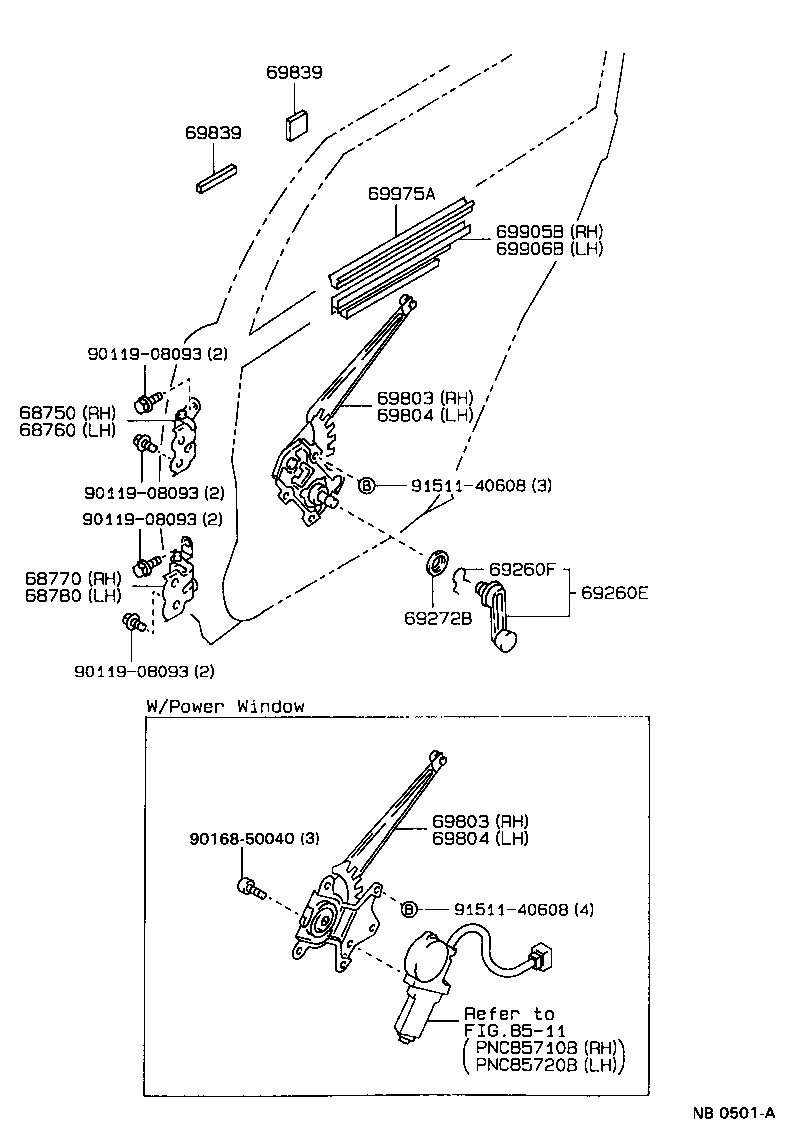

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68750 - HINGE ASSY, REAR DOOR, UPPER RH | ||||
| 68750-12050 |
AE9# |
1 | ||
| 68760 - HINGE ASSY, REAR DOOR, UPPER LH | ||||
| 68760-12050 |
AE9# |
1 | ||
| 68770 - HINGE ASSY, REAR DOOR, LOWER RH | ||||
| 68770-12060 |
AE9# |
1 | ||
| 68780 - HINGE ASSY, REAR DOOR, LOWER LH | ||||
| 68780-12050 |
AE9# |
1 | ||
| 69260E - HANDLE ASSY, REAR DOOR WINDOW REGULATOR | ||||
| 69260-1208003 |
AE9#..LE,SR5 SHADOW GRAY,TRIM1# |
2 | ||
| 69260-1208004 |
AE9#..LE,SR5 BLUE,TRIM8# |
2 | ||
| 69260-1208002 |
AE92..LE MAROON,TRIM3# |
2 | ||
| 69260-1208005 |
AE9#..LE,SR5 DARK BEIGE,TRIM4# |
2 | ||
| 69260F - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE) | ||||
| 90520-01005 |
AE9#..LE,SR5 |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12060 |
AE9#..LE,SR5 W(*PW) |
1 | ||
| 69830-12130 |
AE9# |
2 | ||
| 69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH | ||||
| 69803-12060 |
AE9#..LE,SR5 W(*PW) |
1 | ||
| 69830-12130 |
AE9# |
2 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12130 |
AE9# |
2 | ||
| 69804-12060 |
AE9#..LE,SR5 W(*PW) |
1 | ||
| 69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH | ||||
| 69840-12130 |
AE9# |
2 | ||
| 69804-12060 |
AE9#..LE,SR5 W(*PW) |
1 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
AE92..LE 25X25 |
2 | ||
| 69839-12010 |
AE92..LE 7X65 |
4 | ||
| 69839-12010 |
AE9#..LE,SR5 7X65 |
4 | ||
| 69839-95800 |
AE9#..LE,SR5 25X25 |
2 | ||
| 69839 - PAD, REAR DOOR WINDOW REGULATOR | ||||
| 69839-95800 |
AE92..LE 25X25 |
2 | ||
| 69839-12010 |
AE92..LE 7X65 |
4 | ||
| 69839-12010 |
AE9#..LE,SR5 7X65 |
4 | ||
| 69839-95800 |
AE9#..LE,SR5 25X25 |
2 | ||
| 69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH | ||||
| 69905-12110 |
AE9# |
1 | ||
| 69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH | ||||
| 69906-12100 |
AE9# |
1 | ||
| 69975A - FILLER, REAR DOOR GLASS CHANNEL | ||||
| 69975-12010 |
AE9# |
2 | ||
| Common parts | ||||
| 90119-08093 | ||||
| 90168-50040 | ||||
| 91511-40608 | ||||
| Linked diagrams | ||||
| 8511 | ||||
