AE92L-AEMDUA (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

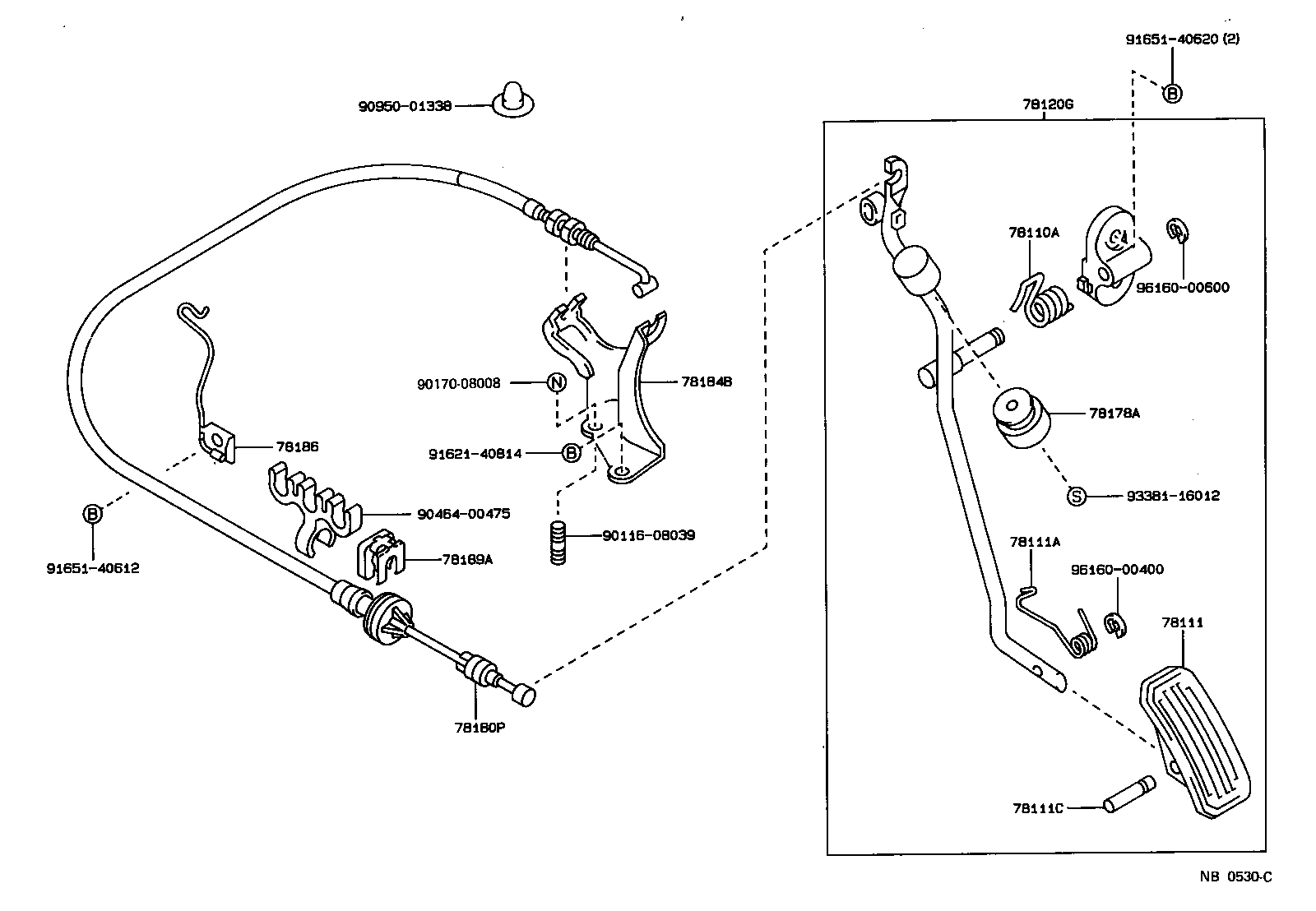

Click highlighted areas on diagram

diagram 78110A 78111 78111A 78111C 78120G 78178A 78180P 78184B 78186 78189A 9011608039 9017008008 9046400475 9095001338 9162140814 9165140612 9165140620 9338116012 9616000400 9616000600
Part # Description Qty Price
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26036

AE9#..5F

 1
78111 - PEDAL, ACCELERATOR
78111-32010

AE9#

 1
78111A - SPRING (FOR ACCELERATOR PEDAL)
90508-20056

AE9#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-05001

AE9#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-12090

AE9#..5F

 1
78178A - DAMPER, ACCELRATOR PEDAL ROD DYNAMIC
78178-12030

AE9#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-1A010

AE92

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-12230

AE92

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12230

AE92

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-12030

AE9#

 1
Common parts
90116-08039
90170-08008
90464-00475
90950-01338
91621-40814
91651-40612
91651-40620
93381-16012
96160-00400
96160-00600
