AE92L-AEHDUK (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

Click highlighted areas on diagram

diagram 55905B 55906A 55907A 55908A 55909A 55910 55931 55931 55931 55931 8302 8302 8401 8401 9016750020 9048013020 9356755016
Part # Description Qty Price
55905B - KNOB, HEATER CONTROL, NO.2
55905-12130

AE9#

 4
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12290

AE9#

 1
55907A - CABLE SUB-ASSY, WATER VALVE CONTROL
55907-12280

AE9#

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12190

AE9#

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12170

AE9#

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-12460

AE9#

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#

 4
55931 - CLAMP, HEATER CONTROL WIRE
55933-10010

AE9#

 4
Common parts
90167-50020
90480-13020
93567-55016
Linked diagrams
8302
8401

(8708- )

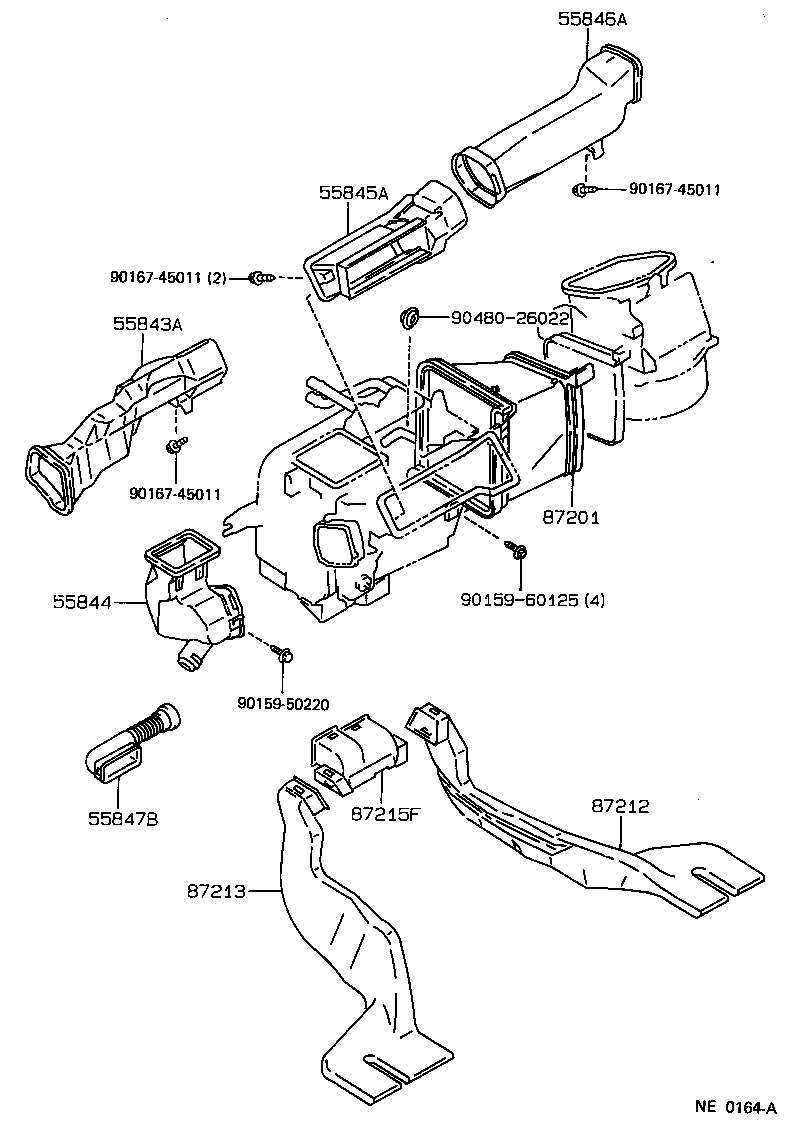

Click highlighted areas on diagram

diagram 55843A 55844 55845A 55846A 55847B 87201 87212 87213 87215F 9015950220 9015960125 9016745011 9016745011 9016745011 9048026022
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-12180

AE9#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-12220

AE9#

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-12120

AE9#

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-12100

AE9#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12140

AE9#..CND

 1
87212 - DUCT, AIR, REAR NO.1
87212-12060

AE92..CND

 1
87213 - DUCT, AIR, REAR NO.2
87213-12030

AE92..CND

 1
87215F - DUCT, AIR, REAR NO.3
87215-12010

AE9#..CND

 1
Common parts
90159-50220
90159-60125
90167-45011
90480-26022
