AE92L-AEHDUK (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )SED

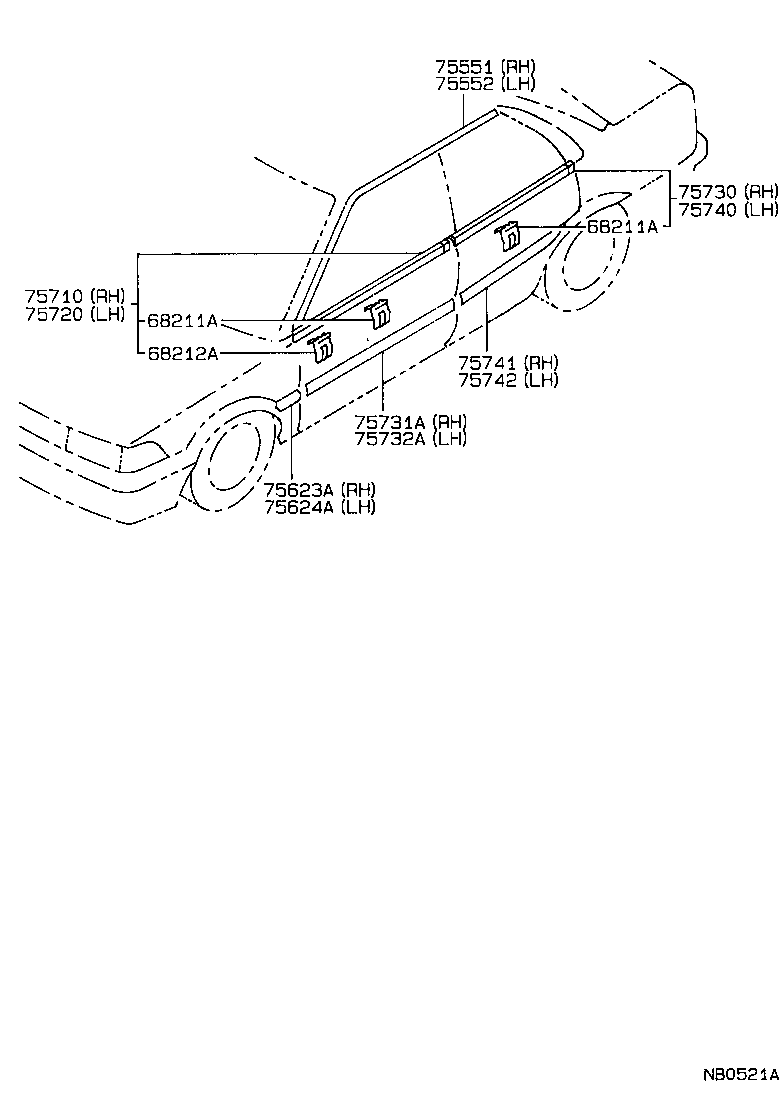

Click highlighted areas on diagram

diagram 68211A 68211A 68212A 75551 75552 75623A 75624A 75710 75720 75730 75731A 75732A 75740 75741 75742
Part # Description Qty Price
75551 - MOULDING, ROOF DRIP SIDE FINISH, RH
75551-12370

AE9#..SED..(DX,STD)

 1
75552 - MOULDING, ROOF DRIP SIDE FINISH, LH
75552-12370

AE9#..SED..(DX,STD)

 1
75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH
75623-12460

AE95..SED;AE92..DX,STD

 1
75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH
75624-12460

AE95..SED;AE92..DX,STD

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-12860

AE95..SED;AE92..DX,STD

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-12700

AE95..SED;AE92..DX,STD

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-12630

AE95..SED;AE92..DX,STD

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-12610

AE95..SED;AE92..DX,STD

 1
