AE92L-AEHDUA (1987)

Toyota Corolla Jpp

Production Aug 1987 - Aug 1989
Engine 4AF
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

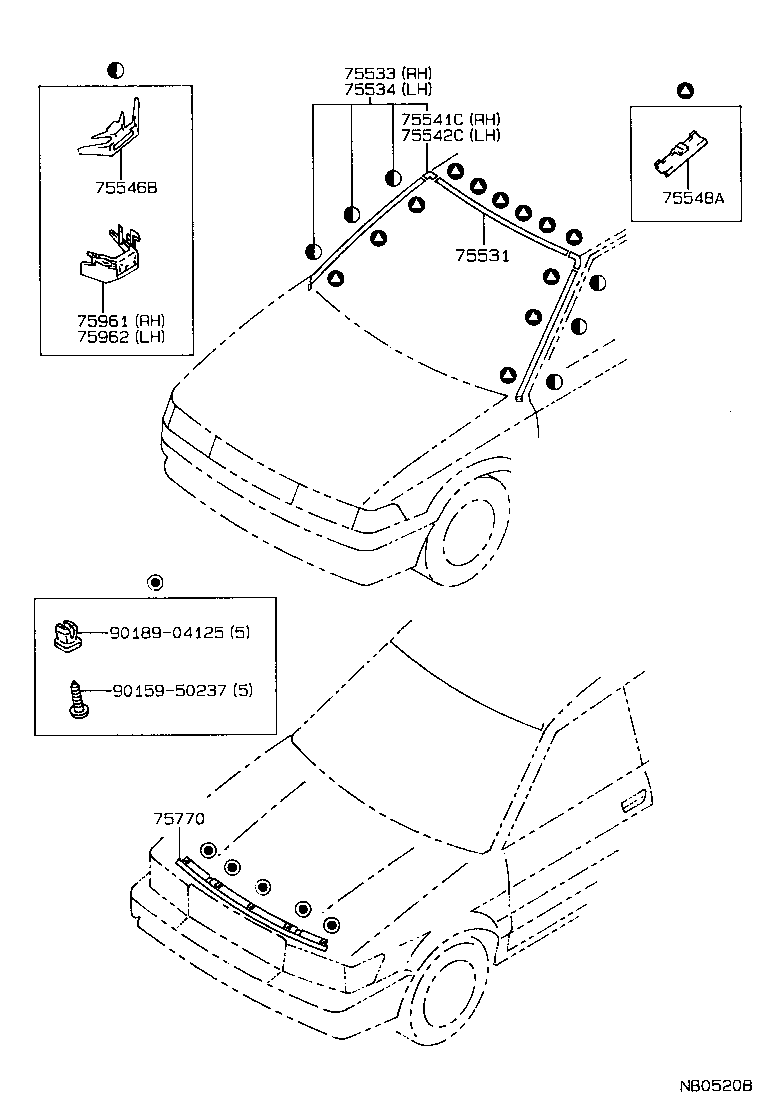

Click highlighted areas on diagram

diagram 75531 75533 75534 75541C 75542C 75546B 75548A 75770 75961 75962 9015950237 9018904125
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-12290

AE92..DX;AE95..SED

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-12290

AE95..SED;AE92..DX,STD

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-12220

AE95..SED;AE92..DX,STD

 1
75541C - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-12160

AE95..SED;AE92..DX,STD

 1
75542C - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-12130

AE95..SED;AE92..DX,STD

 1
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-12060

AE92;AE95..SED

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-16030

AE92;AE95..SED

 8
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-12010

AE92;AE95..SED

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-12010

AE92;AE95..SED

 1
Common parts
90159-50237
90189-04125
