AE92L-AEHDUA (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

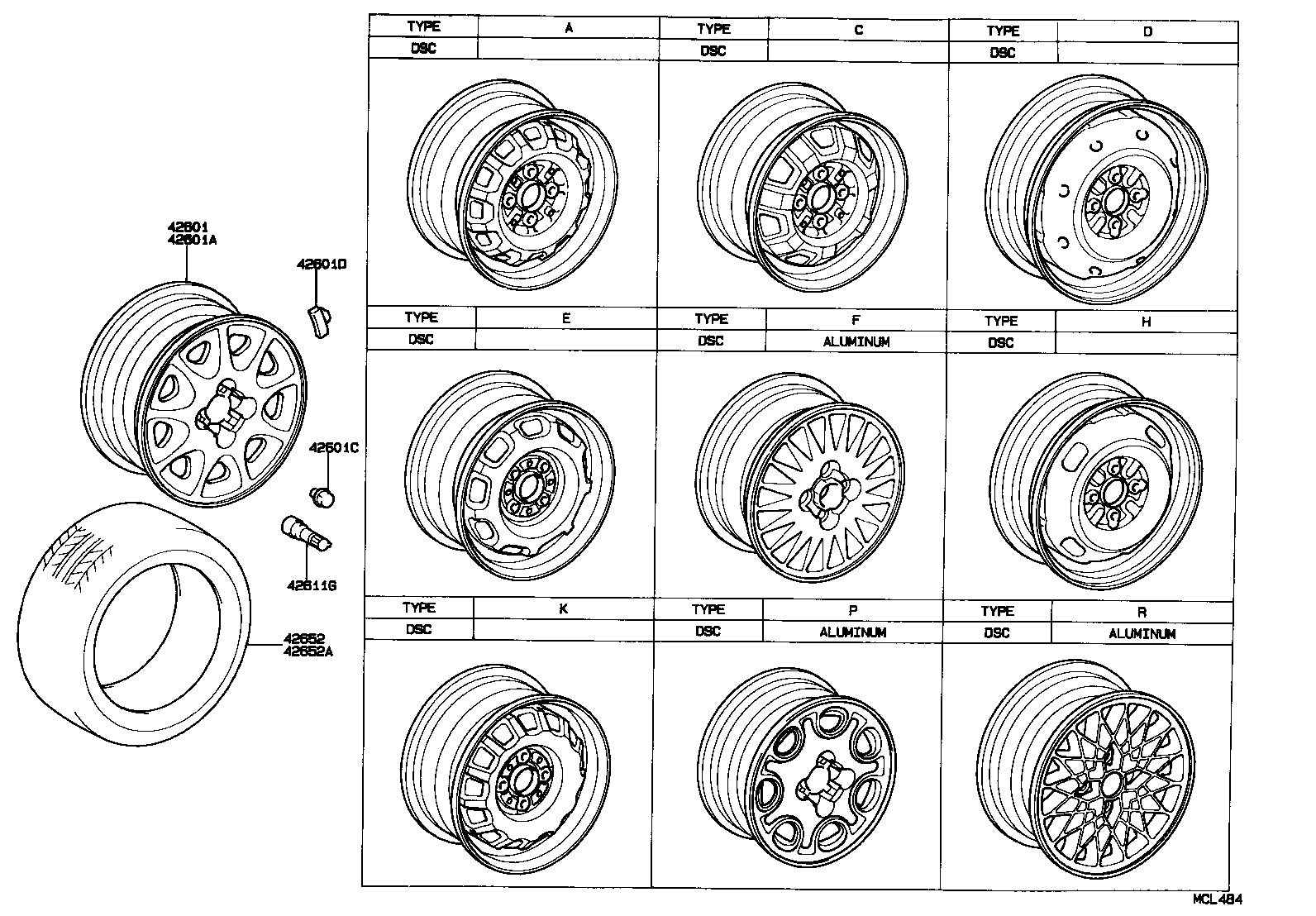

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-1276001 |
AE92..SED..DX 13X5J,SILVER,040 ,164 ,168 ,3E5 ,3H4 ,4H5 ,4H6 ,4H8 ,8D7 ,8D8,TYPE A |
4 | ||
| 42611-2030003 |
AE92..SED..DX..USA 13X5J,DARK GRAY,TYPE C |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-16220 |
AE92 14X4T,TYPE H |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
AE92;AE95..SED |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
AE9# 30G,T=10 |
1 | ||
| 90942-03017 |
AE9# 20G,T=8 |
1 | ||
| 90942-03031 |
AE9# 80G,T=9.5 |
1 | ||
| 90942-03027 |
AE9# 60G,T=9.5 |
1 | ||
| 90942-03108 |
AE9# 65G |
1 | ||
| 90942-03022 |
AE9# 40G,T=9.5 |
1 | ||
| 90942-03029 |
AE9# 70G,T=9.5 |
1 | ||
| 90942-03161 |
AE9# 5G |
1 | ||
| 90942-03098 |
AE9# 15G |
1 | ||
| 90942-03109 |
AE9# 75G |
1 | ||
| 90942-03041 |
AE9# 10G,T=7.5 |
1 | ||
| 90942-03101 |
AE9# 45G |
1 | ||
| 90942-03102 |
AE9# 55G |
1 | ||
| 90942-03025 |
AE9# 50G,T=9.5 |
1 | ||
| 90942-03099 |
AE9# 25G |
1 | ||
| 90942-03100 |
AE9# 35G |
1 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
AE9# |
5 | ||
| 42652 - TIRE | ||||
| 42652-12670 |
AE92..3FC,5F 155SR13 |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-12370 |
AE92 T115/70D14 |
1 | ||

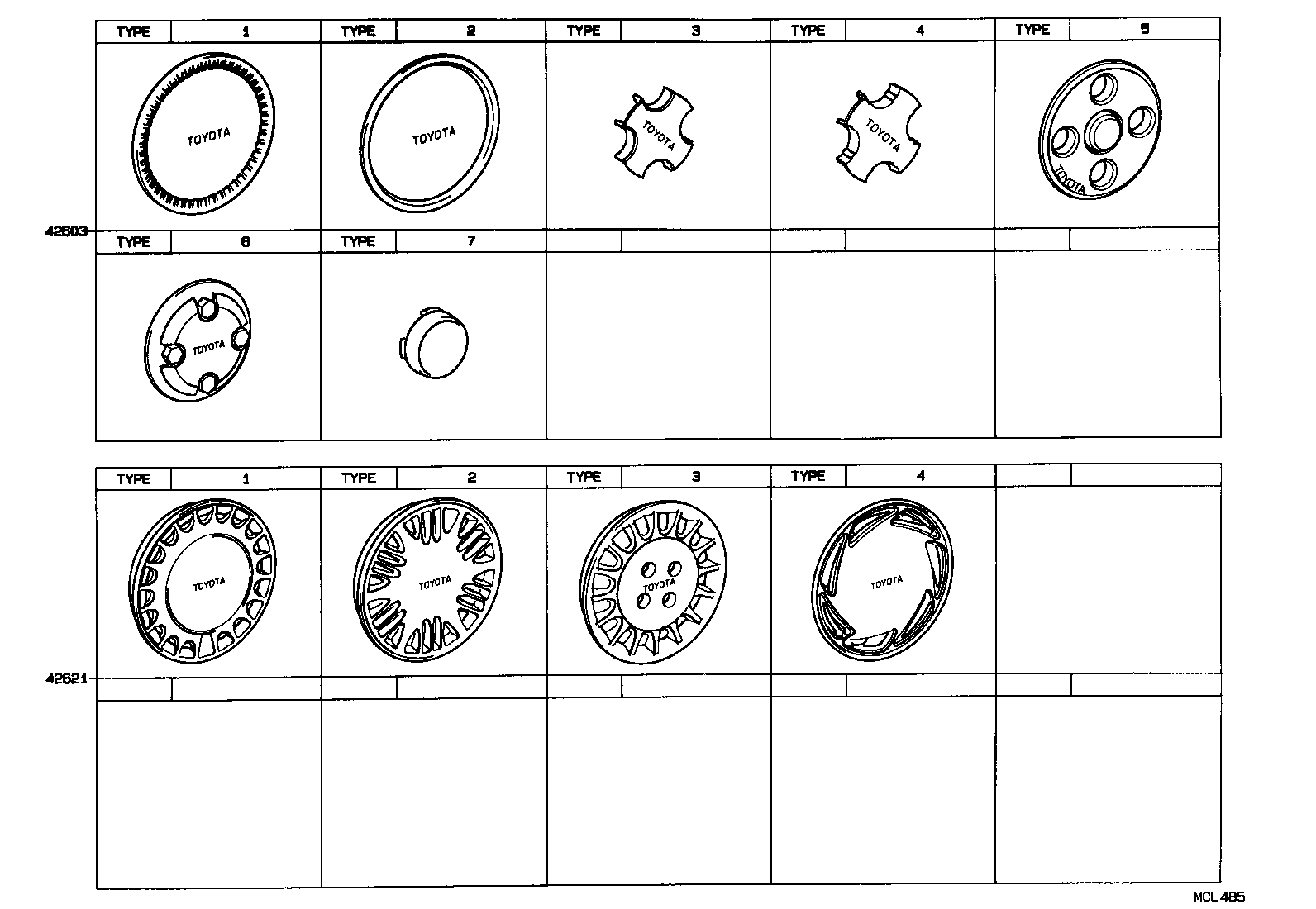

ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-12370 |
AE92..DX *STE |
4 | ||
| 42603-12230 |
AE92..SED..DX..USA *STE |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-12130 |
AE92..SED |
4 | ||
