AE92L-AEHDUA (1987)
Toyota Corolla Jpp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )3FC

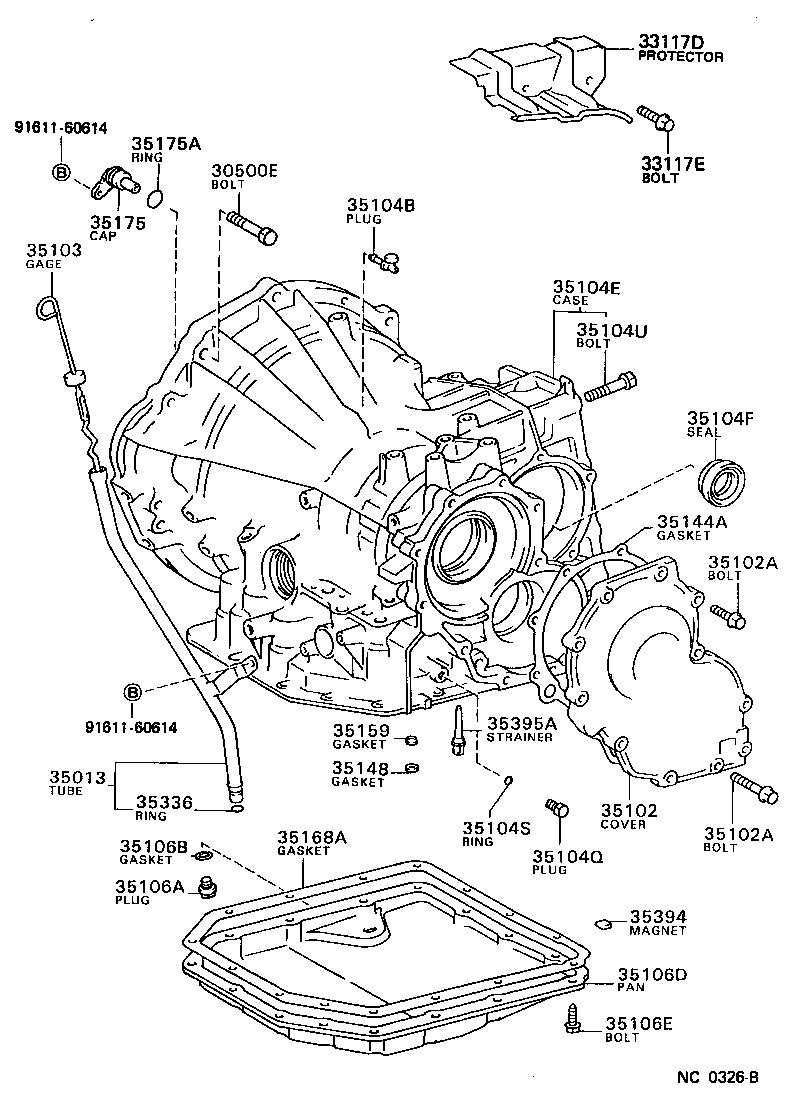

Click highlighted areas on diagram
A131L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91619-61245 |
AE9#..ATM *12-1.25PX45-30 |
2 | ||
| 90105-10077 |
AE9#..ATM *10-1.25PX43-26 |
1 | ||
| 90119-12168 |
AE9#..ATM *12-1.25PX55-30 |
1 | ||
| 91611-61025 |
AE9#..ATM *10-1.25PX25-25 |
1 | ||
| 33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE | ||||
| 33117-12040 |
AE92..3FC |
1 | ||
| 33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR) | ||||
| 90105-08040 |
AE9#..ATM |
2 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-12220 |
AE92..3FC |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-12020 |
AE92..3FC..USA |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08050 |
AE92..3FC *8-1.25PX28-28 |
9 | ||
| 90105-08056 |
AE92..3FC *8-1.25PX40-40 |
2 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08050 |
AE92..3FC *8-1.25PX28-28 |
9 | ||
| 90105-08056 |
AE92..3FC *8-1.25PX40-40 |
2 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-12150 |
AE92..3FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03089 |
AE92..3FC |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-12161 |
AE92..3FC..USA |
1 | ||
| 35104F - SEAL, OIL (FOR TRANSAXLE CASE) | ||||
| 90311-34005 |
AE92..3FC |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
AE92..3FC..USA |
3 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
AE92..3FC..USA |
3 | ||
| 35104U - BOLT (FOR TRANSAXLE CASE) | ||||
| 90105-10008 |
AE92..3FC..CBR;AE92..3FC..CND..EFI *10-1.25PX53-26 |
2 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
AE92..3FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
AE92..3FC |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
AE92..3FC |
15 | ||
| 35144A - GASKET, TRANSAXLE REAR COVER | ||||
| 34112-32010 |
AE92..3FC |
1 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35148-16010 |
AE9#..ATM |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-32011 |
AE92..3FC |
1 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-32010 |
AE92..3FC |
1 | ||
| 35175 - CAP, TRANSAXLE CASE, NO.2 | ||||
| 35175-32010 |
AE92..3FC |
1 | ||
| 35175A - RING, O (FOR TRANSAXLE CASE CAP) | ||||
| 90301-21002 |
AE92..3FC |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
AE9#..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
AE92..4FC..EFI;AE9#..ATM..(DX,STD) |
3 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-32011 |
AE92..3FC |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
