AE102L-AWPNKK (1992)

Toyota Corolla Jpp

Production Jun 1992 - Apr 1997
Engine 7AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9206- )JPP..4FC

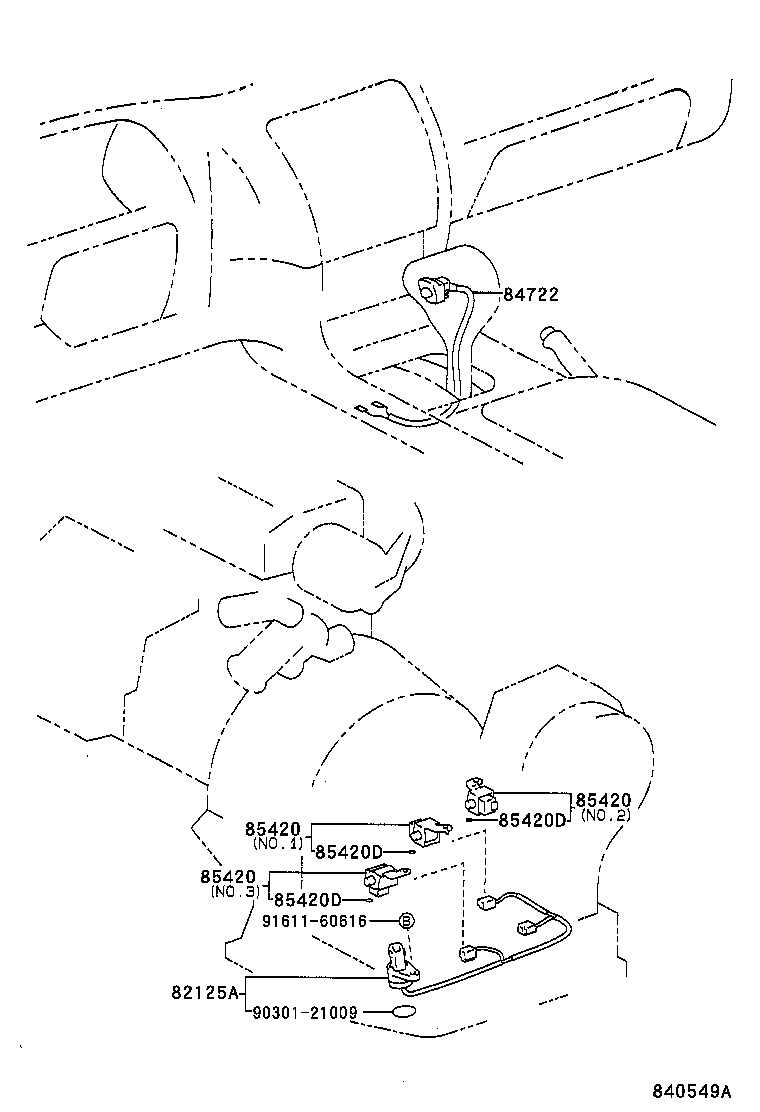

Click highlighted areas on diagram

diagram 82125A 84722 85420 85420 85420 85420D 85420D 85420D 9030121009 9161160616
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-12350

AE102..JPP..4FC..N

 1
82125-12350

AE102..JPP..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-02020E1

AE102..JPP..4FC

OAK,TRIM4#,(L)

 1
84722-12070B0

AE102..JPP..4FC

SHADOW GRAY,TRIM1#

 1
84722-12070J0

AE102..JPP..4FC

DARK BLUE,TRIM8#

 1
84722-12070E0

AE102..JPP..4FC

OAK,TRIM4#,(J)

 1
84722-12070K0

AE102..JPP..4FC

TAUPE,TRIM9#

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12100

AE102..JPP..4FC

NO.1

 1
85420-12120

AE102..JPP..4FC..N

NO.2

 1
85420-12120

AE102..JPP..4FC

NO.2

 1
85420-12140

AE102..JPP..4FC

NO.3(LOCK UP)

 1
85420-12100

AE102..JPP..4FC..N

NO.1

 1
85420-12140

AE102..JPP..4FC..N

NO.3(LOCK UP)

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12100

AE102..JPP..4FC

NO.1

 1
85420-12120

AE102..JPP..4FC..N

NO.2

 1
85420-12120

AE102..JPP..4FC

NO.2

 1
85420-12140

AE102..JPP..4FC

NO.3(LOCK UP)

 1
85420-12100

AE102..JPP..4FC..N

NO.1

 1
85420-12140

AE102..JPP..4FC..N

NO.3(LOCK UP)

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-12100

AE102..JPP..4FC

NO.1

 1
85420-12120

AE102..JPP..4FC..N

NO.2

 1
85420-12120

AE102..JPP..4FC

NO.2

 1
85420-12140

AE102..JPP..4FC

NO.3(LOCK UP)

 1
85420-12100

AE102..JPP..4FC..N

NO.1

 1
85420-12140

AE102..JPP..4FC..N

NO.3(LOCK UP)

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE102..JPP..4FC

 3
90301-06004

AE102..JPP..4FC..N

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE102..JPP..4FC

 3
90301-06004

AE102..JPP..4FC..N

 3
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

AE102..JPP..4FC

 3
90301-06004

AE102..JPP..4FC..N

 3
Common parts
90301-21009
91611-60616
